Chilean aircraft industry

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Hi all,
I'm curious about indigenous aircraft designs in Chile.
It seems there was nothing before the war, only some Curtiss assembled locally from US-made parts.

For the postwar period, I've found a very interesting page about locally built trainers, written by Ivan Siminic:
http://ivansiminic.blogspot.fr/2006/11/los-primeros-pasos-del-pilln.html

The aircraft mentioned are:
- Maestranza Central de Aviación "Triciclo Experimental", registered XX-01

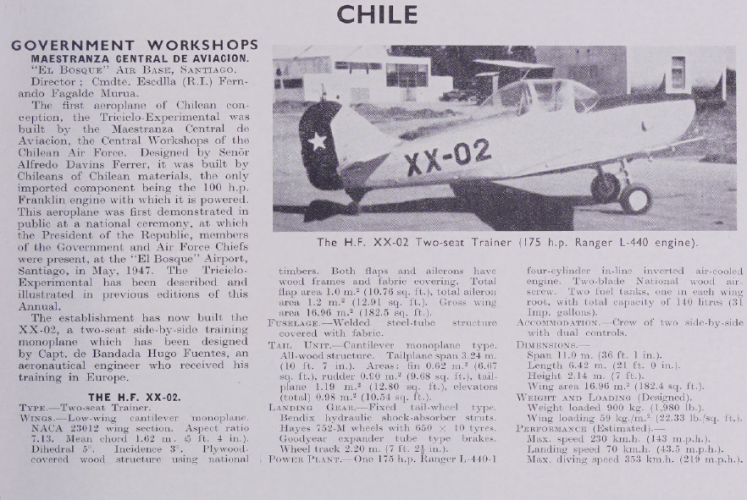

- Maestranza Central de Aviación HF XX-02

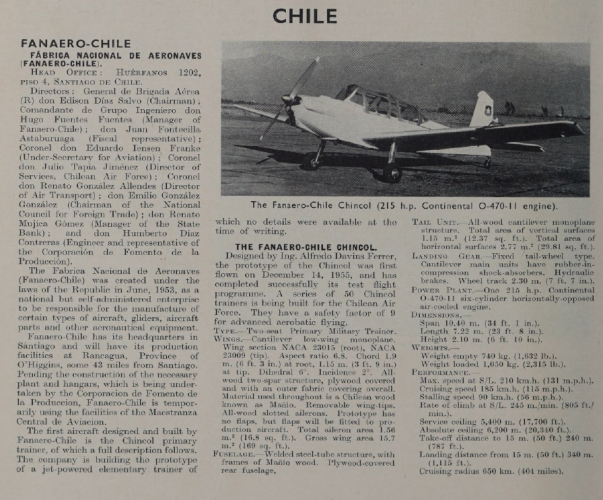

- Fábrica Nacional de Aeronaves (Fanaero-Chile) Chincol

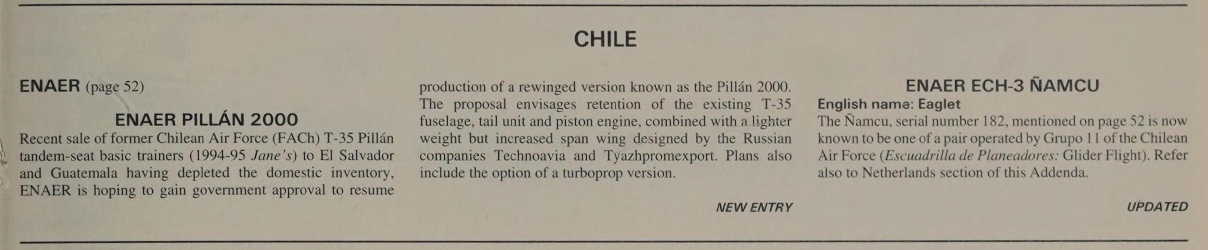

- the various versions of the Enaer ECH-51 Pillán trainer designed by Piper

In the same website, there is another page about the Enaer ECH-02 Ñamcu and Euro-Enaer EE-10 Eaglet:
http://ivansiminic.blogspot.fr/2010/09/breve-historia-del-namcu-chileno-demos.html

Are there more aircraft and projects?
Adrien


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
My dear Adrien,


I check from may old encyclopedias,but nothing more than this up to this moment.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
Hi c460,
I have two pre war aircrafts...
See Prewar aircraft projects.

Have a nice day.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

the Fabrica Nacional de Aeronaves Fanaero was a two seat jet trainer Project of 1960,
never completed.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,656
Reaction score
1,014
Flight, 3 Feb 1949, pg 126

Produced by the Central Workshops of the Chilean Air Force, the Maertranza Central de Aviación, at Santiago, the Triciclo-Experimental two-seat low-wing monoplane is indicative of the interest being taken by the smaller Republics of South America in the possiblities of building aircraft from locally produced materials. The Triciclo-Experimental has been constructed from native woods bonded by casein glue of local manufacture and its engine is the only imported item.

Senor Alfredo D. Ferrer[*] is the designer of this aircraft, which has a fixed tricylce undercarriage, twin fins and rudders, and is powered by a Franklin [O-225-4A4-10] four-cylinder horizontally-opposed air-cooled engine which develops 95 h.p. at 2,450 r.p.m. Complete dual controls are fitted in the side-by-side cabin, and radio equipment of Chilean design is fitted.

https://www.flightglobal.com/pdfarchive/view/1949/1949%20-%200190.html

The article is accompanied by a photograph of the prototype credited to William Green:
http://photos1.blogger.com/x/blogger2/921/1599/1600/409240/Triciclo%20Experimental.jpg

* FACh contractor Alfredo Davins is usually credited with designing the Triciclo-Experimental. The 1954 HF XX-02 was designed by Hugo Fuentes. Davins Ferrer designed the later Fanero-Chile Chincol trainer.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

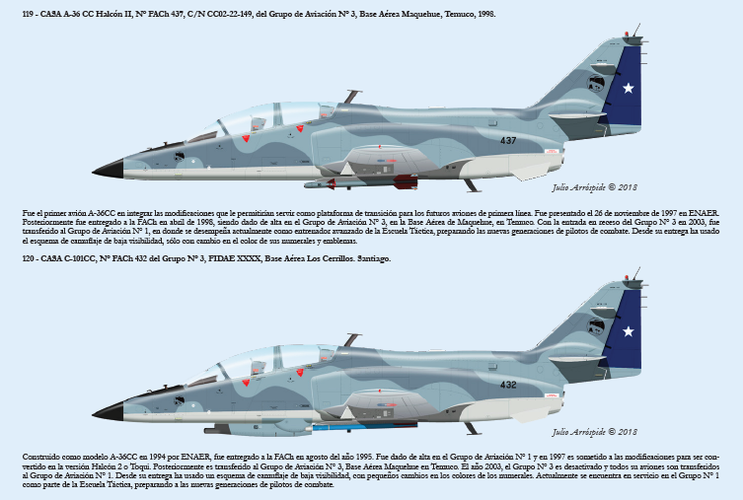

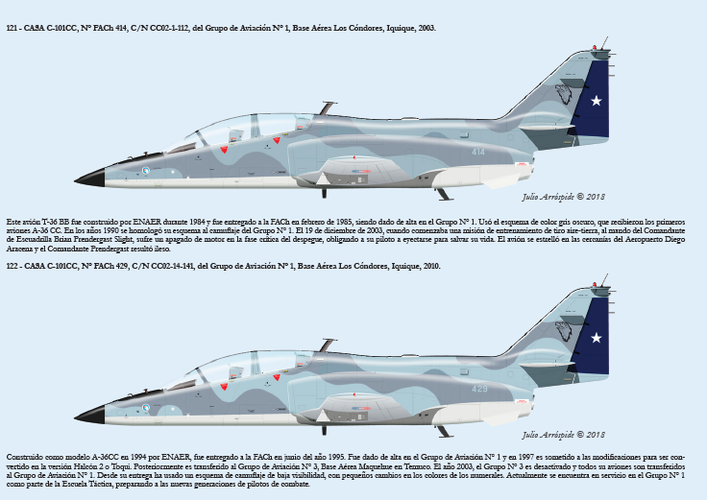

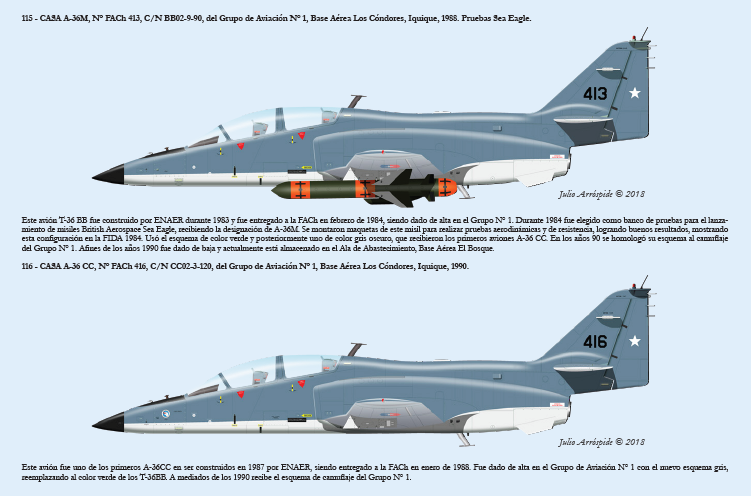

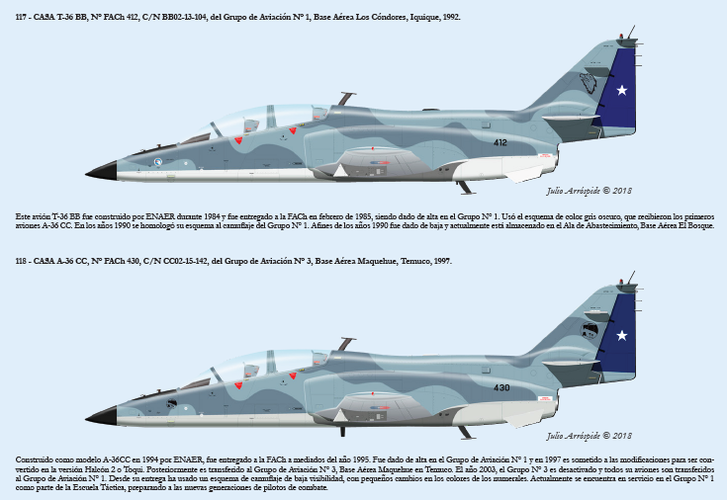

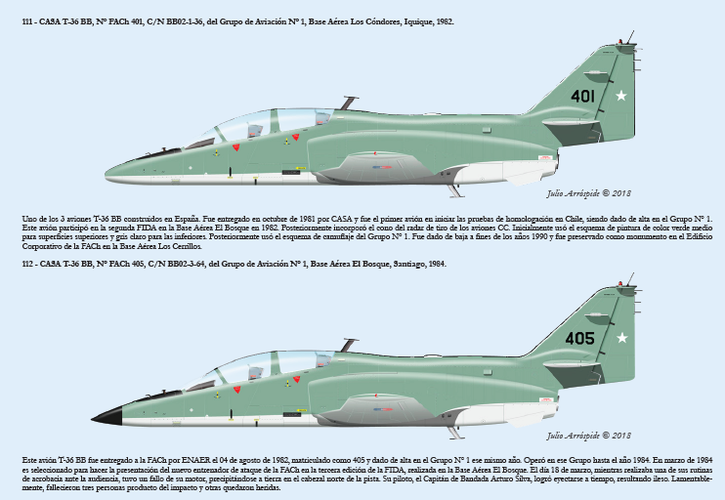

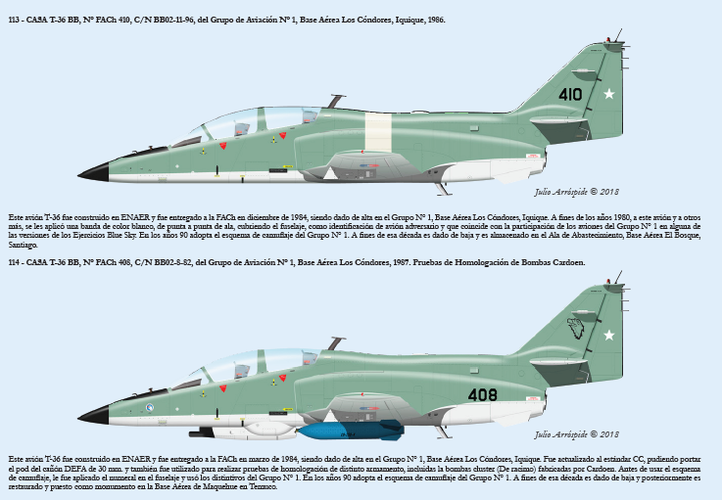

The Enaer T-36.

Del Vampire al Viper en la Fuerza de Chile


Attachments

  • 1.png
    139.4 KB · Views: 32
  • 2.png
    145.3 KB · Views: 29
  • 3.png
    145.8 KB · Views: 29
  • 4.png
    146.2 KB · Views: 29
  • 5.png
    157.9 KB · Views: 28
  • 6.png
    148.8 KB · Views: 31
