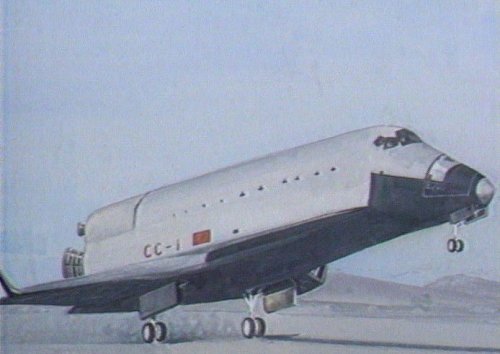

Artist's impression of Changcheng 1 (Chinese for "Great Wall 1") space plane.

which was suggested by the China Academy of Launch Vehicle Technology (CALT), at the time part of the Ministry of Aerospace Industry. It too closely resembled the US Space Shuttle, with just a few modifications. It would have no tail fin and two small wing-tip stabilizers, while a jet engine would have been added at the tail end for low-speed flight. To get to orbit it would have been lifted by three expendable boosters based on Long March technology and burning N2O2 and UDMH. The shuttle itself would be perched in the centremost of the three boosters and complete the burn to orbit after separation from the first stage rockets using its own engine running on the same two propellants.

The Changcheng 1 orbiter would have been about two-thirds the size of the US Shuttle or Buran, being 24.7 meters long, having a wingspan of 14 meters, and a landing mass of 32 tonnes . It would have carried five taikonauts (two of them pilots) and had a payload of 5 tonnes to LEO. If all went according to plan, the first flight would have been in 2008.

Source:
http://falsesteps.wordpress.com/2012/10/27/tian-jiao-1chang-cheng-1v-2h-2-the-chinese-spaceplane/
