Caudron-Viscaya P.V.200 catamaran amphibian (1932) & PV-102

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
45
Website
cmeunier.chez-alice.fr
There was a 3-view of the PV-200 in the issues I have checked I think, but this was not "unbuilt" ("secret project"). The Docavia book (I have not this one) might be the final reference...


Attachments

  • r_pv200.JPG
    104.3 KB · Views: 412

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108

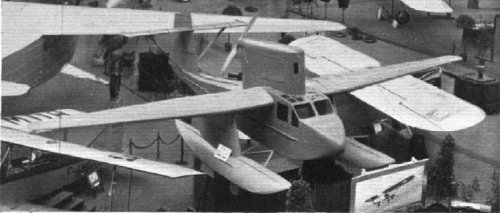

The PV-200 was presented in the Paris Air Salon of 1932.

from the text in ' Avions Caudron' tome II par André Hauet
collections Histoire de l'Aviation "...le Caudron PV-200 conçu par l'ingénieur
Pierre de Viscaya ne dépasse pas le stade de prototype..."


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265

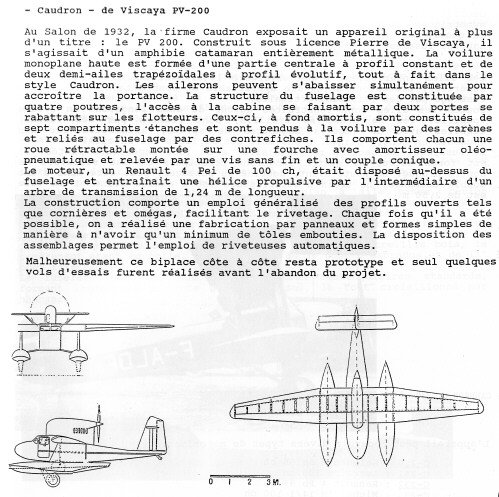

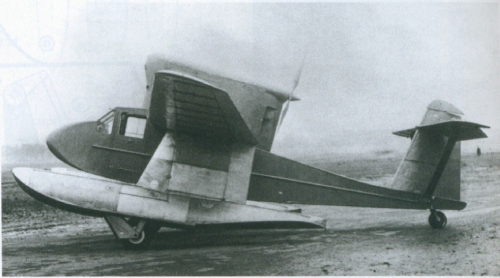

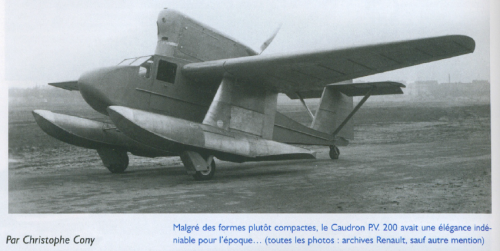

From Avions 110.


Attachments

  • 1.png
    720 KB · Views: 257
  • 2.png
    992.1 KB · Views: 223

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
37
Digging out this old thread...

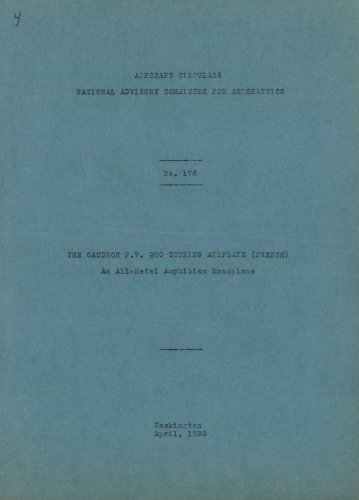

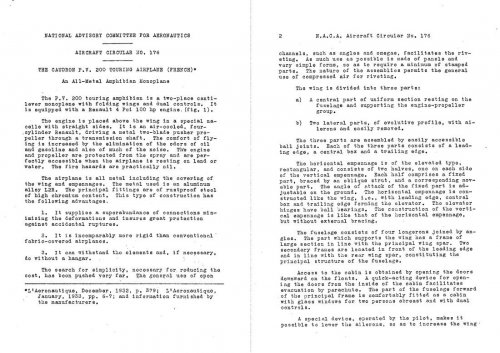

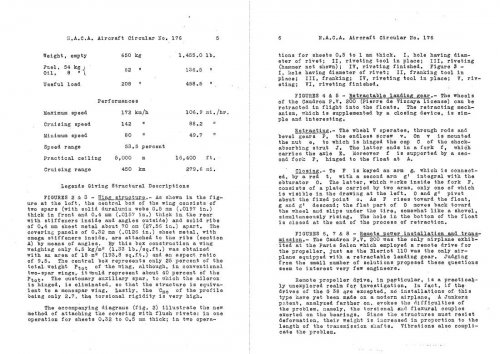

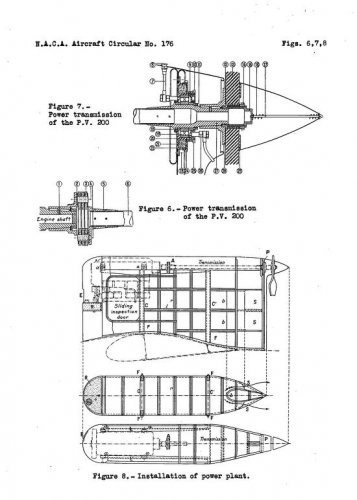

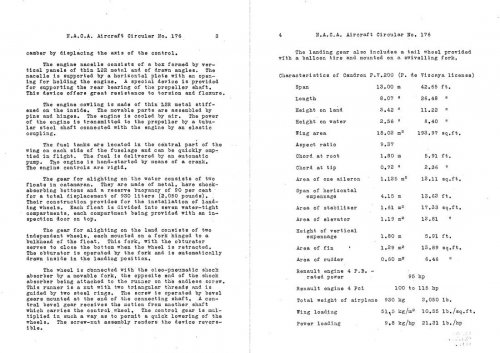

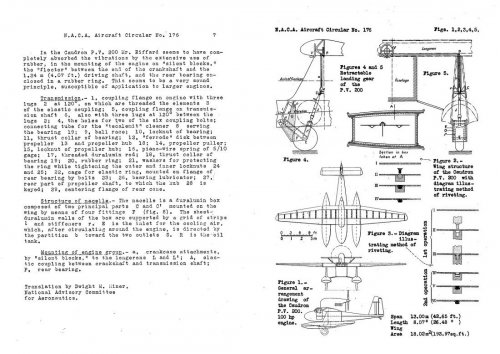

I found a technical description of the Caudron PV.200 at the NASA archives:

https://archive.org/details/NASA_NTRS_Archive_19930090484

Enjoy!


Attachments

  • NASA_NTRS_Archive_19930090484_0009.jpg
    59.3 KB · Views: 39
  • NASA_NTRS_Archive_19930090484_0007-8.jpg
    297.6 KB · Views: 37
  • NASA_NTRS_Archive_19930090484_0005-6.jpg
    329.7 KB · Views: 20
  • NASA_NTRS_Archive_19930090484_0003-4.jpg
    277.5 KB · Views: 19
  • NASA_NTRS_Archive_19930090484_0001-2.jpg
    311.1 KB · Views: 21
  • NASA_NTRS_Archive_19930090484_0000.jpg
    148 KB · Views: 124

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,975
Reaction score
5,265
From TU 306,

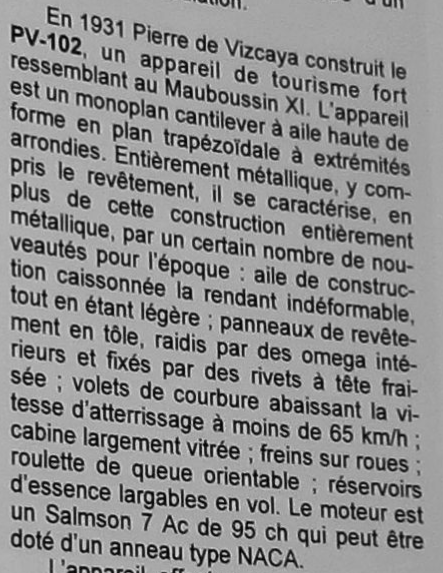

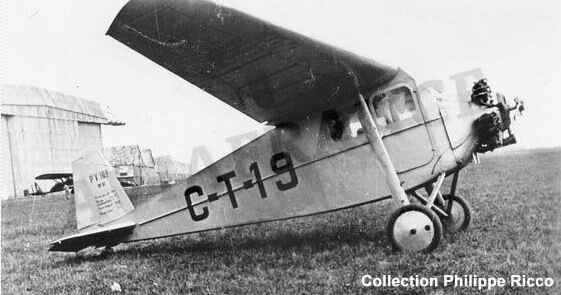

there was also PV-102;

In 1934 Prierre Vizcaya built the PV-102, a strong tourist look alike
airplane is at Mauboussin XI. The airplane is a high-wing cantilever monoplane of trapezoidal plan shape at ends rounded. Fully Metallic, including the coating, it is characterized by more of this construction
entirely metallic, by a certain number of novelties for the time: wing of boxed construction making it dimensionally stable, while being light; sheet metal cladding panels, stiffened by internal omega and fixed by countersunk rivets,
curvature flaps lowering the landing speed to less than 65 km / h;
largely glazed cabin; wheel brakes: swivel tail wheel; reservoirs
gasoline droppable in flight. The engine is a Salmson 7 Ac of 95 hp which
can be fitted with a NACA type ring.

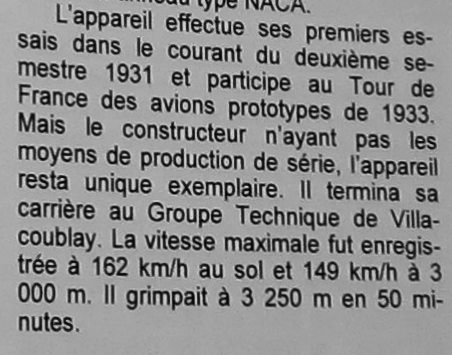

The aircraft carried out its first tests during the second half of 1931 and
took part in the Tour de France of the prototype planes of 1933.But the manufacturer does not have the means of series production, the airplane
remained unique copy. He finished his career at Villacoublay Technical
Group. The maximum speed was recorded at 162 km / h on the ground
and 149 km / h at 3000 m. It climbed to 3,250 m in 50 minutes.


Attachments

  • 1.png
    280 KB · Views: 10
  • 2.png
    167.6 KB · Views: 19
