Hi All -

On EPay is this Carter Aircraft wind tunnel model and blueprints:

http://www.ebay.com/itm/1960s-Carter-1-4-Scale-Wind-Tunnel-Prototype-Model-Airplane-w-Blueprints-/231594782879?pt=LH_DefaultDomain_0&hash=item35ec1ff09f

From the description:

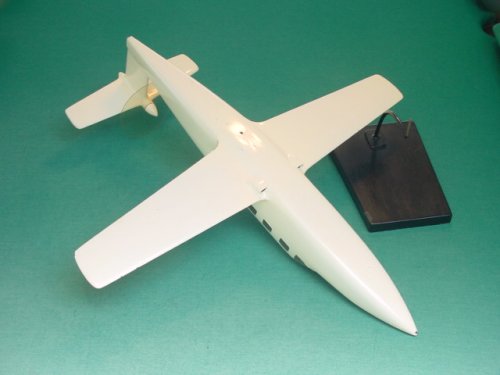

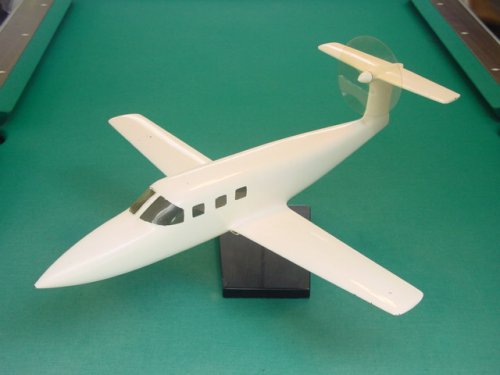

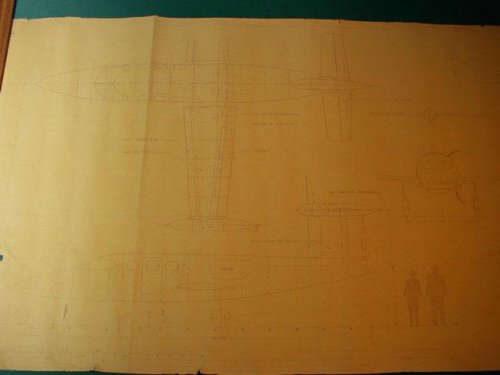

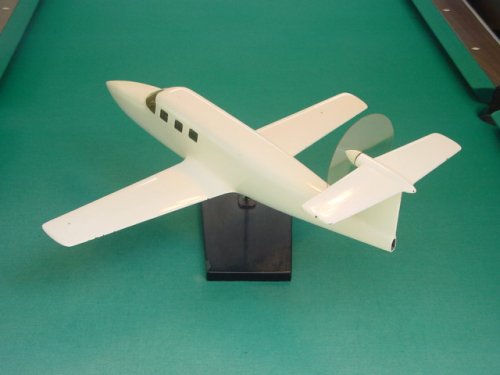

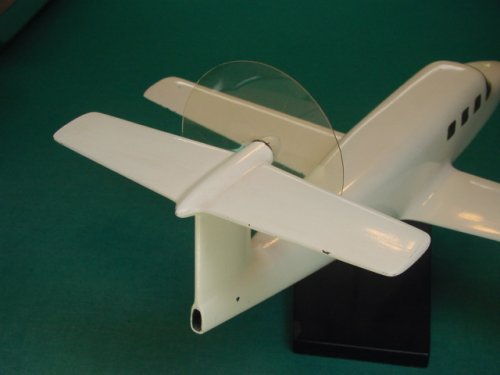

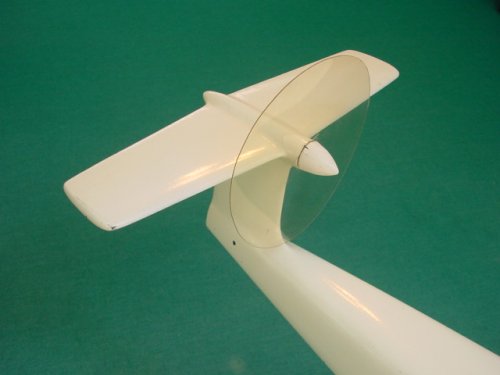

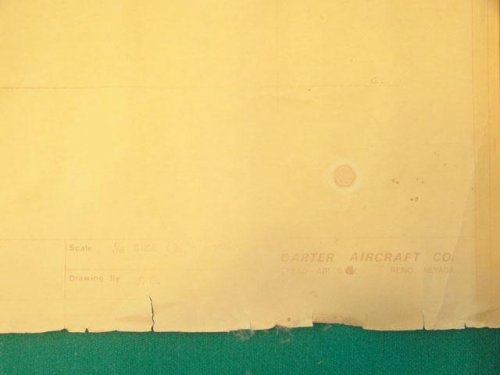

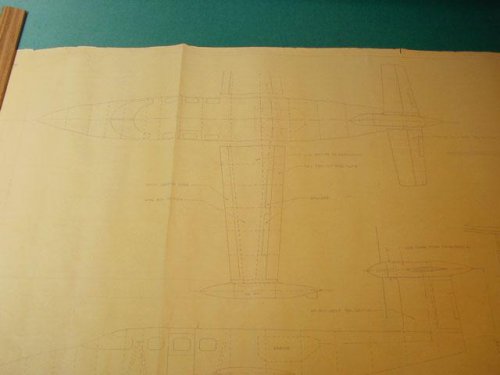

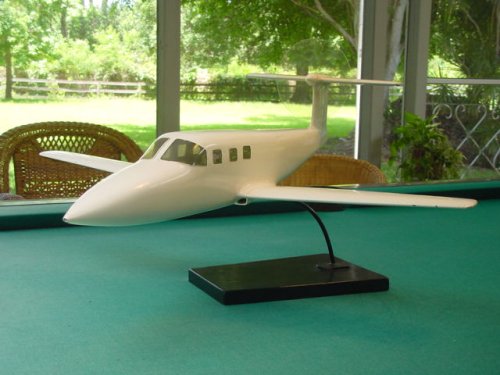

1960’s 1/4" scale, “Carter Aircraft” Prototype Wind Test Model Airplane and 1/16 scale blueprint. The undated blueprint measures 28” tall by 51” wide and is marked Carter Aircraft, Co., Stead Air Base, Reno NV and Drawing by J.C. It is faded and has many rips and chips but all the drawings and text are still intact with no tape repairs. It should be professionally mounted and covered away from sunlight to preserve it. The all-original model airplane measures 28” long, 26” wide, 8” tall to the top of the plastic propeller, 6” to the top of the rear wing. Wood stand measures 10” by 7” at the widest and the curved metal holder is 5 ½” tall to where the plane rests on it. Model plane and stand weigh 5 lb. Plane is made mostly out of fiberglass.
Enjoy the Day! Mark


Attachments

  • Carter Single Engine Model - 1.JPG
    Carter Single Engine Model - 1.JPG
    61.1 KB · Views: 58
  • Carter Single Engine Model - 2.JPG
    Carter Single Engine Model - 2.JPG
    60.6 KB · Views: 58
  • Carter Single Engine Model - 3.JPG
    Carter Single Engine Model - 3.JPG
    58.4 KB · Views: 55
  • Carter Single Engine Model - 4.JPG
    Carter Single Engine Model - 4.JPG
    59.1 KB · Views: 51
  • Carter Single Engine Model - 5.JPG
    Carter Single Engine Model - 5.JPG
    58.2 KB · Views: 50
  • Carter Single Engine Model - 6.JPG
    Carter Single Engine Model - 6.JPG
    56.4 KB · Views: 5

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
701
Reaction score
501
Carter Aircraft model and drawing

http://www.ebay.com/itm/1960s-Carter-1-4-Scale-Wind-Tunnel-Prototype-Model-Airplane-w-Blueprints-/322200956567?hash=item4b04ac6e97:g:1moAAOSw3xJVdFAi


Attachments

  • Carterrr.JPG
    24.8 KB · Views: 36
  • Carterzn.JPG
    18.8 KB · Views: 36
  • Cartert.JPG
    21.4 KB · Views: 38
  • Cartere.JPG
    60.6 KB · Views: 40
  • Carterd.JPG
    61.1 KB · Views: 39
  • Carterzn.JPG
    18.8 KB · Views: 7

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,459
Reaction score
6,113
Re: Carter Aircraft model and drawing

Great find RAP,

and nothing about it in JAWA or Aerofiles.
