Re: CANSA FC.20 - the unbuilt one

Very interesting. You always amazed with new projects I didn't know.


zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
Re: CANSA FC.20 - the unbuilt one

Thanks. It took a lot of my spare times, but the next one will be a very interesting piaggio project (already shown in the forum, but only in 2d)


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,098
Reaction score
28
Re: CANSA FC.20 - the unbuilt one

Very nice! This version of the FC.20 had four I-F Deltas?


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,321
Reaction score
9
Website
cluttonfred.info
Re: CANSA FC.20 - the unbuilt one

These are some beautiful renderings of very unique designs Marco. Do you have a site in addtion to your Facebook page? It would be nice to see each design presented with its history and specifications and all the renderings in one place. What is that wonderful flying wing?


zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
Re: CANSA FC.20 - the unbuilt one

Thanks to all.
I have only the fb page right now, in which I show my little book about less known model.
Writing these booklets, main problem was the pictures: quality and copiright issues, I mean. So I decided to be indipendent from external source and draw the aircraft to myself as part of my future book.
I'm also learning Inkscape to draw 2d -faster but less fascinating.

The flying wing was the Piana-Canova P.C.1500, a paper plane designed by ing. Piana Canova in the late 30s.
The site is a good idea, but expensive (cost and/or time). I'm searching for something as effective, but faster to manage. Ideas?

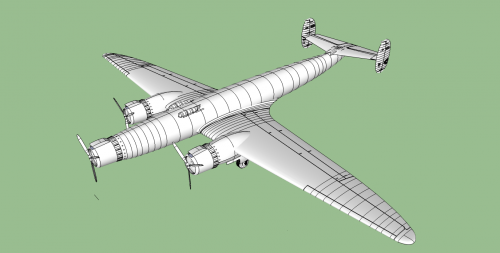

Thanks in advance for every suggestion. Attached, my next work.
Cheers from Pisa.


Attachments

zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
Re: CANSA FC.20 - the unbuilt one

Apophenia said:
Very nice! This version of the FC.20 had four I-F Deltas?
I should verify from the source. Hope can help asap (no promises ;D ).


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,321
Reaction score
9
Website
cluttonfred.info
Re: CANSA FC.20 - the unbuilt one

zeroc said:
The flying wing was the Piana-Canova P.C.1500, a paper plane designed by ing. Piana Canova in the late 30s.
That's a really lovely design very reminscent of some of Favel's real and paper planes. Do you have specs you can share? Was it meant to be armed?

zeroc said:
The site is a good idea, but expensive (cost and/or time). I'm searching for something as effective, but faster to manage. Ideas? Thanks in advance for every suggestion.
There are a number of free web site solutions that can produce very nice results. My own site cluttonfred.info is actually hosted on Tumblr, a blogging platform, which works well for my needs: a handfull of static pages with short notes of new pics, clips, project news, etc. as time goes by.

I have seen some very slick sites made with Wix, and there are a number of free Wix "portfolio" templates that might work well for you--more of a collection in electronic form. Something like this, for example? http://www.wix.com/website-template/view/html/1159?originUrl=http%3A%2F%2Fwww.wix.com%2Fwebsite%2Ftemplates%2Fhtml%2Fdesign%2Fportfolio%2F2&bookName=create-master-115&galleryDocIndex=3 Wix limits the total number of pages and levels, but you could, for example, post the specs and history of each design with your favorite render and a link to a Flickr photoset (also free) with all the images for each aircraft modeled.

Cheers,

Matthew


zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
Re: CANSA FC.20 - the unbuilt one

cluttonfred said:
zeroc said:
The flying wing was the Piana-Canova P.C.1500, a paper plane designed by ing. Piana Canova in the late 30s.
That's a really lovely design very reminscent of some of Favel's real and paper planes. Do you have specs you can share? Was it meant to be armed?

zeroc said:
The site is a good idea, but expensive (cost and/or time). I'm searching for something as effective, but faster to manage. Ideas? Thanks in advance for every suggestion.
There are a number of free web site solutions that can produce very nice results. My own site cluttonfred.info is actually hosted on Tumblr, a blogging platform, which works well for my needs: a handfull of static pages with short notes of new pics, clips, project news, etc. as time goes by.

I have seen some very slick sites made with Wix, and there are a number of free Wix "portfolio" templates that might work well for you--more of a collection in electronic form. Something like this, for example? http://www.wix.com/website-template/view/html/1159?originUrl=http%3A%2F%2Fwww.wix.com%2Fwebsite%2Ftemplates%2Fhtml%2Fdesign%2Fportfolio%2F2&bookName=create-master-115&galleryDocIndex=3 Wix limits the total number of pages and levels, but you could, for example, post the specs and history of each design with your favorite render and a link to a Flickr photoset (also free) with all the images for each aircraft modeled.

Cheers,

Matthew
Thank you for the precious info!

Being a whole concept plane, Piana Canova P.C.1500 has not specifications and/or performances known, and I'm not sure was made for carrying other than people.

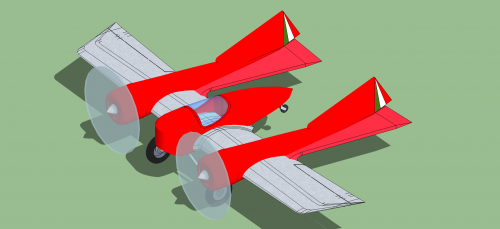

Attached, another (unnamed and not rendered) paper plane from Ing. Piana Canova.


Attachments

zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
Re: CANSA FC.20 - the unbuilt one

Apologize to all! I have been misleaded by a typo on the book I've used as source, on which this plane was called FC.20A. Instead, this was the F.C.22A.
The title of the post is changed accordingly, sorry for the mistake!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,436
Reaction score
307
My dear Zeroc,

I am still confuse,was there CANSA FC.22 or not ?.


zeroc

CLEARANCE: Confidential
Joined
Apr 20, 2010
Messages
85
Reaction score
0
hesham said:
My dear Zeroc,

I am still confuse,was there CANSA FC.22 or not ?.
Sorry for the late reply.
Due to a typo on the original image caption, I've labeled this fictional plane as FC20, that was actually a real plane.
My work depicts FC22 an unbuilt one.
;-)
