Canadian NRC tailless glider

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
Link's not working for me...

I'm sure I've seen it before.
To me it's almost as if it has Burnelli written all over it!


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
Whoa....NOT Burnelli........!
It's the canadian NRC (or NRL) glider, first flown in 1946... :eek:
There's an article about it in Aeroplane Monthly, August 1976.

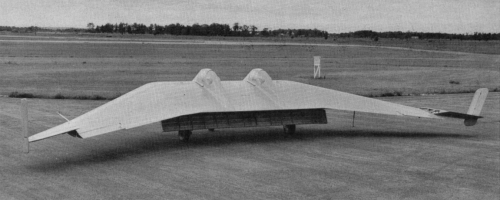

I'll post a summary in due course, but for now, here's a couple of pictures...

cheers,
Robin.


Attachments

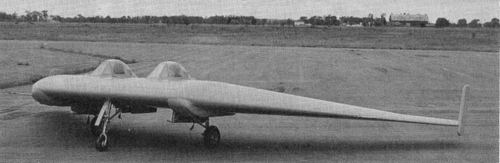

  • NRC Glider.png
    NRC Glider.png
    299.6 KB · Views: 276

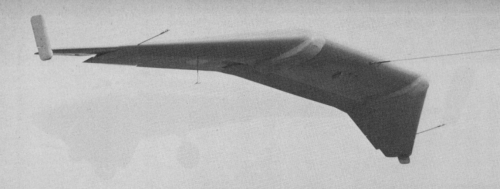

  • NRC Glider take off.png
    NRC Glider take off.png
    503.8 KB · Views: 257

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
14
Website
rwrwalker.ca
This aircraft was a carry on from previous work done at Westlands in the UK, using some ex-Westlands senior staff, and was known as the Pterodactyl VII. Good summary at http://www.canadianwings.com/Aircraft/aircraftDetail.php?NRC-Pterodactyl-258 . Testing was supported by the RCAF, but as far as I can determine the aircraft was always the property of the NRC, which at the time belonged to the Treasury Board, not the DND. No civil registration or military serial ever marked, as far as I can tell.

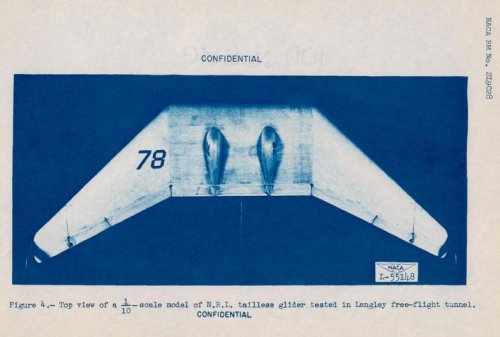

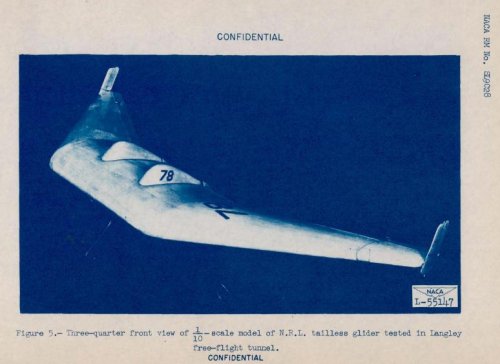

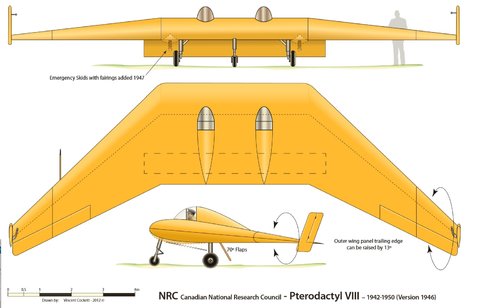

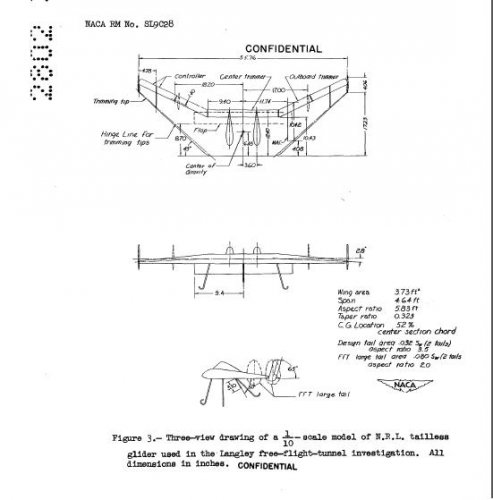

The NRL on the NASA drawing stands for National Research Laboratory, a branch of the NRC (National Research Council).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
robunos said:
Whoa....NOT Burnelli........! It's the canadian NRC (or NRL) glider, first flown in 1946... :eek:
I'll post a summary in due course, but for now, here's a couple of pictures..

Thanks a lot for this, Bill!

Bill Walker said:
This aircraft was a carry on from previous work done at Westlands in the UK, using some ex-Westlands senior staff, and was known as the Pterodactyl VII.

The page you linked says Pterodactyl VIII...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
Okay, here's some more, from the 'Aeroplane' article...
The project was originally proposed by Professor G.T.R.Hill, of Pterodactyl fame, and Hill made the preliminary studies. Detail design was by NRC staff, under the leadership of G.S.Levy and Thor Stephenson. Professor Hill was British Scientific Liason Officer to the NRC at the time.
The aircraft was originally to be a 1/3 scale powered model, but evolved into a full-size glider.
Construction was of wood, but the wing surface was covered in a laminated plastic layer, to give a smooth surface.
The wing was fitted with rotating tip sections, for trimming purposes, and tip mounted fins and rudders. Two sets were constructed, one with a symmetrical section, the other with a cambered section. Control was via elevons, and split flaps were fitted, hydraulically operated. The tricycle undercarriage was retractable and fitted with brakes.
The glider was first flown by the famous Austrian sailplane pilot, Robert Kronfeld in the summer of 1946. After 30 hours flying, the aircraft was modified; the one piece canopies were replaced with fixed windscreens and sliding canopies, the main wheels were moved aft, to correct the centre of gravity, and retactable skids, to prevent a nose over during a wheels-up landing, were fitted in bulges under the wing leading edge.
Flying behaviour was considered good, although there were problems with flow separation around the separate canopies.
The major problem was that only 20% of a flight was considered useful testing time, along with the fact that a tug and crew were also needed.
After the test program ended, the glider was abandoned in the open, deteriorating until finally broken up in the mid 1950s.

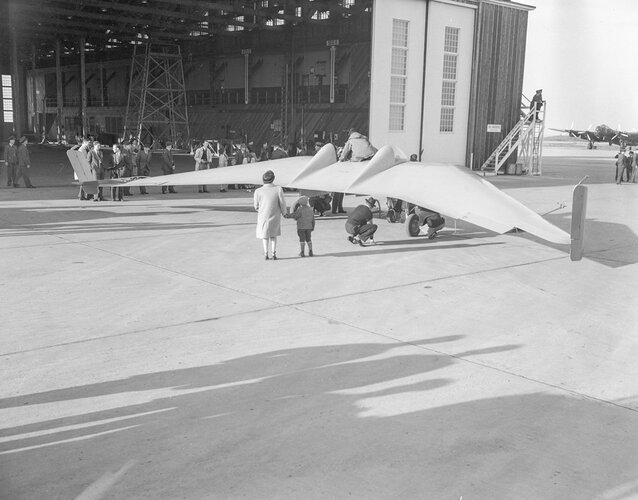

Some more images...

cheers,
Robin.


Attachments

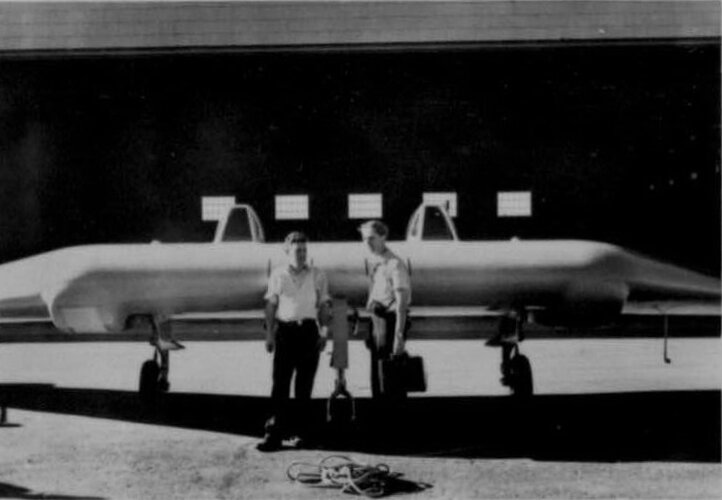

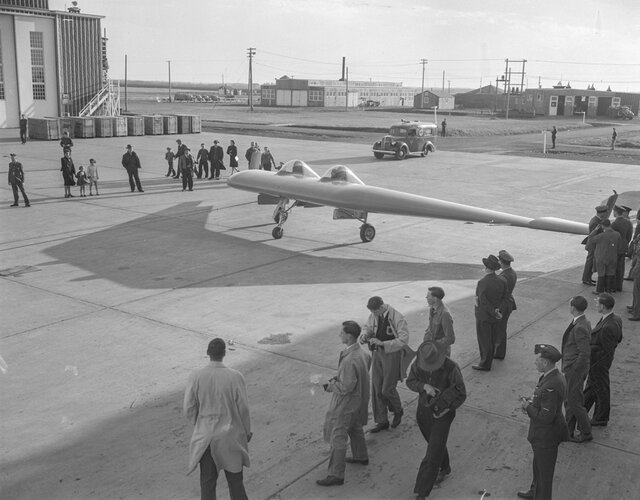

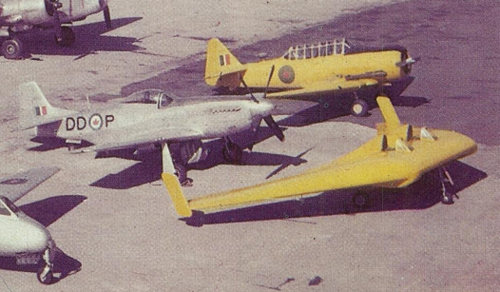

  • NRC Glider colour.png
    NRC Glider colour.png
    982.7 KB · Views: 58

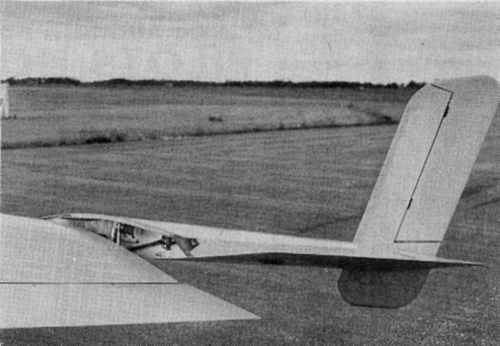

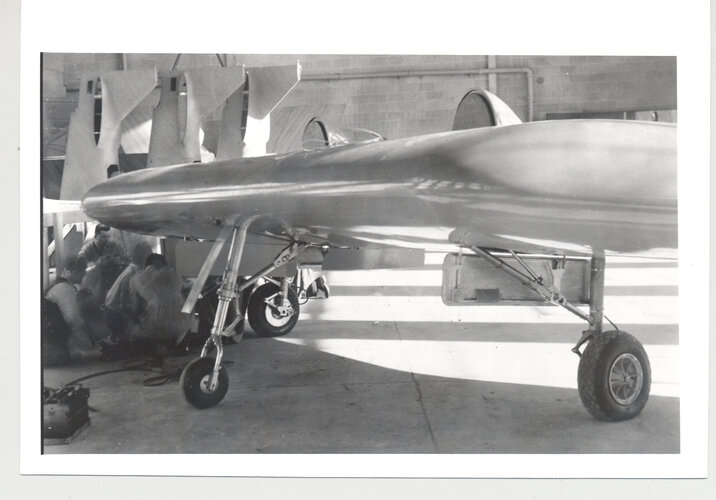

  • NRC Glider wingtip detail.png
    NRC Glider wingtip detail.png
    553.4 KB · Views: 45

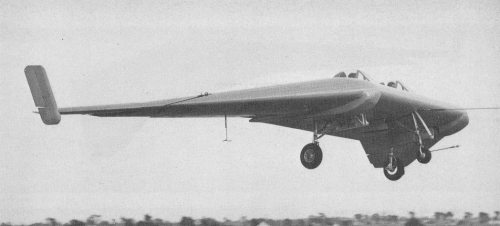

  • NRC Glider take off 2.png
    NRC Glider take off 2.png
    369.8 KB · Views: 40

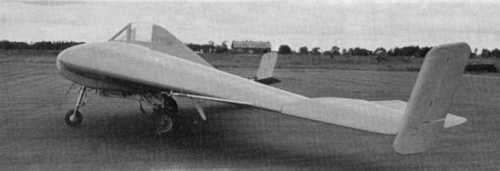

  • NRC Glider side.png
    NRC Glider side.png
    141.7 KB · Views: 41

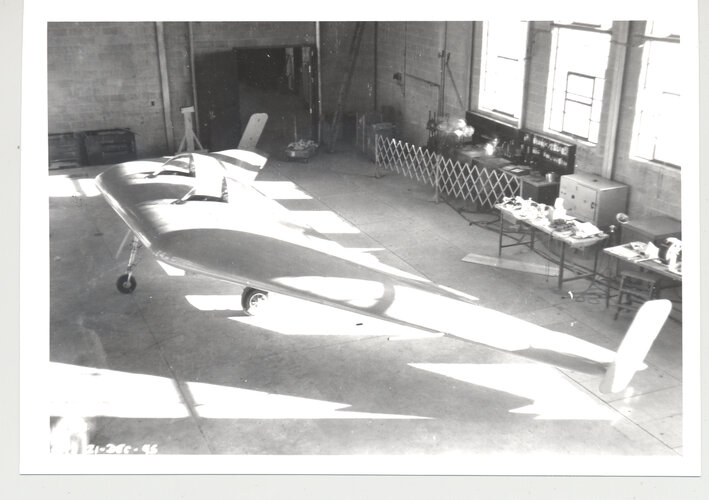

  • NRC Glider rear.png
    NRC Glider rear.png
    470.6 KB · Views: 41

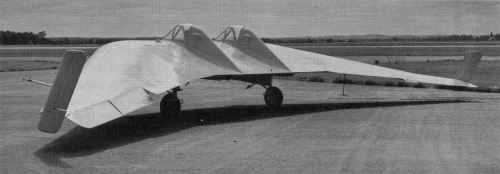

  • NRC Glider rear three quarter.png
    NRC Glider rear three quarter.png
    525.1 KB · Views: 42

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
Fantastic! Thanks a lot for filling us in on the last Pterodactyl of the dynasty (which also looks like a twice-remote cousin of the Armstrong Whitworth A.W. 52!).


Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
14
Website
rwrwalker.ca
I think Pterodactyl VIII for the NRC project was an unoffical Canadian name. The Pterodactyl VIII in Hesham's lattest post is probably a proposed follow on in the UK, probably at Westland.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
159
The NRC glider was simply called "The Wing"...
The "Pterodactyl VIII" in Hesham's last post is the Short company proposal to the Brabazon Commitee post-war civil transport aircraft studies. This project was equiped with 5 Griffon pusher engines and a "quilted" pressure cabin.

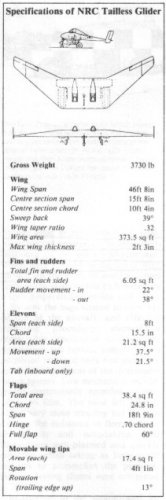

Specifications here-after (Source: "Sixty Years; The RCAF and CF Air Command 1924-1984" by Larry Milberry)


Attachments

  • NRC glider specs.jpg
    NRC glider specs.jpg
    38.8 KB · Views: 56

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
...and was known as the Pterodactyl VII.

The aircraft was originally to be a 1/3 scale powered model, but evolved into a full-size glider.

I take the second sentence to mean that the original plan for what became the NRC Glider was to be a 1/3 powered scale model of the Pterodactyl VIII airliner concept, but that this plan was dropped, the aircraft then being built as the NRC glider.

cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
822
That's also what I think Robin — despite the difference in shape of the wing's trailing edge. Thanks for your comment!


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,154
Reaction score
715
Website
www.steelpillow.com
robunos said:
I take the second sentence to mean that the original plan for what became the NRC Glider was to be a 1/3 powered scale model of the Pterodactyl VIII airliner concept, but that this plan was dropped, the aircraft then being built as the NRC glider.

Can I suggest that this is probably incorrect? The Pterodactyl VIII airliner was the last of the prewar projects by Westland Aircraft and it did not last long. The NRC plane was purely a research aircraft with no immediate follow-up project in mind. It is sometimes referred to as, or confused with, the Pterodactyl VIII but as far as I can tell this appears to be a recent Internet meme with no historical foundation.


fortrena

ACCESS: Confidential
Joined
Dec 15, 2020
Messages
162
Reaction score
322
A few thoughts if I may.

The story of the one and only piloted aircraft capable of flying built in the workshops of the National Research Council of Canada (NRC) began in 1942. That year, Geoffrey Terence Roland Hill became the scientific liaison officer between the United Kingdom’s Ministry of Aircraft Production and a Canadian counterpart, the Department of Munitions and Supply.

Fascinated since the early 1920s by the development of tailless aircraft, some of which were manufactured during the 1920s and 1930s, under the name Pterodactyl, this aeronautical engineer obtained from NRC that his most recent concept, a transport aircraft, the Pterodactyl VIII perhaps, be tested in a wind tunnel. At this time, indeed, efforts to maximise the performance of aircraft of various types was sparking renewed interest in tailless aircraft, or flying wings, in the United States and United Kingdom.

In early 1943, NRC considered carrying out Hill’s project using a scale model capable of flying. The British engineer succeeded in convincing it of the usefulness of building a piloted glider to study the flight characteristics of the new tailless aircraft. Since the project did not have a very high priority, the Royal Canadian Air Force (RCAF) was opposed to an aircraft manufacturer building this prototype. The NRC Associate Committee on Aeronautical Research approved in November 1943 the construction of two two-seater wooden gliders that reproduced on a 1/3 scale the transport plane imagined by Hill.

Manufactured in Ottawa, in the NRC’s Structures Laboratory during the summer and fall of 1945, the NRC Glider or NRL (National Research Laboratories) Glider only flew in the spring of 1946, at Namao, an RCAF station near Edmonton, Alberta. Construction of the second glider appears to have been abandoned before it even began. That said, in September 1948, a transport plane towed the NRC Glider from Namao to Arnprior, Ontario, with a few stops along the way - a 3,700 km (2,300 mi) flight that was among the longest ever. With the craze for tailless planes drawing to a close, the glider was put away over the next few weeks, before being scrapped in the mid-1950s.

Stay safe.
