C(X)-6 VSTOL/ STOL projects

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
145

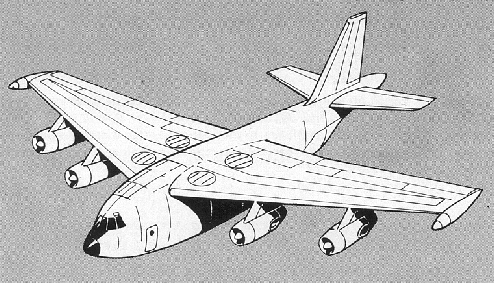

What was the CX-6 - a project number/designation, the abbreviation for a military cargo freighter competition or something else?

The illustration is from "Der Flieger" 2-3/1968, but I miss the details :( .


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
145
As usual, I've forgotten to attach the drawing ... sorry.


Attachments

  • CX-6.gif
    148.1 KB · Views: 1,457

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
Maybe this could be usefull:

From:Aviation Week & Space Technology ,June 24,1968.page 74.

*North American.
With extensive lift-fan transport experience dating from
before the CX-6 V/STOL transport studies,North American has evolved a concept
that could serve as a commercial VTOL transport...


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888

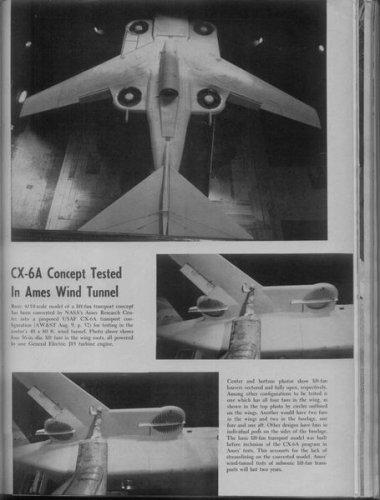

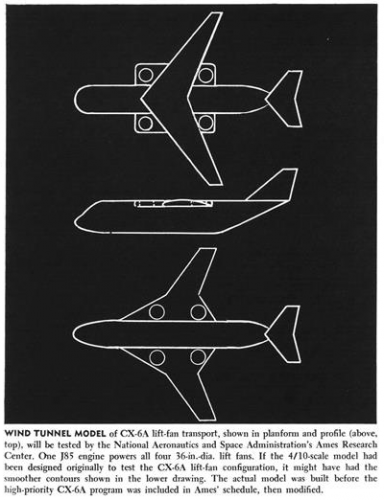

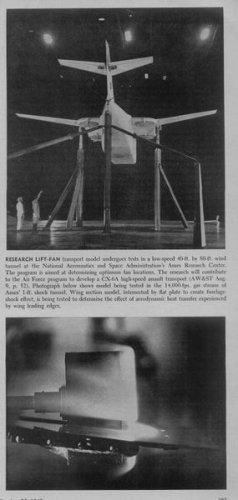

The only CX-6 I could find, is this fan-in-wing model, built by
North American:
(from Aviation Week 10/65)
But it's just a model to test different wing/fan layouts, I think.


Attachments

  • NASA-CX-6A-1.JPG
    37.8 KB · Views: 1,201
  • NASA-CX-6A-2.JPG
    38.6 KB · Views: 1,158
  • NASA-CX-6A-3.JPG
    26.6 KB · Views: 1,097

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888

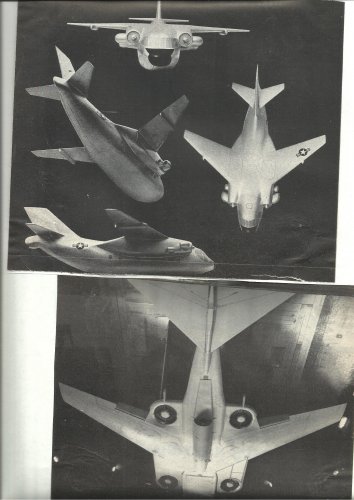

Oops, pictures designated "Nasa" in the North American folder and the other way round ... ::)

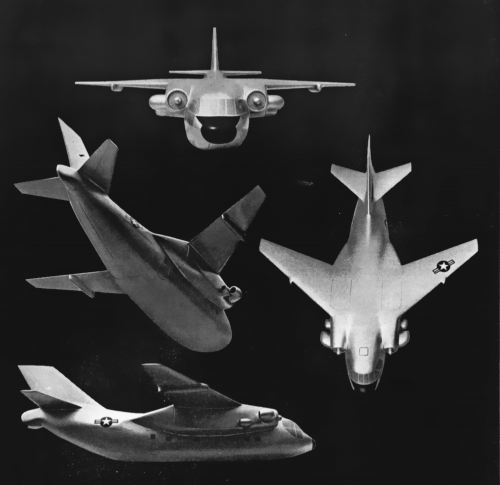

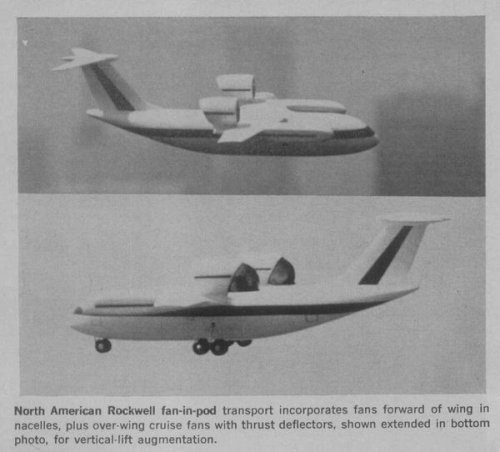

Here's a model of a VSTOL transport with fan-in-pod design (from Aviation Week 1968 19-26) :


Attachments

  • NA-fan-in-pod-transport.JPG
    37.5 KB · Views: 1,186

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
Jemiba,

In the June 24 issue of 1968 there's only text...


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888
"In the June 24 issue of 1968 there's only text... "

Two years ago, I borrowed all issues of Avaition Week I could find in our largest
public library here and they came as very massive books. As I was in quite a hurry
to scan interesting pages, I gave the volume numbers as reference, which aren't
corresponding to the single issues, sorry. So, all I can say is, that these pictures
were shown in an issue between the 19th and 26th week of 1968 ...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
North American and Boeing studied 20,000lb payload VSTOL transport configurations for the C-6A program, and North American showed an early configuration at Paris (1965?).


Source:
Flying Review International, August 1965


Deino

CLEARANCE: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,709
Reaction score
461
Hmmm interesting ... all I found so far about a C-6 is this small picture labled CX-6 !!


Attachments

  • CX-6.gif
    148.1 KB · Views: 110

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
145
Paul, please use the search engine ;D :D ;)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
Well- didn't take me long :)

Jemiba's NASA model

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19670024125_1967024125.pdf


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
and:
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19940011245_1994011245.pdf


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888

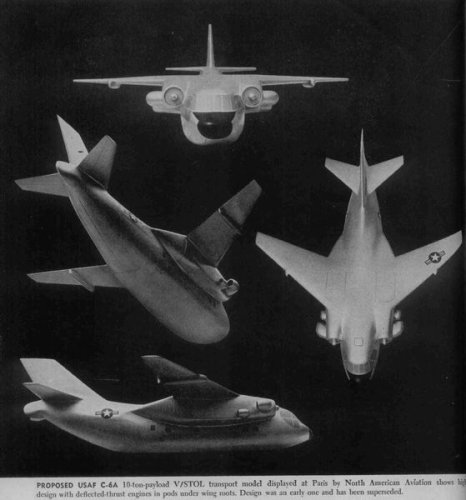

A North American design for the USAF C-6A , 10t V/STOL transport.
Two engines with deflected thrust in wingroot pods

(from Aviation Week1965 18-26)


Attachments

  • NA_C-6A.JPG
    39.4 KB · Views: 1,736

toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
93
Hi all

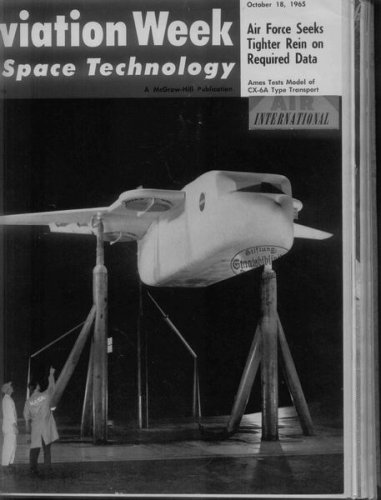

A long time ago.....1963 ! in "aviation week and space techenologie"
I 've found this..it is an unbuild project from North American : the C 6 A.

DO YOU KNOW ???


Attachments

  • north.jpg
    670.3 KB · Views: 838

toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
93
Excuse me Jemiba you post the same some
time ago !!!!!


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888
No problem ! Can you tell us, what the design on the lower
picture (with the four lift-fans) is ?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
In the Bell papers which just display by Steve Pace ,the Bell D-2274 was
submitted to this tender,so may be it was this;


Attachments

  • CX-6.gif
    148.1 KB · Views: 481

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
We can say,the competitors were;


Bell D-2274
Boeing or Boeing Vertol ---?
Lockheed CL-?
North American ----?
McDonnell M-?
Ryan ----?


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,443
Reaction score
168
Could it be Lockheed CL-988?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
pometablava said:
Could it be Lockheed CL-988?


My dear Pometablava,


do you have a more info or a drawing to it ?.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
What made you think , that the plane in reply#21 ,is a Bell design Hesham ?


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,443
Reaction score
168
No details hesham, I'm sorry.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
OK my dear Pometablava,


I hope to know the McDonnell proposal.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
Yes , the Bell designation is mentioned indeed Hesham, but I
saw no relation the the drawing...

By the way , have you seen the customer for the
design on Steve's list.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
OK my dear Lark,


we can say,also the General Dynamics/Convair submitted a proposal,but the
Bell responded about its support system study.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66

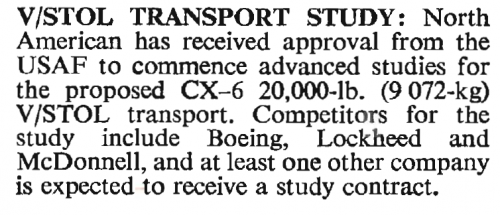

To conclude for the moment , it seems that for only one contender (NAA) the illustrations
are for sure...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
hesham said:
We can say,the competitors were;


Bell D-2274
Boeing or Boeing Vertol ---?
Lockheed CL-?
North American ----?
McDonnell M-?
Ryan ----?


My dear Lark,


also Boeing,Lockheed and McDonnell were confirmed by Flying Review magazine,to be enter
this competition.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
I have the Flying Review magazine in my (paper) collection Hesham
but I was talking about the illustrations..


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
From; Flugwaffe und Fliegerabwehr 1967,


here is an artist drawing to CX-6 proposal,may be it was from Fairchild and
based on C-123 ?.


Attachments

  • CX-6.png
    350.5 KB · Views: 994

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
From Flyinf Review 3/1965,


here is a small info about CX-6 competition.


Attachments

  • CX-6  3-1965.png
    CX-6 3-1965.png
    95.8 KB · Views: 782

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

here is un-cleared view to Boeing-Vertol CX-6 Proposal.

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf


Attachments

  • 2.png
    183.8 KB · Views: 643

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
10-Ton-Payload USAF V/STOL Studied

Paris—Boeing Co. and North American Aviation are expected to receive Air Force approval soon for detailed design studies of powerplant configurations for a proposed C-6A 10-ton-payload V-STOL transport. If approved the aircraft would be a direct follow-on to the 4-ton-payload Ling-Temco-Vought XC-142 tilt-wing aircraft now under evaluation. Powerplants to be studied include vectored- thrust, direct-lift and fans.

Current C—6A studies being conducted by Boeing and North American under separate contracts of $330.000 each are designed primarily to determine penalties that must be paid in over-all performance, range and operating costs to gain capability of vertical flight as compared with aircraft designed solely for short takeoffs and landings.

Both firms are scheduled to present their findings this week to Air Force officials at the Pentagon.

The configuration of an early North American C-6A-type design was shown at the Paris Air Show here. It now has been superseded by later designs, including study of a compound vehicle using helicopter techniques for vertical lift and those of a conventional aircraft for range and endurance.

Air Force mission requirements laid down for both companies include a stipulation that the aircraft must have ferry range of at least 2,600 mi. The high-wing model shown by North American here was to have been powered by two high-bypass-ratio. vectored-thrust powerplants, housed in pods on either side of fuselage. Power would have been augmented by direct-lift engines located in root sections of the two pods. A tilt-wing design such as that employed on the XC-l42 is not being considered for the C-6A because of additional strains that would be involved in lifting relatively heavy loads and carrying them over long distances.

Primarily, the aircraft probably would be employed to carry cargo over medium ranges in support of combat troops in the field, although there are some proponents
in the Air Force who would employ it as vehicle to make deliveries from the continental U. S. or other major supply area directly to a battle zone. Current studies by the two contractors also include investigation of safety factors, the minimum time required for the aircraft to remain in an approach stage where it would be particularly susceptible to enemy ground fire and use considerable fuel and new techniques that might be required for identifying landing zones so that pilots could recognize them in various kinds of terrain.

An official of one of the two companies says initial assessments indicate there are no significant penalties for vertical as opposed to short-takeoff flight in an aircraft such as the C-6A if pilots can be trained to make minimum approach and hover. “If he needs 2,000 ft. to make an approach, then there's no need to have a vertical capability' he added. “Then vou might just as well stick with STOL"

Aviation Week & Space Technology, June 21, 1965


Attachments

  • NAA-C-6A.png
    324.2 KB · Views: 538

CJGibson

CLEARANCE: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,424
Reaction score
638
Looks like they nicked that design from Bristol Siddeley.

Chris


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
The Ryan CX-6A Proposal;

http://archive.aviationweek.com/image/spread/19650809/28/2


Attachments

  • CX-6A.png
    125.9 KB · Views: 395
