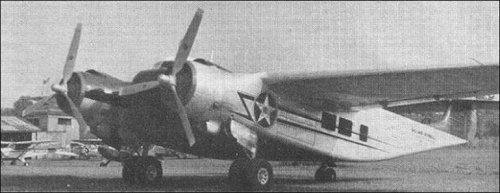

Hello friends,
surfing on the web I've found a website with some mistery aircraft: (http://s7.invisionfree.com/MARCMAP_Forum/ar/t934.htm)
The aircraft was eventually identified as Brunelli CBY-3 Loadmaster built by Canadian Car & Foundry.
The white star in blue roundel probably says it was a military type, but I'm not aware of a CBY series.
Sometime canadian designations are derived by a corresponding US designation with a C prefix, but I don't believe this is the case.

Unless it's an US Navy type designation (in that case -3 should mean the 3,rd major version...), did they existed also a CBY-1 and CBY-2 ???


Attachments

  • Burnelli_CBY-3_Loadmaster.jpg
    56.3 KB · Views: 383

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
769
Reaction score
291
Check those threads:
http://www.secretprojects.co.uk/forum/index.php/topic,878.0.html
http://www.secretprojects.co.uk/forum/index.php/topic,340.0.html
http://www.secretprojects.co.uk/forum/index.php/topic,1047.0.html

and of course http://www.burnelli.com/
;D


Sandy22

ACCESS: Restricted
Joined
Feb 13, 2007
Messages
14
Reaction score
0
Website
www.mildb.org
Thank you, dan_inbox.
Lot of very interesting stuff. I realize that CBY wasn't a military designation, but, after all, the clue that Y could mean "Consolidated" or "Convair" wasn't too far from the reality...
I discovered this forum only recently and I have still to read most of the topics.


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
6
Website
www.aerofile.ca
Here is some more info on the CBY-3.....

*******

The CBY-3 "lifting fuselage" was an evolution of the earlier Burnelli UB-14. Burnelli worked as a designer at Canada Car and Foundry Co. in Montreal and the CBY-3 was built for bush operations in northern Canada. The sole prototype was extensively tested but failed to gain a production contract.

Burnelli had a lifelong career devoted to exploiting the advantages of a lifting body airfoil concept that characterized many of his earlier aircraft designs. His last design, the CBY-3 was manufactured by CanCar in Montreal, but reverted back to Burnelli, when the CBY-3 was unable to gain a production contract. The name of the aircraft, CBY-3, was derived from the name of the three partners involved in its creation: CanCar, Burnelli and Lowell Yerex and “3” from the number of partners involved. Lowell Yerex was a New Zealander who had formed TACA – Transportes Aéreos Centroamericanos (Central American Air Transport) in Honduras in 1931, and joined the project when Burnelli convinced him that the CBY-3 could be used as both a cargo and passenger aircraft.

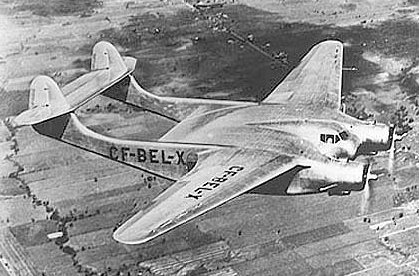

Originally registered "CF-BEL-X" while still in the experimental stage, this one-off, twin-boom, aerofoil-section fuselage, high-lift airliner garnered significant interest from the industry. "CF-BEL-X" underwent rigorous testing and proving flights designed to show off its potential. Despite a trouble-free test program and glowing accolades from the press and industry observers, no production orders resulted and the prototype was later sold in the US as "N17N."

Moving to Southampton, N.Y., Burnelli remained tireless in his determination to promote his airfoil-shaped fuselage transport planes. In 1955, he adapted the CBY-3 to carry an expedition of 20 passengers and 41 sled dogs, along with their equipment, to the North Pole, but the enterprise was canceled.

The Loadmaster continued to fly regularly as a commercial airliner both in northern Canada and South America; acquired with design rights by Airlifts Inc. in Miami, Florida, it went to Venezuela, and returned to Burnelli Avionics for refitting with Wright R-2600 engines, finally ended its flying days at Baltimore's airport in Maryland.

*********

I hope this helps

David


Attachments

  • cby3.jpg
    40.8 KB · Views: 238

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
David, any idea why the Loadmaster prototype didn't end up with TACA?

BYW, CAHS Journal, Spring 2004 (Vol 42 No 1) refers to the "Cancargo CBY-3 Loadmaster".

http://www.cahs.com/Journal04a.htm

Was Cancargo an attempted rebranding for CanCar? Or just for the Burnelli?


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
6
Website
www.aerofile.ca
Apophenia said:
David, any idea why the Loadmaster prototype didn't end up with TACA?

BYW, CAHS Journal, Spring 2004 (Vol 42 No 1) refers to the "Cancargo CBY-3 Loadmaster".

http://www.cahs.com/Journal04a.htm

Was Cancargo an attempted rebranding for CanCar? Or just for the Burnelli?

First, are you a CAHS member?

I wrote the original article on the CBY-3 in "Flypast", the Toronto Chapter newsletter, when Nes Dobson talked about the CBY-3.

And (bad English), yes, I do know why. I will quote more from "Clipped Wings -- The History of Aborted Aircraft Projects", AeroFile Publications, 2007, ISBN 978-0-9732020-4-5.

"In late 1945 came the news that TACA was in receivership, and had to drop out of the project. CanCar decided to go about marketing the aircraft itself, and flew CF-BEL-X throughout Canada and Central and South America. While the concept of the aircraft was appealing, the CBY-3 did not generate any orders. In the Spring 1947, the CBY-3 returned to Canada and was re-engined with more powerful 1,450 hp Pratt & Whitney R-1830-94 Twin Wasp radial engines. Unable to secure any passenger airliner orders, CanCar switched gears and decided to promote the aircraft as a cargo plane. CanCar formed a new subsidiary – Cancargo Aircraft – to promote the aircraft, and the CBY-3 was renamed as the Loadmaster. The Loadmaster was flown – again – throughout Canada, mostly in the northern regions, to promote the “bush flying” aspects of the plane. Although the load capability was found acceptable, the Loadmaster’s inability to land and take-off on snow made its operation in these environs questionable. CanCar went as far as to offer the Loadmaster to both the RCAF and the USAF as military cargo transports. While both forces were mildly interested, no orders were forthcoming."

As for CanCar, this is an abbreviation of Canadian Car and Foundry, and while they built it, Vincent Burnelli designed it, so it is generally referred to as the CanCar Burnelli CBY-3 Loadmaster.

BTW, did you know it still exists?

:)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,907
Reaction score
1,140
Website
www.aerospaceprojectsreview.com
saturncanuck said:
BTW, did you know it still exists?

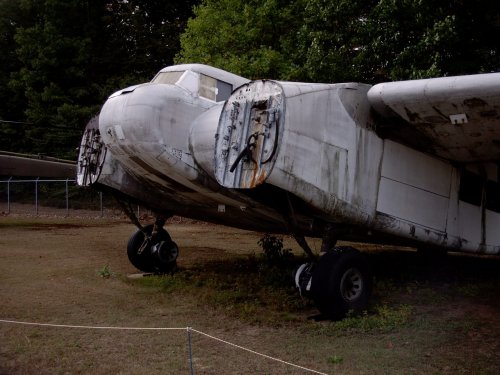

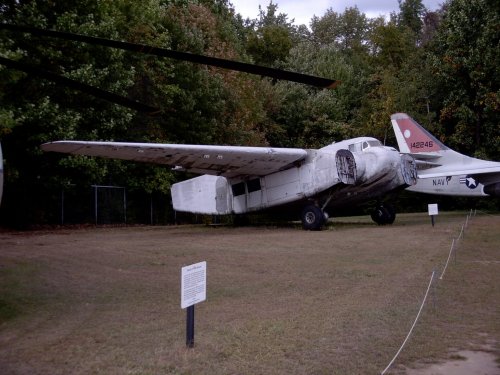

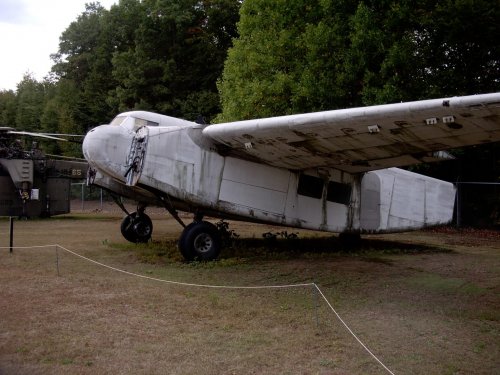

New England Air Museum in CT has it on display. It's in serious need of repair, or at least it was as of late 2007.


Attachments

  • Pdr_0279a.jpg
    314.2 KB · Views: 31
  • Pdr_0265a.jpg
    133.7 KB · Views: 21
  • Pdr_0256a.jpg
    214 KB · Views: 198
  • Pdr_0225.jpg
    296.7 KB · Views: 212
  • Pdr_0223.jpg
    330.8 KB · Views: 223

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
I'm not a CAHS member so I appreciate these clarifications -- especially the Cancargo Aircraft rebranding that now makes perfect sense.

I guess TACA being in receivership in 1945 explains both why they dropped out of the project and then suddenly pop up again in El Salvador.

I did know that CBY-3 still existed and in sad shape but I didn't know that it was as rough as that!


saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
6
Website
www.aerofile.ca
Apophenia said:
I'm not a CAHS member so I appreciate these clarifications -- especially the Cancargo Aircraft rebranding that now makes perfect sense.

I guess TACA being in receivership in 1945 explains both why they dropped out of the project and then suddenly pop up again in El Salvador.

I did know that CBY-3 still existed and in sad shape but I didn't know that it was as rough as that!

Yes, it is sad. Mind you, shes in better shape now than when I saw her, as she didn't have her wings attached then. Apparently, she was in limbo over who owned her for years and that's why she deteriorated for so long.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info

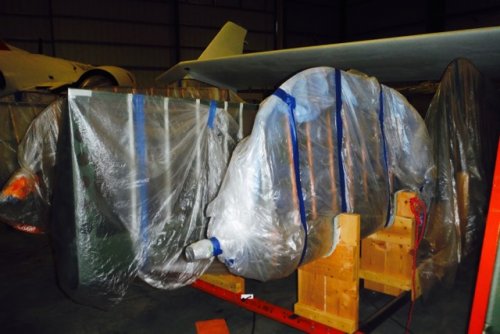

Updating an old thread...here's the latest on the restoration of the Burnelli CBY-3 Loadmaster at the New England Air Museum in Windsor Locks, Connecticut, USA. NEAM is definitely worth a visit as it's one of the best small aviation museums I have ever visited, especially but not exclusively for helicopter buffs as it has many Sikorsky, Kaman and even Doman types given the Connecticut roots of those companies.

I had a chance to visit NEAM yesterday and thanks to a fellow member over at homebuiltairplanes.com, I was able to join a private tour of the restoration facility dominated by the multiyear effort to bring the long-neglected CBY-3 back to life. There are still a couple of years to go but they are making steady progress and I was mightily impressed by the enormous efforts to preserve this unique aircraft even in non-flying condition.

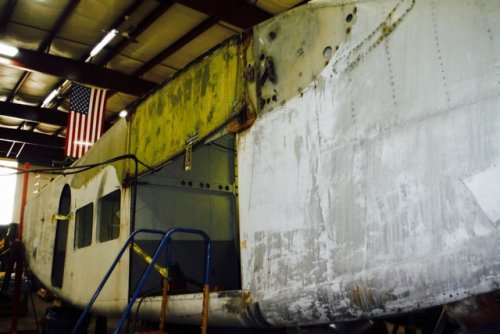

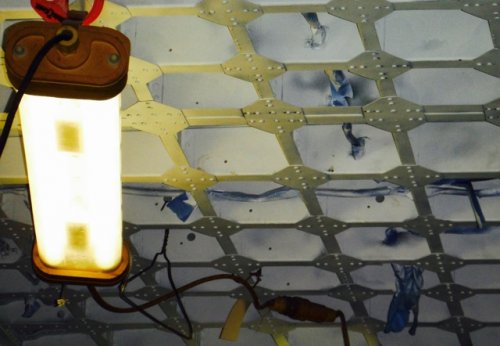

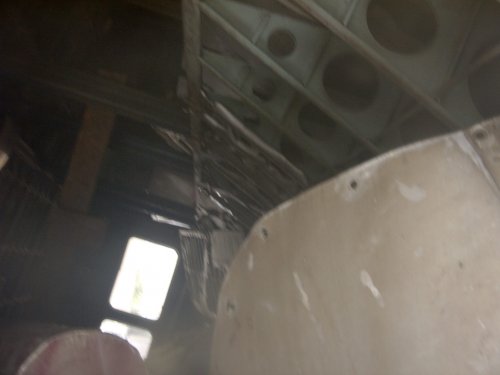

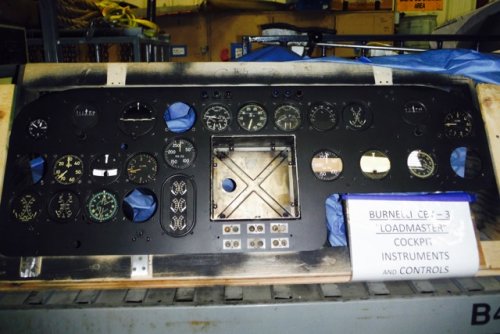

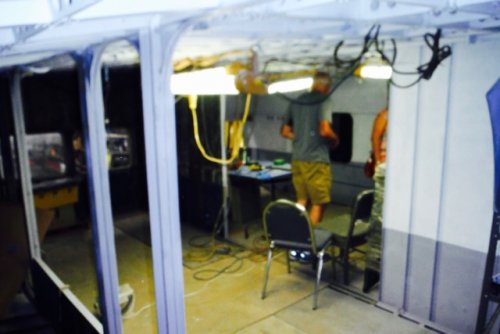

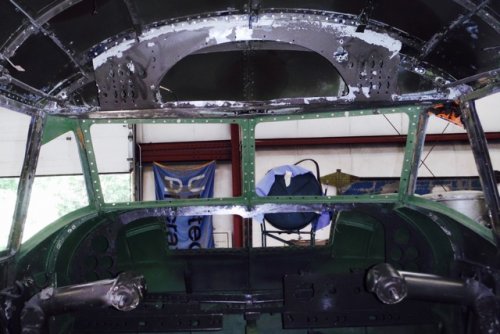

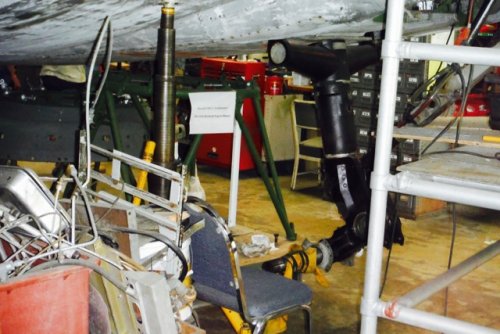

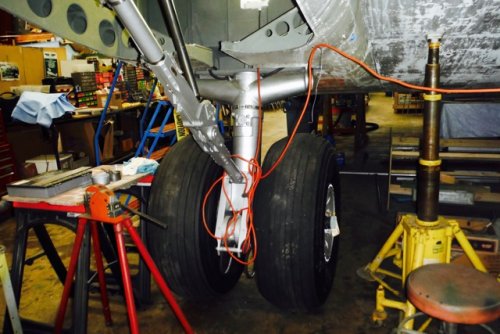

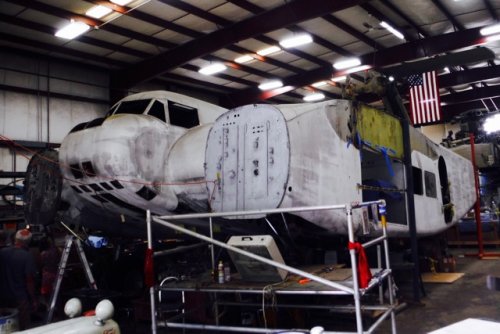

Here are a few pics if of the fuselage (note interesting construction in "roof" closeup), cockpit and instrument panel (note custom gauge for six wing fuel tanks replicated by 3D printing) and landing gear (note massive trailing link). It was quite an experience to walk around inside this plane, which felt more like a little theater than the usual claustrophobic airliner tube.

More to follow....


Attachments

  • Burnelli CBY-3 NEAM 20160714  - 9.jpg
    Burnelli CBY-3 NEAM 20160714 - 9.jpg
    103.9 KB · Views: 17
  • Burnelli CBY-3 NEAM 20160714  - 8.jpg
    Burnelli CBY-3 NEAM 20160714 - 8.jpg
    104 KB · Views: 20
  • Burnelli CBY-3 NEAM 20160714  - 7.jpg
    Burnelli CBY-3 NEAM 20160714 - 7.jpg
    90.2 KB · Views: 20
  • Burnelli CBY-3 NEAM 20160714  - 6.jpg
    Burnelli CBY-3 NEAM 20160714 - 6.jpg
    89.4 KB · Views: 16
  • Burnelli CBY-3 NEAM 20160714  - 5.jpg
    Burnelli CBY-3 NEAM 20160714 - 5.jpg
    81.1 KB · Views: 13
  • Burnelli CBY-3 NEAM 20160714  - 4.jpg
    Burnelli CBY-3 NEAM 20160714 - 4.jpg
    61.3 KB · Views: 13
  • Burnelli CBY-3 NEAM 20160714  - 3.jpg
    Burnelli CBY-3 NEAM 20160714 - 3.jpg
    90.3 KB · Views: 14
  • Burnelli CBY-3 NEAM 20160714  - 2.jpg
    Burnelli CBY-3 NEAM 20160714 - 2.jpg
    74.8 KB · Views: 14
  • Burnelli CBY-3 NEAM 20160714  - 1.jpg
    Burnelli CBY-3 NEAM 20160714 - 1.jpg
    81.7 KB · Views: 13

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info

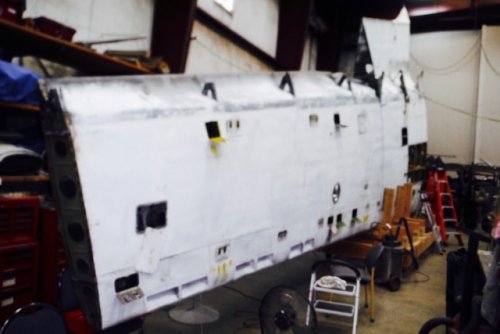

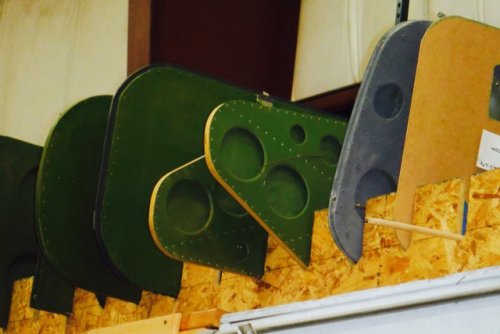

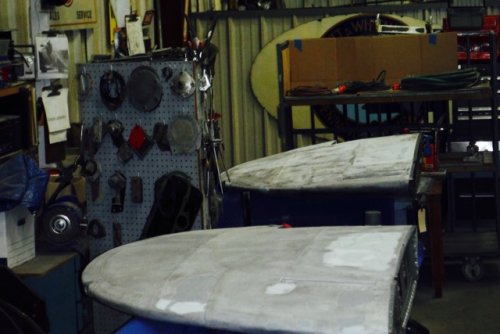

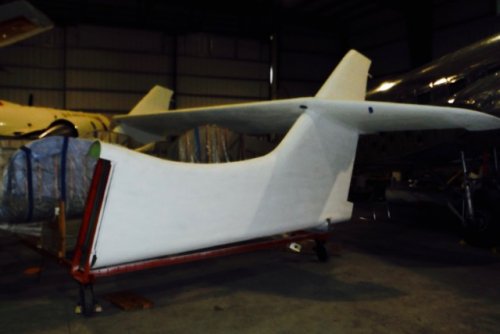

And here are the left wing and tail assembly including the control surfaces fully restored and awaiting fabric covering. Note too the aluminum-plywood-aluminum sandwich construction of the doors and hatches awaiting reinstallation. The plywood was all rotten and replaced in the process of restoring what had become a derelict hulk. Truly an amazing effort....


Attachments

  • Burnelli CBY-3 NEAM 20160714  - 14.jpg
    Burnelli CBY-3 NEAM 20160714 - 14.jpg
    80.5 KB · Views: 10
  • Burnelli CBY-3 NEAM 20160714  - 13.jpg
    Burnelli CBY-3 NEAM 20160714 - 13.jpg
    45.9 KB · Views: 15
  • Burnelli CBY-3 NEAM 20160714  - 12.jpg
    Burnelli CBY-3 NEAM 20160714 - 12.jpg
    66.4 KB · Views: 14
  • Burnelli CBY-3 NEAM 20160714  - 11.jpg
    Burnelli CBY-3 NEAM 20160714 - 11.jpg
    74.3 KB · Views: 13
  • Burnelli CBY-3 NEAM 20160714  - 10.jpg
    Burnelli CBY-3 NEAM 20160714 - 10.jpg
    56.4 KB · Views: 13

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
And here is a rare color photo the CBY-3, a reduced-quality version of an image from the NEAM web site, itself a scan of a photo which is being used by the museum to help determine the final color scheme of the the aircraft when it goes on display.


Attachments

  • Burnelli-CBY-3-Future-Color-Scheme (smaller).jpg
    Burnelli-CBY-3-Future-Color-Scheme (smaller).jpg
    232 KB · Views: 59
