British Unknown Flying Wing Airliner Project

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
From Letectvi magazine,

I found this strange flying wing British airliner Project,as it was mentioned in International Aerospace Exhibition
in Paris,I can't remember the year,but of course it was from post WWII,who can ID it ?.


Attachments

VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
88
Reaction score
13
Is it possibly an Armstrong Whitworth design, given their work with the AW.52?


Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,255
Reaction score
100
In Czech, apparently.
Google translate...…..

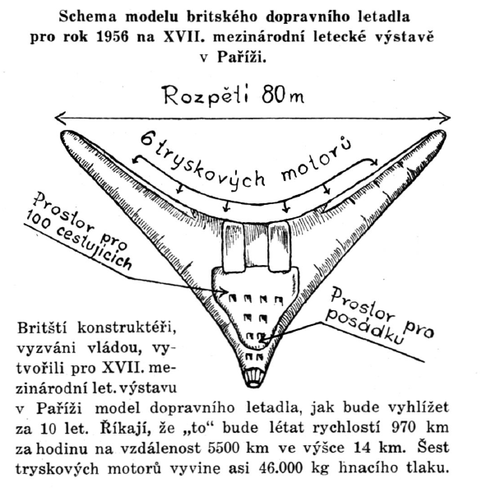

The British government-inspired constructors created a model of airliner for the XVII International Flight in Paris in 1956, as it will be seen in 10 years. I say "it" will fly speeds of 970km per hour at a distance of 5500km at a height of 14km. Six jet engines generate about 46000kg of propulsion pressure.
Which doesn't tell us much


Zootycoon

CLEARANCE: Confidential
Joined
May 27, 2008
Messages
175
Reaction score
110
I was wondering if it might have originated from Reimer Horton very short spell at Fairies and RAE. It’s got the look of a Horton 18.

Last edited:

edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
645
Reaction score
65
That's what I was thinking. The drawing is rather crude.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
Maybe related to Armstrong-Whitworth ?,please see;



hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
I remember the source,

it's Civilni Letectvi 11/12-1946 magazine.


Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,255
Reaction score
100

Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
Nice find my dear Schneiderman.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,372
Reaction score
226
From the description in the article (described as a "flying flatfish" with flattened jet exhausts along the trailing edge), it seems this must have been an RAE study, or the work of MoS technical assessors. We can only speculate how much of the design was inspired by captured German research or the work the Horten brothers were doing at the time on civil flying wings in an attempt to gain themselves a job in Britain.


Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,255
Reaction score
100
I think that you may be right. There were a lot of tailless and flying wing-style concepts around in Briatain through the mid 1940s, they often turn up in papers and lectures, for example Roy Fedden's in 1944. The boomerang planform of this one reminds me of Roxbee Cox's ideas from the immediate pre-war years, so I would agree that RAE seems plausible.
