British Naval projects from late 70's

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162
Aviation & marine International September 1979

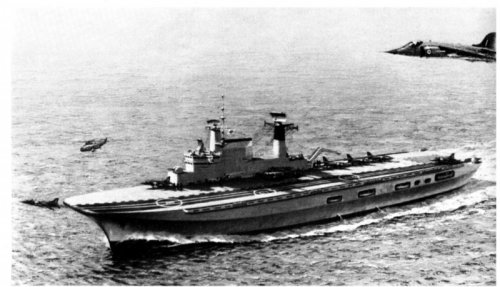

Vickers Macship
Helicopter/Aircraft carrier cruiser
Displacement: 12,500 t

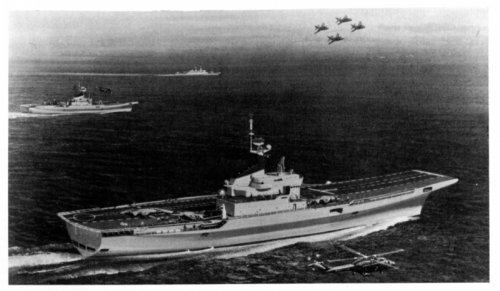

Vosper Harrier Carrier
Lightweight aircraft carrier
Dispalcement: 7,200 t full load


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

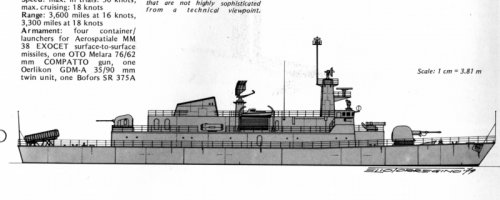

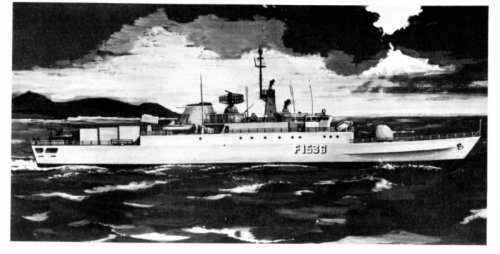

Vickers LF Type 1536
Frigate
Displacement: 1,530 t

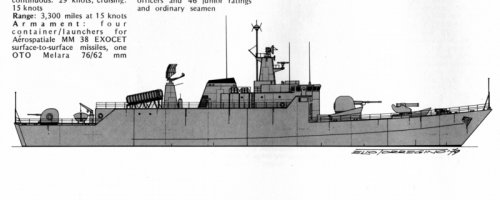

Vickers GPV Type 634
Corvette
Displacement: 1,165 full load


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

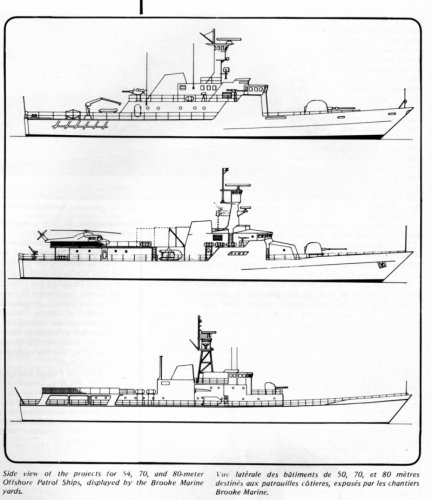

Brooke Marine 67 m corvette
Displacement: 560 t standard

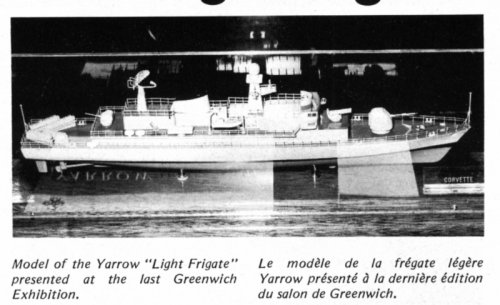

Yarrow light frigate
Displacement: 1,200 t approx.


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

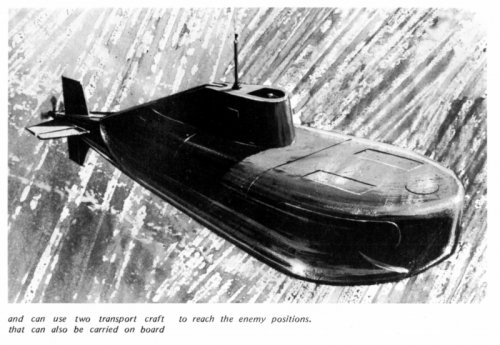

Vickers Type 100
Pocket submarine
Displacement: 77 t surfaced, 95 t dived


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

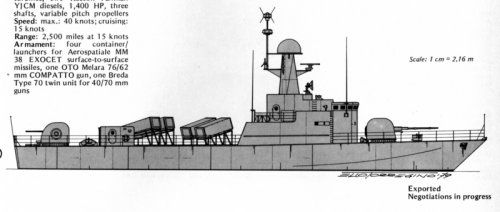

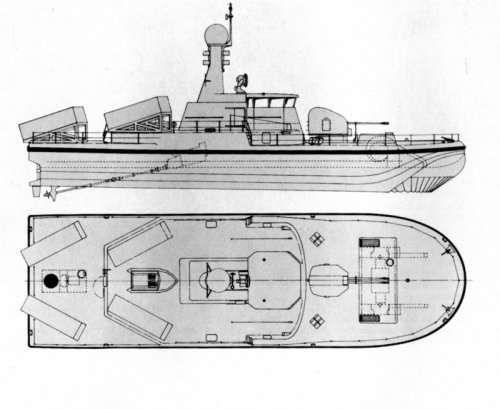

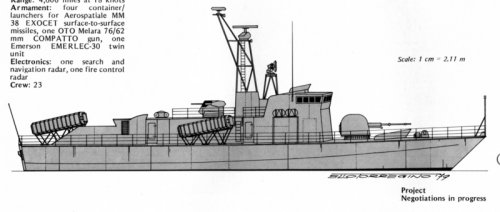

Brooke Marine 52.5 FCP
Missile fast patrol craft
Displacement: 325 t standard

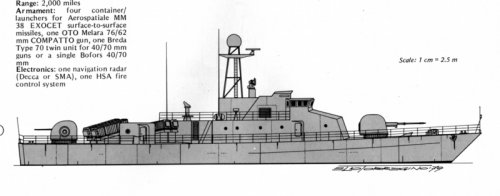

Brooke Marine 45 m FPB
Missile fast patrol craft
Displacement: not known

Vosper Tenacity type
Missile fast attack craft
Displacement: 250 t


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

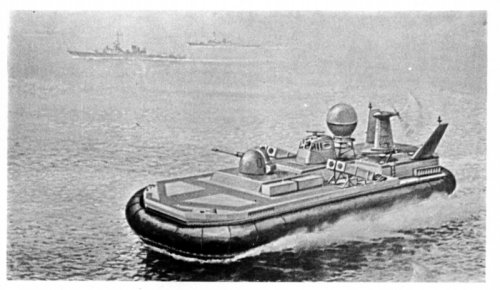

British Hovercraft BH.7 Mk 6
Attack hovercraft
Weight: 91 t

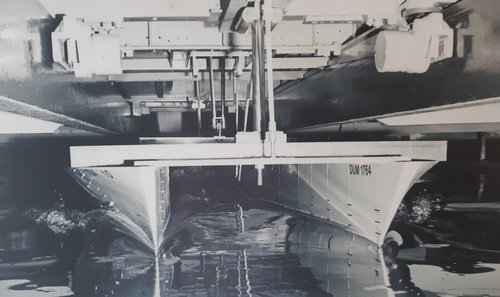

Hovermarine Type 533
Air Cushion Attack vehicle
Weight: 110 t

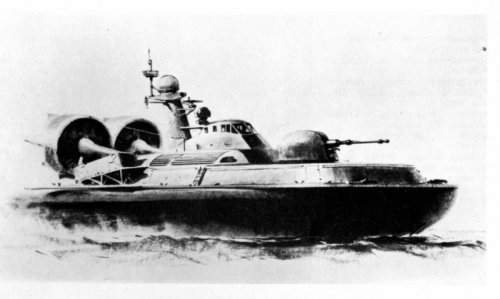

Vosper Type VT-2
Attack hovercraft
Weight: 100 t


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,451
Reaction score
162

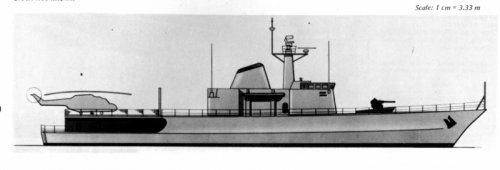

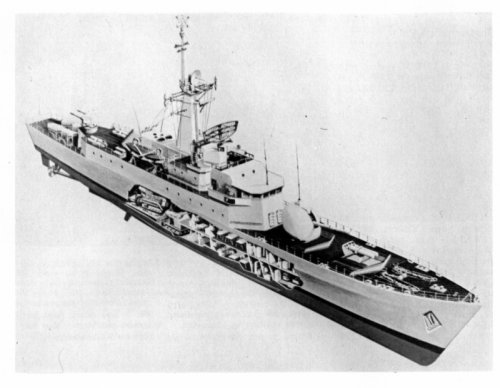

Vosper 65 m Surveillance Ship
Offshore PAtrol Vessel
Displacement: 650 t


Attachments

Eagle2009

CLEARANCE: Confidential
Joined
Feb 8, 2010
Messages
120
Reaction score
13
I agree, great images!

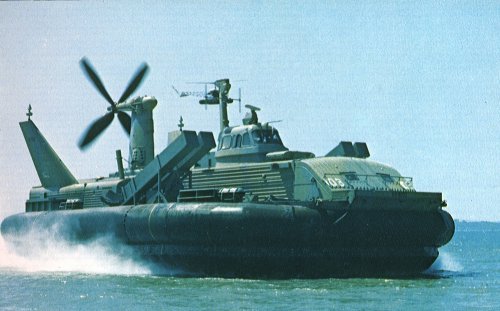

The BH.7 Mark 6 is a really interesting concept indeed. We know Iran received two BH.7 (I want to say it was a Mark 5) that were armed with Surface-to-Surface missiles but there seems to be some confusion as the whether they were Standard missiles or Sea Killers. Standard missiles could be used as de facto Anti-shipping missiles but images of these armed BH.7s show the launch tubes and they dont look like Standard Launchers. Regardless, these Mark 5s were something of a half-way design compared to this Mark 6 concept.

Of interesting note, Iran has recently rearmed at least one of the their BH.7 Mk 5 with Noor/C-802 AshMs.

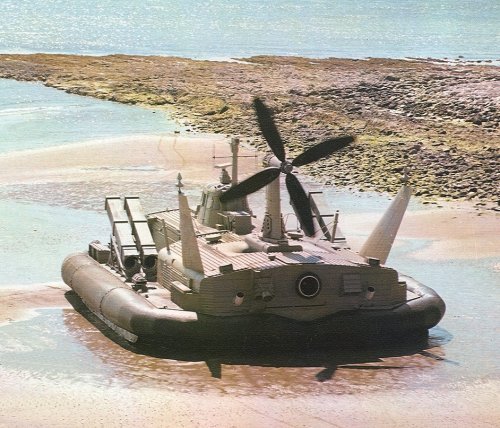

Some images of the Armed BH.7 Mk 5:


Attachments

thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4

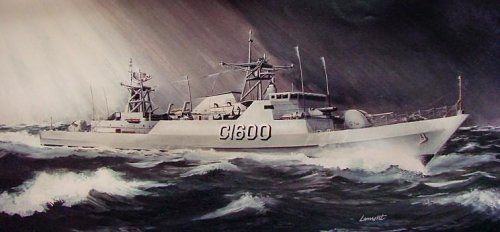

Interesting render of a Yarrow 1600t Corvette. Dated 1980....no reference to the Length/draught/armament. Looks like 4.5 Mount on front along with ASW missiles (poss Bofors?) with asm aft along with another gun. Possibly a variant of the Yarrow "Light Frigate" model above?! A few other nice pics on the website...link below, with more renders by the artist who IMO is excellent. I believe in the early 1970s the Canadians were looking seriously at a Yarrow 1100t Corvette....perhaps these are a follow-on design.
http://www.duncanlamontsdesignandpix.com/photo10114282.html

C


thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
God....I tried posting the pic and it didn't happen. I am so inept at that....I should just stick to links:)


Thiel

CLEARANCE: Confidential
Joined
Jul 18, 2010
Messages
76
Reaction score
0
thebig C said:
Interesting render of a Yarrow 1600t Corvette. Dated 1980....no reference to the Length/draught/armament. Looks like 4.5 Mount on front along with ASW missiles (poss Bofors?) with asm aft along with another gun. Possibly a variant of the Yarrow "Light Frigate" model above?! A few other nice pics on the website...link below, with more renders by the artist who IMO is excellent. I believe in the early 1970s the Canadians were looking seriously at a Yarrow 1100t Corvette....perhaps these are a follow-on design.
http://www.duncanlamontsdesignandpix.com/photo10114282.html

C
The ASW mortar is definitely the two barrel version of the Bofors 375mm Rocket Launcher


thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
Thiel said:
thebig C said:
Interesting render of a Yarrow 1600t Corvette. Dated 1980....no reference to the Length/draught/armament. Looks like 4.5 Mount on front along with ASW missiles (poss Bofors?) with asm aft along with another gun. Possibly a variant of the Yarrow "Light Frigate" model above?! A few other nice pics on the website...link below, with more renders by the artist who IMO is excellent. I believe in the early 1970s the Canadians were looking seriously at a Yarrow 1100t Corvette....perhaps these are a follow-on design.
http://www.duncanlamontsdesignandpix.com/photo10114282.html

C
The ASW mortar is definitely the two barrel version of the Bofors 375mm Rocket Launcher
Yep....looked it up this evening....the two barrel version was developed in 1972...so that would be about right for a late 1970s vessel design.


pathology_doc

CLEARANCE: Top Secret
Joined
Jun 7, 2008
Messages
950
Reaction score
170
Eagle2009 said:
I agree, great images!

The BH.7 Mark 6 is a really interesting concept indeed. We know Iran received two BH.7 (I want to say it was a Mark 5) that were armed with Surface-to-Surface missiles but there seems to be some confusion as the whether they were Standard missiles or Sea Killers. Standard missiles could be used as de facto Anti-shipping missiles but images of these armed BH.7s show the launch tubes and they dont look like Standard Launchers. Regardless, these Mark 5s were something of a half-way design compared to this Mark 6 concept.

Of interesting note, Iran has recently rearmed at least one of the their BH.7 Mk 5 with Noor/C-802 AshMs.

Some images of the Armed BH.7 Mk 5:
I assume that the missile launchers' exhaust efflux has been shown NOT to melt or otherwise endanger the integrity of the rubber skirts?


Eagle2009

CLEARANCE: Confidential
Joined
Feb 8, 2010
Messages
120
Reaction score
13
Technically on the BH.7 Mk 5 had a modified deck design that left space for the launchers in the first place so the exhaust from the launched missile should be just far enough away not to damage the rubber skirt. I assume anyway, there is no record of Iran ever using the armed BH.7s.

Also, in the months since I posted that last post I have confirmed 100% that the missile tubes on those BH.7s (as originally fitted during the era of the Shah) were infact Standard missiles. If you compare the launchers with those fitted to Taiwan's modified WWII-era destroyers (now retired), they match perfectly. Now how such a system would work is questionable since the BH.7s have no visible fire control radar to guide the SM-1s. But I am certain that's what missiles those Mk5s were fitted for (but whether they were ever ARMED with them is another story entirely).


RP1

I see the truth in it.
Joined
Feb 22, 2006
Messages
446
Reaction score
72
Website
rp-one.net
Were they SARH Standard or ARM Standard? They look like the launchers on the recent Iranian corvettes.


RP1


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,026
Reaction score
997
Iran had some Standard Missile box launchers on old (pre-Revolution) DDs. These were apparently RIM-66B (SARH) rather than RGM-66D (ARM) but were intended only for surface use. The Gearings never had a dedicated radar either; it looks like they used CW illumination piggybacked on the gun fire control radar. It's possible that the BH-7 also pushed CW signals through another antenna (maybe a modification of the nav radar?)


Eagle2009

CLEARANCE: Confidential
Joined
Feb 8, 2010
Messages
120
Reaction score
13
TomS,

My theory is the Shah fully intended to purchase the RGM-66 at a later date and they simply made due with what they were supplied.

Also, the Standard launchers fitted to the BH.7mk5s were actually different than those fitted to Iran's long retired WWII-era destroyers. The launchers used on those are actually TWIN launhcers, in that there are two RIM-66Bs in each "box", one stacked infront of the other. On the front of said box there is a hinged door that lifts the forward missile up (so its exhaust doesn't hit the missile at the back of the box directly I assume).


thebig C

CLEARANCE: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
Any renders of the Future Light Frigate, ASW Light Frigate and ASW Corvette....which were design studies from the 1970s?
Also, I've read that there was a Yarrow 1100 ton Corvette as a smaller brother to the design above...any info or pics?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,669
Reaction score
1,800
Eagle2009 said:
I agree, great images!

The BH.7 Mark 6 is a really interesting concept indeed. We know Iran received two BH.7 (I want to say it was a Mark 5) that were armed with Surface-to-Surface missiles but there seems to be some confusion as the whether they were Standard missiles or Sea Killers. Standard missiles could be used as de facto Anti-shipping missiles but images of these armed BH.7s show the launch tubes and they dont look like Standard Launchers. Regardless, these Mark 5s were something of a half-way design compared to this Mark 6 concept.

Of interesting note, Iran has recently rearmed at least one of the their BH.7 Mk 5 with Noor/C-802 AshMs.

Some images of the Armed BH.7 Mk 5:
To go slightly OT for a moment, from earlier in the decade:


(h/t PaulMM)


CJGibson

CLEARANCE: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,384
Reaction score
580

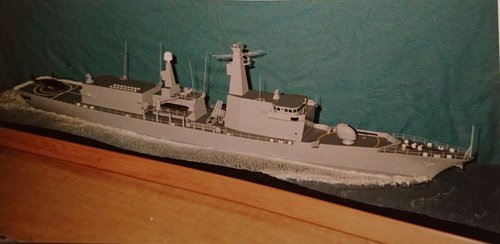

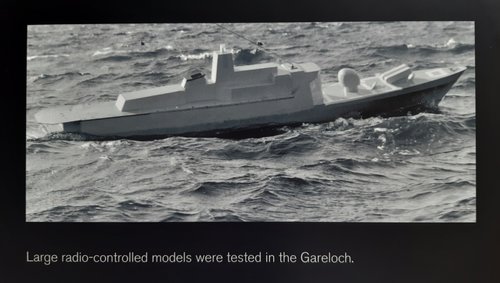

Perhaps this is a model of one of the corvettes mentioned above.

http://www.secretprojects.co.uk/forum/index.php/topic,22543.msg228128.html#msg228128

Chris


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,669
Reaction score
1,800



(The Mk 20 is posted for comparison, since it was a 1980's design.)

http://www.shipbucket.com/forums/viewtopic.php?f=13&t=8035&start=10


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,669
Reaction score
1,800
By the way, came across this while trying to find more info on the Mk 20: http://www.jameshovercraft.co.uk/hover/hovermus/bhcbh7.php


Odysseus1980

I really should change my personal text
Joined
Jul 30, 2014
Messages
15
Reaction score
7
Very interesting info on these projests. However, does someone has the full photo of the FACs, the Brooke marine 67m corvette and Yarrow Light Frigate mentioned above? Because those cropped images cut the specifications.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,669
Reaction score
1,800
The Irish Naval Service could have quite definitely have used that. :(


Volkodav

I really should change my personal text
Joined
Mar 28, 2014
Messages
261
Reaction score
186
Does anyone have any information on the Mini Type 23 that was proposed for the RAN as a Type 12 replacement? I know it existed but have nothing on it other than the very rough description that it was a cut and bob tied type 23 and the RAN preferred the M Class but ended up with the MEKO. Another design put forward was the Modernised Leander, of which I have only seen an artists impression in a Naval mag years ago but nothing else.

Not sure if either of these crosses into the period being discussed here but they may well do as I believe the RAN Type 12 replacement had been around for years before a decision was made, originally extra FFG 7s were planned ( well after the DDL project was cancelled anyway)


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,201
Reaction score
635
There were the Type 24 Frigate designs of 1979:
For the RN - 2x4 Exocet, 1x1 4,5", 4x2 Sea Wolf, 2x2 30mm
For the USN - 2x4 Harpoon, 1x1 5", 2x8 Sea Sparrow, 2x2 30mm
For the MN - 2x4 Exocet, 1x1 100mm, 4x8 Crotale, 2x2 40mm
For the RM - 2x4 Otomat, 1x1 127mm, 4x8 Aspide, 2x2 40mm
All with 2 Helis

The Type 25 Frigate again from 1979
2x4 Exocet, 1x1 4,5", 3x6 Sea Wolf, 2 Heli

And the modified Invincible by Vickers for Australia from 1978:


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,787
Reaction score
1,061

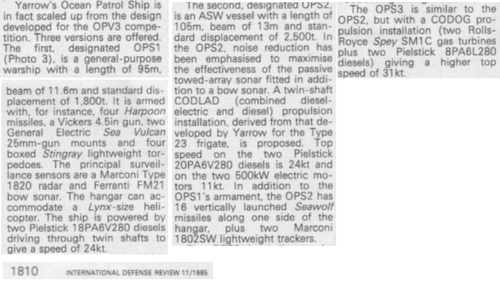

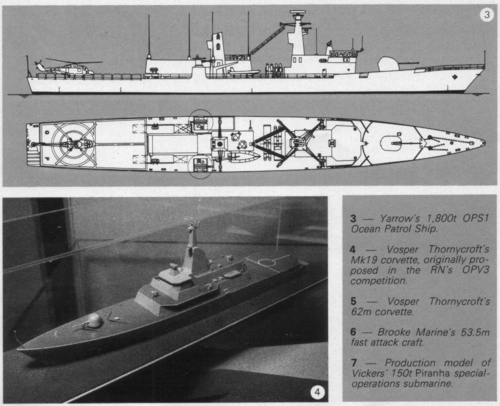

Yarrow's Ocean Patrol ship looks very much like today's Type 31 GPF in many ways (but with 1980s technology).

Does anyone have any dimensional data for the Yarrow OPS1?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,669
Reaction score
1,800
The OPS3 sounds like it would have been a very useful asset to the Royal Navy indeed, though the OPS2 would have been also handy during the money starved 1990s.
