From British Civil Aircraft since 1919,

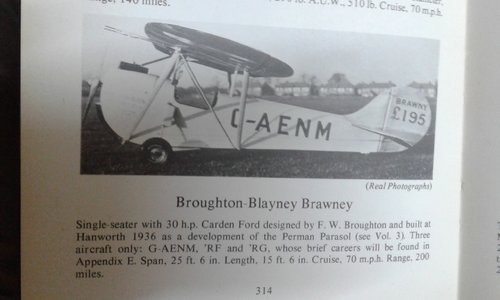

Mr. F. W. Broughton built a single seat parasol wing light monoplane,powered by one 30 hp Carden,developed from Perman
Parasol,called Broughton-Blayney Brawney.


Attachments

  • ٢٠٢٠٠٥١٤_١٥٥٥٣١.jpg
    1 MB · Views: 90

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,729
Reaction score
1,178
Mr. F. W. Broughton built a single seat parasol wing light monoplane,powered by one 30 hp Carden,developed from Perman Parasol,called Broughton-Blayney Brawney.

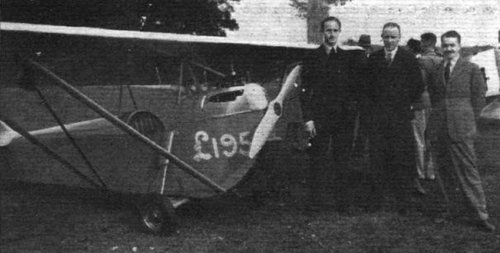

And all on offer for £195 apparently ;)

Actually, Frank William Broughton built three such Brawney monoplanes in late 1936. F.W. Broughton was also the designer of the earlier Perman Parasol (G-ADZX, aka the Perman Grasshopper).

The latter came from a collaboration with Mignet Flea-owner Edgar George Perman. That Flea, G-ADZX, was rebuilt into the sole Perman Parasol, flown by 23 May 1936 by A.E. Clouston. [1] Powerplant for the Parasol is usually listed as a Carden-Ford. It was actually a 'Perman-Ford' which I assume to mean a Carden-like conversion performed by E.G. Perman. The Perman Parasol met its end on 31 Jul 1937 in a hangar fire.

F.W. Broughton parted ways with Edgar Perman to join forces with Adolf Jarvis Blayney to form the Broughton Blayney Aircraft Co, Ltd. A.J. Blayney provided the finances and connections. Blayney was a director of Paddington-based T.H. Gill & Son Ltd., the custom auto-body makers who built the Brawney airframes.

The idea behind all of these aircraft was that no pilot's certificate was needed for aircraft weighting less than 600 lbs (the Brawney weighing only 450 lbs). Construction was begun on five Brawney airframes but only three were completed. All three of those were out of service within a year of being built:

21 March 1937, G-AENM (c/n BB/50) spun in at Hanworth Aerodrome, killing Alexander Scaife.

11 June 1937, G-AERF (c/n BB/51) crashed into Bromley Hill Cemetery, Catford, killing Alf Bacon.
-- https://www.airport-data.com/images/aircraft/001/165/001165043.jpg

22 Dec. 1937, G-AERG (c/n BB/52) withdrawn from use.

The Brawney powerplant was, of course, a converted Ford Model C Ten auto engine modified for aviation use by Carden Aero Engines Limited of Heston.

_______________________________

[1] In his autobiography, test pilot A.E. Clouston refers to both the Parasol and Brawney as the Clouston Midget. I'm not sure why. FW Broughton seemed happy to apply owners' names to airframes. But, AFAIK, Arthur Clouston never owned any of these aircraft.


Attachments

  • Brawney-1.jpg
    43.1 KB · Views: 81

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

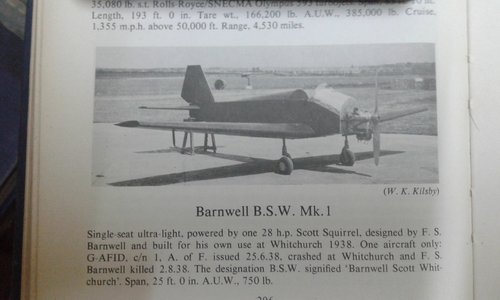

here is a single seat low-wing ultra-light monoplane,designed by Mr. F. S. Barnwell,and called
B.S.W. MK.1.


Attachments

  • ٢٠٢٠٠٥١٥_١٧٣٢٤٤.jpg
    1.1 MB · Views: 71
Last edited:

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
294
Reaction score
110
Barnwell, not Branwell. Capt. Frank Barnwell was Bristol's chief designer, responsible for the Bristol Fighter, Bulldog and Blenheim, rather more notably than the rather primitive, underpowered ultralight in which he lost his life when, on its second flight, it stalled and dived in at Whitchurch - which, at the inquest into his death, was attributed to a lack of experience flying light aeroplanes (only a few hours in the preceding five years) - although some spoke of the BSW Mk. 1 as an accident waiting to happen..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

Mr. J. B. Fenton designed a two-seat light airplane of 1930/31,called Cheel,but never completed.


Attachments

  • ٢٠٢٠٠٥١٥_١٧٤١٤٣.jpg
    404 KB · Views: 54

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

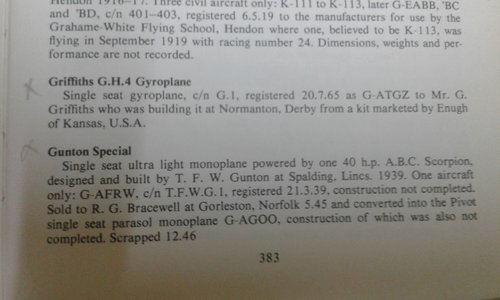

Mr. F. W. Gunton a single seat ultra-light monoplane in 1939,called Special,construction was never completed.


Attachments

  • ٢٠٢٠٠٥١٥_١٧٤٢٣٧.jpg
    1 MB · Views: 42

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
294
Reaction score
110
Apparently the Gunton Special was a single seat version of the Pietenpol Air Camper, powered by a 40hp ABC Scorpion engine. Construction was nearly complete when war broke out, as a result of which it was stored for the duration. Contrary to what Jackson says, Ord-Hume contends that no further work was undertaken by Bracewell, post-war, and the partly completed aeroplane was scrapped in February 1947.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

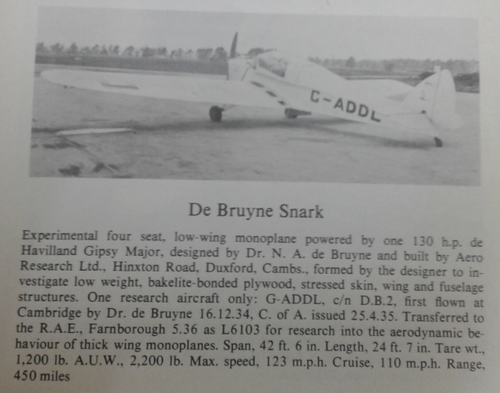

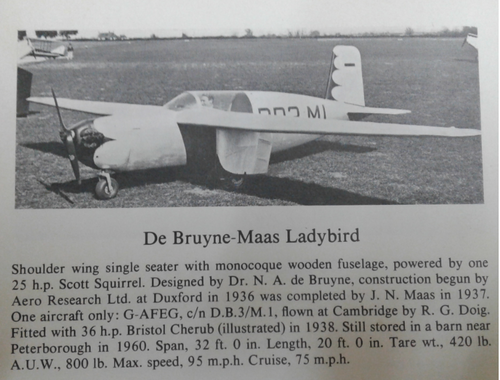

The de Bruyne aircraft.


Attachments

  • 1.png
    427.1 KB · Views: 56
  • 2.png
    679.7 KB · Views: 61

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
294
Reaction score
110
The Snark survived until about 1947, stored in the open at Burton Garage, Chippenham, Wiltshire. The Ladybird may survive today. It is said to have been stored in a barn in the Peterborough area since the outbreak of the last war. However there has been no report of it for decades but nor has there been any of its demise. Thus the story may be apocryphal.
Norman de Bruyne is perhaps more famous today for his glues than his aeroplanes!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

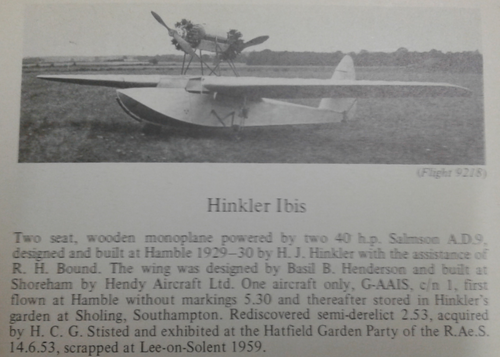

here is a Hinkler Ibis.


Attachments

  • 3.png
    581.1 KB · Views: 62

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
294
Reaction score
110
Although the original Ibis was scrapped in 1959, a full scale replica was built in Australia in 1987/88 and this is on display in the Hinkler museum at Bundaberg, Queensland.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

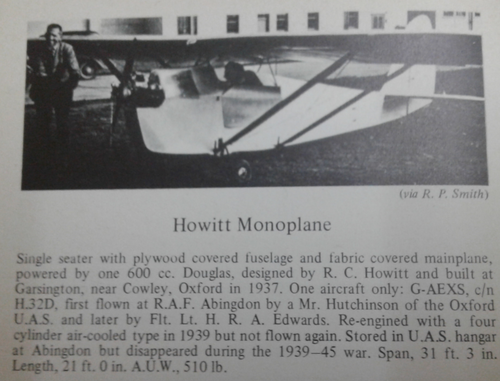

here is a Monoplane,designed by Mr. R. C. Howitt.


Attachments

  • 1.png
    631 KB · Views: 45

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

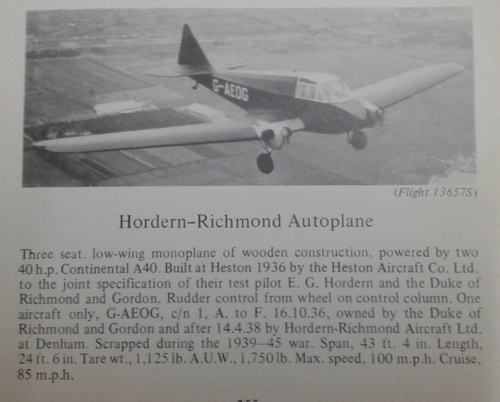

here is a Hordern-Richmond Autoplane


Attachments

  • 1.png
    511.3 KB · Views: 46

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,729
Reaction score
1,178

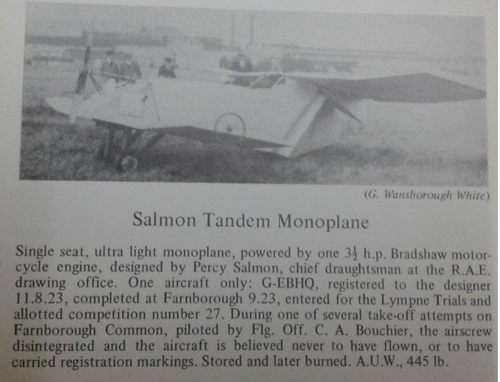

Salmon Tandem Monoplane light aircraft.


A bit of trivia: As Head of the Design Department at RAE, Percy Salmon also came up with the compressed air-driven catapult trialled on a Vickers Virginia in 1931.



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

here is a McClure Aircraft.


Attachments

  • 1.png
    164 KB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

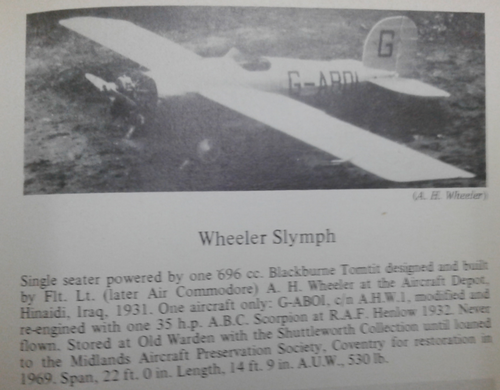

here is a Wheeler Slymph light airplane.


Attachments

  • 1.png
    544.9 KB · Views: 37

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

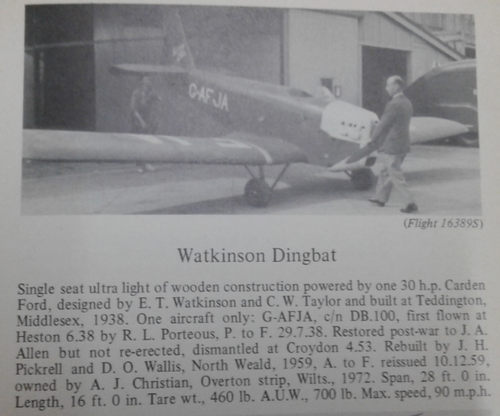

here is a Watkinson Dinbat light airplane.


Attachments

  • 1.png
    435.4 KB · Views: 45

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883

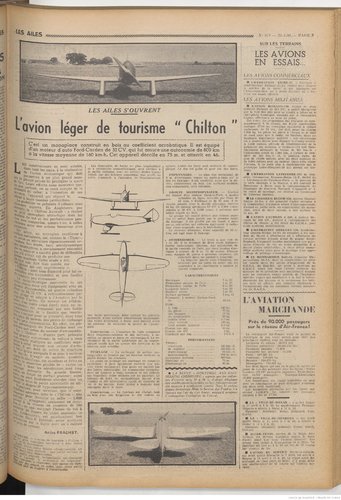

From Ailes 1938,

the Chilton.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k6555883c_9.jpeg
    1.7 MB · Views: 46

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

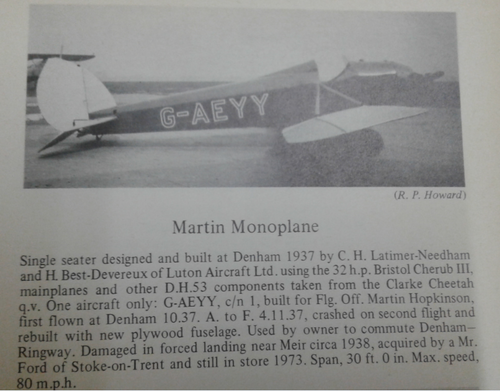

The Martin Monoplane.


Attachments

  • 1.png
    679.7 KB · Views: 46

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
294
Reaction score
110
I believe that the Martin Monoplane is extant - albeit that its wings, which came from a D.H.53, went back to a D.H.53 (G-EBQP). Within the last couple of years I've seen a photo of the fuselage of G-AEYY. It was on one of the aviation history forums. I've tried to find it again but, as is so often the way, I've found not a trace. It'll turn up when I give up trying!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

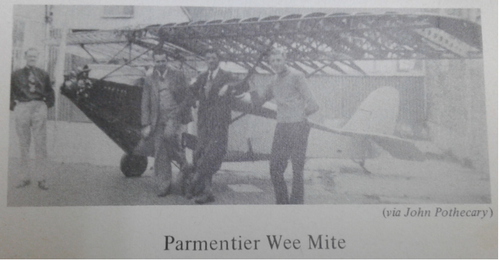

here is a Parmentier Wee Mite.


Attachments

  • 1.png
    530.9 KB · Views: 35

nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
235
Reaction score
395
From Ailes 1938,

the Chilton.

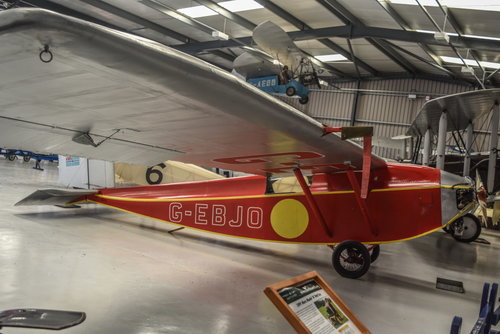

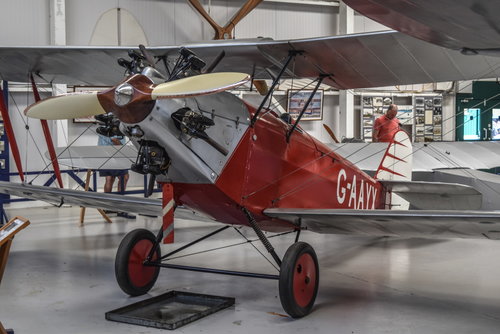

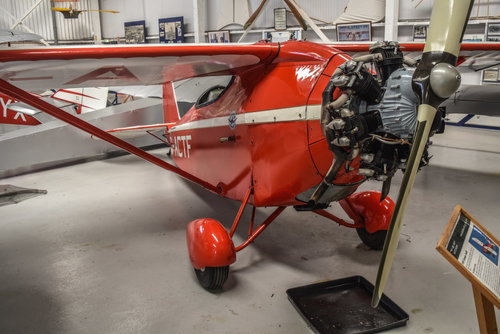

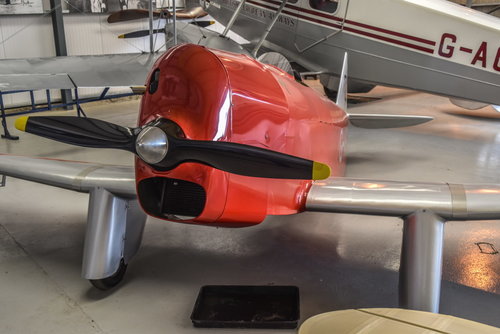

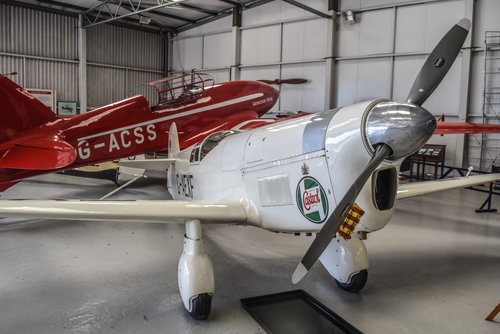

An image of the Chilton within the Shuttleworth Collection hangars and some other light aircraft beauties the collection has in its hangars. The Southern Martlet is an interesting aircraft.


Attachments

  • ANEC II.jpg
    ANEC II.jpg
    224.9 KB · Views: 35
  • Chilton.jpg
    208.9 KB · Views: 29
  • Comper Swift.jpg
    Comper Swift.jpg
    251.5 KB · Views: 27
  • Mew Gull and Comet.jpg
    Mew Gull and Comet.jpg
    229.4 KB · Views: 28
  • Southern Martlet.jpg
    Southern Martlet.jpg
    237 KB · Views: 32

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft since 1919,

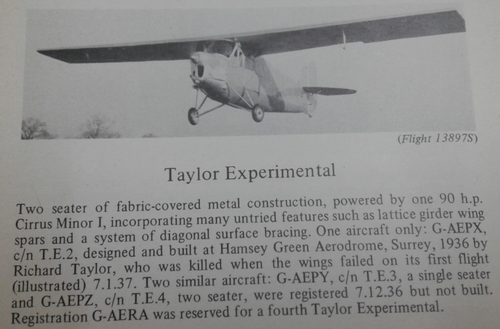

The Taylor Experimerntal.


Attachments

  • 1.png
    601.3 KB · Views: 36

Kirby Kite 1

ACCESS: Restricted
Joined
Dec 26, 2020
Messages
6
Reaction score
12
I believe that the Martin Monoplane is extant - albeit that its wings, which came from a D.H.53, went back to a D.H.53 (G-EBQP). Within the last couple of years I've seen a photo of the fuselage of G-AEYY. It was on one of the aviation history forums. I've tried to find it again but, as is so often the way, I've found not a trace. It'll turn up when I give up trying!

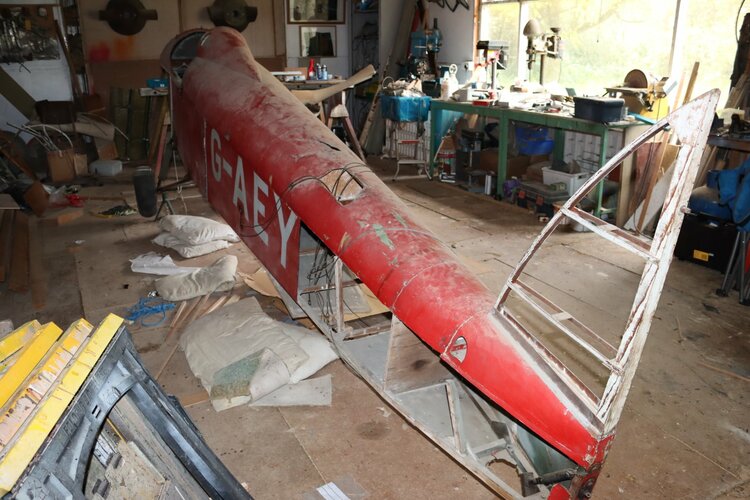

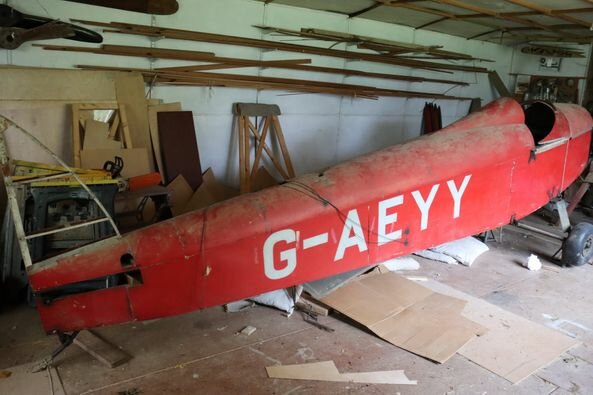

A A Yes I have the Martin Monoplane Its in my father's workshop. I am gathering detail and drawings for a possible rebuild.
Dave


Kirby Kite 1

ACCESS: Restricted
Joined
Dec 26, 2020
Messages
6
Reaction score
12
I believe that the Martin Monoplane is extant - albeit that its wings, which came from a D.H.53, went back to a D.H.53 (G-EBQP). Within the last couple of years I've seen a photo of the fuselage of G-AEYY. It was on one of the aviation history forums. I've tried to find it again but, as is so often the way, I've found not a trace. It'll turn up when I give up trying!
A A Yes I have the Martin Monoplane Its in my father's workshop. I am gathering detail and drawings for a possible rebuild.
Dave


Attachments

  • 122837133_3385440814881097_1473171458430698480_o.jpg
    291.3 KB · Views: 21
  • 122866231_3385440438214468_5801215239173718978_o.jpg
    43 KB · Views: 34

Kirby Kite 1

ACCESS: Restricted
Joined
Dec 26, 2020
Messages
6
Reaction score
12
Yes, The the wings and parts of the tail flying surface's went on to build a new DH.53 Hummingbird using what information the got from the wings so they got the registration G-EBQP. Their is a few pages on the DH.53 restoration in the latest Aeroplane Monthly. The Hummingbird is in the De Havilland museum. They are still hoping to fly it when it is finished.
Dave


Kirby Kite 1

ACCESS: Restricted
Joined
Dec 26, 2020
Messages
6
Reaction score
12
I only have details and parts for the Martin Monoplane. I hope to restore it to an airworthy , but I have no intentions of flying it myself. But I have a few other projects to finish before that. The fuselage needs work as the casein glue has failed.


Kirby Kite 1

ACCESS: Restricted
Joined
Dec 26, 2020
Messages
6
Reaction score
12
Have two classic motorcycle to finish off. Also get my second Kirby Kite 1, built 1937 finished of with the help of a friend and get down and start book with many photos of Fairey Battles lost during the Battle of France 1940.
Dave


hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
238
Reaction score
8
Have two classic motorcycle to finish off. Also get my second Kirby Kite 1, built 1937 finished of with the help of a friend and get down and start book with many photos of Fairey Battles lost during the Battle of France 1940.
Dave
Good luck for all completions!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883

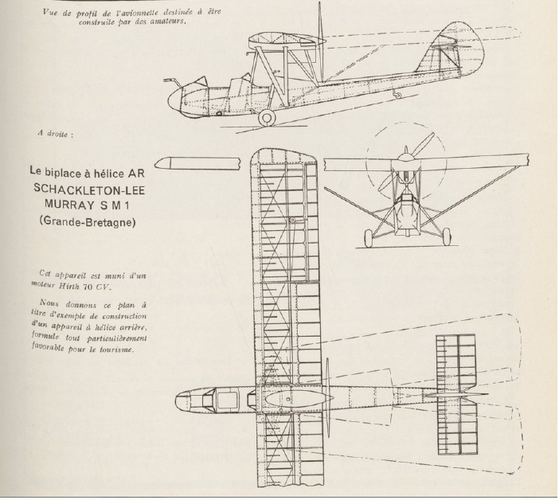

From Aerohile 1934,

Schackleton-Murray SM.1.


Attachments

  • 8-12-1934.png
    459.7 KB · Views: 25

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,765
Reaction score
4,883
From British Civil Aircraft Vol.2,

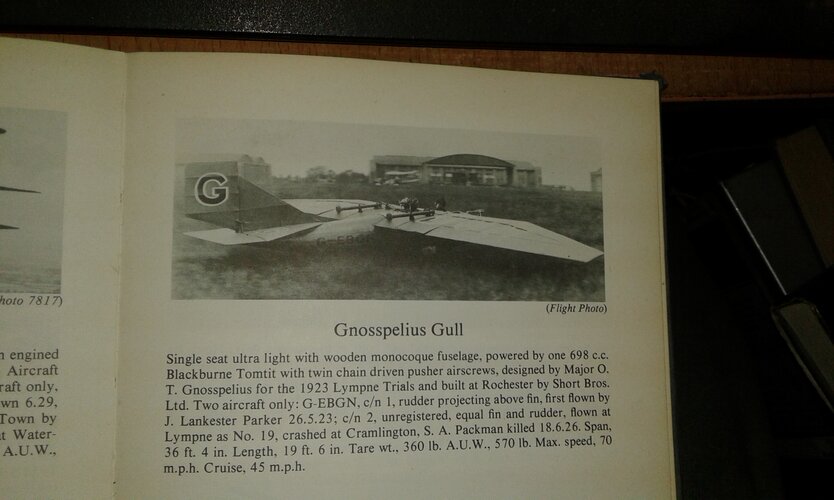

here is a Gnosspelius Gull.


Attachments

  • ٢٠٢١٠٤٢٦_٠٤٢٩٤٥.jpg
    1.2 MB · Views: 13
