British Aerospace NBJ (New Business Jet)

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
222
Website
www.flickr.com

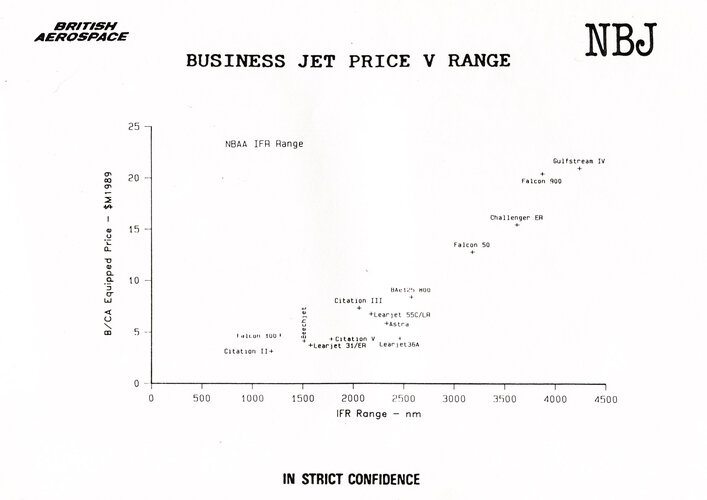

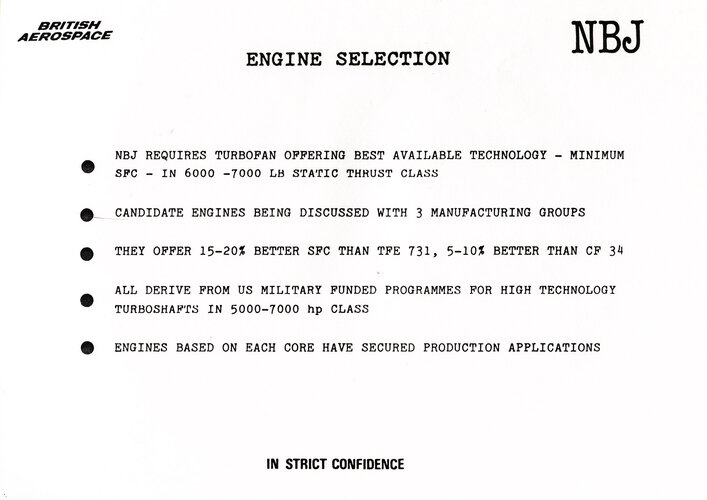

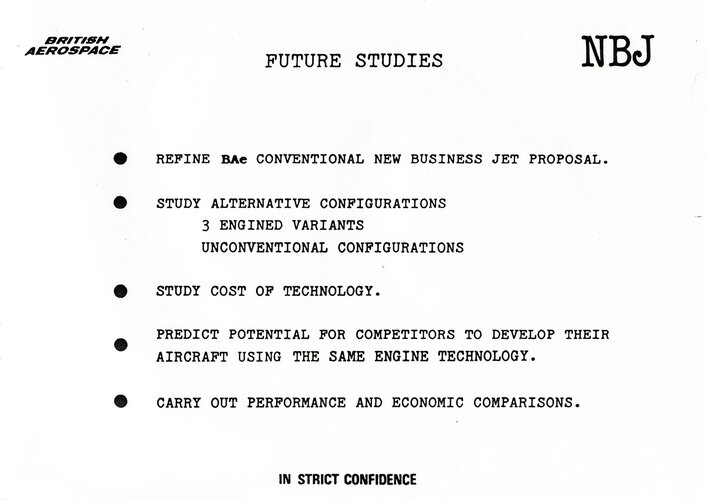

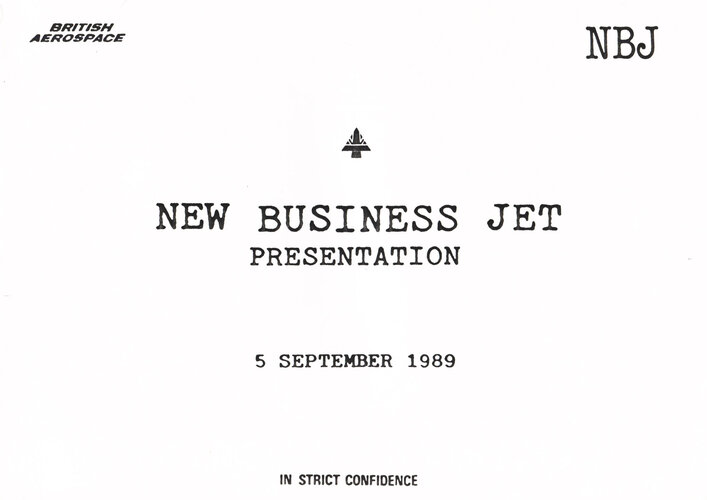

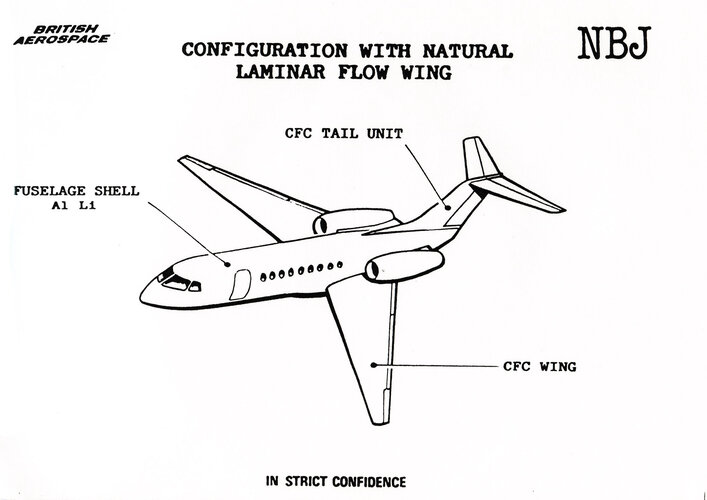

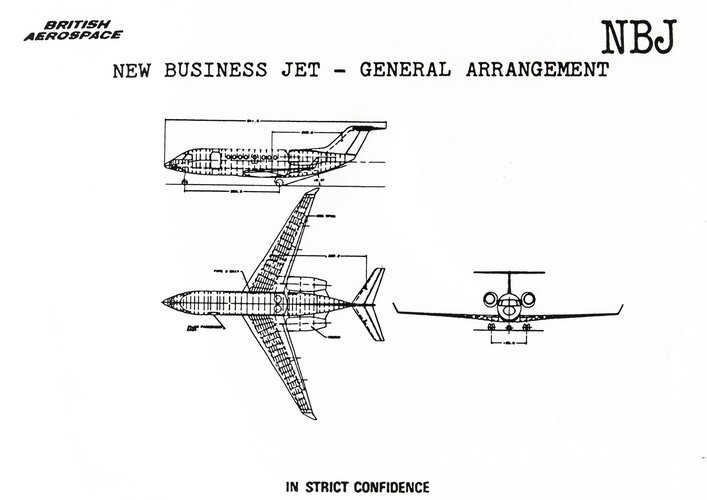

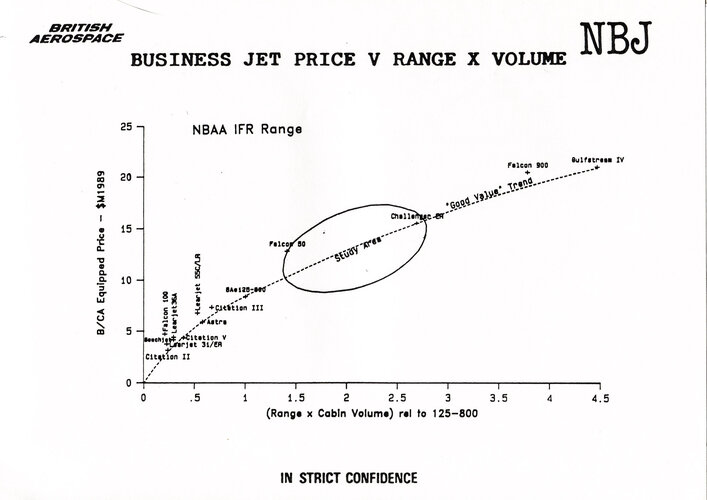

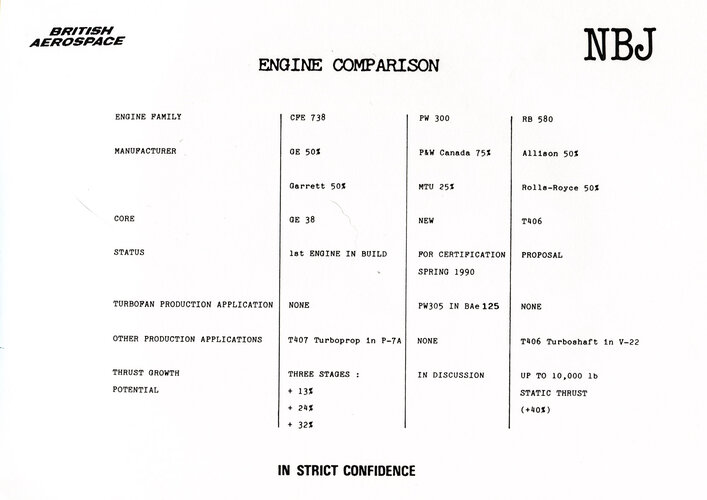

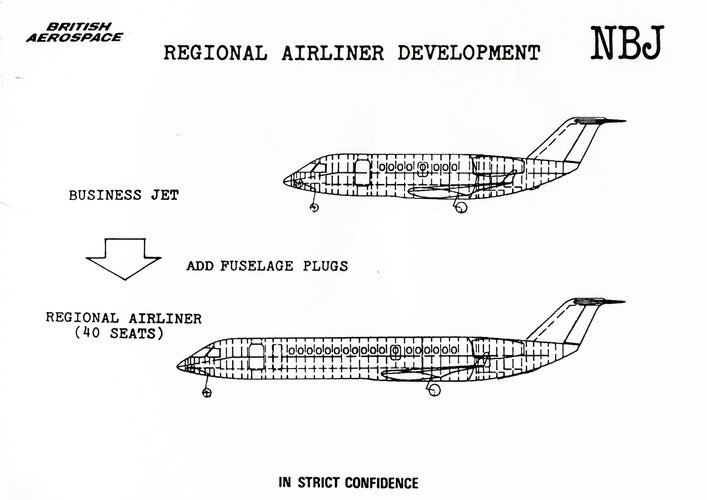

Apart from a 3 view drawing and a small paragraph in Richard Payne's Stuck on the Drawing Board, I've not been able to find much information about this design, however I recently stumbled across a 'brochure' for it. It appears to be for internal use within BAe and is dated 5th September 1989, presentation is very basic with plain covers and an almost photocopier like quality to the pages, definitely has a 'last throw of the dice' feeling to it. Intriguingly there is a proposed stretched regional jet version (NRJ?) and a 'Future Study' which quite frankly looks like someone was trying desperately to differentiate it from the baseline version but could only manage by making the design include swept forward wings...

Zeb


Attachments

  • BAe-NBJ-1.jpg
    133.8 KB · Views: 30
  • BAe-NBJ-2.jpg
    182.5 KB · Views: 22
  • BAe-NBJ-3.jpg
    180.6 KB · Views: 20
  • BAe-NBJ-4.jpg
    216.3 KB · Views: 17
  • BAe-NBJ-5.jpg
    222.9 KB · Views: 17
  • BAe-NBJ-6.jpg
    261.2 KB · Views: 16
  • BAe-NBJ-7.jpg
    227.8 KB · Views: 22
  • BAe-NBJ-8.jpg
    299.5 KB · Views: 28
  • BAe-NBJ-9.jpg
    273.8 KB · Views: 32
  • BAe-NBJ-10.jpg
    341.5 KB · Views: 31
  • BAe-NBJ-11.jpg
    269.9 KB · Views: 31
  • BAe-NBJ-12.jpg
    236.9 KB · Views: 31
  • BAe-NBJ-13.jpg
    284.9 KB · Views: 32
  • BAe-NBJ-14.jpg
    270.4 KB · Views: 31
  • BAe-NBJ-15.jpg
    266.5 KB · Views: 31
  • BAe-NBJ-16.jpg
    235.7 KB · Views: 31
