Breda Ba.100

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
Hi
Who has any technical and construction details etc. concerning the fighter Breda Ba.100 project?
Jan


MANTUS

ACCESS: Restricted
Joined
Nov 5, 2009
Messages
21
Reaction score
3

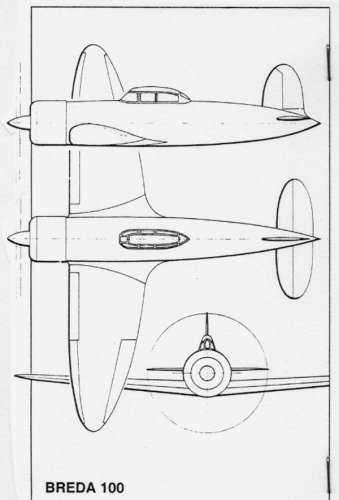

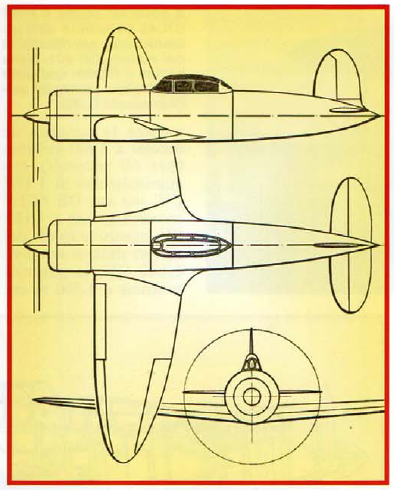

in this thread there is a drawing of three views Breda ba.100
http://www.secretprojects.co.uk/forum/index.php/topic,2559.msg78773.html#msg78773

Ciao Mantus.


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
Thanks Mantus
I hope there is more information in that article in Aerofan.
How can I get the complete article?
Jan


MANTUS

ACCESS: Restricted
Joined
Nov 5, 2009
Messages
21
Reaction score
3
unfortunately I do not have the article. I did a search and found a list of all index number AeroFan.
The article that interests us must be there for sure.
http://www.aeroflight.co.uk/mags/italy/aero_fan.htm


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0
Jan, problen whith message for reply.


Attachments

  • Breda 100.jpg
    Breda 100.jpg
    33.5 KB · Views: 481
  • Breda 100_1.jpg
    Breda 100_1.jpg
    26.8 KB · Views: 464
  • Breda 100_2.jpg
    Breda 100_2.jpg
    48.3 KB · Views: 467

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
13
Jan den Das said:
Hi
Who has any technical and construction details etc. concerning the fighter Breda Ba.100 project?
Jan
From Polish monthly " Lotnictwo " 5/2016, article " Unkown figthers of the Regia Aeronautica 1938 -1943 " :
The Breda Ba.100 project designed in years 1938 - 1939 by the designers team of Antonio Parano, 18-cylinder Alfa-Romeo 135 RC.32 Tornado
double wasp radial engine with 1.600 hp of start power and 1.400 hp at 3.200 m., 49,7 l. cylinder capacity, weight 970 kg.

- span ................ 11,50 m ;
- lenght .............. 9,29 m ;
- height .............. 3,30 m ;
- empty weight .... 2.200 kg ;
- max. take-off .... 2.800 kg ;
- max. speed ....... 580 km/h ;
- landing speed .... 116 km/h.
