Bréguet gyroplane projects and prototypes

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

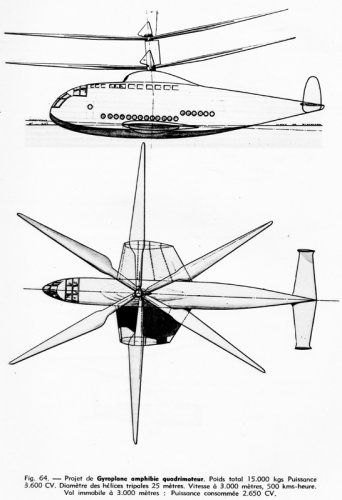

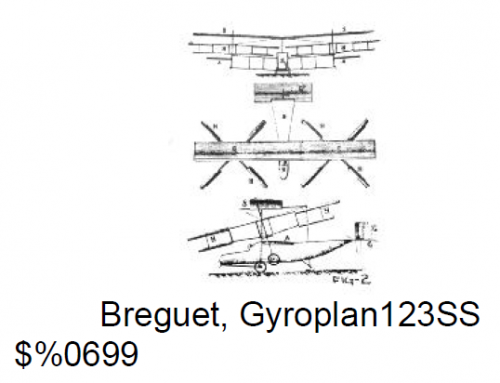

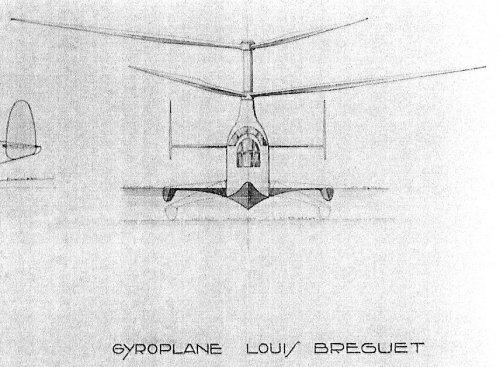

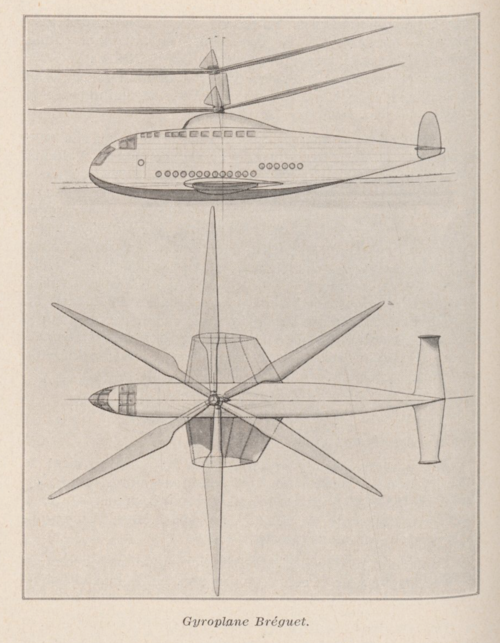

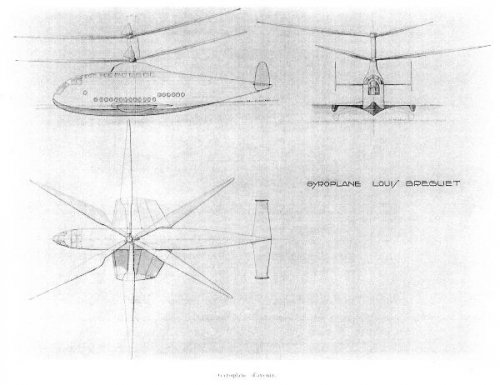

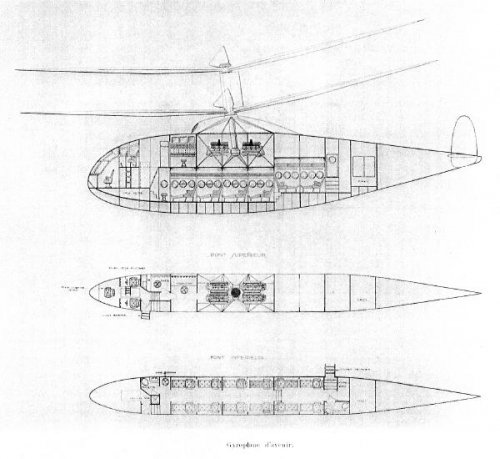

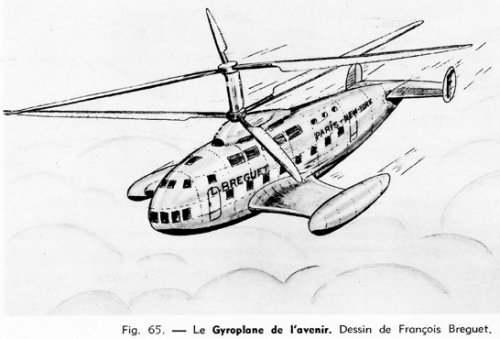

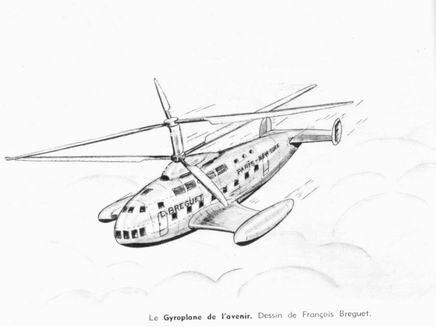

Apologies but I didn't make a note of the pamphlet about it and only photocopied the two drawings - from 1936 I think :-[

Regards,
Barry


Attachments

  • scan0097 (2).jpg
    scan0097 (2).jpg
    50.8 KB · Views: 499
  • scan0098 (2).jpg
    scan0098 (2).jpg
    38.7 KB · Views: 497
  • scan0098 (3).jpg
    scan0098 (3).jpg
    146.3 KB · Views: 453

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

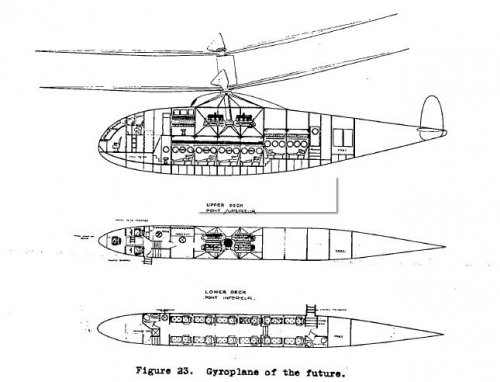

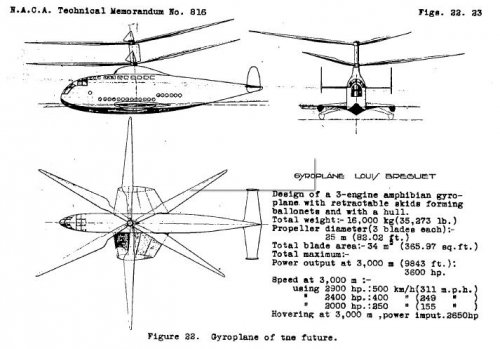

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930094600_1993094600.pdf


Attachments

  • 1.JPG
    61 KB · Views: 423
  • 2.JPG
    44 KB · Views: 397
  • 3.JPG
    27.6 KB · Views: 129

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
35

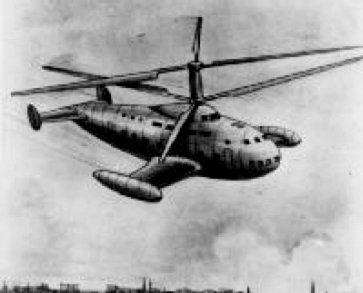

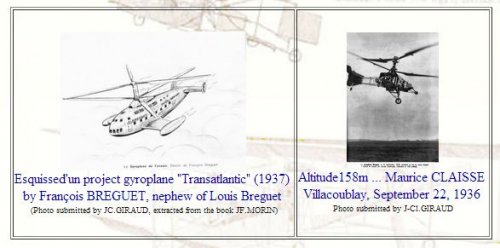

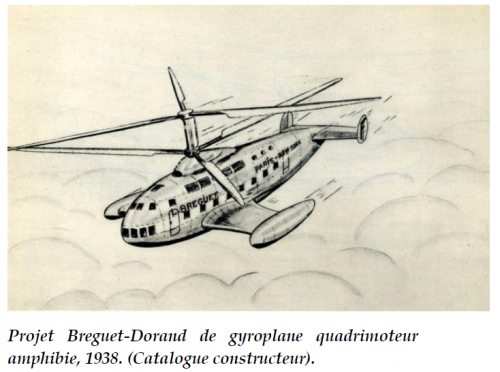

Found here :

http://exact.blog.lemonde.fr/2008/01/


Attachments

  • u.jpg
    66.4 KB · Views: 232
  • z.jpg
    90.7 KB · Views: 235
  • x.jpg
    132.7 KB · Views: 241

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

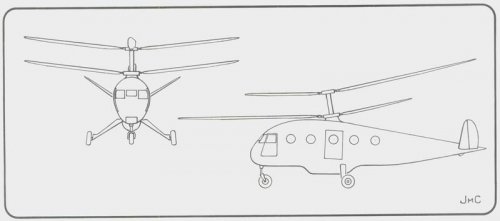

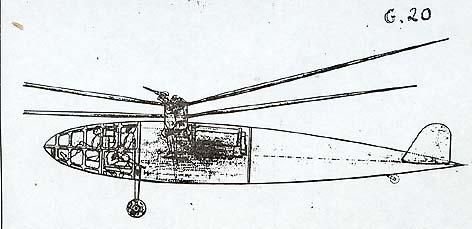

Strange, that the G.20 isn't mentioned in that blog, as it actually
was built and AFAIK finished after the war, but never test flown.
(drawing via aerostories.org)


Attachments

  • Breguet-G20-1.jpg
    19.9 KB · Views: 208

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
35
Sorry , I don't know more than "Le Monde" says ( see the link ) .


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
37
Website
cmeunier.chez-alice.fr
Yes, but the source book seems unavailable:
http://www.amazon.fr/Trente-service-laviation-Louis-Br%C3%A9guet/dp/B00183RXAS
http://www.priceminister.com/offer/buy/79179088/faure-pierre-trente-ans-au-service-de-l-aviation-louis-breguet-trente-ans-au-service-de-l-aviation-louis-breguet-livre-ancien.html
Maybe Google has scanned it but I don't know the procedure to check. Maybe dear Hesham knows?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

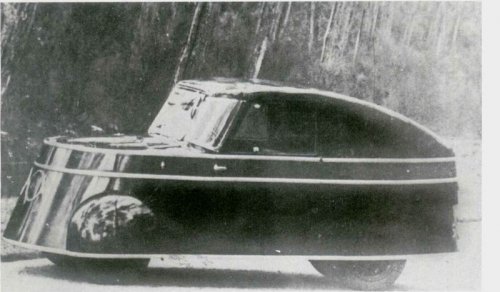

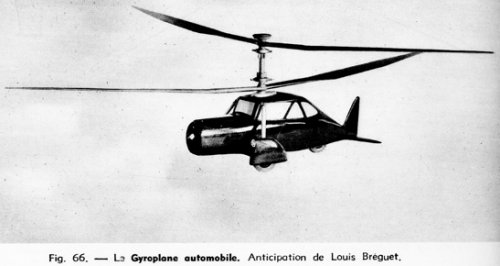

The Gyroplane Automobile isn't mentioned in Cunys "Les Avions Breguet", but at least
it somewhat resembles the Breguet car type A2, which was electrically driven. Of course,
this maybe just accidentally and I'm not sure, if it was meant as a project at all, or just
to show the idea, that the amalgamation of car and aircraft could be beneficial.
Another Breguet Gyroplane, that can be found in the mentioned Docavia, too, is the G.34,
which was proposed in 1941. It was intended to carry about ten passengers and two crew,
powered by a GR 14M with 630 hp.


Attachments

  • A2.jpg
    61 KB · Views: 183
  • G-34.jpg
    21.1 KB · Views: 78

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

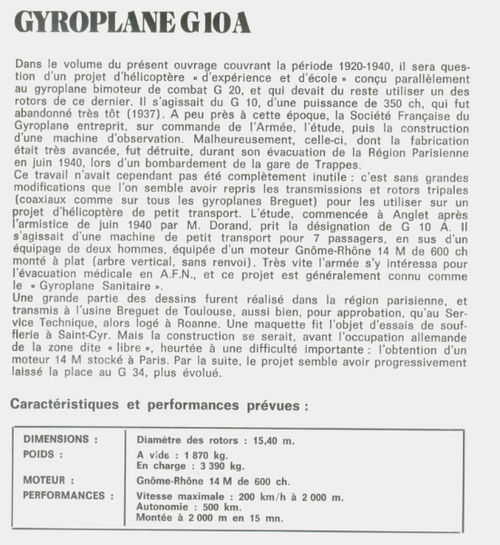

Many thanks, not even in Cunys "Avions Breguet" I could find a drawing of the G.10.
I remember having seen an artists impression of a helicopter very similar attacking a
submarine with gunfire. IIRC it was described as the G.20, but had a staggered cockpit,
so probably should show the G.10 .


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
37
Website
cmeunier.chez-alice.fr

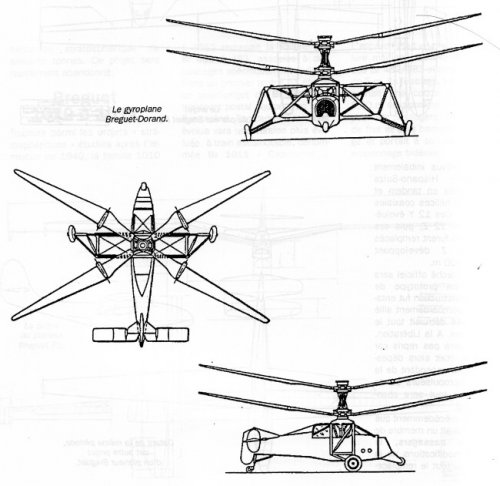

In the Trait d'Union #172 that I will discuss in another topic is this sentence: (Bréguet Airplanes 1919-1945. Gyroplanes) We will not detail here the gyroplanes, directing for that to our special issue of Trait d'Union "René Dorand, 50 years of gyraviation", written by Pierre Boyer anf published in 1992. We will present only drawings illustrating the laboratory-gyroplane that would have been coded Br 314.
Someone may need this Dorand issue, no?


Attachments

  • r_Br314.JPG
    81.9 KB · Views: 81

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Jemiba said:
Many thanks, not even in Cunys "Avions Breguet" I could find a drawing of the G.10.
I remember having seen an artists impression of a helicopter very similar attacking a
submarine with gunfire. IIRC it was described as the G.20, but had a staggered cockpit,
so probably should show the G.10 .
This artists impression was the site JC Carbonel, and a link to this page here:
http://www.secretprojects.co.uk/forum/index.php/topic,4695.0 /
Reply # 5


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459

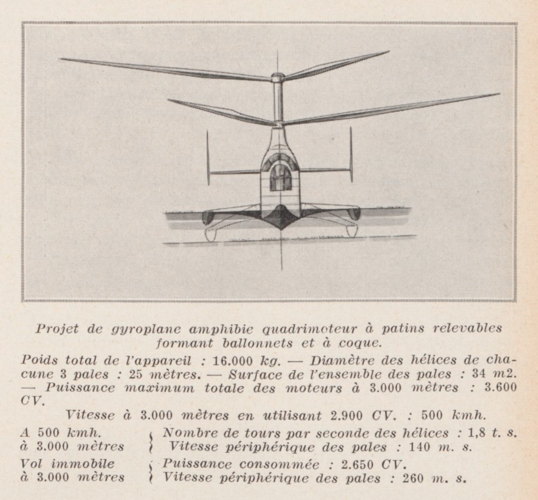

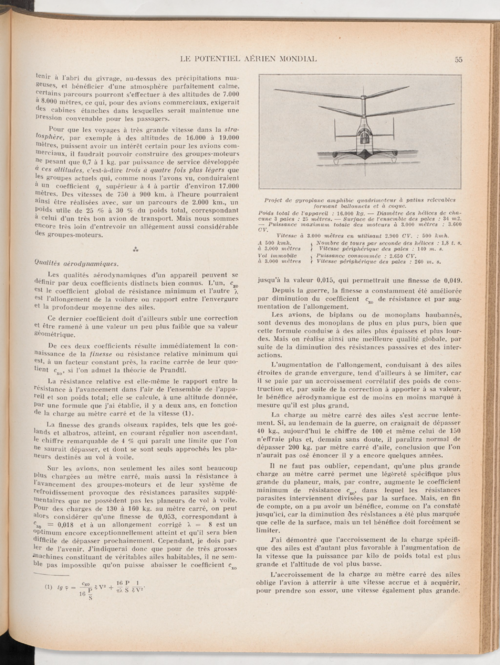

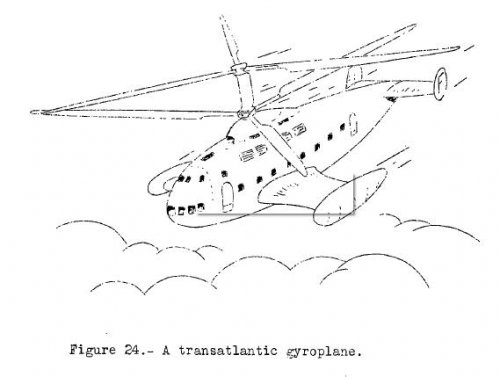

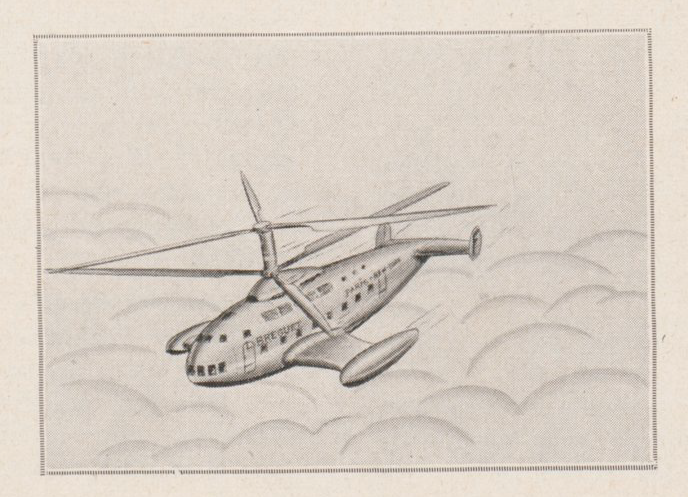

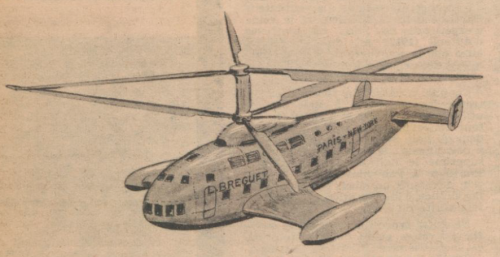

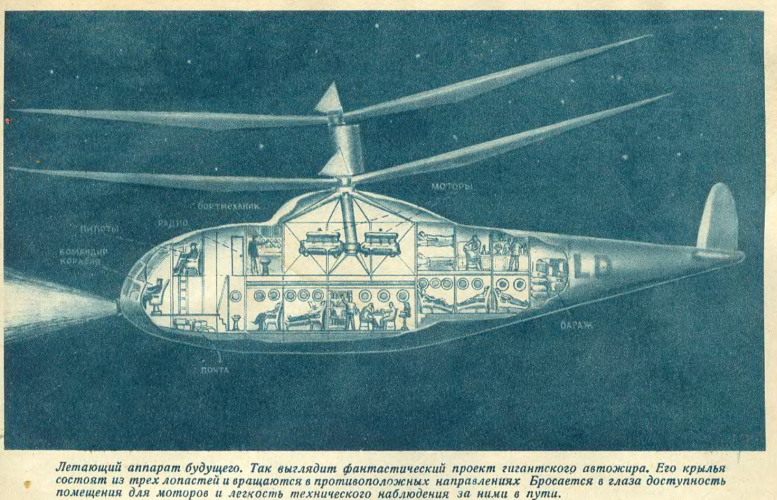

A Bréguet project for a Trans-Atlantic helicopter with coaxial rotors drafted in 1936.


Attachments

  • Bréguet transatlantic coaxial helo 1936.jpg
    Bréguet transatlantic coaxial helo 1936.jpg
    50 KB · Views: 647

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459

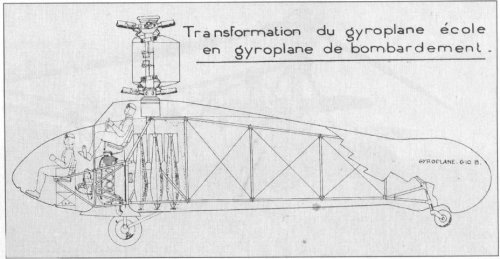

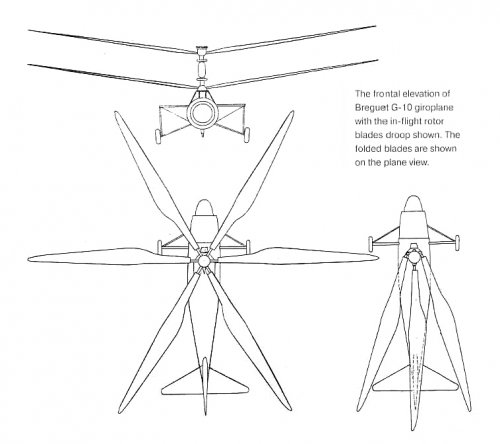

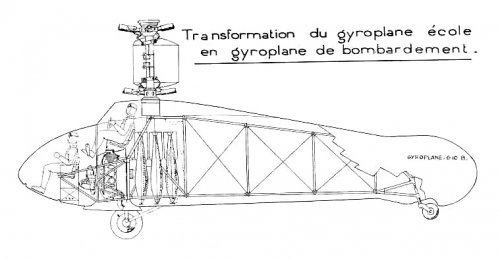

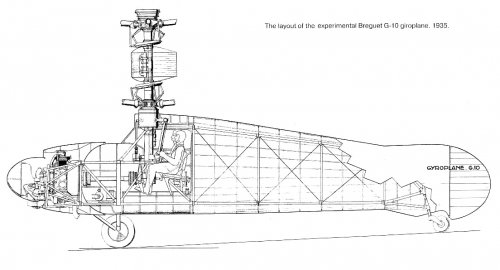

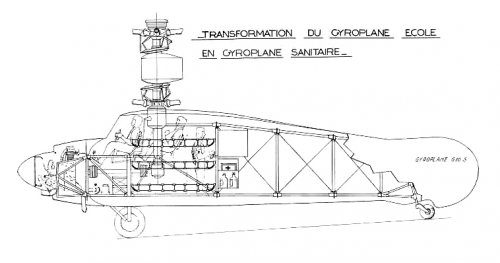

Some more documents showing the basic G.10 as well as the G.10B bomber version and the G.10S sanitary version.


Attachments

  • Gyroplane G.10.jpg
    Gyroplane G.10.jpg
    170.5 KB · Views: 77
  • G.10B.jpg
    91.8 KB · Views: 83
  • G.10S.jpg
    86.2 KB · Views: 79
  • three-view.jpg
    106.8 KB · Views: 86

Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
510
Reaction score
284

Attachments

  • amisbreguet.free.fr-1920_1940.JPG
    40.3 KB · Views: 239
  • GyroplaneFBR.jpg
    14.4 KB · Views: 256

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,


a more clearer view.


Attachments

  • Breguet.png
    519.8 KB · Views: 220

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

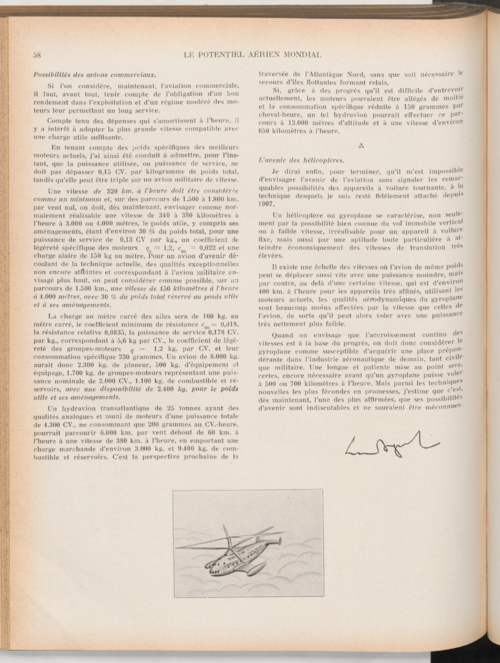

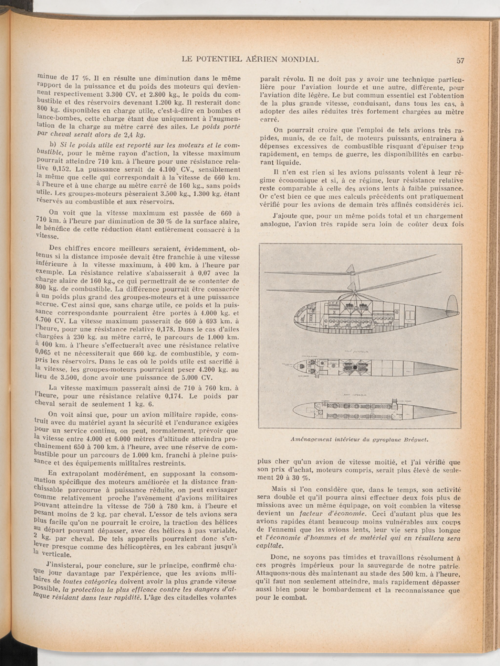

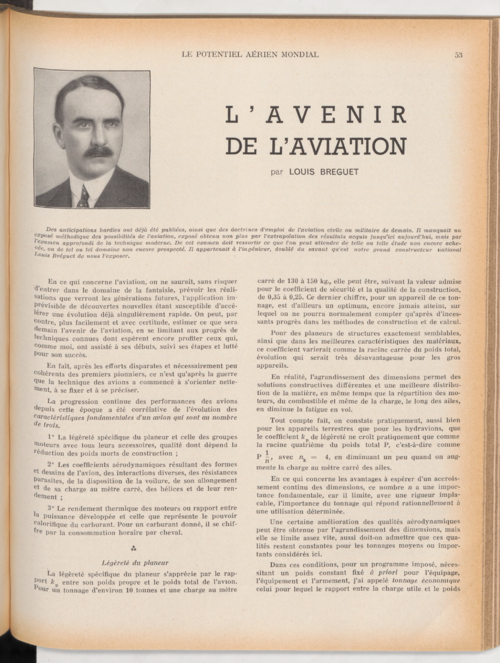

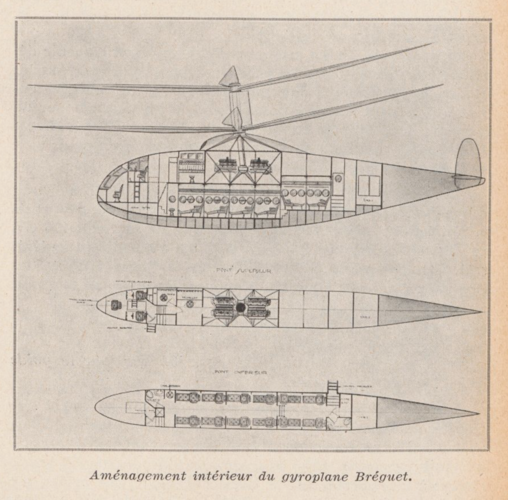

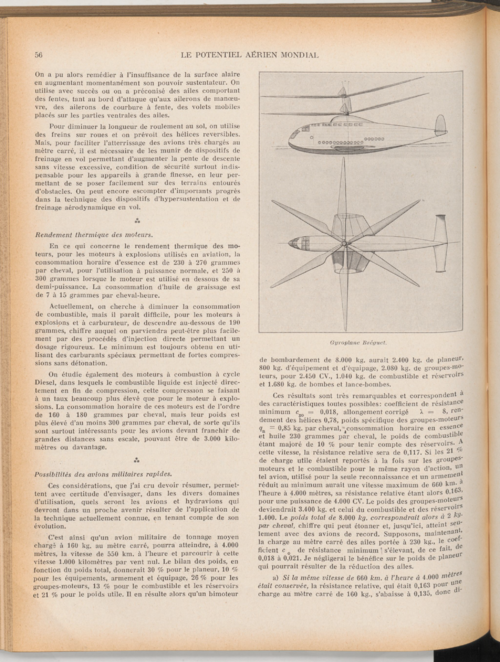

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201936%20012.pdf


Attachments

  • 2.png
    744.7 KB · Views: 48

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503

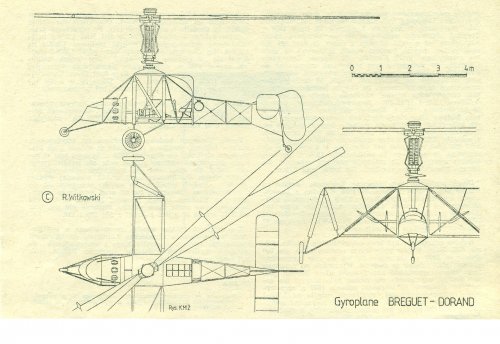

The Breguet early gyroplane.


Attachments

  • a.png
    61.4 KB · Views: 30

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503

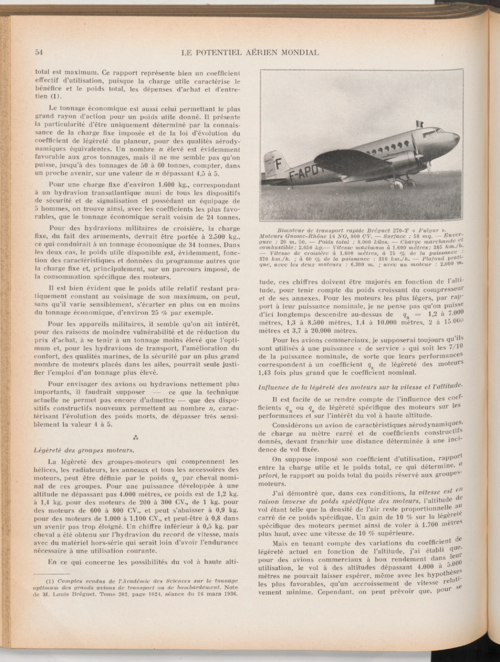

From Decollage 4/1946.


Attachments

  • 1.png
    683.7 KB · Views: 39
