Boulton Paul P.96 Single-Engine Fighter Project

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,060

Attachments

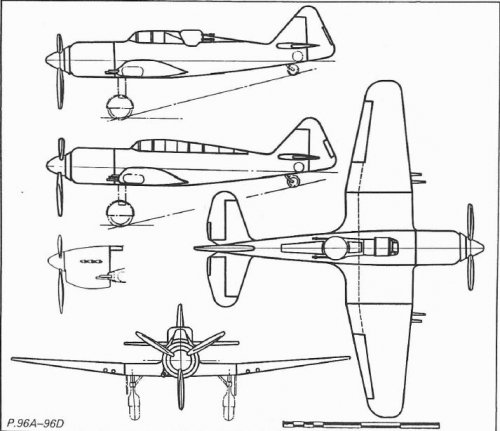

  • P.96 variants.JPG
    P.96 variants.JPG
    52.7 KB · Views: 838
  • P.96 with P.94.jpg
    P.96 with P.94.jpg
    56.6 KB · Views: 844

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
78
The contra prop design-sideview in the middle-does not really
fits in the P.96 series.
It seems to be one of the impressions of the Defiant'Special Features' demonstrator
aimed at the P.105 project , but with no proposal number of its own.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,060
lark said:
The contra prop design-sideview in the middle-does not really
fits in the P.96 series.
It seems to be one of the impressions of the Defiant'Special Features' demonstrator
aimed at the P.105 project , but with no proposal number of its own.


My dear Lark,it was P.94.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
78
No, it is not the P.94 Hesham.
I'll try to explain...

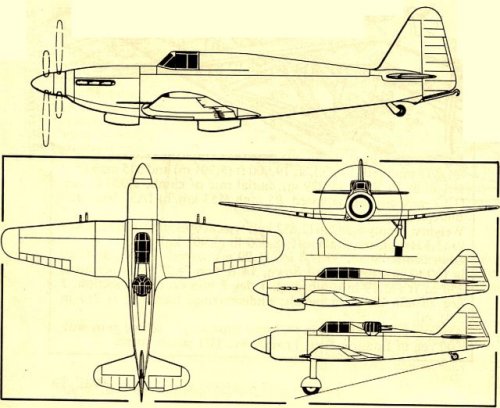

The drawing of the contraprop plane on the site
you cites in your post ,appeared first in Air Enthusiast No.5 Nov.77-Febr.88
and is described in the article text as the 'Special Features' project.
It was intended to develop details for a naval fighter with
either a Rolls Royce Griffon RG5SM or a Bristol Centarus CE12SM engine and Contraprops.

The P.94 proposal was basically a single seat Defiant for speedy production in 1940
with a choise of wing armament.

Sources : Boulton Paul Aicraft since 1915-Putnam
Air Enthusiast No.5
Air Enthusiast No.108
Boulton Paul Aircraft- Tempus Publ. page 139.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
660
Reaction score
300
Can't remember the source as it was from somewhere online.


Attachments

  • Defiant_P96.jpg
    97.4 KB · Views: 457

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,060

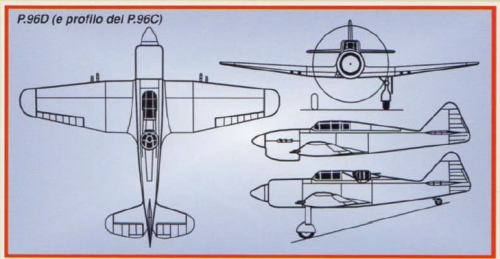

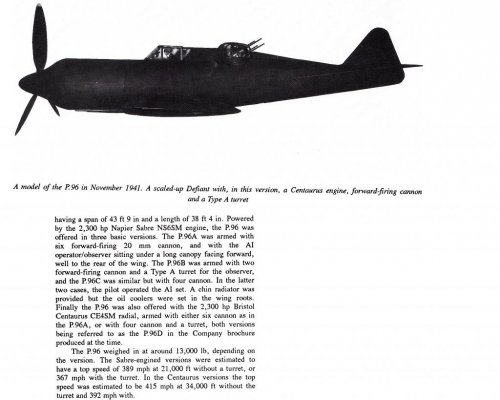

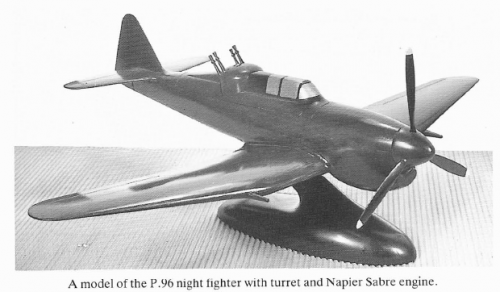

From Aerei Nella Storia 8-9/2010 and Putnam book.


Attachments

  • 2.png
    320.8 KB · Views: 207
  • 3.png
    164 KB · Views: 196
