Hi all

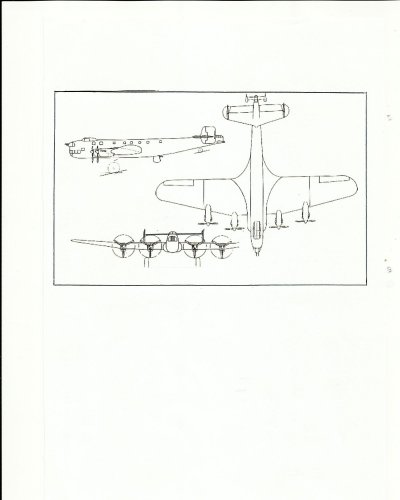

I've found this drawing in old papers
I don't know what is that...I'don't know where I have this !!!
Who know ???
Thanks iff you could answer
Paul


Attachments

  • Scan.jpg
    136.6 KB · Views: 431

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
91
Re: What is that ????

Appears to be a British Avro design, circa WWII?... -SP

O

Overkiller

Guest
Re: What is that ????

It's the Boulton Paul P-90, submitted against Specification B12/36.

Span 100 ft
Length 77 ft 3 in
Max Weight 47,922 lbs
Powerplant 4 x RR Kestrel KV.26 or Napier Dagger
Max Speed 290 mph @ 15,000 ft

Source: British Secret Projects - Fighters & Bombers 1935-1950 by Tony Buttler.

Cheers

Duncan


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
168
Re: What is that ????

Yes, Ducan Baxter I thank you very much.
i've found another 3 views....but without fin ??
and what is the armement in the fin ?
Thanks again
Bye


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,421
Reaction score
1,883
Quoting Tony Buttler from the mentioned BSP volume:
" ..the tail defence consisted of Boulton Paul's patented 'Dumb bell' type mounting which housed
two Brownings to either side (total four) with the gunner housed in the rear fuselage. This arrangement,
which was produced as a mock-up, placed the guns in stub winglet fairings in an attempt to reduce the drag
penalty of a completely moving turret..."


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,421
Reaction score
1,883

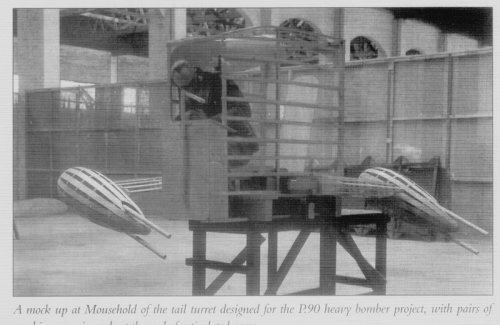

I knew, I had seen it before ! Et voilà, from Alec Brew "Boulton Paul Aircraft",
a photo of the mentioned mock-up: ;)


Attachments

  • Dumb-bell-mounting.jpg
    115.2 KB · Views: 361

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
168
Hi Jens
How are You ? Here it's warm :40°...........
I thank you very much for your answer
I never see such arrangment !!!
Thanks again and good holidays
Paul
