Boulton Paul P.119

rocketeer

ACCESS: Restricted
Joined
Nov 23, 2006
Messages
9
Reaction score
0
Guys anyone have "anything" on the Bolton Paul P119 Trainer project?
Ive been through the Flight Archives and obtained a page or 2 but not much.

(Title slightly modified, although I had to notice, that my file names were wrong, too ! ;)
Jemiba )


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,317
Re: bolton paul p.119

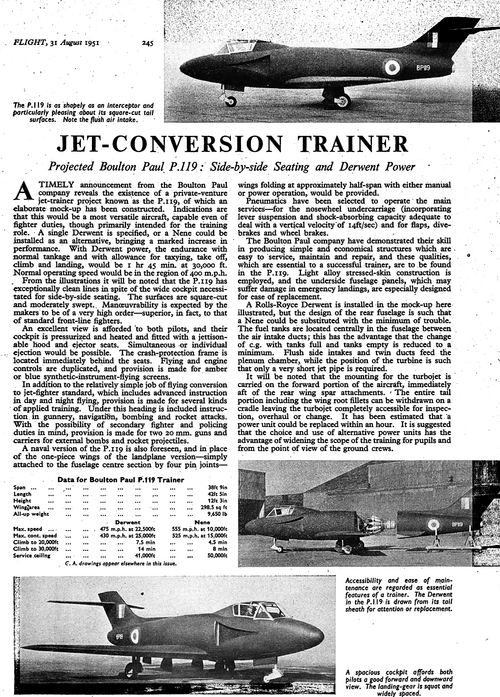

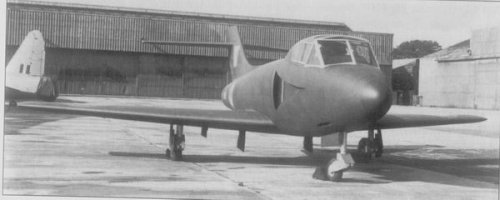

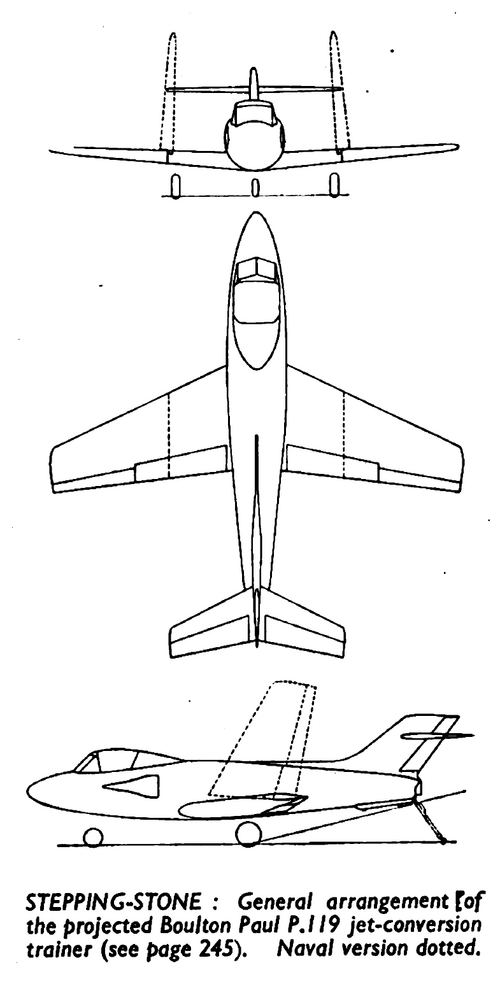

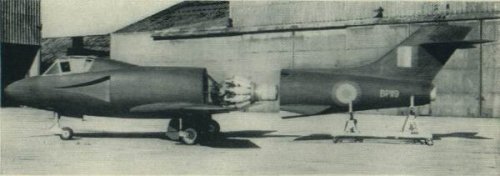

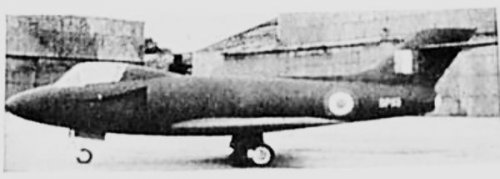

Just three photos, the first two via the now defunct airwarfareforum, the third from
Alec Brew "Boulton Paul Aircraft". In this book it's stated, that the P.119 and the naval
P.119N would have been powered by either a Derwent or a Nene engine. In the end,
the Vampire T.11 took over the task, the P.119 was envisaged for.


Attachments

  • Boulton-Paol_P-119_01.jpg
    23 KB · Views: 839
  • Boulton-Paol_P-119_02.jpg
    23 KB · Views: 768
  • Boulton-Paol_P-119_03.jpg
    21.7 KB · Views: 762

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
623
Reaction score
323
Re: bolton paul p.119

Did it have swept wings?

Piotr


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,317
Re: bolton paul p.119

"Did it have swept wings?"

The P.124, which is described as basically similar, but smaller had a very
low sweep angle, so I think, it's the same for the P.119. Completely overlooked

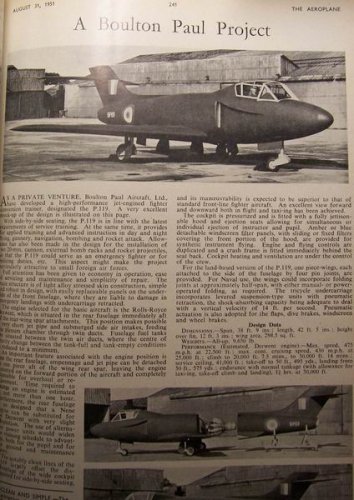

yesterday evening, I'll an article from "The Aeroplane" August 1951, but ...
it doesn't mention this particular point either !


Attachments

  • Boulton-Paul_P-119_03.jpg
    67 KB · Views: 775

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
708

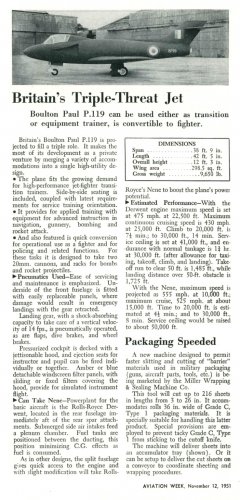

The Boulton Paul P.119 from Aviation Week, cover date November 12, 1951:


Attachments

  • P.119 article (from AW).jpg
    P.119 article (from AW).jpg
    337.7 KB · Views: 634

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,543
Reaction score
1,044
The book "100 Years of Wolverhampton's Airports" by Alec Brew contains a photo of a pre-production Balliol with the P.119 mock-up in the background- the mock-up appears to have its wings folded directly upwards at a fold-point immediately outboard of the main undercarriage- I presume this is representative of the P.119N.


ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
145
Reaction score
13
Eny drawing of this interesning projects?, or 3view


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,317

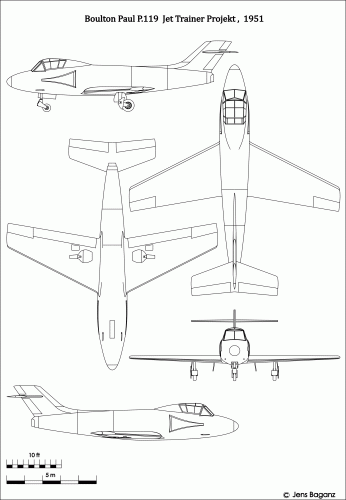

source grade 2, principally made from photos, as the only known (to me) drawing
was faulty (see notes)


Attachments

  • Notes-Boulton-Paul_P-119.txt
    1 KB · Views: 8
  • BP_P-119.gif
    255 KB · Views: 95
