Hi,


Mr. M. Boulet designed some stratosphere aircraft and a fighter during 1930s,they
remained only a projects,he was a French man,has anyone a more info about him ?,
and thanks in advanced.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
By the way,


the French TU magazine issues 161 & 171 contain a more info about those projects,
but I haven't them.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


in 1937,Mr Boulet designed a commercial experimental Stratosphere single-engined aircraft,and had estimated speed of 500 km/h,ceiling 16500m and could fly at 15000m ceiling for 17 hours,followed by a twin engined military experimental stratosphere aircraft,and had estimated data as365 km/h speed and ceiling 18000m and could remained flying at 13700m ceiling for 8 hours.

In 1933,he created a fighter-canon project,was a monoplane with low-wing,which this aircraftground speed was 400 km/h,and the speed was 440 km/h at ceiling of 4000m, was characterized by the position of the HS-12 motor-canon to the right of center of gravity in the middle of the
fuselage.The propeller, at the front, is driven by a large diameter shaft; this fact, the gyroscopic and tensile forces are received by a bearing independent of the engine that no longer transmits torque,
the machine is a domestic driving.

The fighter data,as in google translate,and I can't imagine its shape,what it looks like ?.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
hesham said:
In 1933,he created a fighter-canon project,was a monoplane with low-wing,which this aircraft
ground speed was 400 km/h,and the speed was 440 km/h at ceiling of 4000m, was characterized by
the position of the HS-12 motor-canon to the right of center of gravity in the middle of the
fuselage.The propeller, at the front, is driven by a large diameter shaft; this fact, the gyroscopic and
tensile forces are received by a bearing independent of the engine that no longer transmits torque,
the machine is a domestic driving.


We have here a good painters,can anyone make just a small sketch for this concept and thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

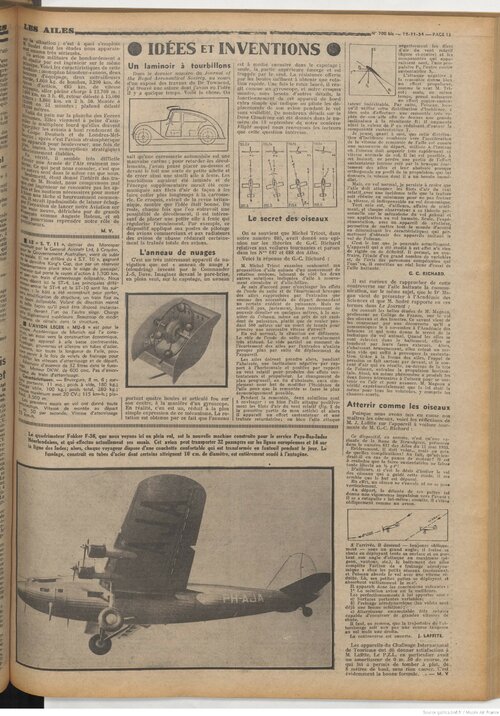

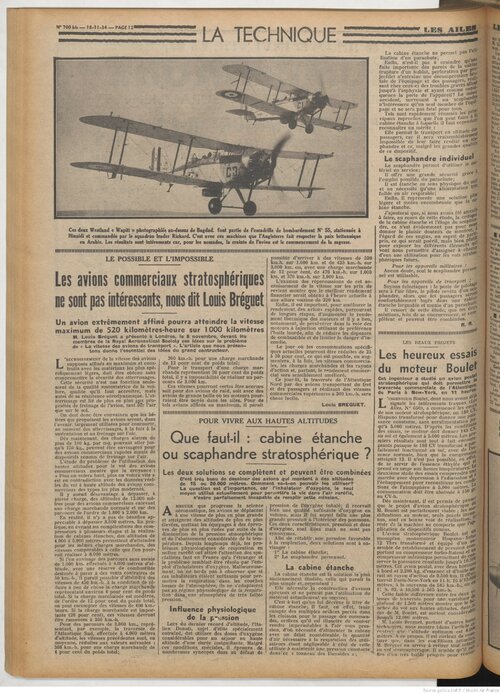

The whole story from Ailes.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k6576066z_12.jpeg
    1.7 MB · Views: 42
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k6576066z_13.jpeg
    1.7 MB · Views: 27

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
From Aerophile,

a more Info.


Attachments

  • L'Aérophile__bpt6k65543714_13.jpeg
    1.2 MB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

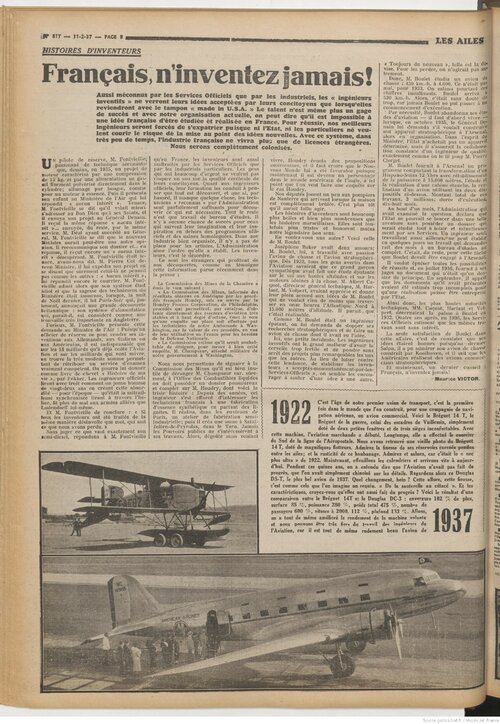

All Info.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k6560488s_8.jpeg
    1.9 MB · Views: 25
