Hi,

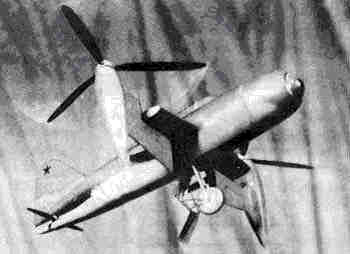

the Yur'ev KIT-1 and KIT-2 tailsitter fighter projects.


Attachments

  • KIT-1.jpg
    28.4 KB · Views: 784
  • KIT-2.jpg
    30.7 KB · Views: 721

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com

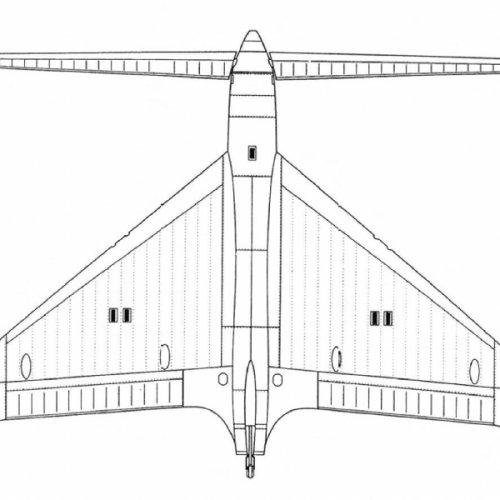

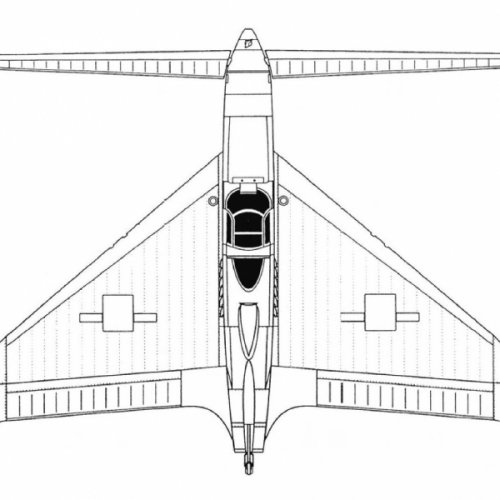

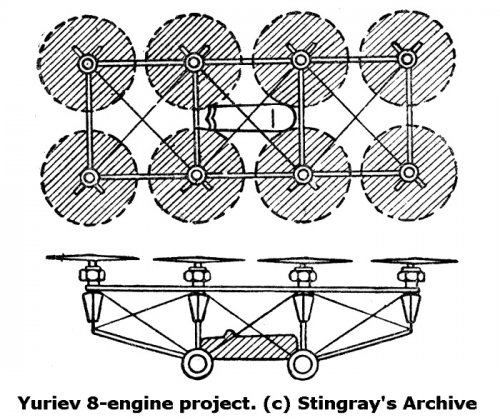

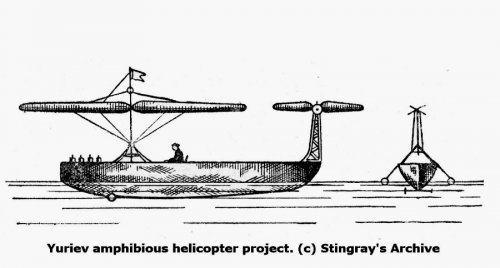

Any info would be great. :)


Attachments

  • SA-008.jpg
    183.9 KB · Views: 1,009
  • SA-009.jpg
    102.1 KB · Views: 912

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
According to Google, Boris Yuriev was a helicopter Russian pioneer in 1911-1912. This more complicated project may be later, 1913 to 1917?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

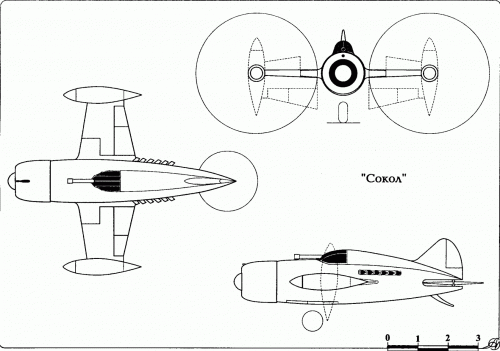

Also for Yuriev;


http://fly-history.ru/books/item/f00/s00/z0000014/st025.shtml
http://translate.google.com/translate?sl=ru&tl=en&js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&u=http%3A%2F%2Ffly-history.ru%2Fbooks%2Fitem%2Ff00%2Fs00%2Fz0000014%2Fst025.shtml


Attachments

  • Yuriev 3.JPG
    Yuriev 3.JPG
    63.5 KB · Views: 133
  • Yuriev 2.JPG
    Yuriev 2.JPG
    48.3 KB · Views: 131
  • Yuriev 1.JPG
    Yuriev 1.JPG
    47.3 KB · Views: 575

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Translated from Jean Boulet's Histoire de l'hélicoptère racontée par ses pionniers – 1907-1956:

According to Soviet author David Gai, the first helicopter to be built in the world was the 1912 Yuriev. However, that machine never flew. Here is what Eugene K. Liberatore, a historian of Russian aircraft, has to say about it:

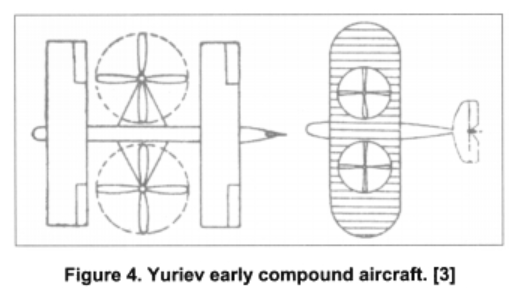

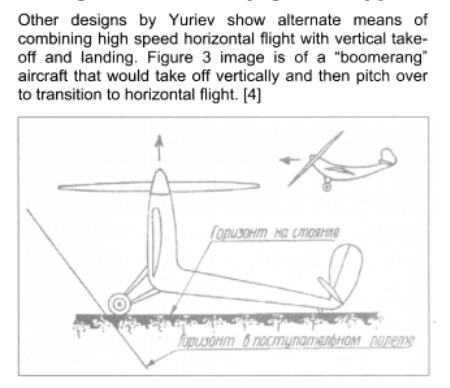

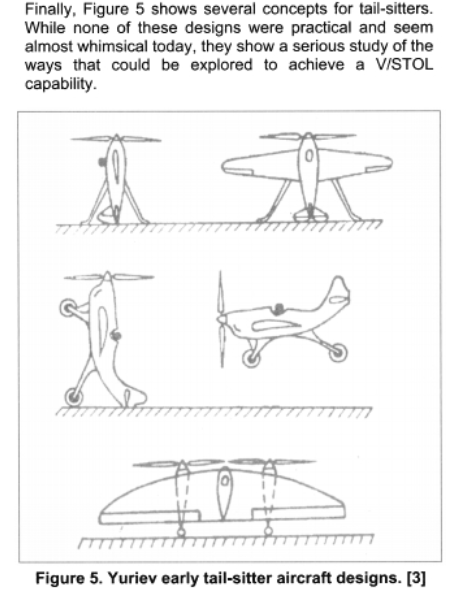

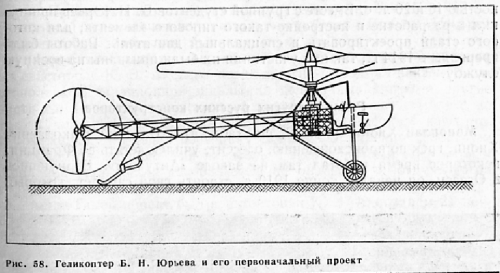

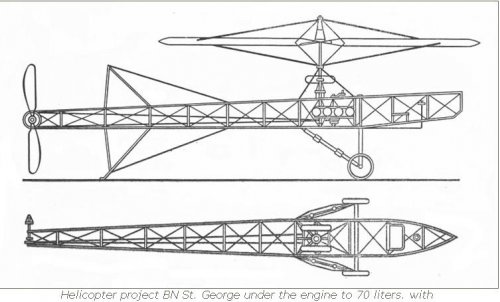

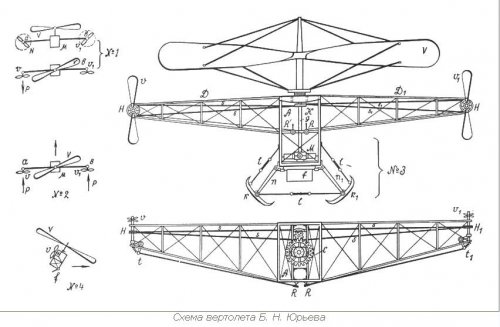

Yuriev's helicopter activities began in 1909. During that year, he proposed a design for a machine with two coaxial rotors. A 70 hp rotary Gnôme engine was fitted in the upper part of the fuselage, driving two rotors of different diameters: 9.7 m for the upper one and 3 m for the lower one. The machine featured a directional propeller with variable pitch for yaw control. It was fitted with wheels for rolling take-offs, and a parachute was planned in case of engine failure. It weighed 694 pounds.

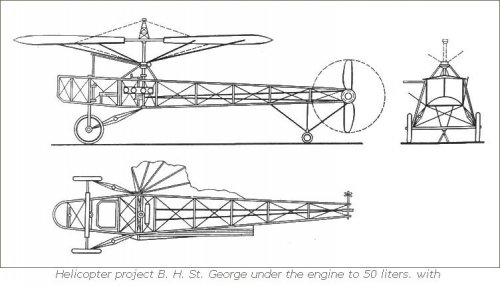

At the end of 1909, Yuriev drew a second version. He had estimated the necessary take-off power to be 50 hp, but the absence of such an engine at his disposal prevented him from building that machine. However, a 25-30 hp Anzani engine was available at the Moscow Aero-Club. Yuriev designed a helicopter around that engine, with a two-blade main rotor (with a diameter of 8.6 m) and a tail rotor motioned by a strap.

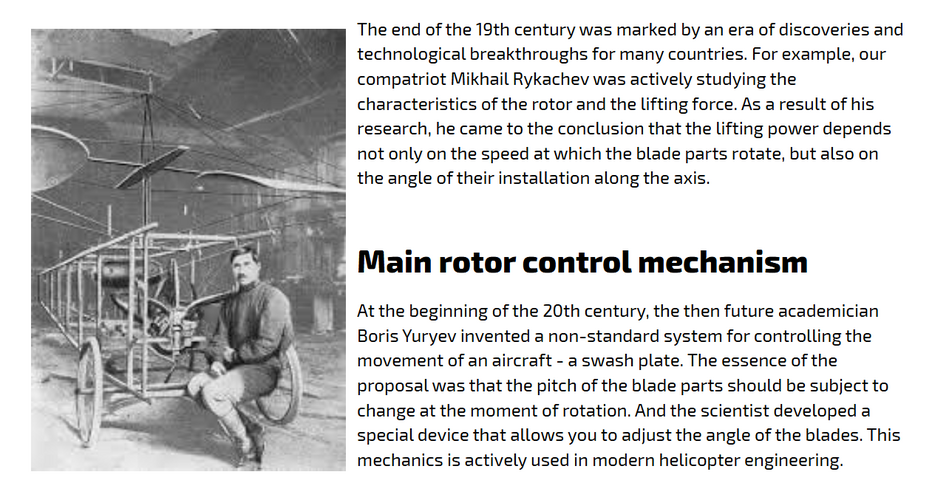

With the assistance of the Ledentoov firm, Yuriev built his prototype in 1912. He had planned for a variable pitch mechanism to be installed, but then changed his mind to gain weight. The machine weighed 445 pounds. The only known photo of the machine does not show the pilot's cabin. It was the first helicopter in the world with a single main rotor and an anti-torque tail rotor.

The helicopter was part of the ground exhibit at the 1912 Aeronautics and Automobile International Exposition in Moscow and earned Yuriev a gold medal. But during the static test phase, the rotor's axle broke. By lack of funding, Yuriev had to abandon his machine; the advent of the first World War and then the Soviet revolution put an end to all research in the field of helicopters.


Attachments

  • Yuriev helicopter.jpg
    Yuriev helicopter.jpg
    222.2 KB · Views: 44

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,


you feel that drawing for Yuriev is different from other drawings in this topic.


Attachments

  • Yuriev.png
    292.7 KB · Views: 44

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

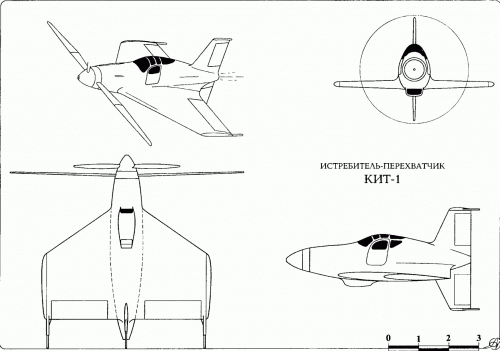

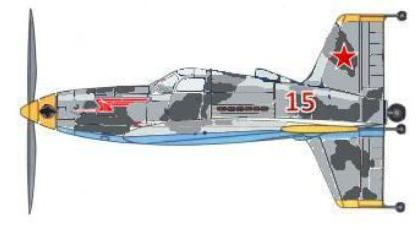

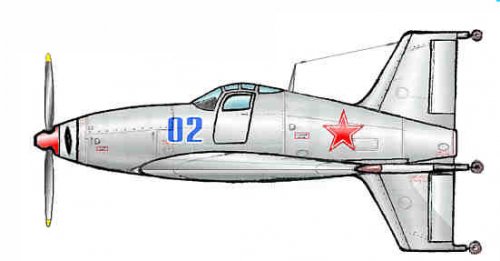

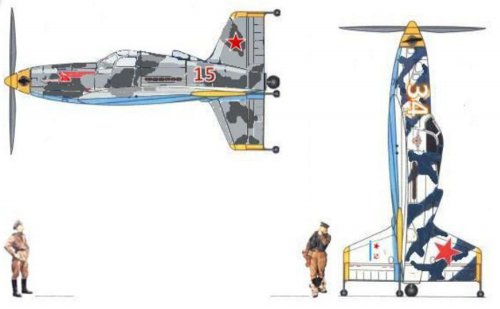

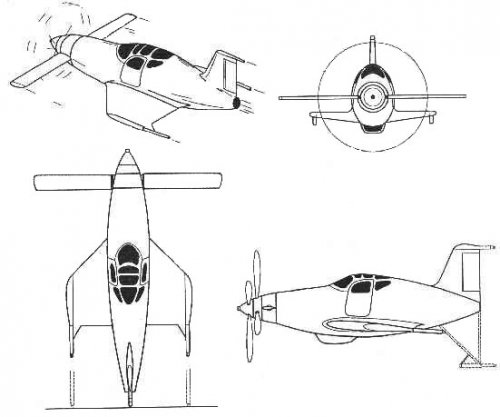

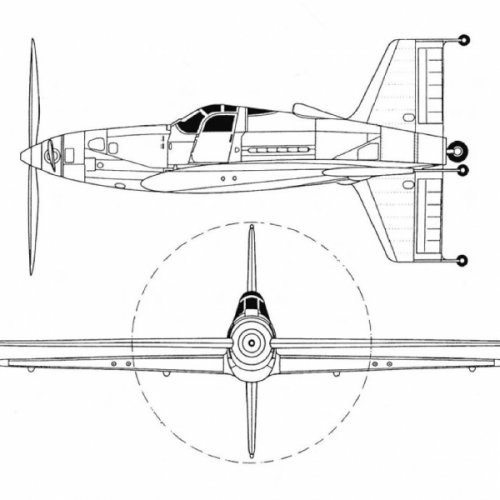

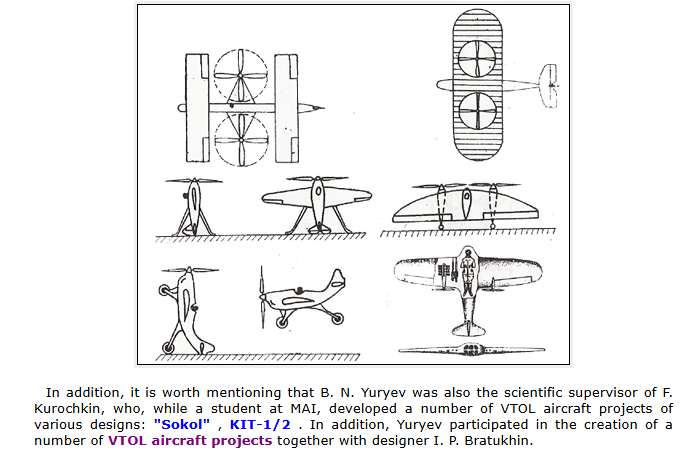

Hi! KIT-1 KIT-2. Yuriev, Kurochkin, Tyrone. Soviet VTOL aircraft. USSR, 1946
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Fkit-1-i-kit-2-yurev-kurochkin-tiron-sovetskie-svvp-sssr-1946-g%3Fmini%3Dcalendar%25252F2015-10&sandbox=1

”In 1946-1947. under the leadership of BN Yuriev in VVIA engineers FP and Kurochkin VN Tiron has developed a number of projects fighters SVVP- with coaxial propellers and vertical position of the fuselage, features original layout and high design properties. According to the plan of aircraft, this machine was to have two propellers. With more who played the role of the main rotor, CIT-1 was raised "in the helicopter." At a height of 60-70 meters, he shifted to horizontal flight, and the rotor was fixed parallel to the wings. Before planting, KIT-1 took a vertical position, the rotor is spun again, and the machine gently landed on its tail.In 1946, a group of engineers, working under the leadership of BN St. George, completed the design of KIT-1 experimental aircraft. The machine has been designed on the basis of the fuselage lend-lease fighter P-63 "Cobra". The project is an experimental single KIT-1 aircraft (USSR, 1946).
Engine VK-108 - 1750 hp, The diameter of the rotor - 8 m, the diameter of the pull screws - 3.6 m., Wingspan - 3 m.
Estimated top speed - 800 nm / h., The estimated duration of the flight - 1 hour 30 minutes.

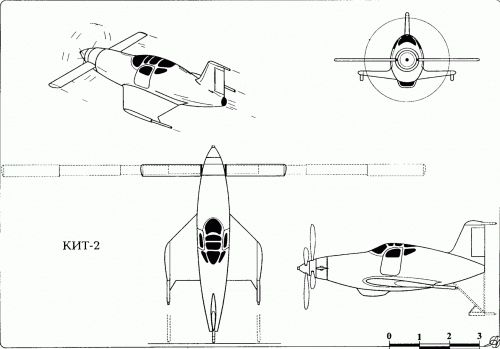

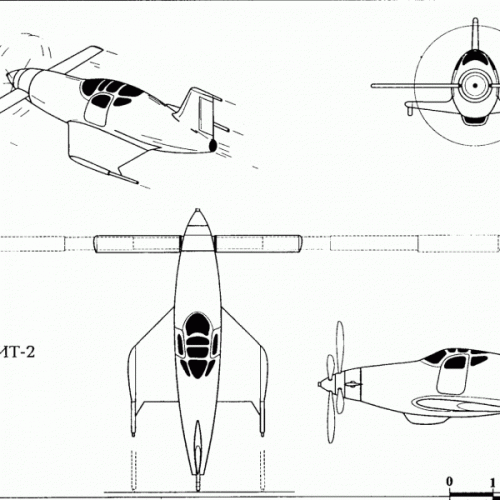

In parallel, another option designed VTOL KIT-2. In which a large screw telescopic rises after takeoff and was going to shrink in size.
Unfortunately, due to the post-war reorganization of the aviation industry, these long-term projects were not brought to the construction of prototypes. The aircraft had been diverted to the creation of conventional aircraft necessary to the national economy, and they were not able to complete the work on the car and its two modifications. ”

Larger image sourse.
http://xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/eksperimentalnye-samolety/proekt-eksperimentalnogo-letatelnogo-apparata-kit-1/


Attachments

  • KIT.jpg
    55.9 KB · Views: 73
  • KIT-2_-Shema_-600x600.gif
    55.5 KB · Views: 51
  • KIT-1_-Shema-3_-600x600.jpg
    164.2 KB · Views: 49
  • KIT-1_-Shema-2_-600x600.jpg
    164.7 KB · Views: 67
  • KIT-1_-Shema-1_-600x600.jpg
    147.4 KB · Views: 71
  • 16-2-500x349.gif
    32.9 KB · Views: 64
  • 16-1-500x351.gif
    31.9 KB · Views: 67
  • 15-2-500x351.gif
    33.7 KB · Views: 81
  • %20КИТ-1%20СВВП-500x287.jpg
    15.8 KB · Views: 84

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

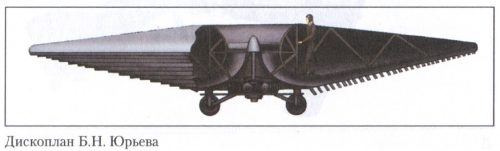

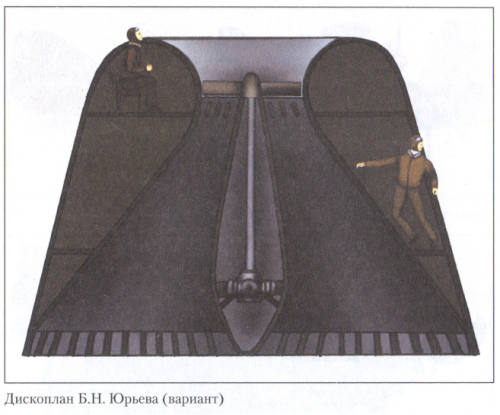

The Yuriev Discoplane.


Attachments

  • 1.png
    288.4 KB · Views: 54
  • 2.png
    570.7 KB · Views: 55

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
872
Reaction score
419
And if it fails to fly, it will have a ready market in Alsace to make big Kugelhopf cakes...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,970
Reaction score
375
. . . just Stayin' Alive . . . ;D :-X

cheers,
Robin.


avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
292
Reaction score
106
..... and maybe John Travolta can be persuaded to trade in his 707 for a discoplane B)


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
Does anyone else see the fuselage entry door of the Bell P-39 Airacobra in the KIT design? The Soviet pilots were quite fond of the P-39 and achieved good results with it.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,806
Reaction score
677
windswords said:
Does anyone else see the fuselage entry door of the Bell P-39 Airacobra in the KIT design? The Soviet pilots were quite fond of the P-39 and achieved good results with it.
blackkite said:
The machine has been designed on the basis of the fuselage lend-lease fighter P-63 "Cobra".
The P-63 was a development of the P-39, with a similar cockpit.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
hesham said:
The Yuriev Discoplane.

As we spoke about this concept,there was anther design for Yuriev called Disc Helicopter,I don't
know what the connection between them.

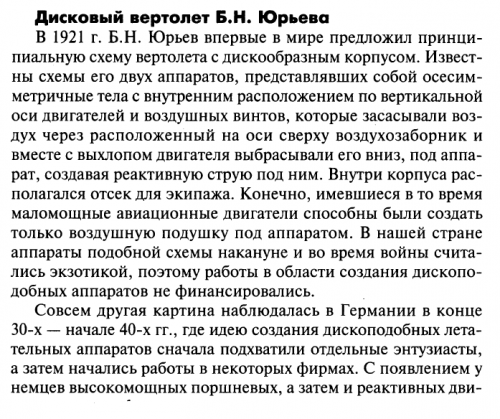

Disc Helicopter BN St. George's
In 1921, Mr .. B.N. Yuryev for the first time in the world proposed a principled
Scheme helicopter with a disk-shaped body. Known
Schemes of its two devices, which were axially symmetric
Bodies with an internal arrangement along the vertical
The axes of engines and propellers, which sucked in air
Through the air intake located on the axis from above and
Together with the engine exhaust, they threw it down under the machine,
Creating a jet stream beneath it. Inside the case was located
Compartment for the crew. Of course, the available at that time
Low-power aircraft engines were able to create
Only air cushion under the device. In our country
Apparatus of such a scheme on the eve and during the war were considered
Exotic, so work in the field of creating disc-like
Devices were not financed.

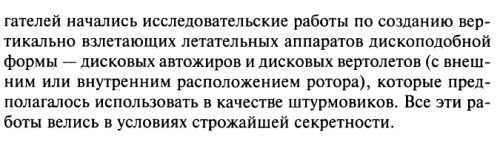

A completely different picture was observed in Germany at the end
30's - early 40's, where the idea of ​​creating disc-like flying
The apparatus was initially picked up by individual enthusiasts,
And then work began in some firms. With the advent of
Germans of high-power piston engines, and then jet engines, began research work on the creation of vertically
Take-off aircraft disc-like
Forms - disk gyroplanes and disk helicopters (with an external
Or internal rotor arrangement), which were assumed
To use as stormtroopers. All these works
Were conducted in conditions of the strictest secrecy.


Attachments

  • b.png
    29.4 KB · Views: 108
  • a.png
    96.2 KB · Views: 116

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

Attachments

  • 3-1.png
    89 KB · Views: 13
  • 4-1.png
    21 KB · Views: 14
  • 4-2.png
    71 KB · Views: 13
  • 5-1.png
    118.3 KB · Views: 16

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,336
Reaction score
745
Hi! KIT-1 KIT-2. Yuriev, Kurochkin, Tyrone. Soviet VTOL aircraft. USSR, 1946

”In 1946-1947. under the leadership of BN Yuriev in VVIA engineers FP and Kurochkin VN Tiron has developed a number of projects fighters SVVP- with coaxial propellers and vertical position of the fuselage, features original layout and high design properties. According to the plan of aircraft, this machine was to have two propellers. With more who played the role of the main rotor, CIT-1 was raised "in the helicopter." At a height of 60-70 meters, he shifted to horizontal flight, and the rotor was fixed parallel to the wings. Before planting, KIT-1 took a vertical position, the rotor is spun again, and the machine gently landed on its tail.In 1946, a group of engineers, working under the leadership of BN St. George, completed the design of KIT-1 experimental aircraft. The machine has been designed on the basis of the fuselage lend-lease fighter P-63 "Cobra". The project is an experimental single KIT-1 aircraft (USSR, 1946).
Engine VK-108 - 1750 hp, The diameter of the rotor - 8 m, the diameter of the pull screws - 3.6 m., Wingspan - 3 m.
Estimated top speed - 800 nm / h., The estimated duration of the flight - 1 hour 30 minutes.

In parallel, another option designed VTOL KIT-2. In which a large screw telescopic rises after takeoff and was going to shrink in size.
Unfortunately, due to the post-war reorganization of the aviation industry, these long-term projects were not brought to the construction of prototypes. The aircraft had been diverted to the creation of conventional aircraft necessary to the national economy, and they were not able to complete the work on the car and its two modifications. ”

Larger image sourse.

So that's what the Russians did with all those Bell P-39 Airacobras rejected by the USAF.
Hah!
