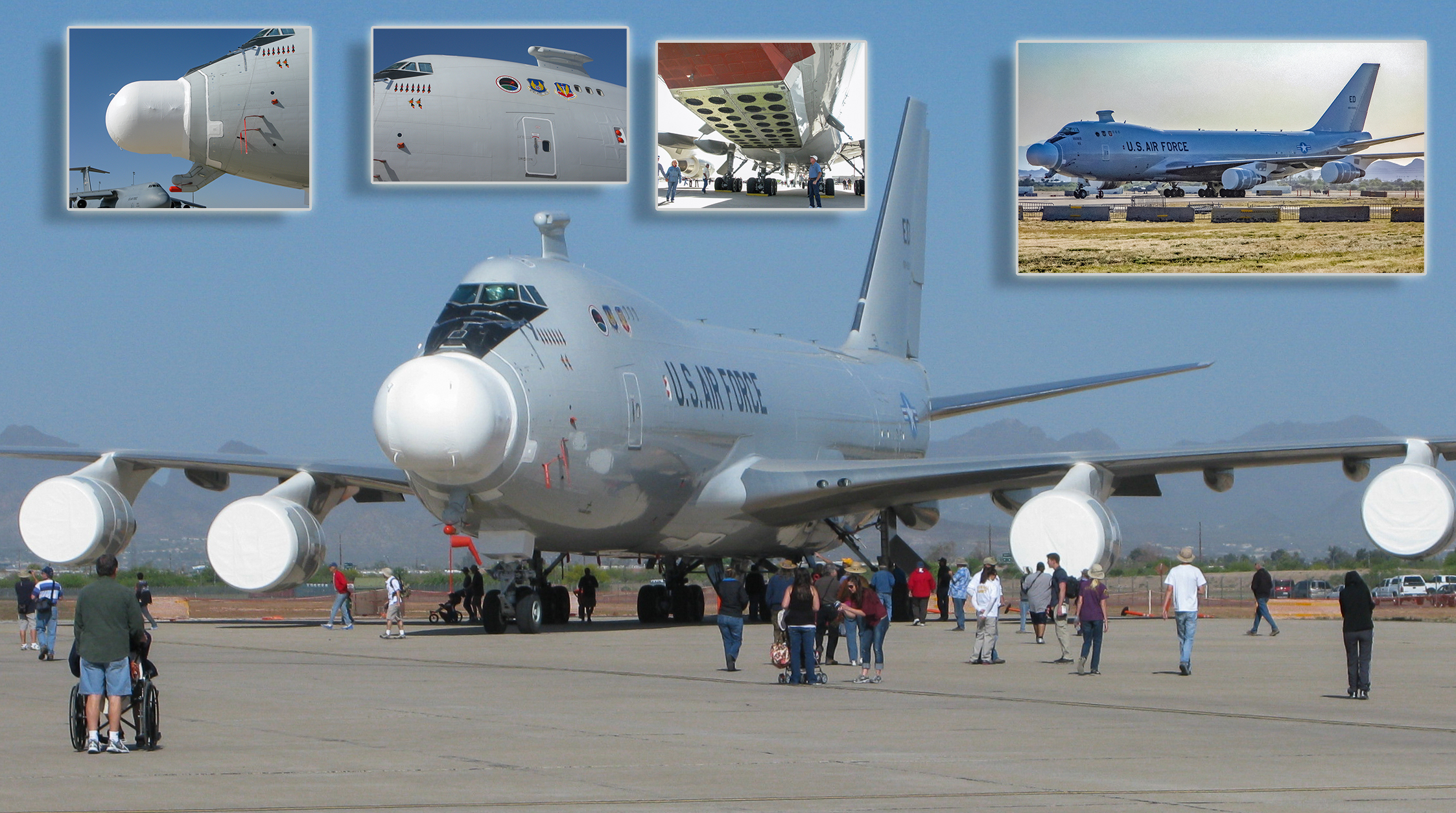

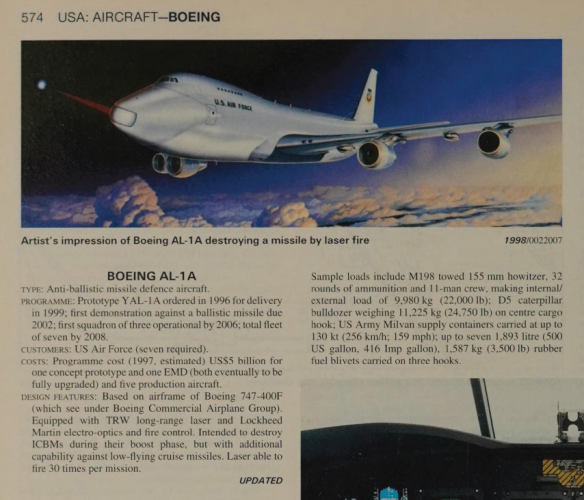

Boeing YAL-1 Airborne Laser Testbed

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

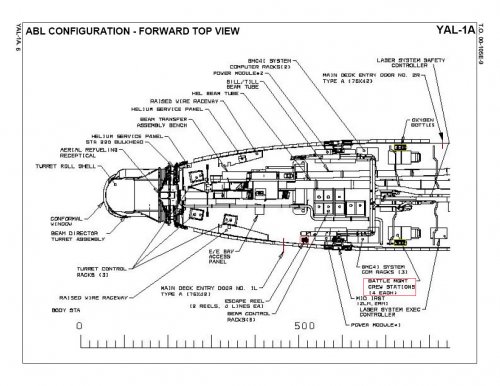

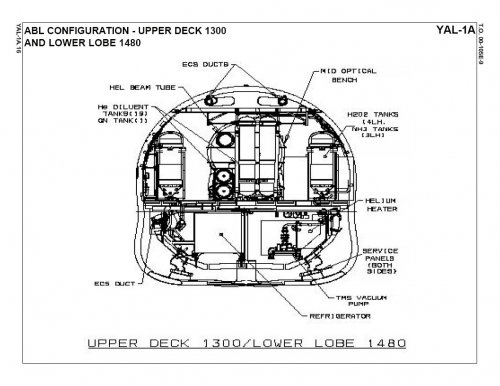

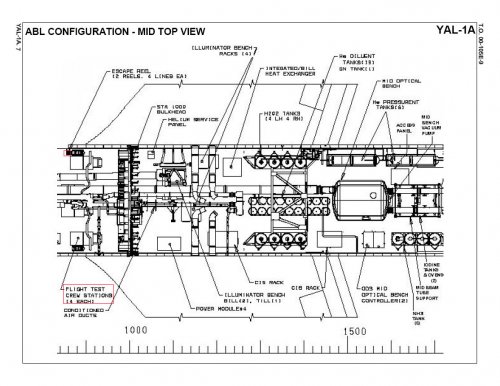

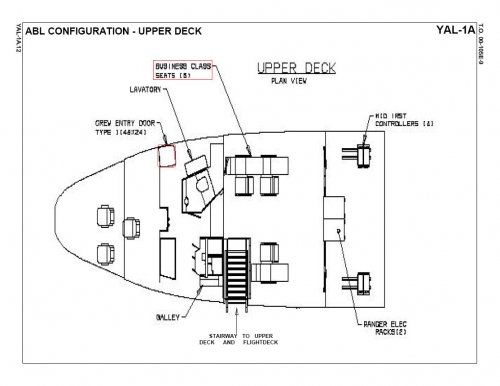

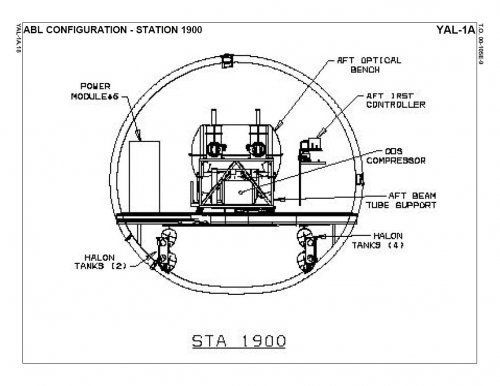

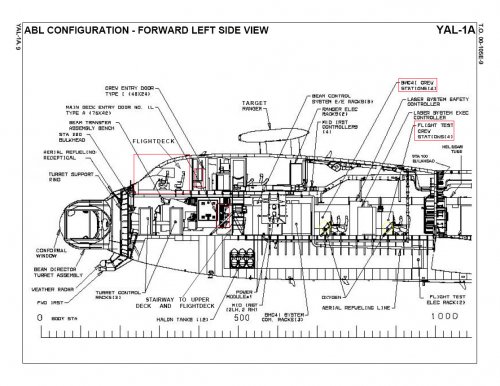

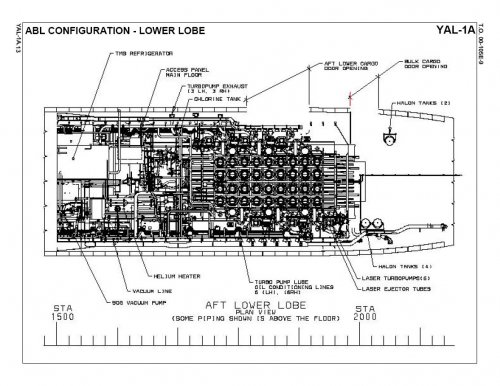

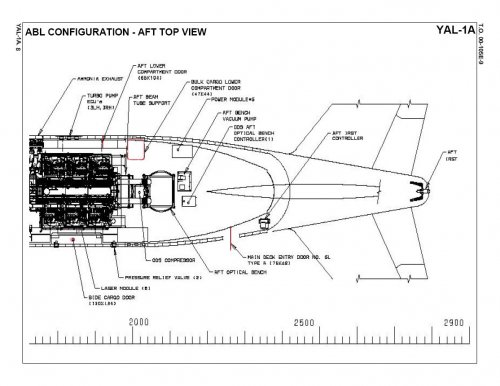

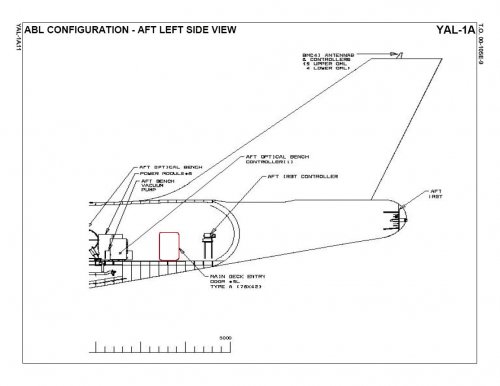

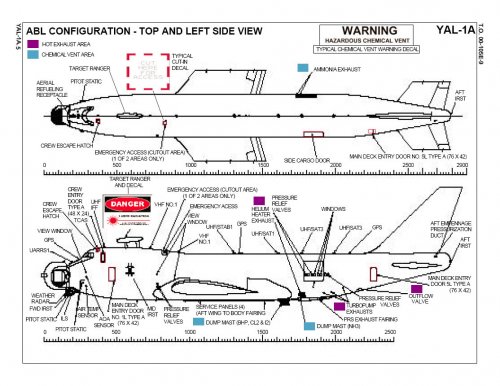

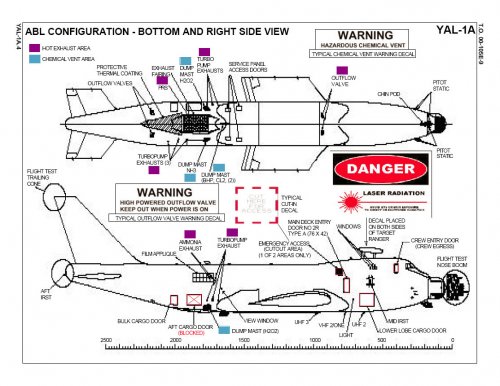

With a Rosdivan's hint here goes autopsy of YAL-1A.
Note that all these go from the open source....


Attachments

  • YAL-1A-1.jpg
    185.7 KB · Views: 466
  • YAL-1A-8.jpg
    74.1 KB · Views: 155
  • YAL-1A-7.jpg
    175.4 KB · Views: 172
  • YAL-1A-6.jpg
    182.8 KB · Views: 198
  • YAL-1A-5.jpg
    128 KB · Views: 328
  • YAL-1A-4.jpg
    170.3 KB · Views: 351
  • YAL-1A-3.jpg
    160.2 KB · Views: 383
  • YAL-1A-2.jpg
    186.5 KB · Views: 405

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881

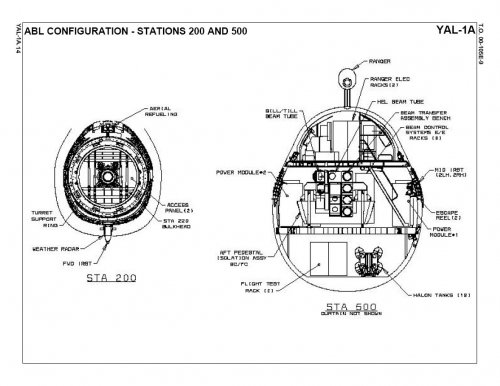

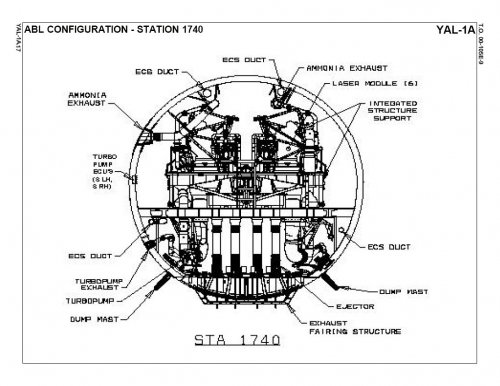

...little bit more...


Attachments

  • YAL-1A-15.jpg
    105.4 KB · Views: 101
  • YAL-1A-14.jpg
    147.2 KB · Views: 91
  • YAL-1A-13.jpg
    137.3 KB · Views: 86
  • YAL-1A-12.jpg
    116.3 KB · Views: 88
  • YAL-1A-11.jpg
    130.4 KB · Views: 112
  • YAL-1A-10.jpg
    183.3 KB · Views: 111
  • YAL-1A-9.jpg
    87.5 KB · Views: 117

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,104
Reaction score
240
Why is the "target ranger" angled downwards? I'd have thought it would be aligned with the main laser.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,303
Reaction score
1,881
rickshaw said:
Why is the "target ranger" angled downwards? I'd have thought it would be aligned with the main laser.

The key word is 'boost phase intercept' - YAL-1A purpose is to intercept missiles just after launch. Where you'd expect to see these while trying to do this while flying stright and level?


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,104
Reaction score
240
So, why isn't the laser therefore then aligned with the "target ranger"?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Boeing promotional video for the Boeing YAL-1 Airborne Laser Testbed (formerly Airborne Laser).

http://www.youtube.com/watch?v=v5SDo0rH1Xo


Future Weapons television series segment on Airborne Laser Testbed.

http://www.youtube.com/watch?v=0LKk1bTL6fk

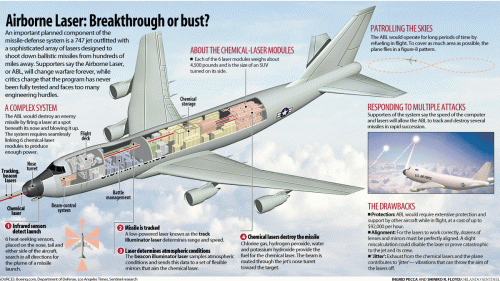

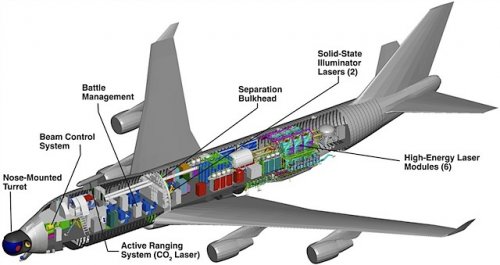

Cut-away illustration of Boeing YAL-1 Airborne Laser Testbed.

Source: http://www.airborne-laser.com/airborne_laser_photo_album/


Another cut-away illustration of Boeing YAL-1 Airborne Laser Testbed.

Source: http://www.jimonlight.com/2009/03/30/the-yal-1-might-get-scrapped/

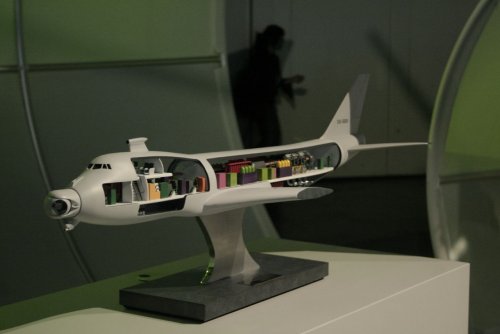

Cut-away model of Boeing YAL-1 Airborne Laser Testbed.

Source: http://www.flickr.com/photos/robot-vs-monkey/1394147293/

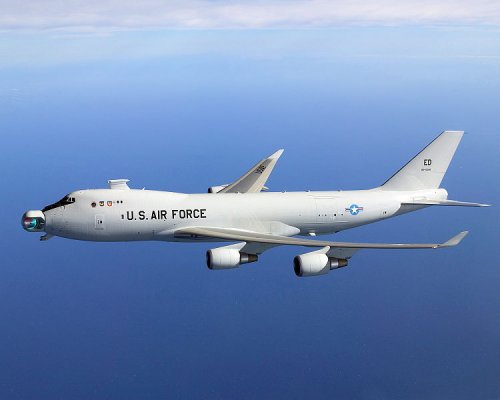

Photograph of Boeing YAL-1 Airborne Laser Testbed.

Source: http://www.boeing-747.com/special_boeing_747s/


Attachments

  • 750px_yal_1a_airborne_laser.jpg
    39.7 KB · Views: 113
  • 1394147293_db58c2b31e_o.jpg
    100.7 KB · Views: 104
  • yal1.gif
    430.6 KB · Views: 116
  • air_747_airborne_laser_cu-4.jpeg
    54.5 KB · Views: 124

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,289
Reaction score
790
rickshaw said:
So, why isn't the laser therefore then aligned with the "target ranger"?

Both systems are trainable AFAIK, so where their bore sight axis is pointed makes little difference. My guess is that the ranging system pod points down a bit because Boeing found this was preferable for some obscure aerodynamic reason.


Firebee

ACCESS: Confidential
Joined
Apr 1, 2011
Messages
100
Reaction score
2
There is also this book (circa 1997) about the development of the ABL.

By Robert W. Duffner
Published by Basic Books (USA)
ISBN: 9780306456220


coanda

ACCESS: Secret
Joined
Feb 3, 2009
Messages
304
Reaction score
292
Trident said:
rickshaw said:
So, why isn't the laser therefore then aligned with the "target ranger"?

Both systems are trainable AFAIK, so where their bore sight axis is pointed makes little difference. My guess is that the ranging system pod points down a bit because Boeing found this was preferable for some obscure aerodynamic reason.

It's been positioned for minimum drag during cruise. So it's likely that the aircraft cruises with a slight nose up attitude, and the ranging laser pod is arranged to present minimum frontal area during that flight phase.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Boeing promotional video for the YAL-1 Airborne Laser Testbed, a modified 747-400 that was developed to shoot down ballistic missiles during the first few minutes of flight.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
24
The only aircraft built, 00-0001, was sent to AMARC on 12 February 2012. The second one, 00-0002, was never built.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857
Do we have confirmation that the quoted YFC-36A was the initial designation of the YAL-1A, or was this just an educated guess?


Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
24
Stargazer2006 said:
Do we have confirmation that the quoted YFC-36A was the initial designation of the YAL-1A, or was this just an educated guess?
Educated guess.

The only confirmed information for the YFC-36A designator is the timeframe of the MDS reservation (early 1996), and that the plane was to have 4 engines. If you are looking for a project in 1996 for a 4-engined transport modified to a "prototype interceptor" (the official definition of the "F" modified mission prefix says "Aircraft modified to intercept and destroy other aircraft or missiles"), the ABL is a more or less perfect match. But I admit it's still only an educated guess :-\ .


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
324

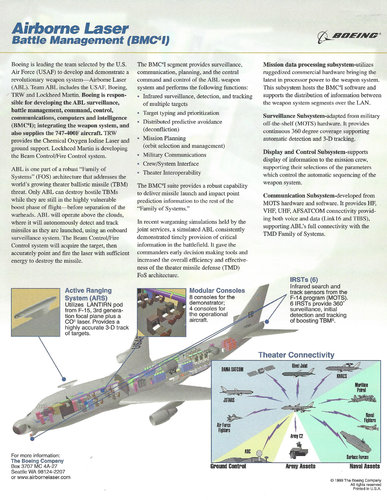

Below is a description of Lockheed-Martin's role in the Airborne Laser Beam and Fire Control. I believe the document dates from 2000-2001.


Attachments

  • Boeing_747ABL_Lockheed-Martin_Brochure.pdf
    228.6 KB · Views: 68

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
232
Excellent article by Northrop Grumman's own Tony Chong, here.


Temistocle

ACCESS: Confidential
Joined
Dec 9, 2009
Messages
152
Reaction score
274

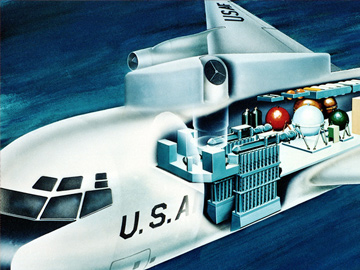

Hi, an article about the Airborne Laser Laboratory, the predecessor of YAL-1, here:


If someone need it, just send me a PM.
