Boeing-Vertol Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

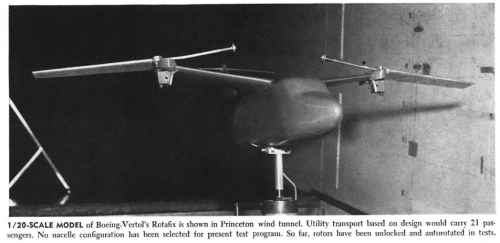

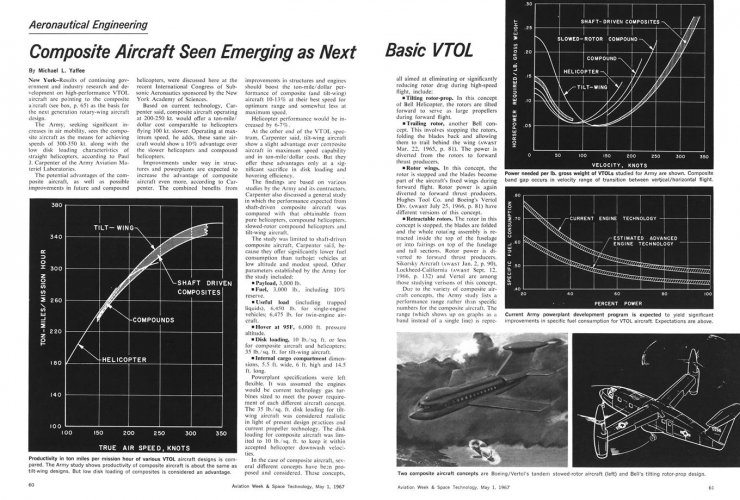

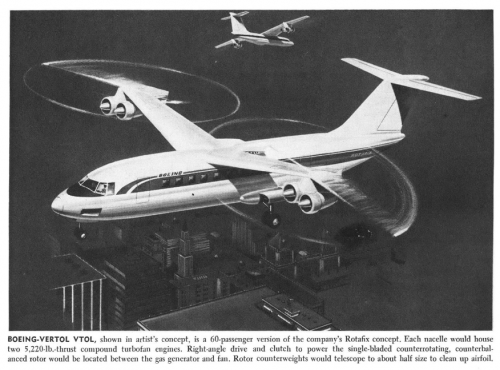

http://archive.aviationweek.com/image/spread/19660725/41/2


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

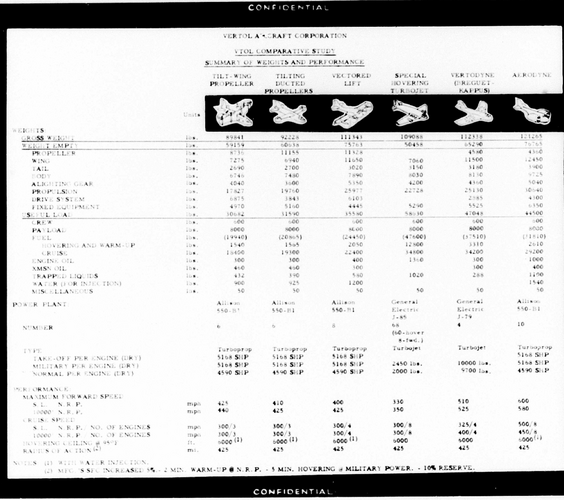

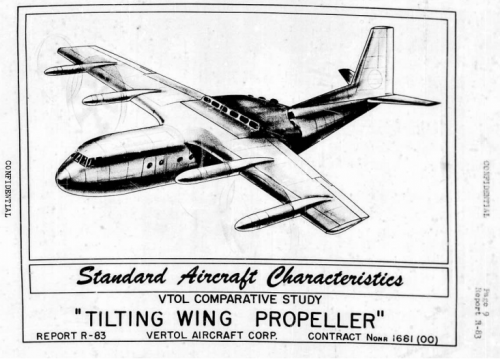

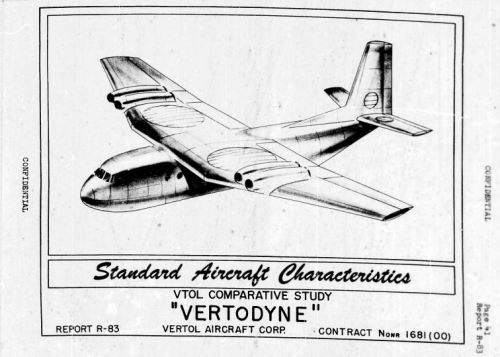

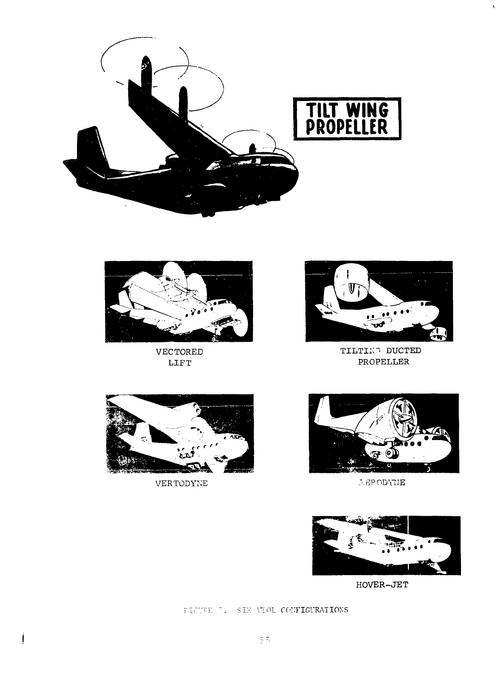

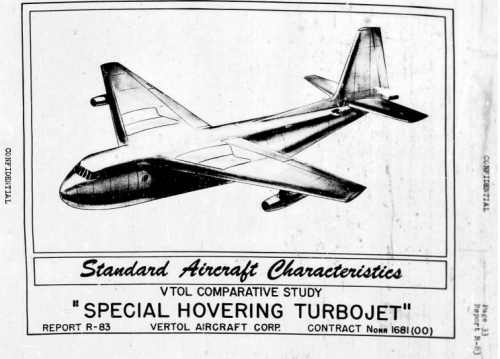

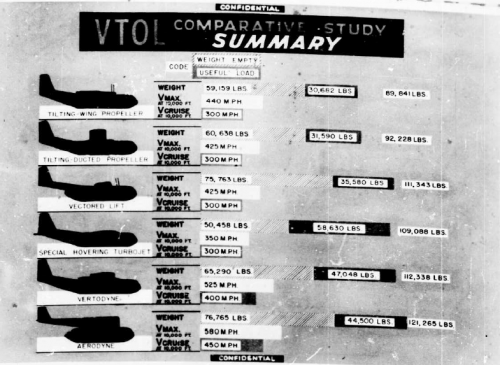

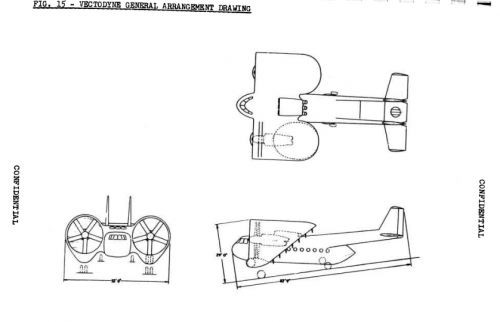

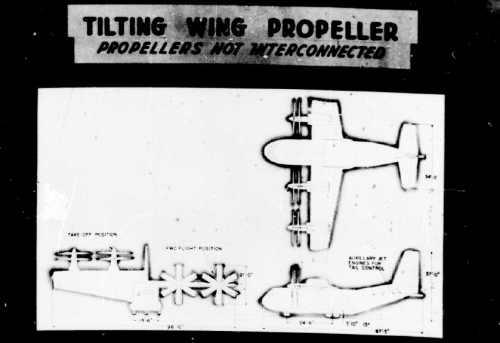

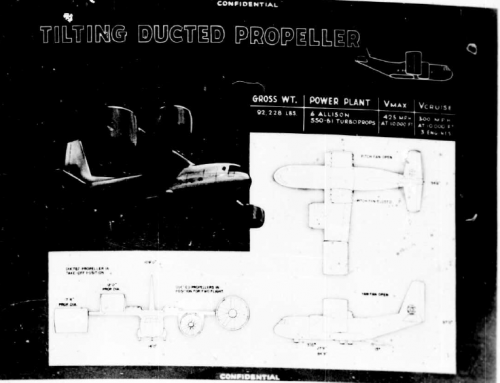

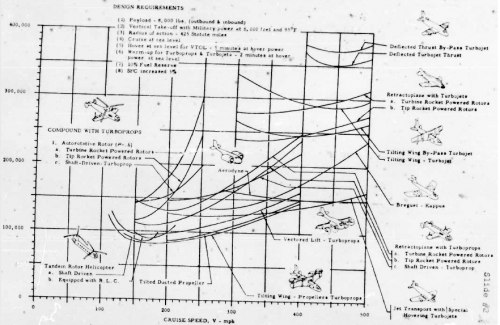

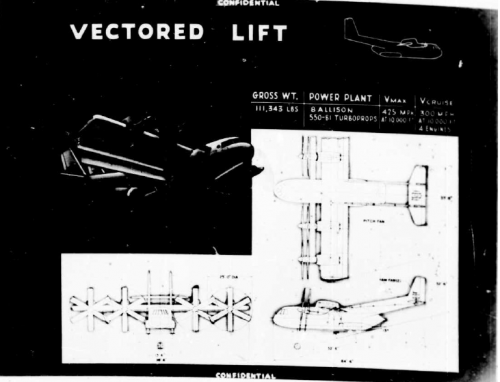

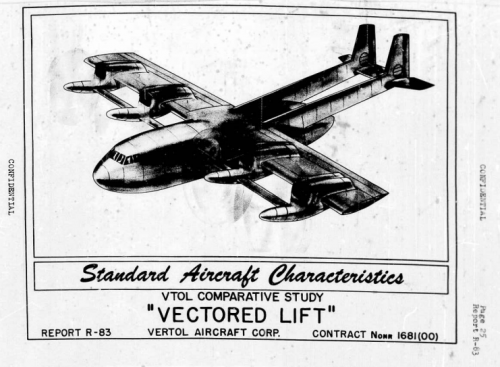

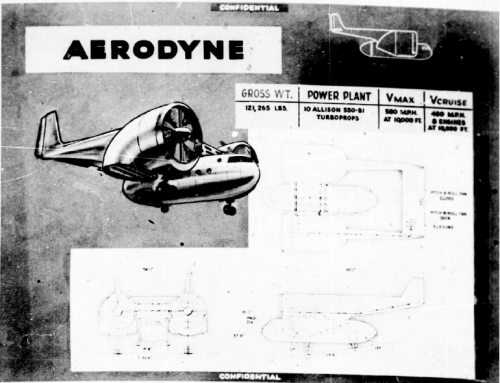

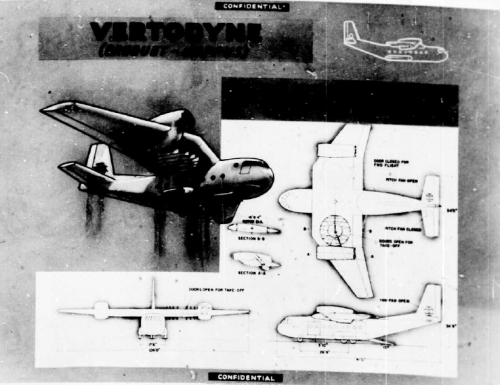

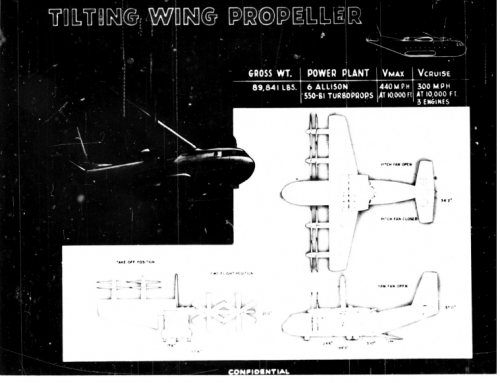

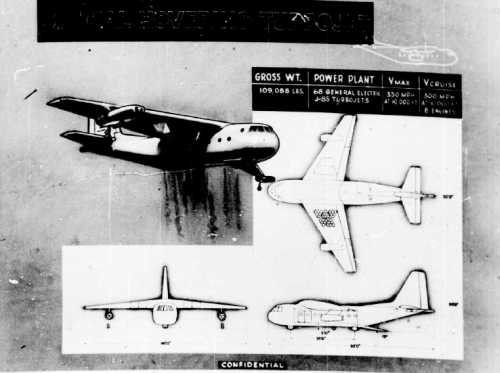

here is a study from Vertol to a several VTOL airplane concepts in 1955,of course they
are not all belonged to Vertol,maybe in the drawing No.4 is for Bell,and also Aerodyne,
but I think it is proper to put them all here,many new designs,and I don't know what
the meaning of R-75,could be V.75 ?.

https://apps.dtic.mil/dtic/tr/fulltext/u2/147928.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
hesham said:
here is a study from Vertol to a several VTOL airplane concepts in 1955,of course they
are not all belonged to Vertol,maybe in the drawing No.4 is for Bell,and also Aerodyne,
but I think it is proper to put them all here,many new designs,and I don't know what
the meaning of R-75,could be V.75 ?.

https://apps.dtic.mil/dtic/tr/fulltext/u2/147928.pdf

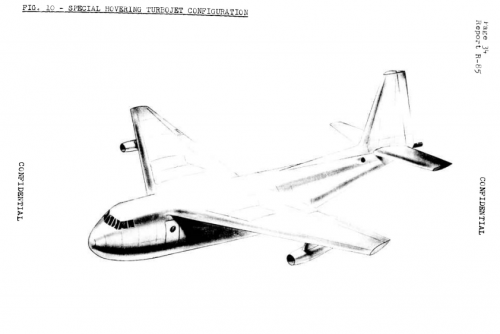

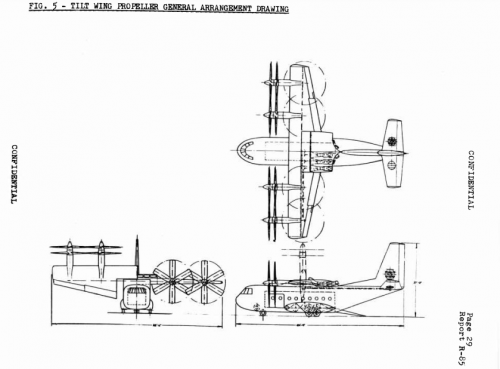

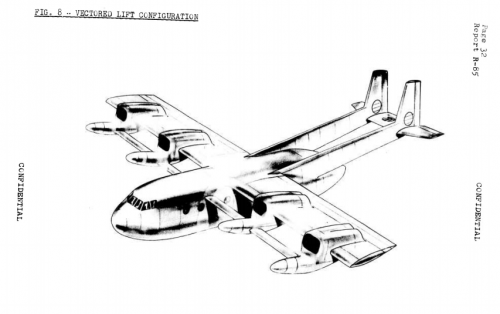

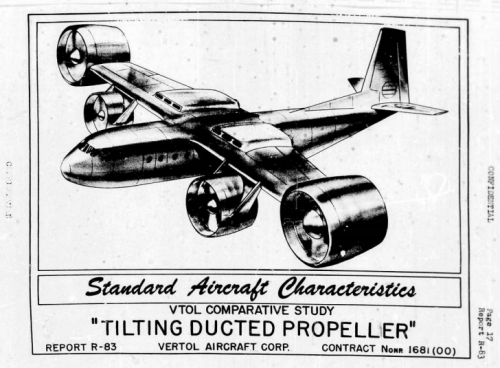

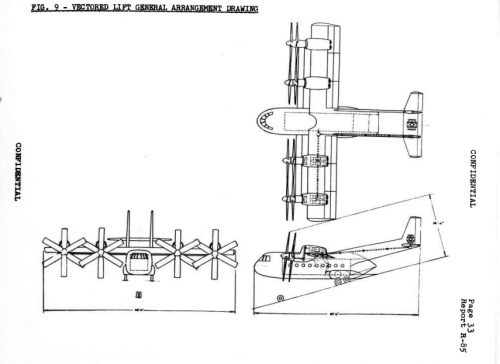

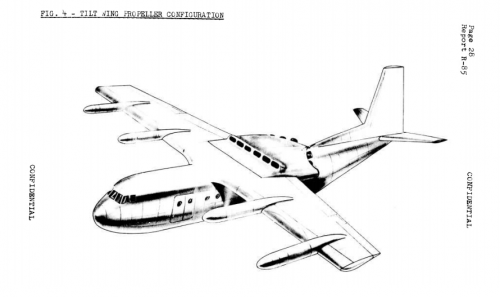

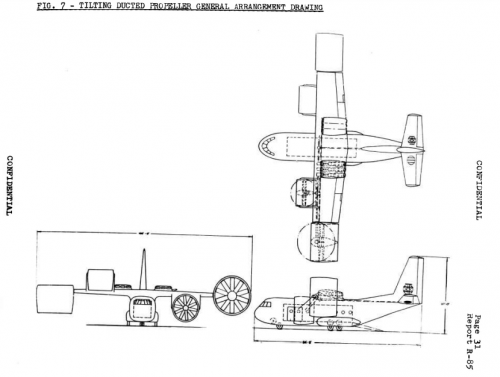

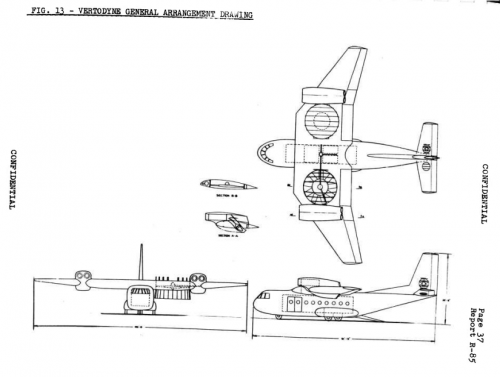

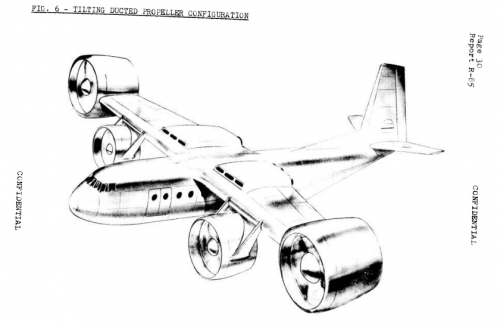

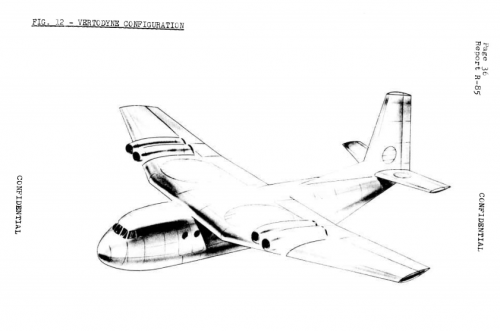

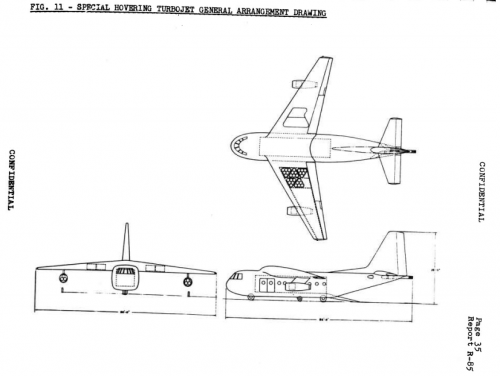

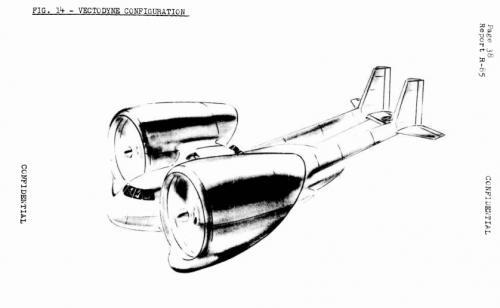

Here is the report R-85,with some developments and anther shapes,maybe also they
meant V-85 ?.

https://apps.dtic.mil/dtic/tr/fulltext/u2/105750.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

I discovered that,the number after prefix "R" was the report's number,and was not Vertol
designation.

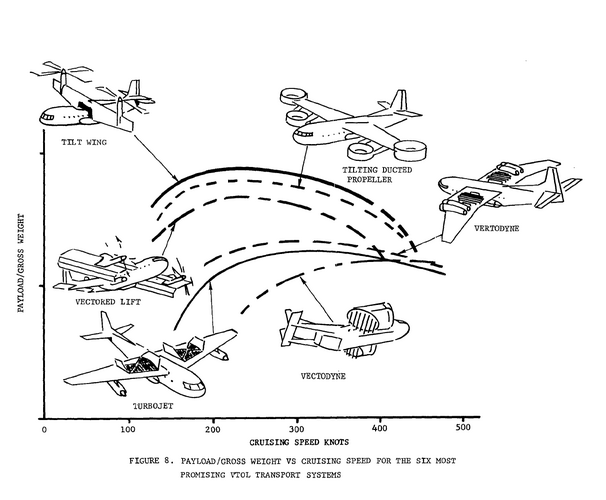

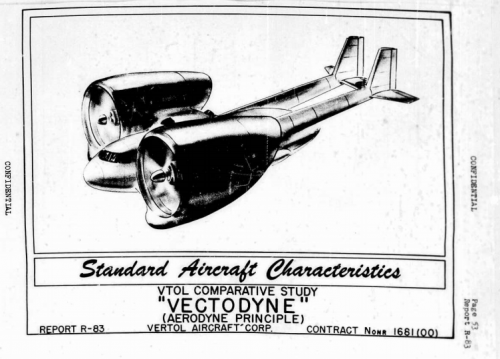

Here is a new report,with all data for them.

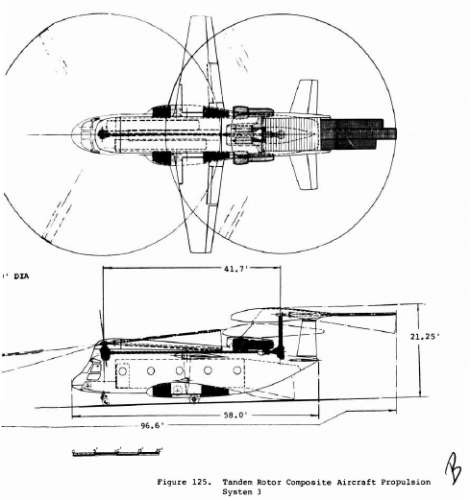

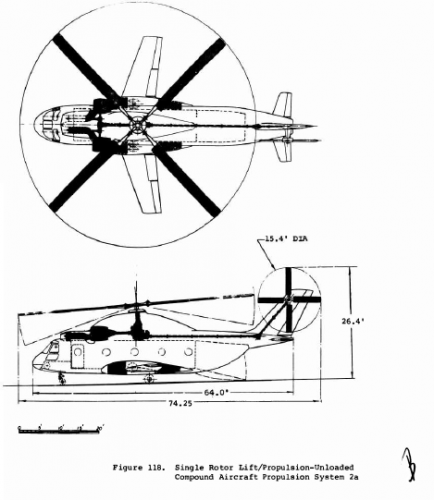

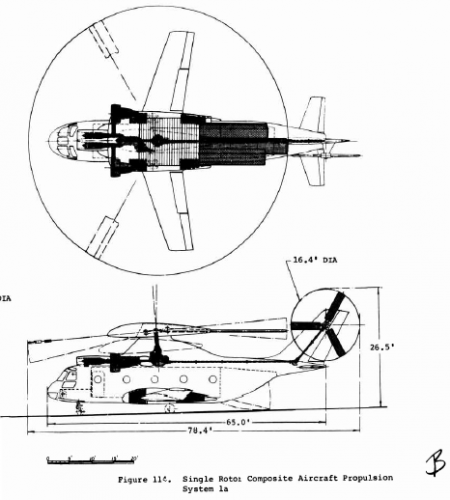

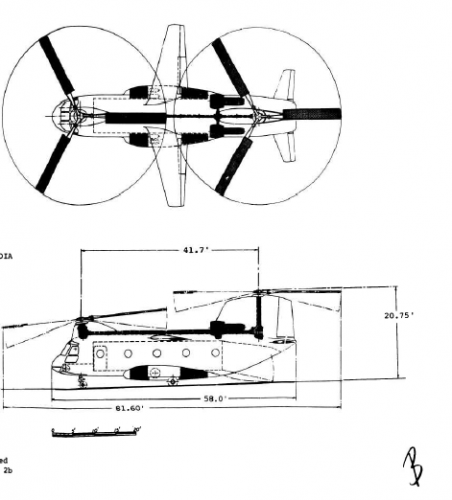

https://apps.dtic.mil/dtic/tr/fulltext/u2/147927.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

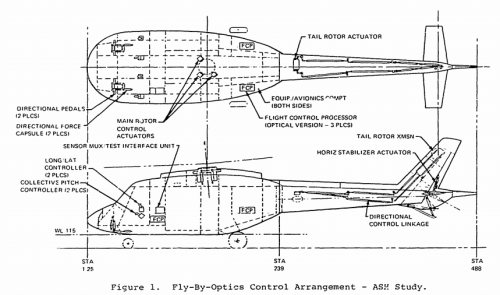

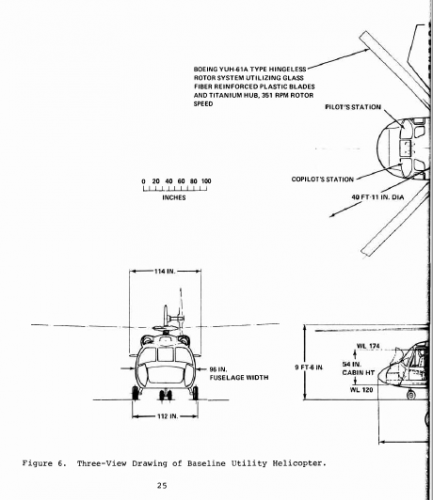

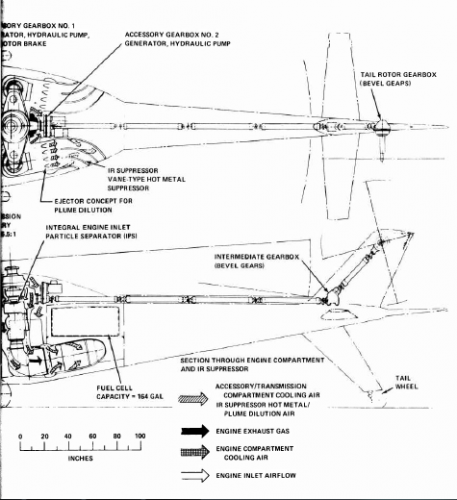

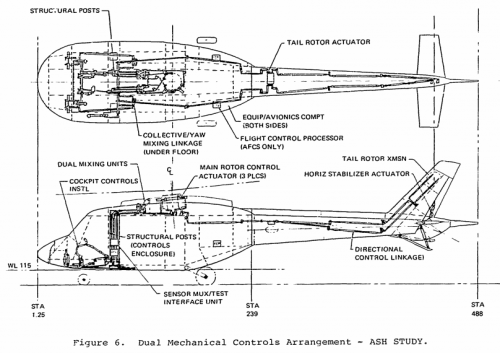

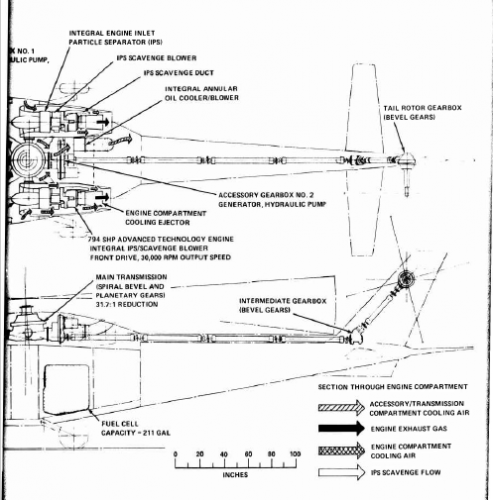

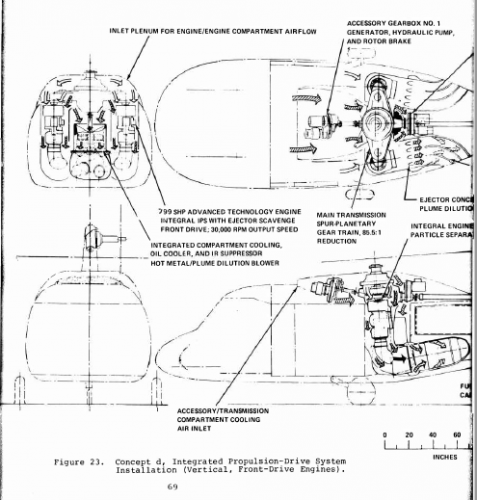

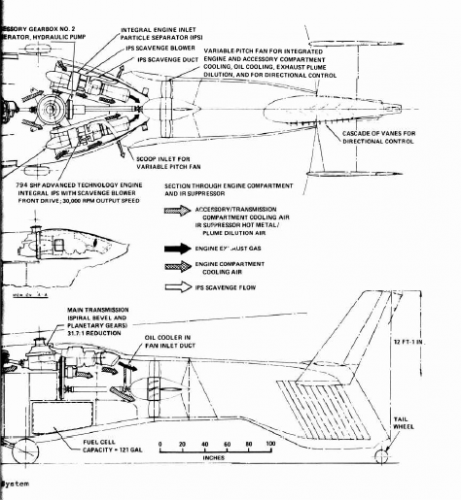

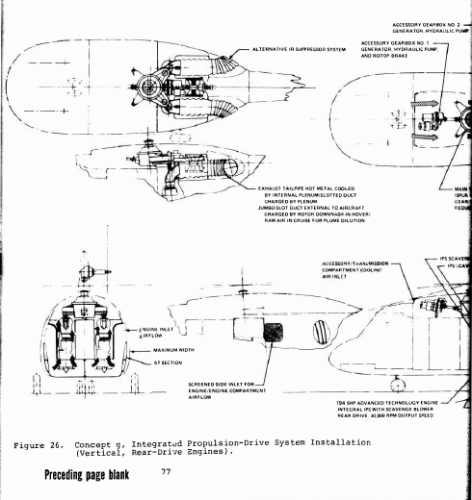

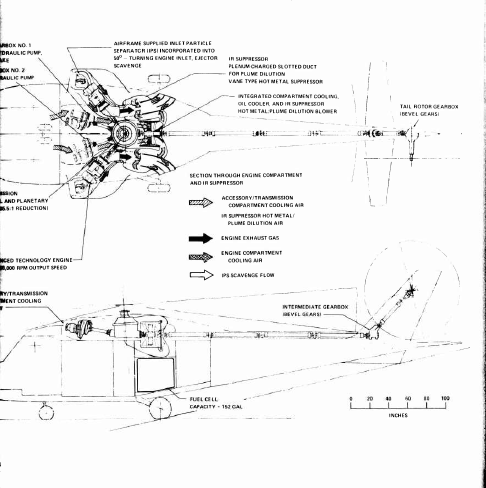

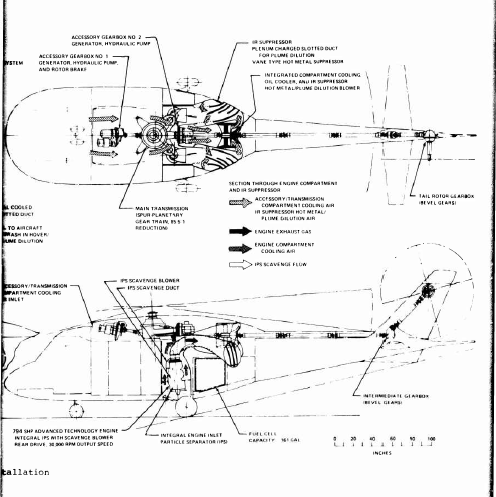

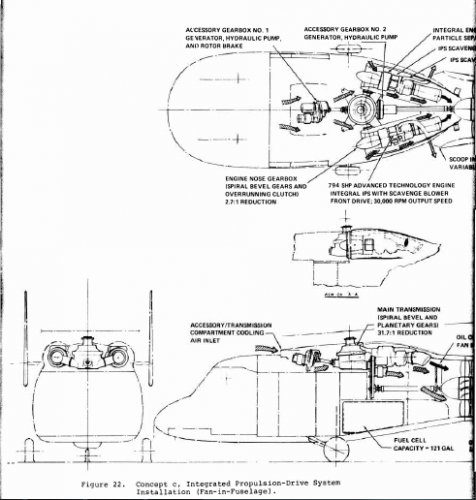

here is a Boeing-Vertol ASH (Advanced Scout Helicopter) Project.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a098155.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

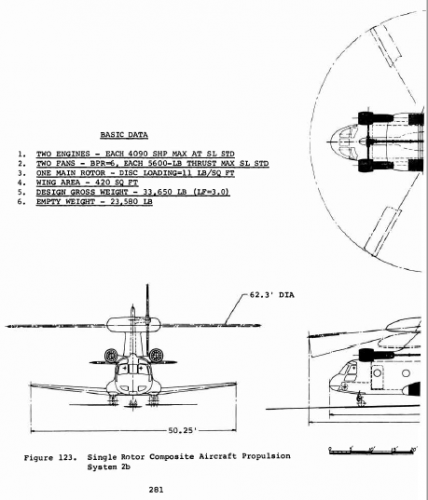

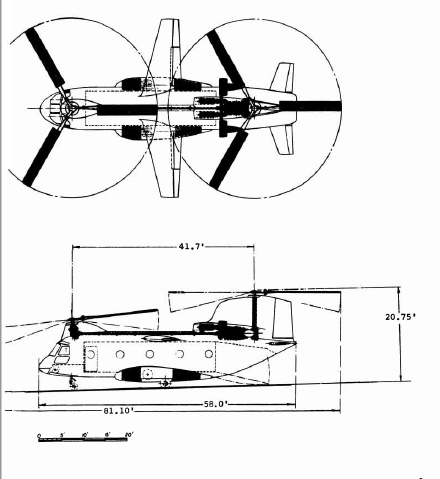

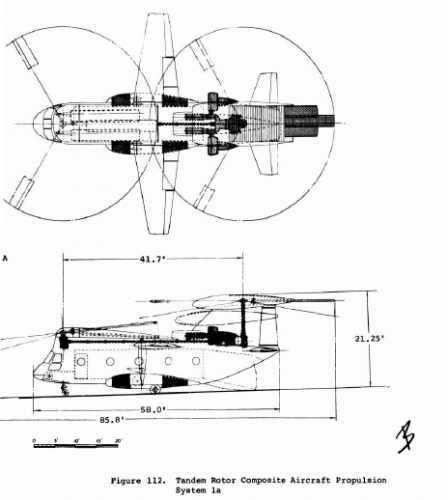

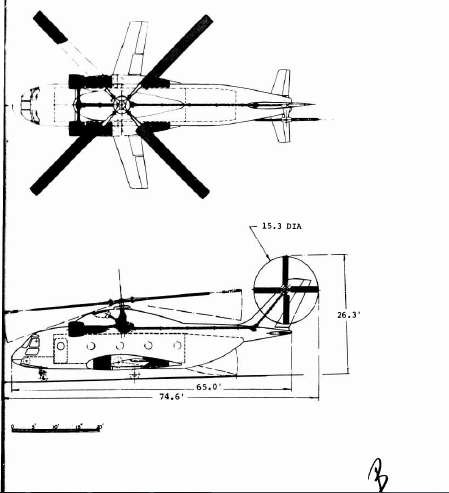

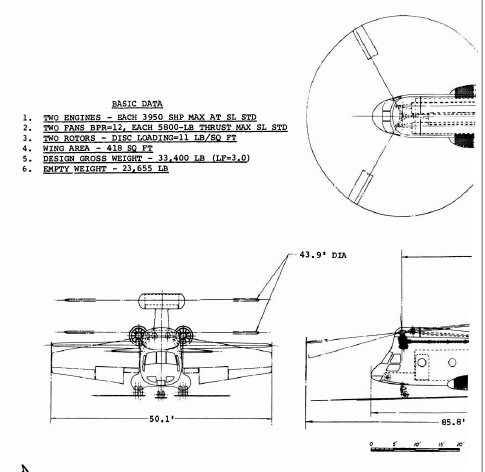

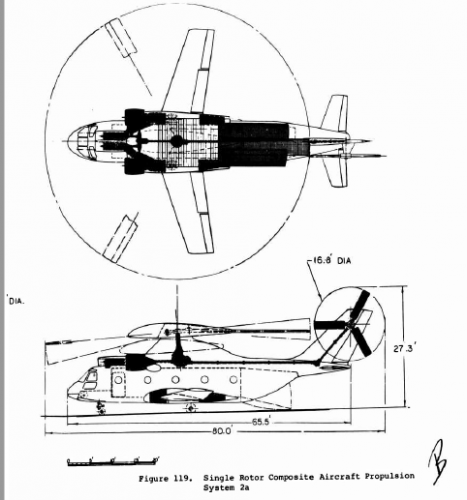

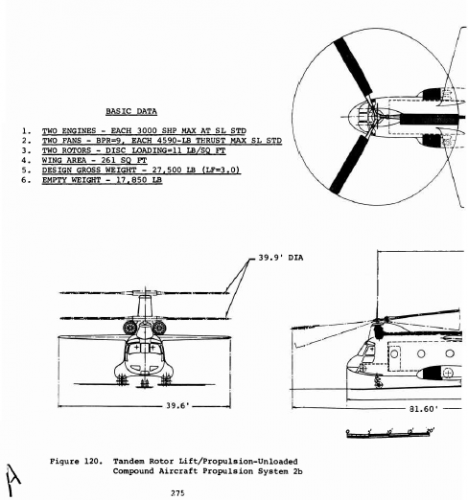

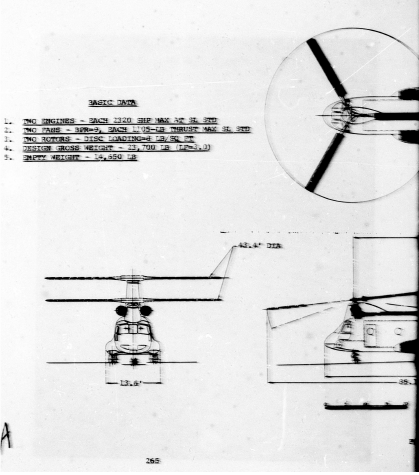

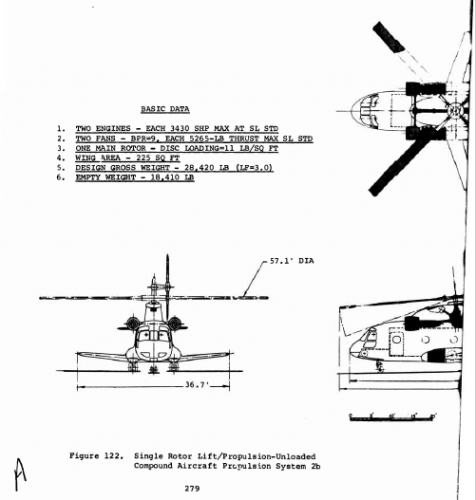

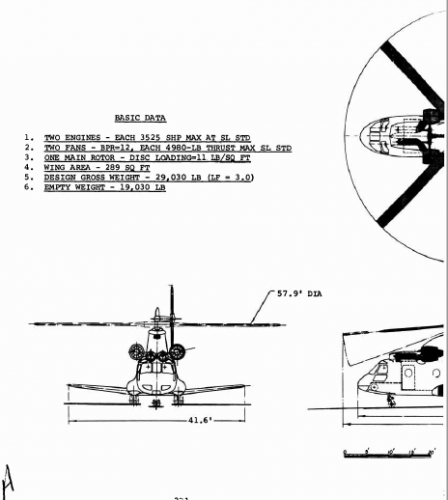

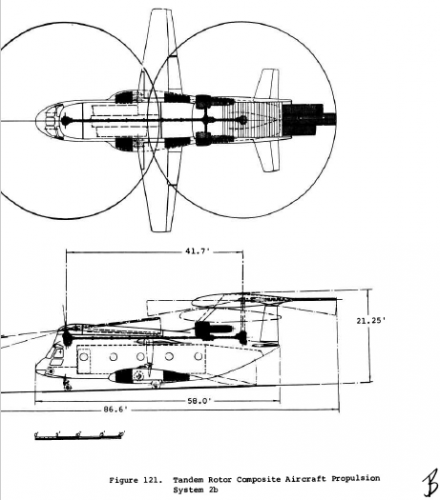

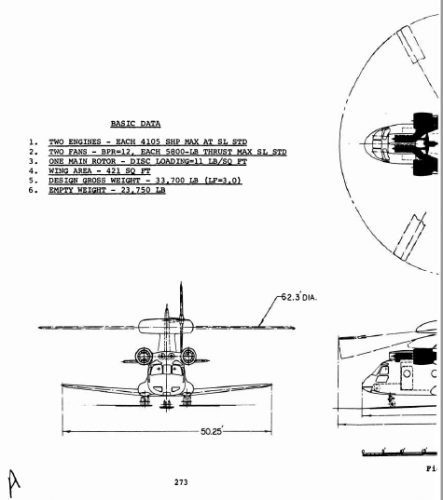

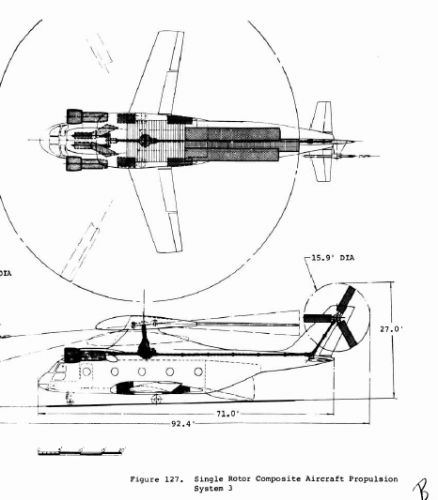

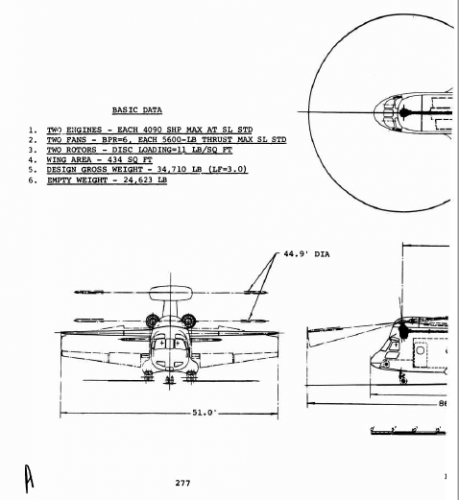

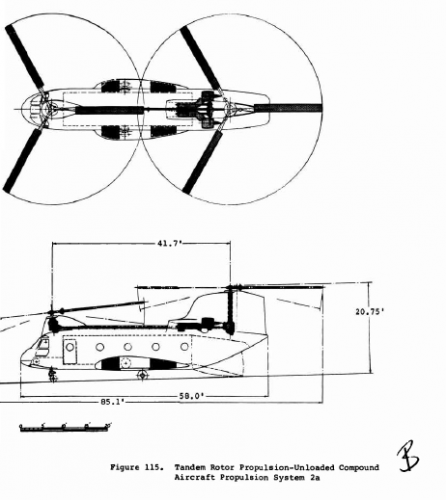

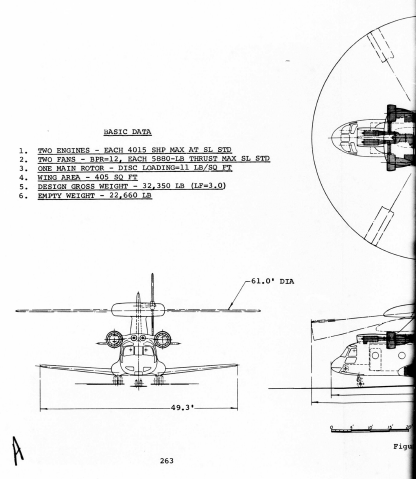

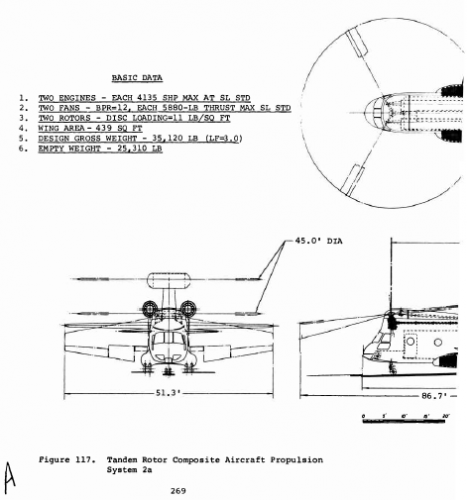

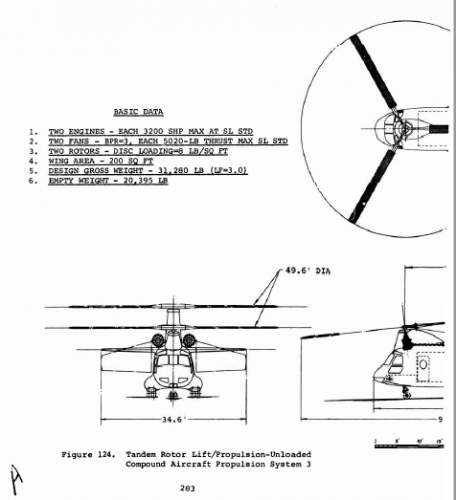

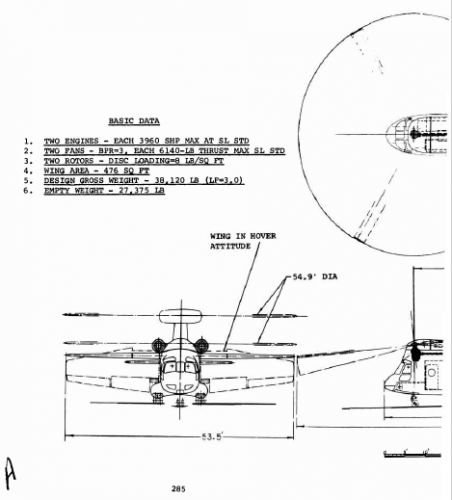

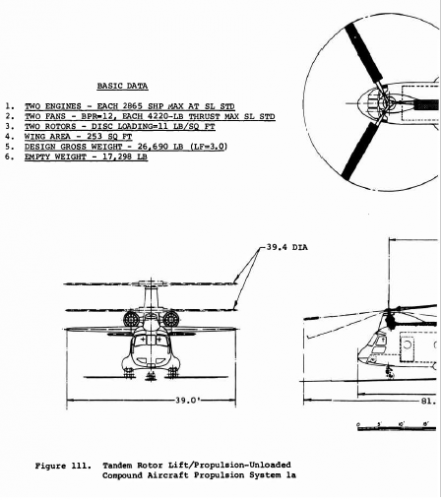

here is amazing Boeing-Vertol Helicopter Projects,need collection of the pieces.

https://apps.dtic.mil/dtic/tr/fulltext/u2/663831.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Hi,

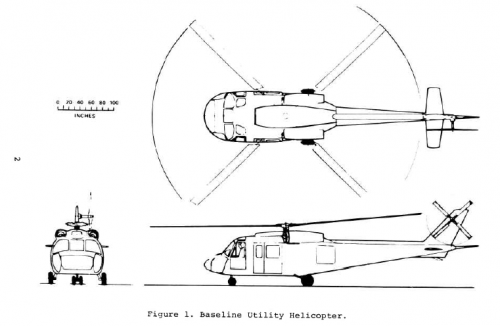

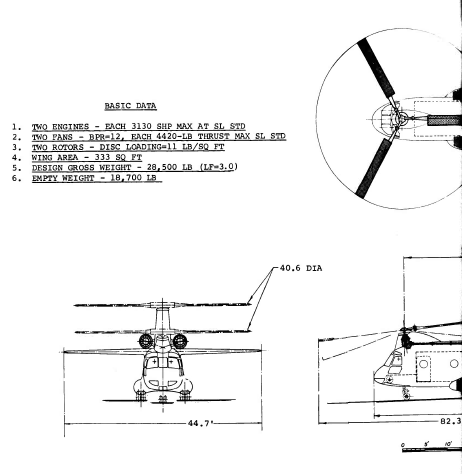

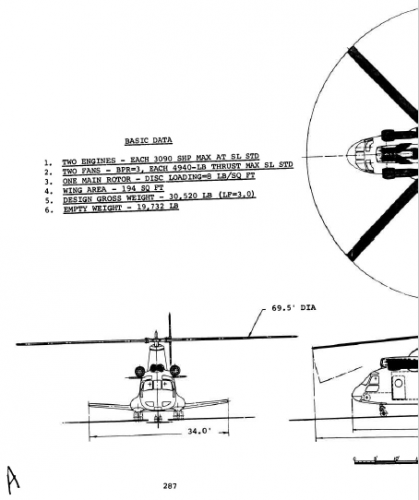

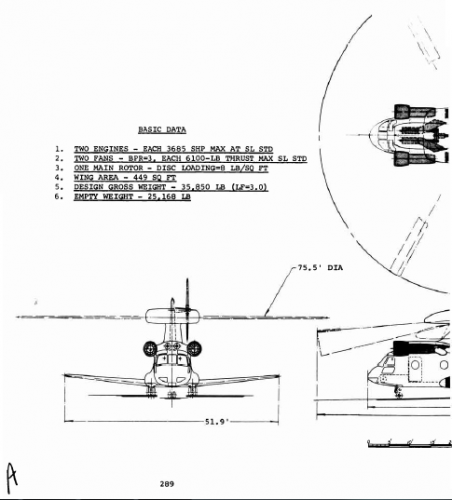

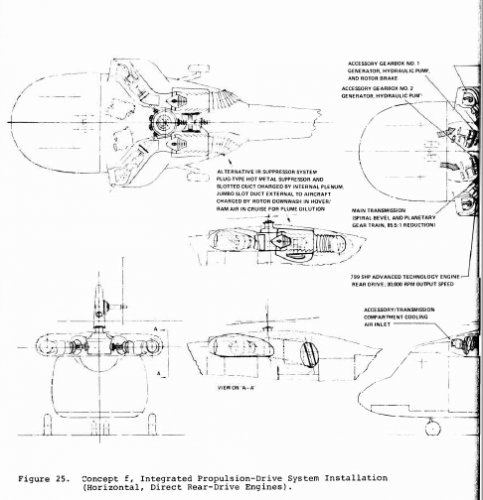

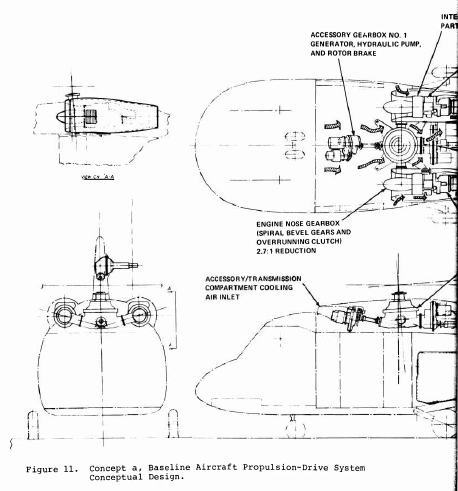

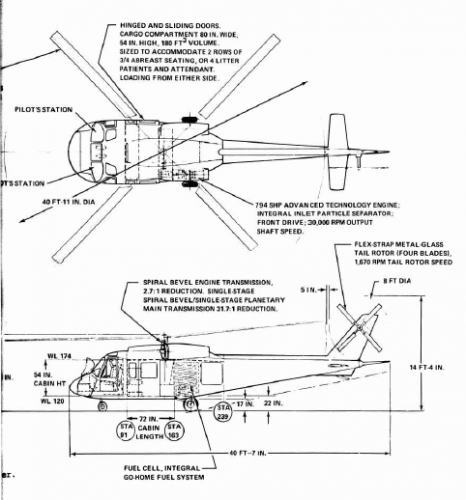

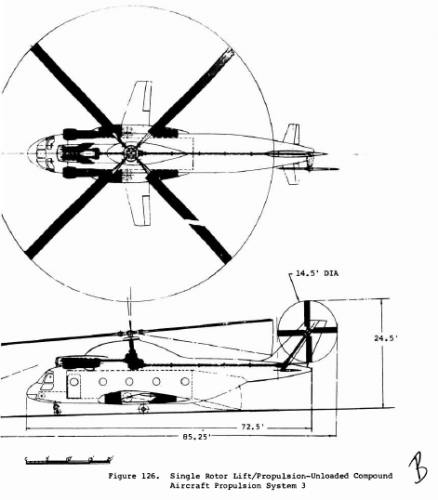

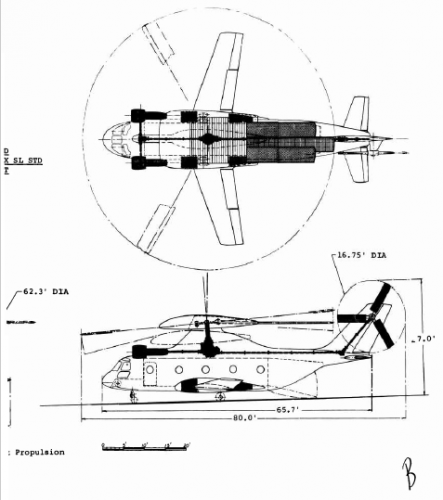

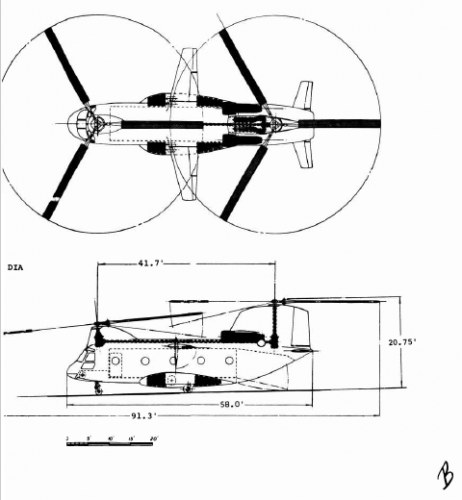

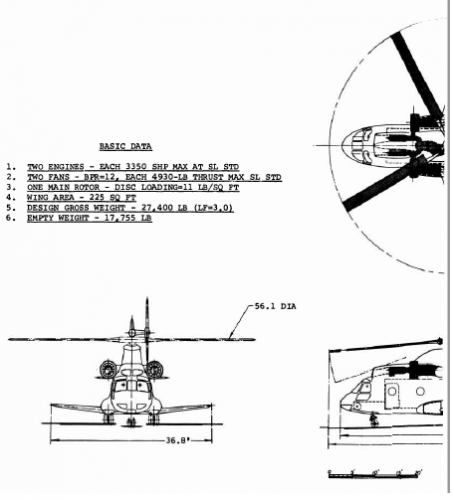

here is a medium helicopter,maybe based on Model-179,also who can collect the pieces.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a012236.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339

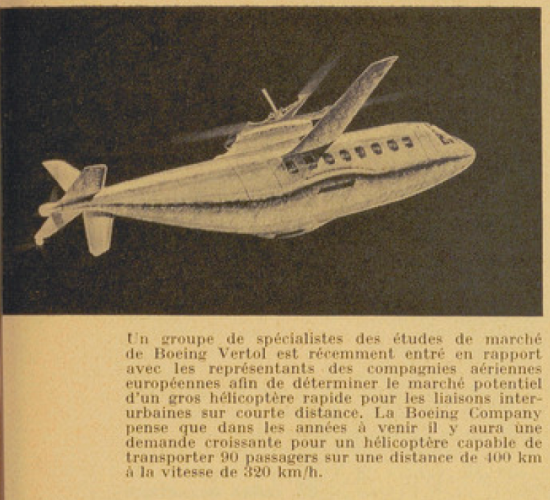

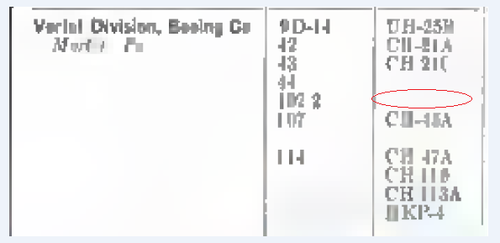

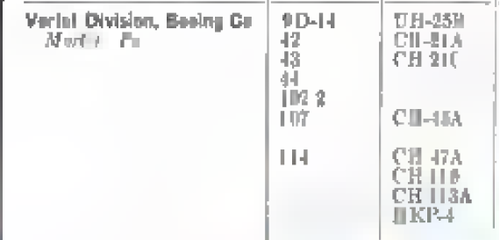

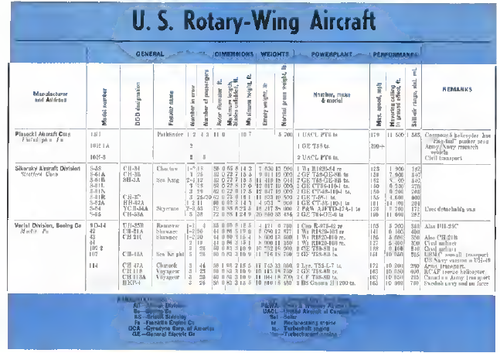

From AW 1965,

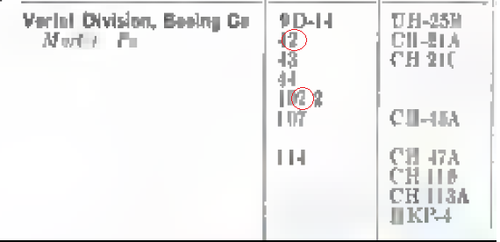

a strange designation to Boeing-Vertol,it was Model-102 ?,civil airliner helicopter,do I
read it right ?.


Attachments

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,159
Reaction score
1,114
From AW 1965,

a strange designation to Boeing-Vertol,it was Model-102 ?,civil airliner helicopter,do I
read it right ?.
Really not a good scan. The rest of the numbers seem to be similar to the Model 107 on the line below, so I suspect this is actually the BV-107-ii (written as 107-2), and is referring to the civilian airliner version of the BV-107/CH-46.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
Really not a good scan. The rest of the numbers seem to be similar to the Model 107 on the line below, so I suspect this is actually the BV-107-ii (written as 107-2), and is referring to the civilian airliner version of the BV-107/CH-46.
That's not right,it was number "2" ,please see again.


Attachments

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,159
Reaction score
1,114
Really not a good scan. The rest of the numbers seem to be similar to the Model 107 on the line below, so I suspect this is actually the BV-107-ii (written as 107-2), and is referring to the civilian airliner version of the BV-107/CH-46.
That's not right,it was number "2" ,please see again.
I know that's how it looks. But it's a poor quality/low-resolution scan and I think the original might be damaged enough to make the 7 look like a 2.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,473
Reaction score
3,339
I know that's how it looks. But it's a poor quality/low-resolution scan and I think the original might be damaged enough to make the 7 look like a 2.
No designation allocated to it,so maybe it was V.102 ?.


Attachments

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,159
Reaction score
1,114
OK, here is how I'm looking at this. The list is a capture from Aviation Week's annual list of "leading" aircraft by manufacturer. As such, this is not a list of unknown aircraft. But no other source I'm aware of mentions a V-102 or BV-102 from Boeing-Vertol. When I search for the specific title ""U.S. Rotary Wing Aircraft" in Google Image Search, I get multiple hits to thumbnail versions of this list (from several years) on the Aviation Week archive website and the look exactly like this list (colors vary year by year). However, what's interesting is that adding "107" to that search does narrow the results, while adding "102" returns no results. Which I think means that if you can access a high-res version of that list, it probably does not say 102. Unfortunately, I don't have a subscription to AW&ST to access the full archive and confirm that. Possibly someone who does can help resolve the question.

Last edited:

GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
797
Reaction score
118
Checked it on the site. It’s “107”, not “102”.
