Boeing Vertol Ground-Effect Take-Off and Landing (GETOL) designs

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121

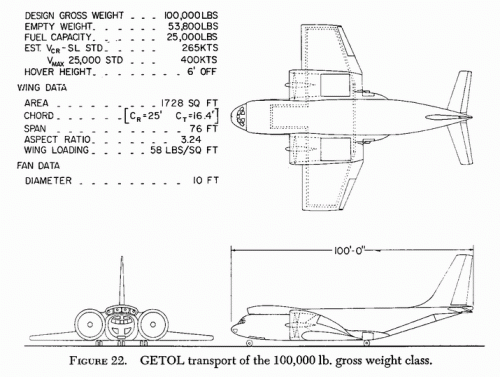

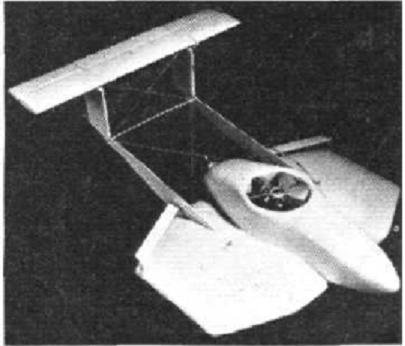

A Boeing GETOL transport concept from 1962 (GETOL = Ground Effect
Take-Off and Landing)
from :Vertical Take-off and Landing <VTOL> Aircraft, (Series of papers ... of a
conference held on Dec. 10-12, 1962) ; Consulting ed.: I. B. Laskowitz


Attachments

  • Boeing-GETOL-2.gif
    72.1 KB · Views: 671

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

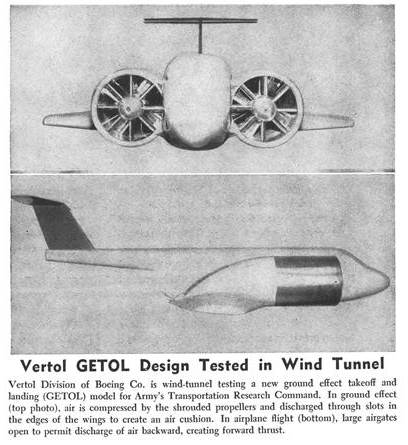

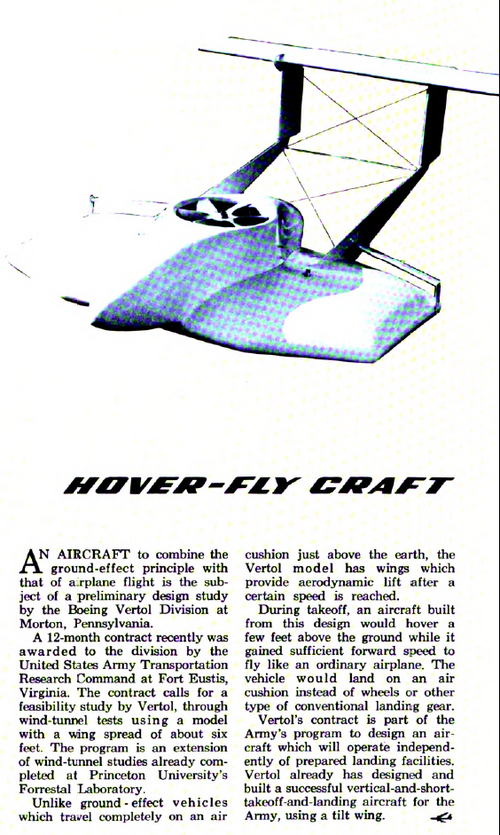

The Boeing-Vertol had a project of G.E.T.O.L (ground effect take off and
landing).


Source, Flightglobal :)


Attachments

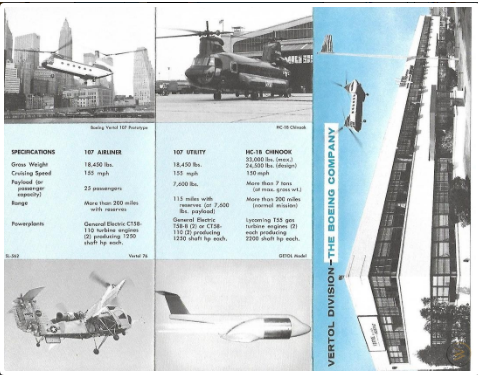

  • Boeing-Vertol GETOL.JPG
    Boeing-Vertol GETOL.JPG
    19.6 KB · Views: 694

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Ok my dears,

For the Boeing-Vertol G.E.T.O.L;
http://www.flightglobal.com/FlightPDFArchive/1961/1961%20-%200627.pdf


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
Although Convair's GETOL design (the PD-104) is better known, the Vertol project (designation unknown) is seldom seen.

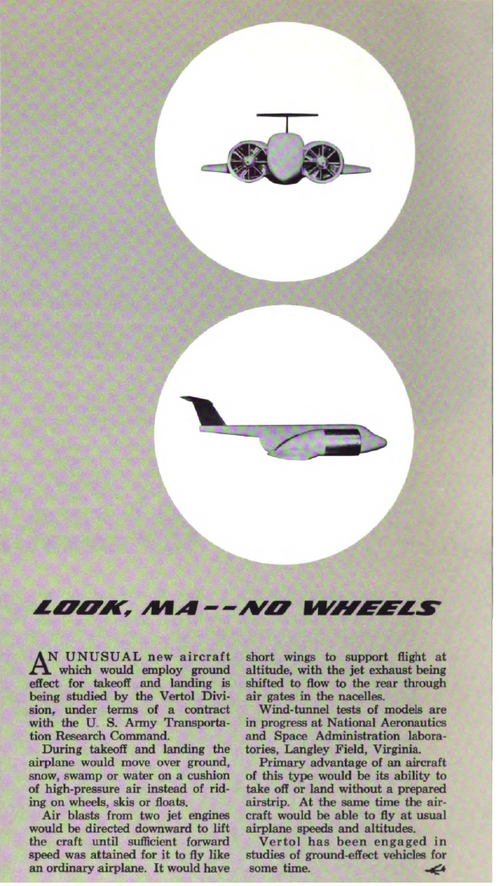

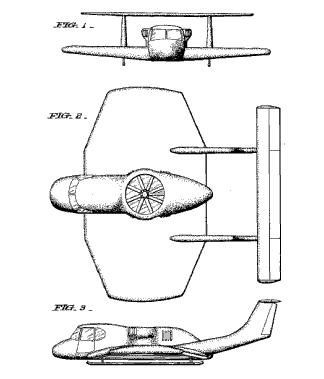

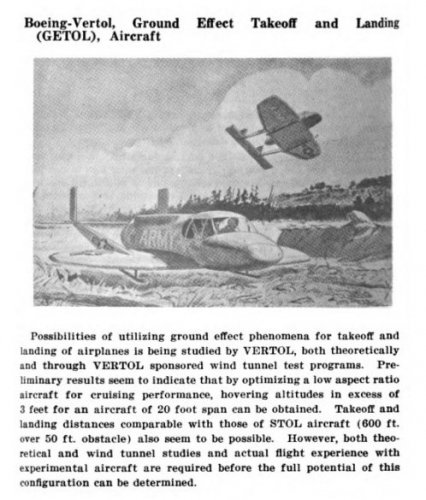

The patent for it was presented before in this topic. Here is a little text with an artist's view and a few details.

Source: Project Hummingbird, 1961
http://hdl.handle.net/2027/mdp.39015009821359

Please note that this project by Boeing Vertol is not to be mistaken for another Boeing-labelled GETOL project of 1962:
http://www.secretprojects.co.uk/forum/index.php/topic,219.msg16632.html#msg16632


Attachments

  • Vertol GETOL.jpg
    Vertol GETOL.jpg
    69.7 KB · Views: 314
  • GETOL.JPG
    17.6 KB · Views: 294

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

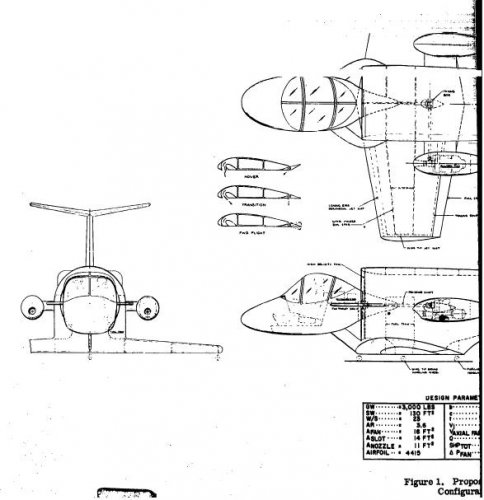

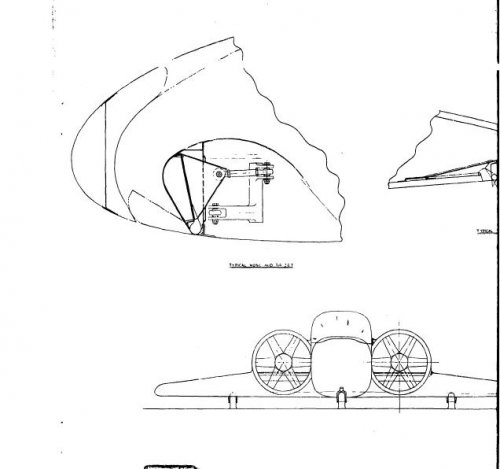

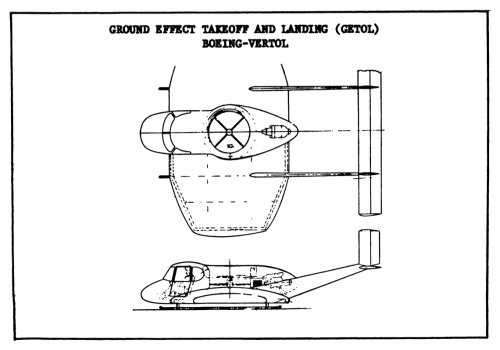

Another drawing, from the same source:


Attachments

  • Image4.jpg
    145.7 KB · Views: 273

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
McDonnell also offered a series of GETOL proposals under company designations Model 165A to 165G.
Has anyone seen a McDonnell GETOL project before?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

Attachments

  • GETOL 5.JPG
    GETOL 5.JPG
    49.8 KB · Views: 42
  • GETOL 4.JPG
    GETOL 4.JPG
    42.6 KB · Views: 38
  • GETOL 3.JPG
    GETOL 3.JPG
    44 KB · Views: 52
  • GETOL 2-3.JPG
    GETOL 2-3.JPG
    56.2 KB · Views: 65
  • GETOL 2-2.JPG
    GETOL 2-2.JPG
    49.4 KB · Views: 63
  • GETOL 2.JPG
    GETOL 2.JPG
    33.1 KB · Views: 77
  • GETOL 1-2.JPG
    GETOL 1-2.JPG
    54.1 KB · Views: 91
  • GETOL 1.JPG
    GETOL 1.JPG
    48.4 KB · Views: 84

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
And;


Attachments

  • GETOL 10.JPG
    GETOL 10.JPG
    32.8 KB · Views: 69
  • GETOL 9.JPG
    GETOL 9.JPG
    71.7 KB · Views: 62
  • GETOL 8.JPG
    GETOL 8.JPG
    75.1 KB · Views: 65
  • GETOL 7.JPG
    GETOL 7.JPG
    38 KB · Views: 84
  • GETOL 6.JPG
    GETOL 6.JPG
    32.3 KB · Views: 75

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

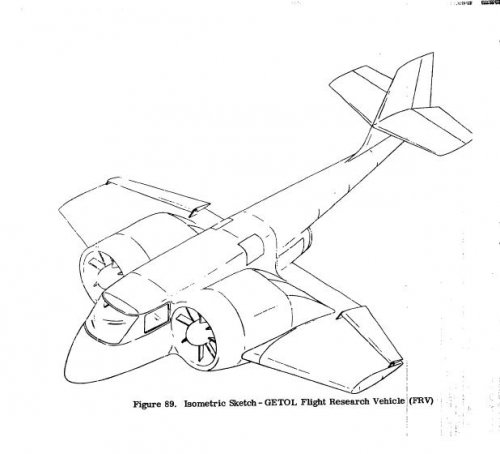

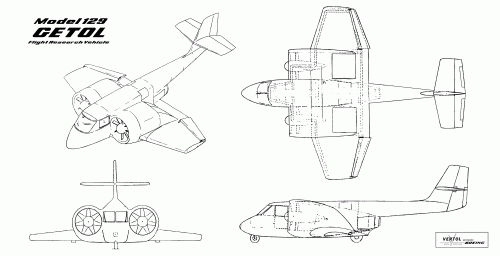

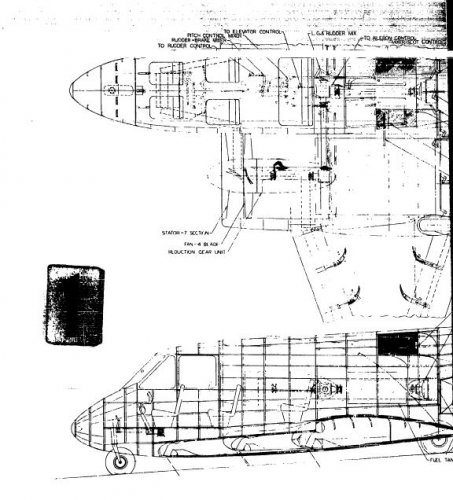

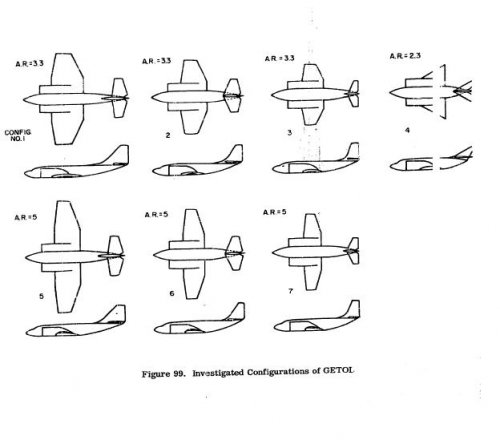

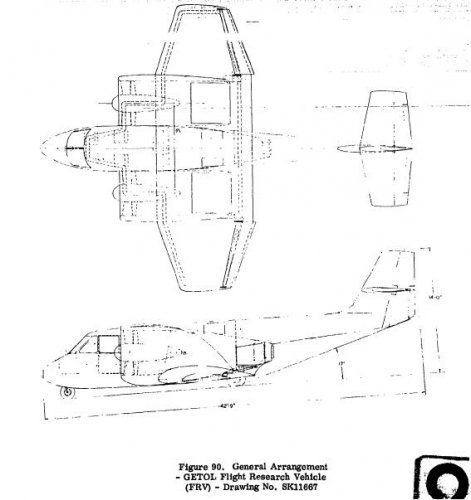

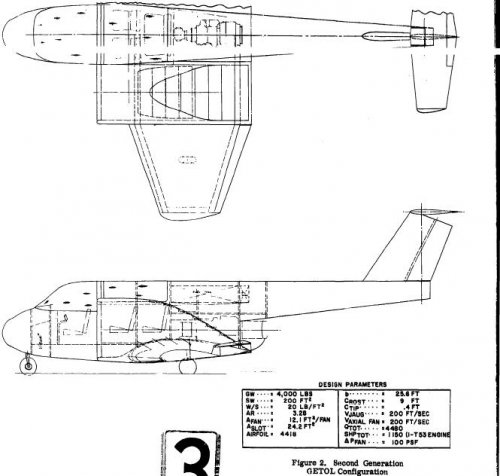

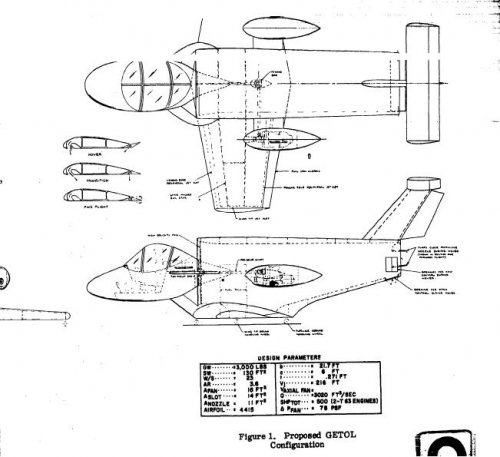

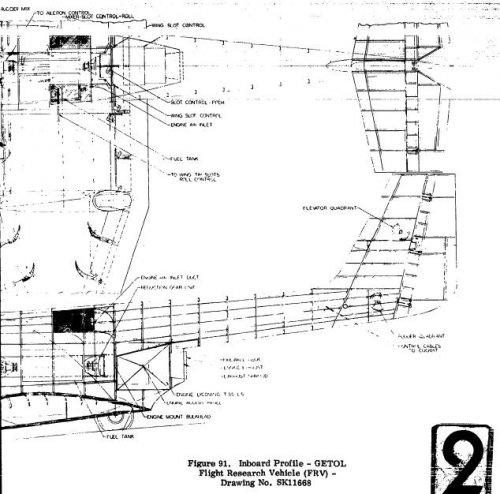

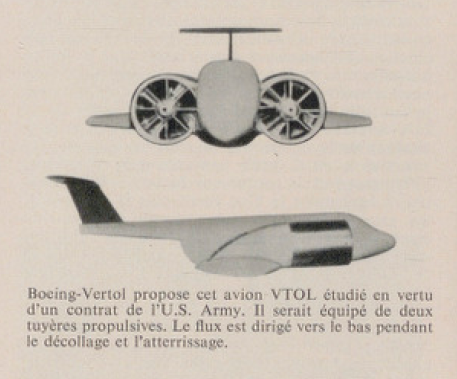

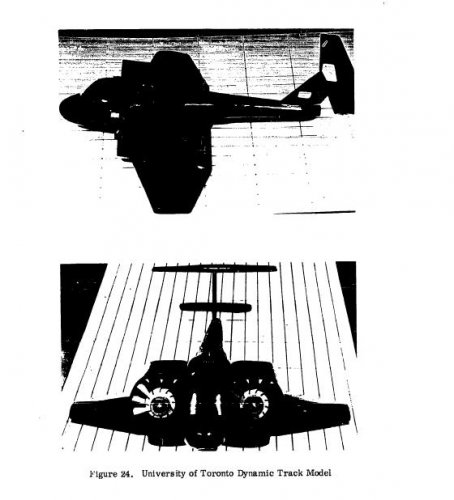

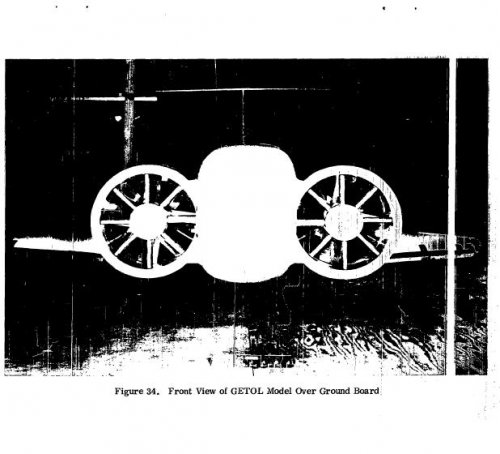

Boeing Vertol studied several GETOL configurations and finally settled on the Boeing-Vertol Model 129 (i.e. BV-129), "a twin fan hollow wing Ground Effect Take-Off and Landing (GETOL) Flight Research Vehicle powered by one Lycoming YT55-L-5 engine."

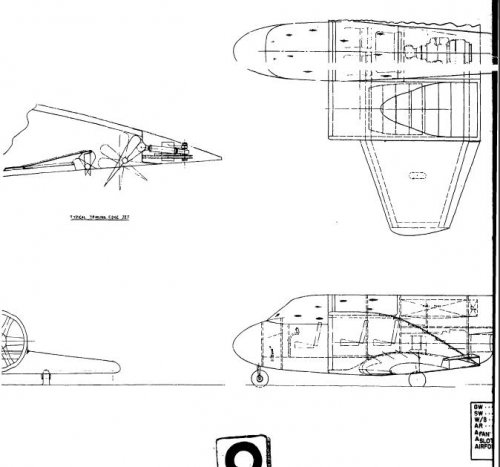

Below is a composite plan I recreated using the poorly scanned documents in the report as a basis.

Source: TRECOM Technical Report 62-63, AD 401149 (U.S. Army)


Attachments

  • plan.gif
    90.6 KB · Views: 151

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

http://archive.aviationweek.com/image/spread/19591207/69/2
http://archive.aviationweek.com/image/spread/19611030/43/2


Attachments

  • 1.png
    133.2 KB · Views: 41
  • 2.png
    173.8 KB · Views: 49

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

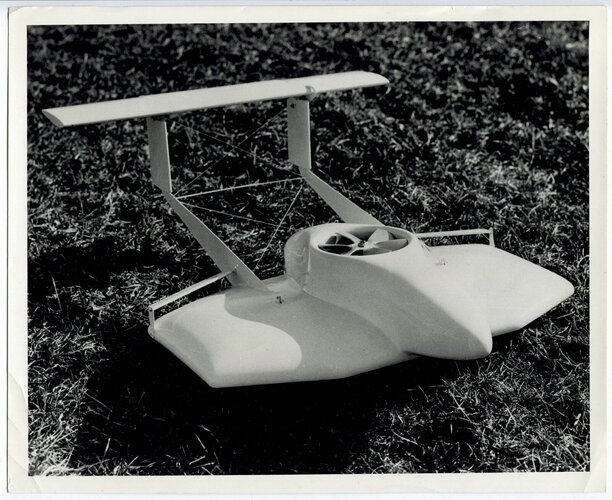

Attachments

  • 1.png
    284.7 KB · Views: 17
  • s-l1600.jpg
    369.9 KB · Views: 31
