Boeing Vertol BV-307 commercial helicopter project

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157

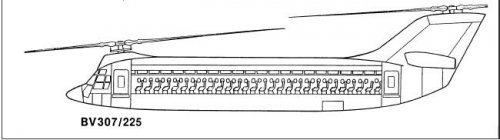

Has one of you ever heard of a Boeing Vertol BV-307? Robert Redding and Bill Yenne wrote in their “Boeing – Planemaker to the World” book about this commercial (passenger) helicopter – a bigger one, seating 225. “The BV-307 would be operational by 1989,” was the company’s dream.

Is more information available (specifications, 3-view, images)?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

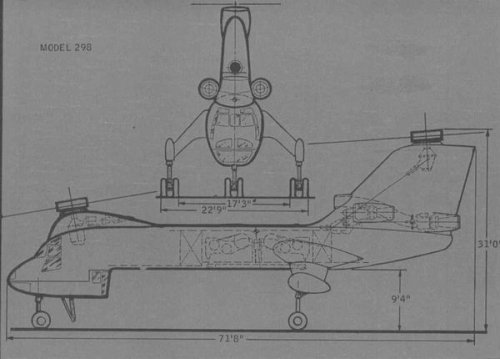

Would have been really large, the largest civil proposal I've found is a 100 passenger
version of the Model 298 flying crane. The model 299 would have had a payload 3 -
4 tons higher, but a civil version of it isn't mentioned in AviationWeek 1/68.
Chronologically the model 307 should have come a little bit later, perhaps 1969 ?


Attachments

  • mod298.JPG
    29.7 KB · Views: 1,035

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
“The BV-307 would be operational by 1989,”

Chronologically the model 307 should have come a little bit later, perhaps 1969 ?

That means 20 years for development, construction, tests and certification ... ???


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80

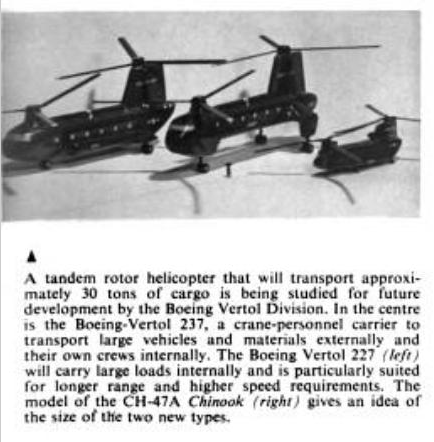

FLIGHT International of 26 May 1966 published an illustration
with a bit of text about two large Boeing-Vertol helicopter projects.

-model 237 : a crane-personal carrier project designed for external transportation of large vehicles and materials.

-model 227 : resembles the CH-47A but is much larger and will carry
internal cargo.It is particularly suited to long range and high speed
recquirements.

In the illustration the Chinook is literal dwarfed by the 237 and 227.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

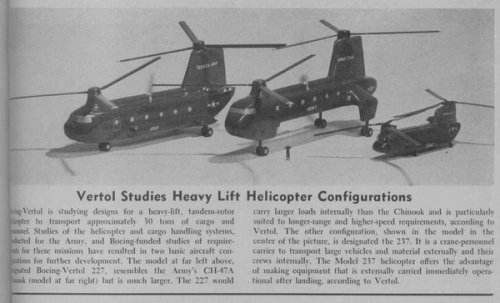

You're probably speaking of this model photo, published in Aviation Week1966 18-26,
too, but 1966 is even further away from 1989, than 1969.
Although, nowadays 23 years for such a project would be quite realistic, I think.
But were there engineers at Boeings in the sixties, that were realistic enough ? ;D


Attachments

  • Boeing-Vertol-heavy-lift.JPG
    37.7 KB · Views: 1,034

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
That's not just big... that's frikken' ginormous. What's the date?

Scott,
The mentioned book was published in 1983 (my copy is the revised and updated edition from 1997, but the chapter with the BV-307 seems not to be revised). The authors told about a BV-234-68 (-> for 68 pax), "but Boeing Vertol plans to beat even that". So I believe the BV-307 is a child of the late 1970s, early 1980s.

Jens,
You found the picture I've searched since the afternoon (I expected it in a "Flieger" magazine - ::)).


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,052
Reaction score
1,435
Website
www.aerospaceprojectsreview.com
boxkite said:
The mentioned book was published in 1983...

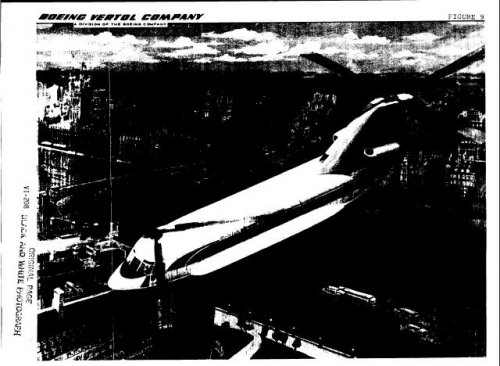

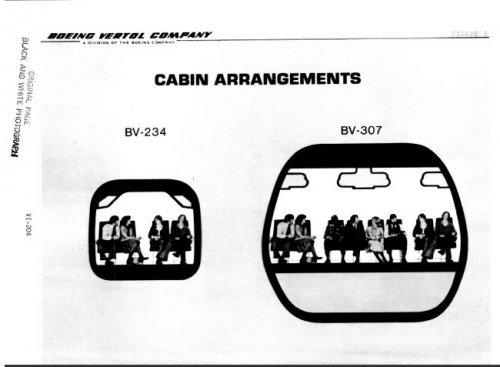

OK. I have a boxload of Boeing reports for NASA on civil V/STOL aircraft designs from the 70's and early 80's; they often included helicopters. I'll poke through them over the next fewe days and see if there was a 250-seater. These reports didn't generally include company model numbers, however.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,126
lark said:
FLIGHT International of 26 May 1966 published an illustration
with a bit of text about two large Boeing-Vertol helicopter projects.

-model 237 : a crane-personal carrier project designed for external transportation of large vehicles and materials.

-model 227 : resembles the CH-47A but is much larger and will carry
internal cargo.It is particularly suited to long range and high speed
recquirements.

In the illustration the Chinook is literal dwarfed by the 237 and 227.

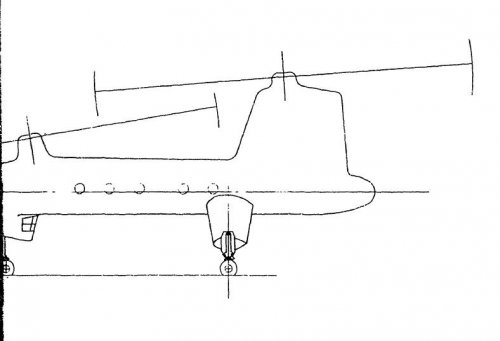

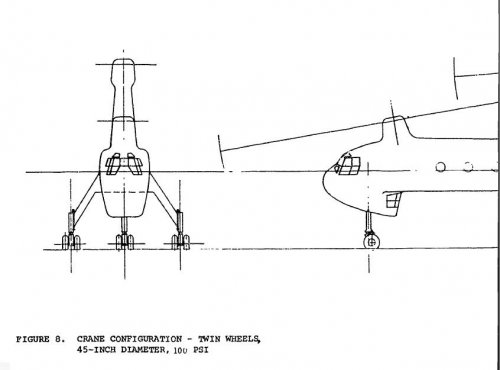

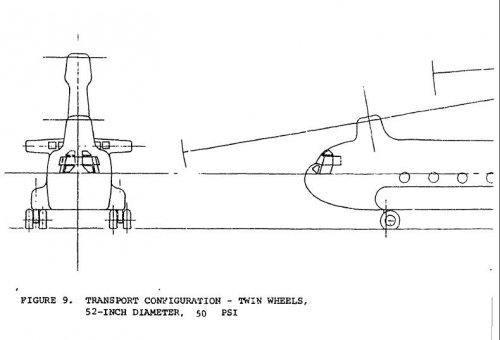

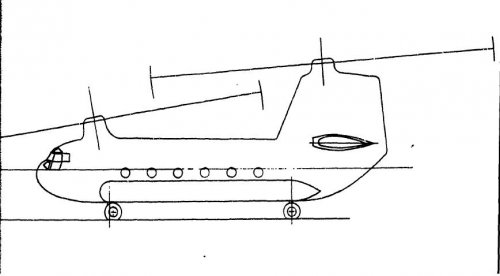

Here is Model-237 and Model-227 drawings;


http://www.dtic.mil/dtic/tr/fulltext/u2/385891.pdf


Attachments

  • 237-2.JPG
    26.6 KB · Views: 48
  • 237-1.JPG
    38.3 KB · Views: 55
  • 227-2.JPG
    31.9 KB · Views: 54
  • 227-1.JPG
    34.7 KB · Views: 60

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
165

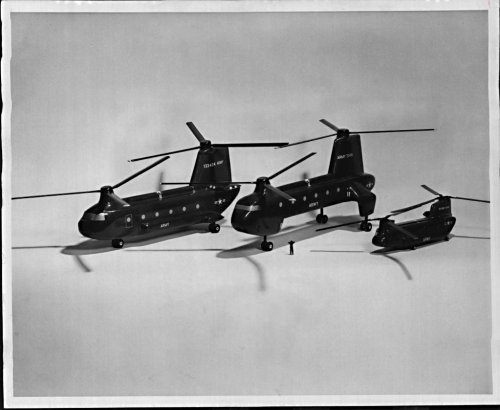

Vertol 227, 237 and CH-47 factory models.


Attachments

  • Vertol 227, 237 & CH-47.jpg
    Vertol 227, 237 & CH-47.jpg
    77 KB · Views: 96

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,126

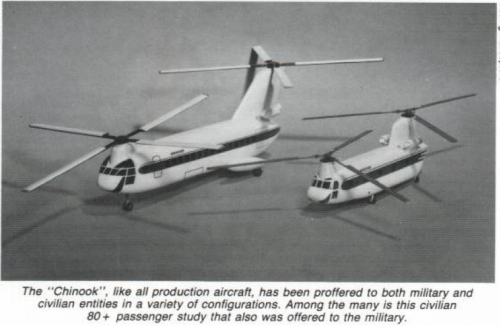

From Aerofax; Boeing Helicopters CH-47 Chinook.


Attachments

  • 1.png
    527.6 KB · Views: 79
