Hi,


who can ID this Boeing swing-wing supersonic single seat aircraft project of 1968,
I think it was a fighter.

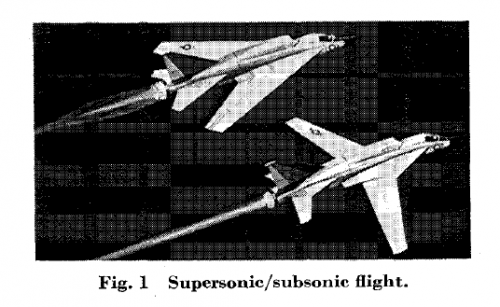

http://arc.aiaa.org/doi/abs/10.2514/3.43932?journalCode=ja


Attachments

  • S-S.png
    27.7 KB · Views: 1,423

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

Nothing to this moment ,who can make a drawing to it ?.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,980
Reaction score
2,568
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

Looks like a rough drawing of one of the early Boeing 818 TFX designs.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,689
Reaction score
8,004
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

No, its a single engine version of the Boeing TFX design.

It might be a Boeing study to VFAX (earlier one in 1965) which brought out a number of "half-TFX" designs or perhaps the earlier VAX. I'd say early VFAX.

Note the original report is from 1967, not 1968.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

TomS said:
Looks like a rough drawing of one of the early Boeing 818 TFX designs.

Not at all,the report was in 1968.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,689
Reaction score
8,004
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

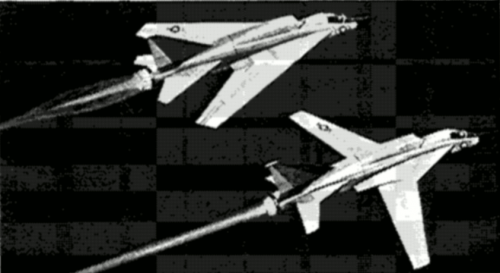

Best I can make of the poor original scan. Very clearly similar to their TFX. Note the apparent variable geometry tailplanes.


Attachments

  • BoeingSwingWing.png
    136.7 KB · Views: 1,654

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

Many thanks my dear Paul.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,980
Reaction score
2,568
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

hesham said:
TomS said:
Looks like a rough drawing of one of the early Boeing 818 TFX designs.

Not at all,the report was in 1968.

Just because that paper was written in 1968 does not mean the drawing isn't older than that.

That said, this design looks to be single-engined and TFX was a twin.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,689
Reaction score
8,004
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

TomS said:
hesham said:
TomS said:
Looks like a rough drawing of one of the early Boeing 818 TFX designs.

Not at all,the report was in 1968.

Just because that paper was written in 1968 does not mean the drawing isn't older than that.

That said, this design looks to be single-engined and TFX was a twin.

The report is about engines and propulsion, and first presented at a conference in 1967. The likelihood is that this is a Boeing design of a few years earlier, used for illustration only - it has no direct relation to the report. It would be something reasonably recent but not secret. Therefore 1965 VFAX represents the most likely contender to my mind.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

I agree with my dear Paul,VFAX not TFX.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,823
Reaction score
2,868
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

Boeing were the US partner withe EWR on the USFRG AVS strike fighter which was another swing wing strike fighter. It was also twin engined but influenced other Boeing designs like this fighter.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
214
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

The Reanimator comes again...
the report says:
"Two typical missions for the tactical fighter can be used to
illustrate the effect of drag increase on mission range (Fig. 3).
The aircraft must be able to fly at the supersonic speeds required
for the intercept mission. However, a major requirement
is the tactical support mission flown at subsonic speeds
under nonafterburning conditions."

This is VFAX, definitively.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Re: Boeing Swing-Wing Single-Seat Fighter Project of 1968 to ID

Wow,amazing Info my dear Skyblot,

but what was Boeing Model number ?.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,689
Reaction score
8,004
We can rule out Boeing VFAX as we have a drawing of it in Friedman - Fighter over the Fleet. However I do have a possible candidate -

it might be from a Boeing report "High-Performance General Purpose Aircraft Study. State of the Art" from July 1964 which was funded as Navy studies prior to VFAX. Possibly worth obtaining via DTIC?




hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,294
Thank you my dear Paul,

and is that any way to get those two reports ?.


kaiserd

I really should change my personal text
Senior Member
Joined
Oct 25, 2013
Messages
1,209
Reaction score
634
Date and design would appear to indicate some relationship to VAX and F55.5. designs. There is a separate topic room here on VAX.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,506
Website
www.aerospaceprojectsreview.com
Thank you my dear Paul,

and is that any way to get those two reports ?.

Someone can pay DTIC to get them scanned.

I've sent a DTIC FOIA request, but I'm not sure if it will go through properly. Last couple I sent bounced and the DTIC FOIA submission page causes all of my browsers to freak out over security issues. Slight irony there


RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
414
Reaction score
350
I've sent a DTIC FOIA request, but I'm not sure if it will go through properly. Last couple I sent bounced and the DTIC FOIA submission page causes all of my browsers to freak out over security issues. Slight irony there

Yep, for some reason this happens all the time with these kind of sites.
Happens a lot with US DoD websites. They don't seem to think they need to bother with up-to-date security certificates, which is ironic.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,506
Website
www.aerospaceprojectsreview.com
Yep, for some reason this happens all the time with these kind of sites.

FYI, I got in touch with an actual human at DTIC. She pulled up the FOIA email submission page, the one that doesn't work... and on *her* computer it works just fine. Looks like DTIC set things up so that people inside can send FOIA requests, but not outsiders. So... back to writing actual letters, shoving them in envelopes and sticking stamps onto them. How terribly advanced.


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,489
Website
galgot.com
For the ones that have already been scanned, I now go on the Internet Archive for browsing DTIC pdfs. They archived a sh.. load of them, maybe all that was online at one time or another, plus the search engine is very good, and browsing it is much easier as you can view thumbnails of the pdfs pages.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,947
Reaction score
510
I simply wrote an e-mail through their contact us link with the subject heading: FOIA Request a few weeks ago and had no problem getting the ball rolling with regard to the FOIA request. No stamp required.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,980
Reaction score
2,568
Yep, for some reason this happens all the time with these kind of sites.

FYI, I got in touch with an actual human at DTIC. She pulled up the FOIA email submission page, the one that doesn't work... and on *her* computer it works just fine. Looks like DTIC set things up so that people inside can send FOIA requests, but not outsiders. So... back to writing actual letters, shoving them in envelopes and sticking stamps onto them. How terribly advanced.


I'll bet it works on Internet Explorer 6...


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,947
Reaction score
510
This one from the link at the bottom of their home page that reads Contact Us.

Edit:
OK, I see, that must have just went down after I sent my request. Has anyone tried calling the contact number to see if anyone answers who can offer a contact e-mail address?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,506
Website
www.aerospaceprojectsreview.com
Has anyone tried calling the contact number to see if anyone answers who can offer a contact e-mail address?

Yes, I did... and they said that the email form is the only system they use now. I used to send FOIA request by actual mail, but those bounce now and I was told they no longer use that.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,689
Reaction score
8,004
The form works for me in Internet Explorer, with a security warning.

The problem is the certificate chains to a DOD root certificate which is not trusted by Windows / Chrome / Firefox. DOD computers have this certificate installed, so they are fine.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,977
Reaction score
3,506
Website
www.aerospaceprojectsreview.com
Just add an exception and it will work.
Ahem: How?

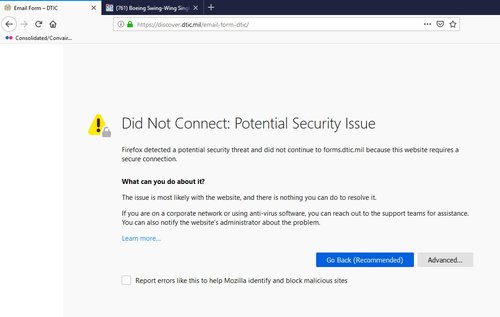

Did Not Connect: Potential Security Issue

Firefox detected a potential security threat and did not continue to forms.dtic.mil because this website requires a secure connection.

What can you do about it?

The issue is most likely with the website, and there is nothing you can do to resolve it.

If you are on a corporate network or using anti-virus software, you can reach out to the support teams for assistance. You can also notify the website’s administrator about the problem.
