Boeing Model 820 (some sort of transport version of B-52)

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
616
Reaction score
24
While cleaning out an old desk drawer, I found a fairly poor photo-copy of a page from APR Sept - Oct 2001 showing some tiny drawings of various a/c. One is the title subject, a 2 view of the a/c. My stash of old APRs aren't handy at the moment. The copy mentions it's a teaser of upcoming projects, but I don't recall anything on this a/c in subsequent issues. If Scott wants to post the drawing I mentioned, that's up to him, (mine's so tiny it'd be pointless & it doesn't enlarge well, either) but if there's any other info available on this, I'd be interested. I might want to model it. Also, Scott, if you have a better, bigger drawing available, I'd be interested if it's not too expensive. Thanks.


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
821
Reaction score
493
Does anyone else have drawings or specs for the Model 820? These might be interesting to glance given that American Secret Projects 3: US Airlifters 1962 to present is due out this fall.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,710
Reaction score
5,012
Website
www.aerospaceprojectsreview.com

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
821
Reaction score
493
One iteration of the Model 820 (there were quite a number of variants) is described and illustrated in US Transport Projects #5:

http://www.aerospaceprojectsreview.com/blog/?p=2538

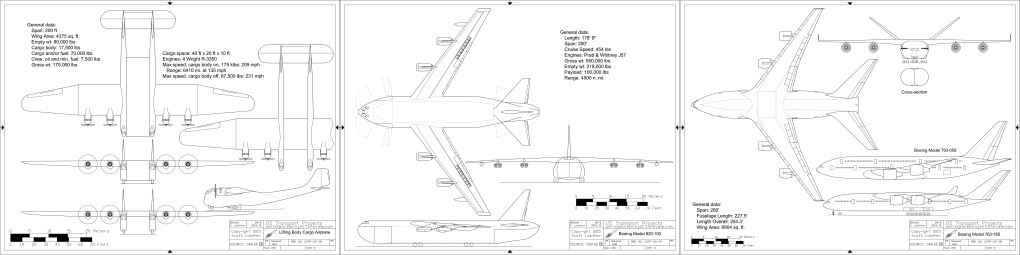

It's the aircraft in the middle in the image below:



The same issue includes info and diagrams of an early Sikorsky SST, a giant Boeing "resource carrier," the "Hot Eagle" suborbital troop-lobber, a nuclear powered seaplane to tow C-5 Galaxies...
I got a copy of your new book about the B-47 and B-52 last month, and given that you discussed the Model 820-100 in US Transport Projects #5, other variants of the Model 820 (those based on the B-52) can be summarized as follows:

  • Model 820-101: straight-wing transport with four T57 turboprops and outrigger landing gear to prevent the wingtips from striking the ground.
  • Model 820-102: similar to the Model 820-100 but with two clamshell cargo doors and eight turbofans.
  • Model 820-103: transport with the fuselage similar to the Model 820-101 but circular in cross-section with external sponsons and powered by eight turbojets; two sub-variants, the 820-103A and 820-103B, differed in having slightly reshaped sponsons.
  • Model 820-104: tilt-wing transport with six turboprops.
  • Model 820-105: flying boat transport with backswept wings and eight turbofans paired on four pylons above and ahead of the wings.
  • Model 820-106: amphibious transport with a shallower fuselage and rectangular cargo loading door on the port side of the aft fuselage.
  • Model 820-108: similar to the Model 820-100 but with greater wingspan, four turbofans in two outboard nacelles and two inboard nuclear-powered turbojets in individual nacelles.
  • Model 820-108A: version of the Model 820-108A with the inboard nuclear-powered turbojets replaced by four turbofans.
  • Model 820-109: similar to the 820-108 and 820-108A but with four nuclear turbojets.
  • Model 820-110: transport with a narrow cylindrical fuselage and four high-bypass turbofans.
  • Model 820-111: tilt-wing transport with two wings and powered by 12 turboprops (six per wing).
There was another Model 820 design study, the Model 820-107, which was not a B-52 derivative but a Mach 3 supersonic transport with twelve turbojets in two swiveling podded clusters at the wingtips and four more turbojets in two pairs on the forward fuselage, a length of 338 feet (103.02 meters), a wingspan of 148 feet 3 in (45.19 meters), and a height of 40 feet 5 in (12.32 meters). As noted in American Secret Projects 2: US Airlifters 1941 to 1961, the Model 820 design studies were collectively called the Long-Range Military Air-Logistics System (LRMALS).

That said, the Model 820-104 and 820-111 were unorthodox in terms of being tilt-wings, while the Model 820-107 was one of a few Mach 3 supersonic transports for the US Air Force. The design layout of the Model 820-105 and 820-106 reminds me of the Martin SeaMistress, because either one of them would have carried troops and battlefield equipment to enemy shores, much like the KM.
