Boeing Model 2020 "Klingon Super Cruiser" and the Super Clippers

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu

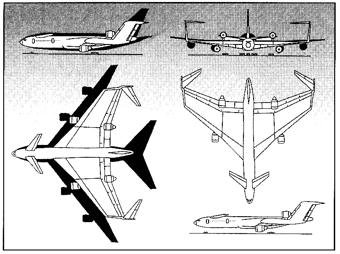

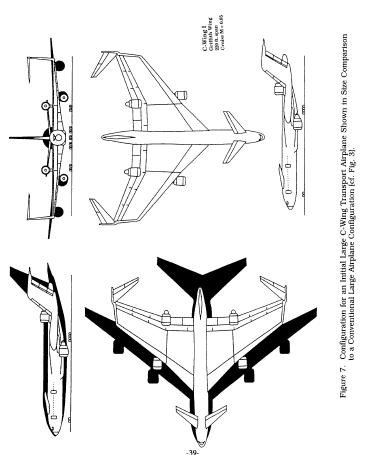

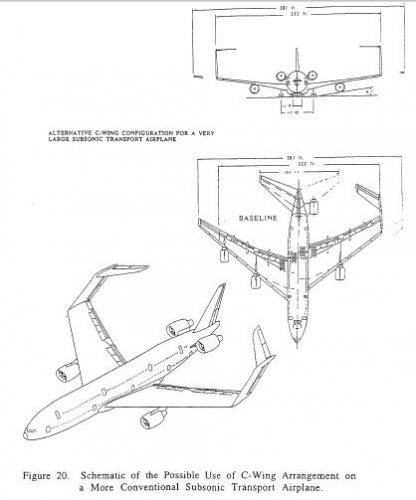

This C-wing concepts were known as "Klingon cruiser". And let me assume that the second is Boeing model 759-222 :) The last is of course Pelican.

[Image source: J. H. McMasters PPT presentation]


Attachments

  • image009.jpg
    42.7 KB · Views: 241
  • cwing2.jpg
    20.9 KB · Views: 242

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

http://www.aee.odu.edu/img/aerosystems/jpg/8_superclipper.jpg


Attachments

  • 8_superclipper.jpg
    32.2 KB · Views: 331

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,053
Website
deeptowild.blogspot.com

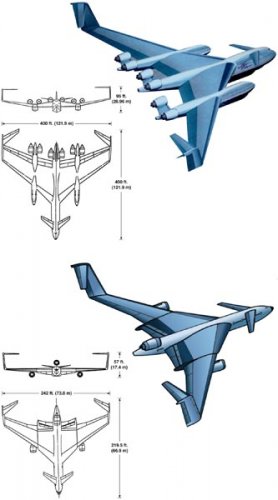

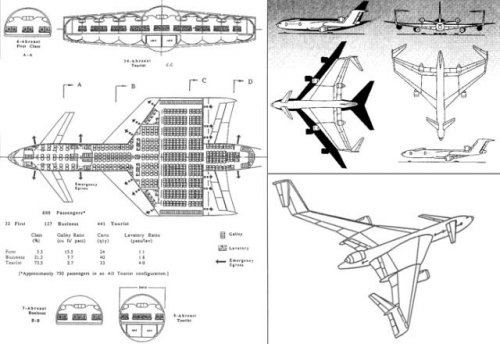

More images of the Boeing Super Clipper II.

Wing span: 400 ft.
Wing area: 0.65 acres
Max take-off weight: 2,547,000 lbs.
Power: Six GE 150 turbofans (@ 150,000 lbs. thrust each)
Passengers: 1,250
Crew: 40


Attachments

  • picture11xa5.jpg
    81.8 KB · Views: 505
  • picture12gc8.jpg
    60.1 KB · Views: 503

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886

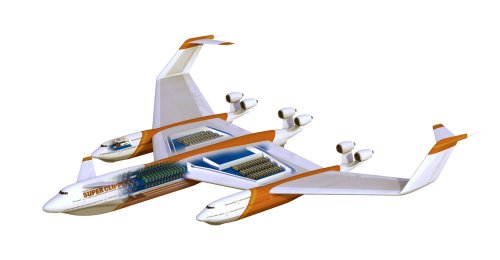

Nice Super Clipper drawing


Attachments

  • Boeing Super Clipper sm.jpg
    Boeing Super Clipper sm.jpg
    922.1 KB · Views: 282

Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
86
Reaction score
17
How much damage and attrition is there for such modern aircraft operating in such salty marine conditions?
