Boeing B-54A

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358
Hi all,

this is thze Boeing B.54A project with 4xR.4360 powerplants ( 4500 PS ). Span 161,2ft und len 111ft. Date of this bird 1948.
Anybody know the Model-number by Boeing?

Servus

(Source: Warbird Tech 14)


Attachments

  • Boeing B-54A.jpg
    Boeing B-54A.jpg
    585.3 KB · Views: 1,546

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,698
Reaction score
1,103
According to this list ( http://www.uswarplanes.net/b29.html ), as a B-50 variant, the B-54 was to remain a Model 345-2.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
May be defensive armement as test on B 29 serial 22444
barbettes with 12.7 guns ???


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206

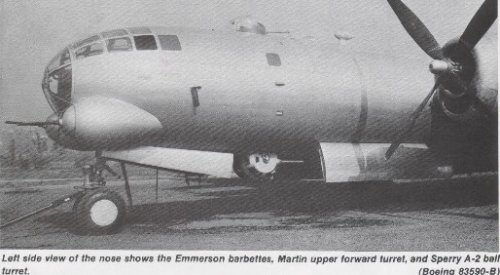

"May be defensive armement as test on B 29 serial 22444"

Don't think so, as the gun barrels of the turrets are clearly visible, but here not.
And the installation in 22444 was just a test against a failure of the remotely controlled
turrets, something that proved not to be necessary.

Photo via airwarfareforum


Attachments

  • Boeing_B-29_special_armament_02.jpg
    49.5 KB · Views: 1,049

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
dear Jemiba.
It's just a question. I've think that, loocking the same photo
than yours
Bye


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
I beg to insist. There is a similar radome in the tal, and one on the side. They look like radomes for antennas, and I think they are radar antennas for bombardments and attack-warning and gun direction (the tail one).


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
dear skybolt
Certainly you are right but I read somewhere :
armement : 14 50-cal machine guns and 36000lbs of bombs
Were are placed 14 guns ...so I imagine !
bye


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
As Skybolt told us ,it's a radar bulb, only on the starboard side
of the lower nose, as can be seen on the 3-viewdrawing
in U.S.Bombers B1-B70 by Lloyd S.Jones.AeroPubl. Inc.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
Thanks Paul. The radar was part of the K-1 radar bombing system, that was the real motivation for building the B-54 in the first place. Problem is that the modification needed to install it would have forced a radical redesign of the fuselage, and the 1949 FY budget was particularly tight, so the B-54 was cancelled.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
hello
Thanks IARK and SKYBOLT .I know the budget problem
and modifications to be done to the airplane..but I don't
see ,I don't have the three views drawing
THANKS AGAIN


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
"Were are placed 14 guns ...so I imagine !"

Maybe quite similar to the B-29, but with two quadruple turrets instead of just
one : 2 x 4 and 3 x 2 = 14 guns ?


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
Is it just me, or does it look like that it has an extended belly, similar to that on the Stratocruiser?

Also, would the USAF really had been interested in a piston-powered throwback to WWII by this time? The B-47, which I always figured was a de facto replacement for the B-29 and associated programs, was well into service and the A-1 may very well have been the only piston combat aircraft left when the B-54 would've entered service.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,698
Reaction score
1,103
Apparently, Curtis LeMay agreed with you. :)

Opinion is divided among historians though. According to Walter J. Boyne "the success of the B-47 resulted in the [B-54A] order's cancellation". But Joseph F. Baugher says that LeMay wanted more B-36 piston heavies with additional B-47 jet mediums only as a back up plan.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
41
Well, that produced a few posts!
Thanks, Skybolt especially.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
It has a deeper belly, but not like the C-97.



Just call me Ray said:
Is it just me, or does it look like that it has an extended belly, similar to that on the Stratocruiser?

Also, would the USAF really had been interested in a piston-powered throwback to WWII by this time? The B-47, which I always figured was a de facto replacement for the B-29 and associated programs, was well into service and the A-1 may very well have been the only piston combat aircraft left when the B-54 would've entered service.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Very interesting!

Is there any chance of someone with computer skills and talent (unlike ones self!!) of doing a sort of overlay 3-view drawing of the production B-50A and the proposed (and almost built) B-54A, so as to give a comparison???????


Thanks in advance

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206

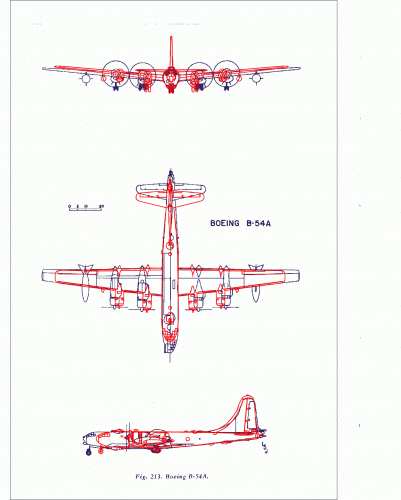

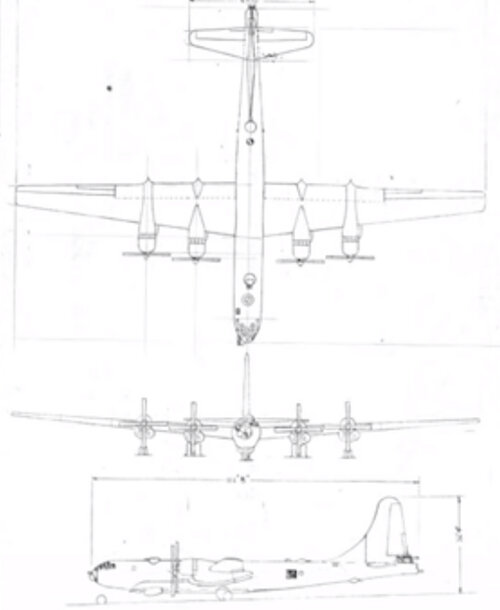

Don't know, if it really fits your needs, the 3-view of the B-50 is said to have been the
D-, not the A-variant, source was (a long time ago !) the "Enzykopädie der Flugzeuge",
a very small drawing of mediocre quality at best.
The B-54A 3-view was taken directly from "Llyod S.Jones "U.S. Bombers B1 - B-70",
most drawings there are quite basic, too.


Attachments

  • B50-54.gif
    81.2 KB · Views: 1,258

Kokoro

ACCESS: Confidential
Joined
Apr 8, 2009
Messages
50
Reaction score
4
I take it the shorter fin of the B-54A is due to the longer fuselage? Same reason A318's have a larger fin than other A320 family aircraft.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Thanks Jemiba for both your time and effort!!!

That helps heaps to envisage the proposed difference.

Those outer external tanks must have contributed greatly to the proposed B-54A's weight!
Are they part of the reason for the additional outer engine mounted landing gear?
For some reason I envisage outer wing fatigue problems, had the B-54A have entered service! (but I'm not an aerospace engineer!!!!)


Thanks again

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
"I'm not an aerospace engineer!!!!"

Nor am I, but the positions of the engine nacelles of the B-54 had moved further
outward, although the wing chord at the root seems to have remained the same.
That makes me think, that the whole wing may have been a new construction.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17

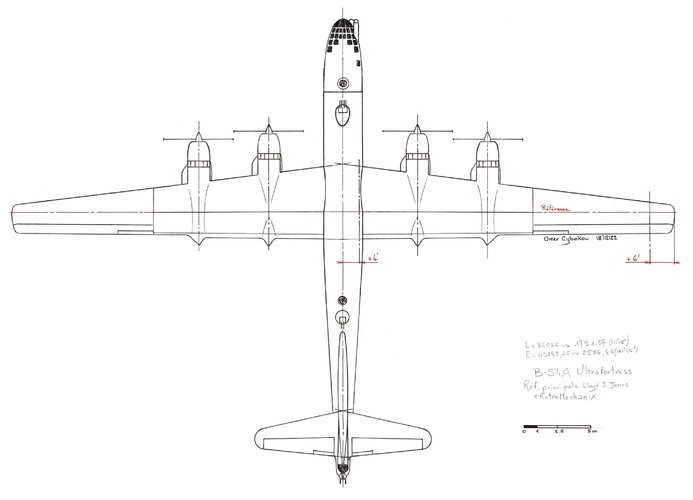

I don't recall the exact numbers, but Lloyd Jones' book on US Bombers I think said the wings were extended something like 6' at the root & 4' at the tip.



Jemiba said:
"I'm not an aerospace engineer!!!!"

Nor am I, but the positions of the engine nacelles of the B-54 had moved further
outward, although the wing chord at the root seems to have remained the same.
That makes me think, that the whole wing may have been a new construction.


EEP1A

ACCESS: Restricted
Joined
Nov 27, 2006
Messages
36
Reaction score
1

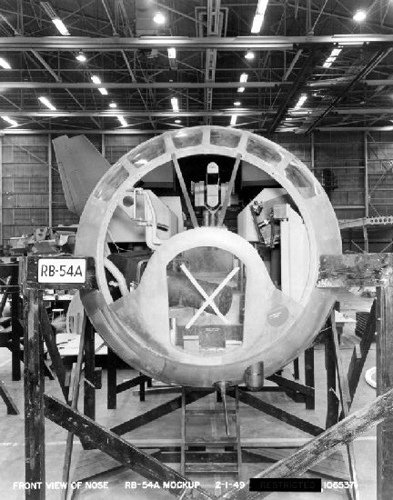

Found 2 photos of B/RB-54A mock-up at San Diego Air & Space Museum gallery on Flickr. They are erroneously captioned as “Martin : B-57 : Canberra”.


Attachments

  • Boeing RB-54A mock-up.jpg
    Boeing RB-54A mock-up.jpg
    107.4 KB · Views: 889
  • Boeing B-54A mock-up.jpg
    Boeing B-54A mock-up.jpg
    77.7 KB · Views: 918

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
323
Reaction score
203
Maybe it's the angle, but the mock-up looks really cheap in the second photo. Like the plywood and paper constructions created by British firms when budgets were tight - not the sort of thing you'd expect of a SAC-funded bomber program of that era.

Taildragger


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,600
Reaction score
981
TomiTheTajner said:
HI !
Last picture
What is this?

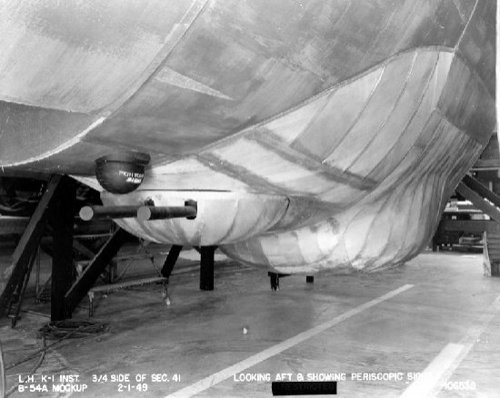

Good question, it looks like some sort of gondola, the photo captions say "looking aft" which suggests that that turret is pointing forward, in which case it may well be the forward lower turret though we can not see it on the cockpit picture. The gondola is probably a radar housing (AN/APQ-24 as used on the B-36B). You can just about see the gondola on the underside of the forward fuselage in the artists impressions posted earlier in the thread.

Interestingly, looking at those artists impressions it looks like the B-54A would have had 2 AN/APG-3 gun laying radars, one in the tail and one in the nose. Equally interestingly sources seem to say that the aircraft would have had 14 0.5 inch machine guns as defensive armament, looking at the artists impression one can just see what seem to be 3 barrels coming out of the tail turret, it is possible that a 4th would have been obscured by the radome, and the that section of the rear fuselage appears to stay quite wide suggesting a quad mount. At a guess the two quad turrets (tail and forward upper) were both slaved to an AN/APG-3.

Looking at the artists impression again, there may be a triple 0.5 inch in the tail with the AN/APG-3 mounted above it, both aft and just below the sight line of the manned position, and a single 20mm mounted above it...?


jzichek

ACCESS: Secret
Senior Member
Joined
Nov 26, 2008
Messages
273
Reaction score
74
Website
www.patreon.com

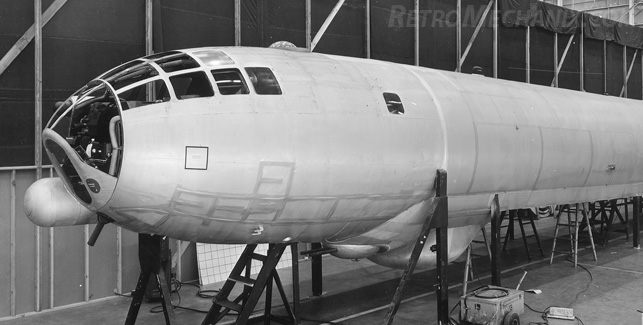

Boeing B-54A Mock-up Inspection Photos and Drawings (1948)


A feature on the Boeing B-54A mock-up inspection of 1948 is now up at RetroMechanix.com:




It features 48 high resolution drawings and photos of this forgotten final development of the B-29/B-50 bomber series. Enjoy!

-Jared


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,600
Reaction score
981
Jared,


Thank you very much for the post! That is an excellent collection of pictures. That answers virtually all of the questions about this aircraft!


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
175
I had been looking for a detailed drawing of the Farrand Hemispheric Tail Gun Sight, and here it is, on the B-54 mockup. Thanks to Jared, life keeps getting better and better!


jzichek

ACCESS: Secret
Senior Member
Joined
Nov 26, 2008
Messages
273
Reaction score
74
Website
www.patreon.com
You're welcome guys! This is all the material I have on the design; hopefully more will emerge in the years to come. Photos of the original YB-50C mock-up and the B-54A mock-up inspection of February 1949 (which undoubtedly featured additional changes) would be interesting to see, for instance.


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,600
Reaction score
981
circle-5 said:
I had been looking for a detailed drawing of the Farrand Hemispheric Tail Gun Sight, and here it is, on the B-54 mockup. Thanks to Jared, life keeps getting better and better!


Indeed, one forward and one aft along with the gun aiming radar, I am assuming that each quad turret was tied to a radar and hemispheric sight...?


This mock-up also clears up any doubts about defensive armament, 14 x .50 inch it was.


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
323
Reaction score
203
According to a book by a Boeing engineer who was there (called "Road to the 707" or something similar - I'll update the attribution when I find the book), the B-54 was seen within Boeing as the major revenue program for the 50's while the B-47 was seen as a project with less potential. The B-47's performance apparently surprised most people, even within Boeing, because drag estimates for the engine nacelles were based on experience with radial piston installations. It turns out that the drag caused by the cooling air passed over radial engines and ejected sideways was not appreciated and so the drag reduction from the much cleaner airflow over/around the jet nacelles was underestimated.
If it seems unlikely that such a fundamental lack of knowledge could exist into the late 40's, recall the 3-pack powerplants pasted under the wing of Martin's contemporary XB-48. The tunnels between the engines were supposed to minimize drag but actually functioned as fixed airbrakes.
Besides the B-47's performance, the other factor working against the B-54 was that the added landing gear under the outer nacelles would have required a major runway and taxiway widening program.
