Boeing B-52H AML-II with 8 Skybolts

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
94

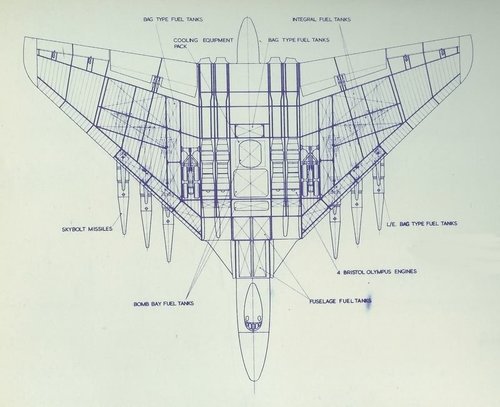

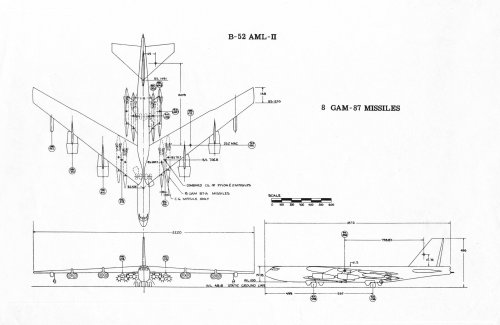

Avro Vulcan developments were to carry up to six Douglas GAM-87 Skybolt ALBMs, against four on the B-52H AML. That was just unacceptable, so Boeing designed the B-52H AML-II, with eight Skybolts. This is how they planned to do it:


Attachments

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,838
Reaction score
1,699
Now thats just crazy thinking :)

Need to fire them in the right sequence or Kerbloooey :)


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
18
If produced, the production B-70 Valkyrie was to carry Skybolt ALBMs as well. I've never seen any artwork on this though.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,422
Reaction score
286
overscan said:
Need to fire them in the right sequence or Kerbloooey :)
Probably more CG issues that "keblooey" problems. Didn't Skybolt freefall from the pylon for three or four seconds or so before the tail cover came off and the motor ignited?


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,341
Reaction score
234
TomS said:
overscan said:
Need to fire them in the right sequence or Kerbloooey :)
Probably more CG issues that "keblooey" problems. Didn't Skybolt freefall from the pylon for three or four seconds or so before the tail cover came off and the motor ignited?
yes, the skybolt is launch this way


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,297
Reaction score
79
Steve, but the B-70 would have need to slooooooooooooooooooow down to launch, wouldn't it ?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
18
Skybolt said:
Steve, but the B-70 would have need to slooooooooooooooooooow down to launch, wouldn't it ?
It was just a proposed option; most likely never to be implemented. Both programs (B-70 and GAM-87) were canceled around the same time.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,681
Reaction score
1,568

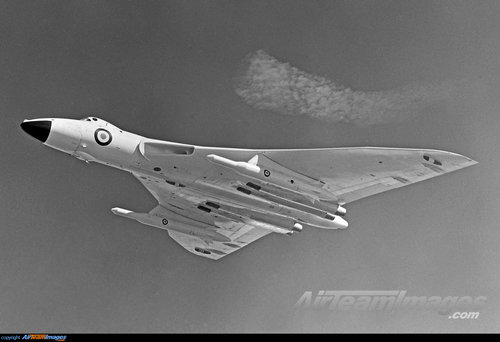

Hi!


Attachments

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
240
Reaction score
103
Probably more CG issues that "keblooey" problems.
[/QUOTE]

It looks like the fore and aft carried missiles are roughly evenly distributed around the center of lift, especially if the missile tail fairings are assumed to be relatively weightless. This loadout might have even eased the CG complications during launch since the wing-carried missiles are clearly in front of the center of lift.
