That's the way I like it ! Thanks Hesham. And to all of you : please notice that Flight has finished to put its entire archive online (only very recent years lack). So, go and hunt down projects !


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,436
Reaction score
6,100
Hi,

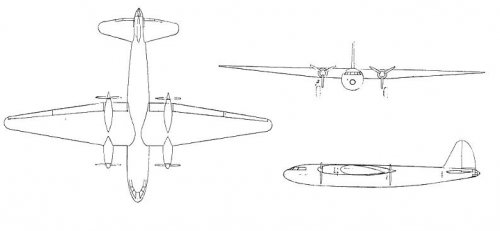

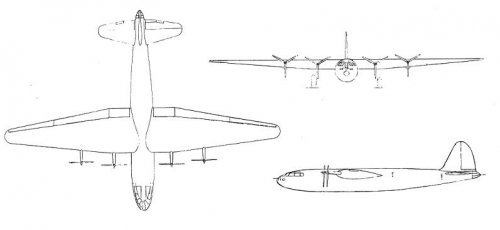

the Boeing Model-322,Model-333 and Model-333A; Lockheed
L-129 and Matrin XB-27 bombers.


Attachments

  • 333A.JPG
    20.3 KB · Views: 340
  • 333.JPG
    20.2 KB · Views: 779
  • 322.JPG
    18.6 KB · Views: 792

Chris707

ACCESS: Restricted
Joined
May 25, 2006
Messages
19
Reaction score
7
Some 3-views of the Boeing paper designs that eventually evolved into the B-29; apologies for the terrible quality, but these were from a mid-1940s printing, each about the size of a postage stamp and rendered in white on black. I've reversed them and tried cleaning them up a little:

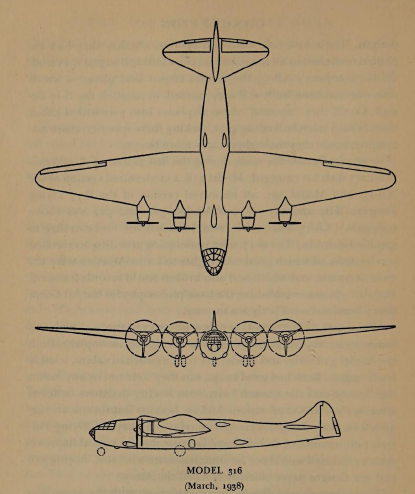

Boeing 316; a pressurized XB-15 offshoot


Boeing 322, a pressurized B-17C

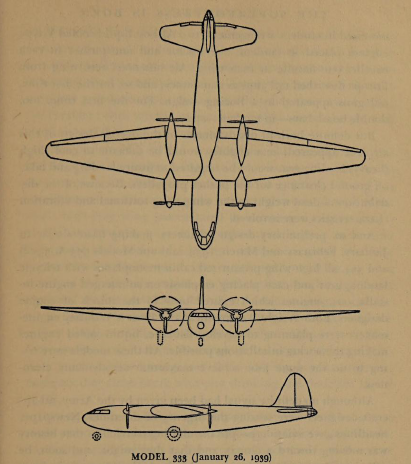

Boeing 333, with tandem Allisons

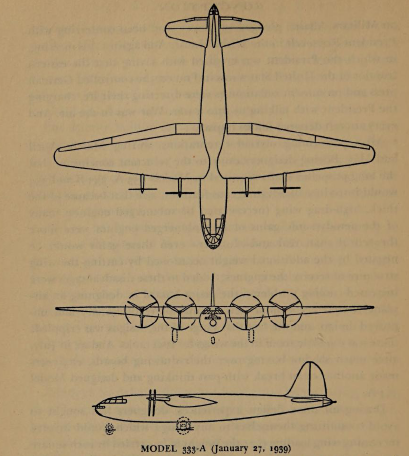

Boeing 333A, with submerged Allisons

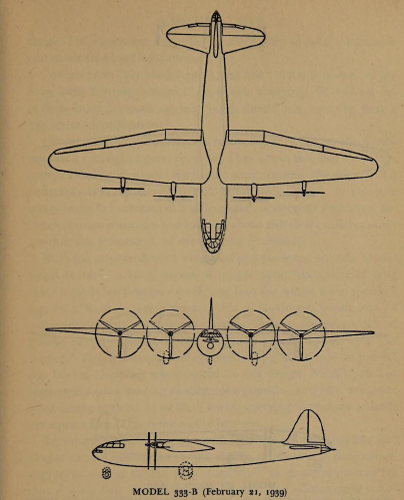

Boeing 333B, with Wrights



Chris
-----------------------------------
http://aviationheritage.blogspot.com


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,436
Reaction score
6,100
Hi,

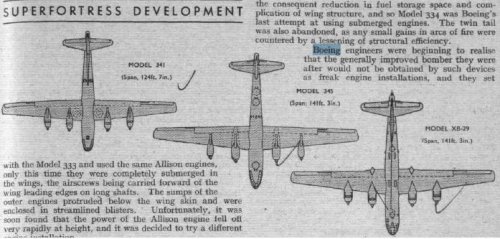

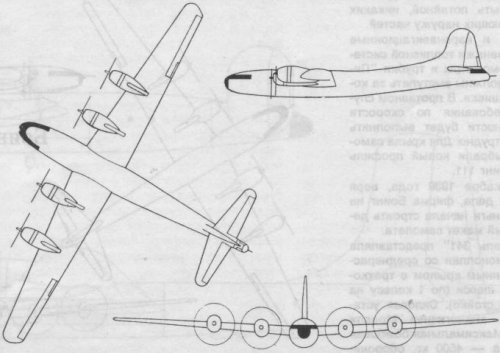

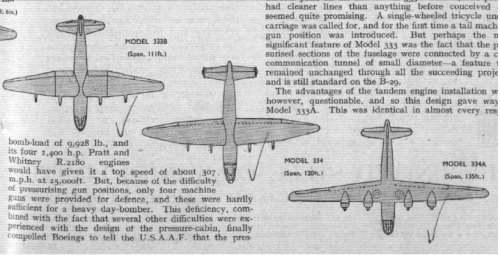

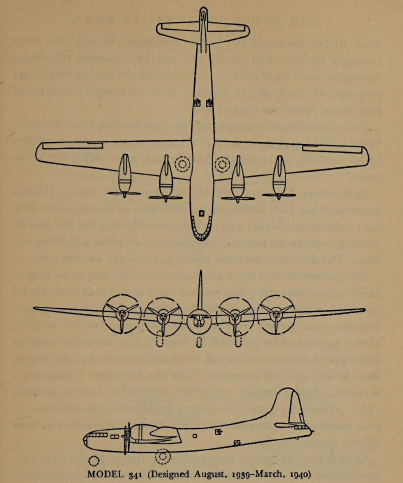

here is a drawings to Boeing Model 333,333A,344 & 334,also a single drawing to Model-341
projects.


Attachments

  • 8-1.jpg
    48.8 KB · Views: 218
  • 341.jpg
    43.8 KB · Views: 250

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,537
Have split and merged the posts about the B-29 with this old thread. Unfortunately,
the pictures posted by Chris707 seem to be lost in the meantime, so again the appeal,
to upload pictures and not just to link them. ;)

And yes, the question by ACResearcher should be taken seriously ! :mad:


Attachments

  • B-322.gif
    216.5 KB · Views: 333
  • B-333.gif
    159.3 KB · Views: 360

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,436
Reaction score
6,100
My dear Alan,

the source is; http://coollib.com/b/110201/read


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,027
Reaction score
432
Jens super, da hast du dich wieder selbst übertroffen. Danke für die 3-Seiten-Ansichten.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
277
Reaction score
173

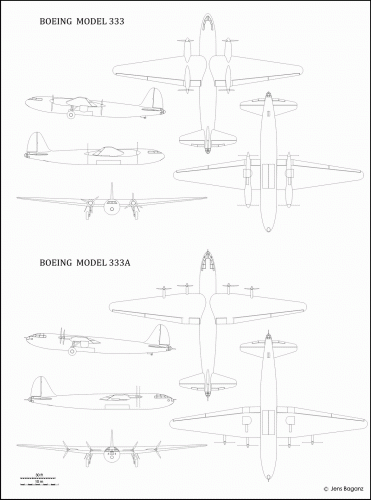

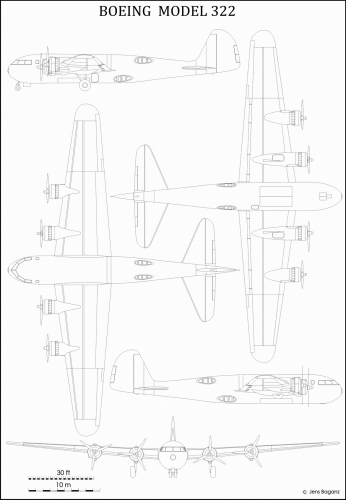

The drawings by Jens Baganz of the Boeing Model 322, 333 and 333A, while nice, are incorrect in a number areas. Also, unless Jens has some drawings I have yet to receive, details such as panel lines, landing gear, bomb bay doors and position, cowl flaps, etc. appear to be products of his artistic touch vs known reality.

All my observations are based upon original drawings and documentation in my possession.

Model 322
The two areas where the drawings are most immediately and clearly incorrect are the shapes of the nose - which should be longer and slightly more "pointy", and the tail which is too large and should more closely reflect that of the shark-tail B-17s.

With regard to the wings, the engine nacelles on Jens' drawings appear to be too long as do the wings themselves. I've not yet done an overlay, so this is based on the Mk 1 Eyeball treatment.

Model 333 Series
All of the 333 series were equipped with tricycle landing gear, not tail-sitters as shown. The 333 series consisted of the 333, 333A and 333B. The Allison V-1710 equipped all versions, differing in engine placement including both tractor and pusher configurations on the 333 and the length of the wings. According to the original drawings the fuselage was 80'-8" in all cases. The series all appear to have had 54" diameter main wheels and twin 30" diameter nose wheels. The documents covering the A and B both list those, but the 333's show nothing for some reason. Still, given the duplication in most of the layout I feel this to be a relatively safe supposition.

I hope the above is informative and of value.

AlanG

PS Hesham, thank you for posting the link to your source.


JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
57
Reaction score
19

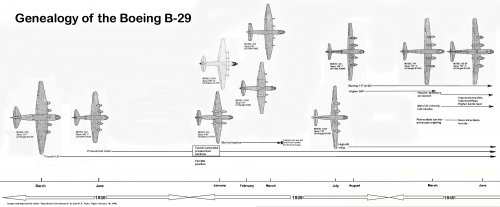

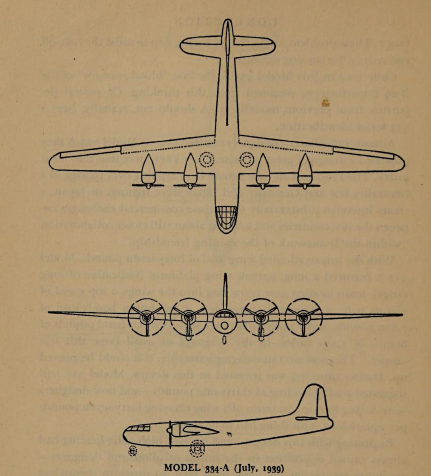

I have had some fun using the information in the first and fifth posts of this thread to illustrate the genealogy of the B-29. I added some text to the illustrations to show the contributions of the earlier configurations to the final product. Obviously, one can read Taylor's original article for a more complete story. I have used the original data which claims that the Model 333B was designed to use a Wright 1800 cubic inch engine (flat, 180-degree V?), and the Model 334 a similar P&W engine. Feel free to improve the illustration.


Attachments

  • Boeing B-29 Genealogy.JPG
    Boeing B-29 Genealogy.JPG
    421.9 KB · Views: 326

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
277
Reaction score
173
I stand appropriately corrected!

I must have had too many documents on my screen at once and read the same one twice.

The 333B was indeed supposed to be powered by the "Flat" Wright 1800 as it is referred to in the specs. Yet another project designed for an engine that never went anywhere.

Thank you for bringing this out.

AlanG


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,436
Reaction score
6,100

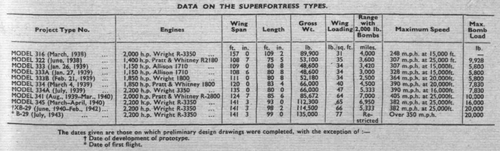

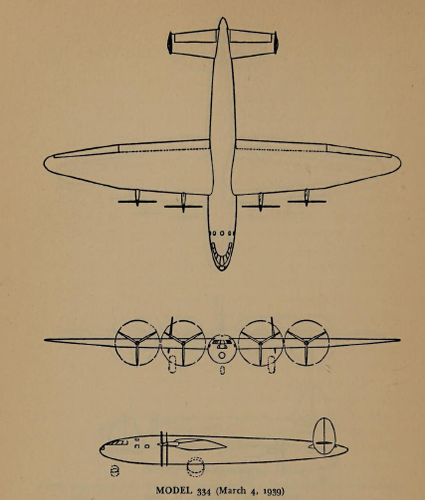

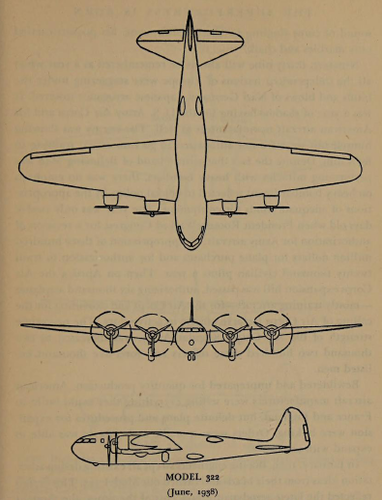

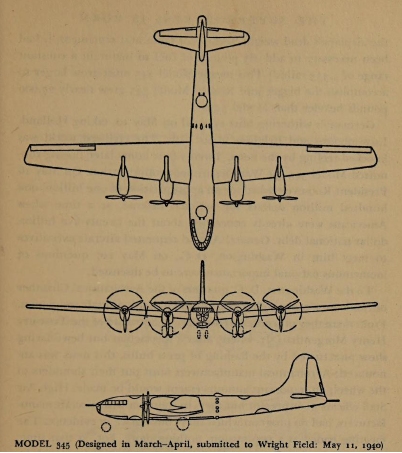

From the book, The Superfortress is born the story of the Boeing B-29

the all data to every Model is mentioned in it.


Attachments

  • 1.png
    253 KB · Views: 162
  • 2.png
    269.4 KB · Views: 139
  • 3.png
    270.1 KB · Views: 127
  • 4.png
    256.5 KB · Views: 113
  • 5.png
    256.1 KB · Views: 108
  • 6.png
    224.7 KB · Views: 116
  • 7.png
    275.9 KB · Views: 115
  • 8.png
    265.2 KB · Views: 126
  • 9.png
    265.1 KB · Views: 143

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
277
Reaction score
173
Actually, there is a fair amount of information and documentation on the Boeing pre-B-29 projects, but you have to do some serious digging and research to find it. I can't say by any means I've found it all, but I've found quite a bit for a future book title I've researched and continue to research. So, Hesham, don't EVER label something as "all available Info." Because you haven't seen it doesn't mean it doesn't exist.

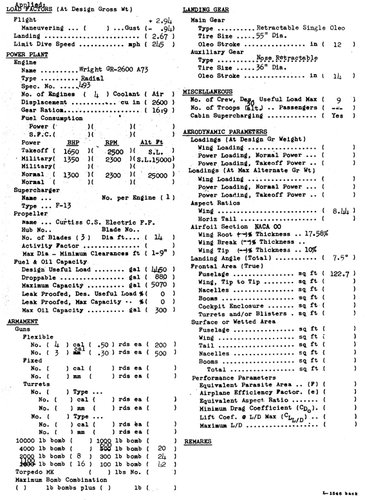

Attached are a couple of pages of data on the Boeing 316. What apparently very, very few people know is that there were four suggested variants of the Model 316. One of these became the XB-20 project. Boeing and/or the AAF identified the Model 316 as an outgrowth/variant of the XB-15. Based on the drawings and data I suspect this was just a way to get funding for an "existing project" as there was little or no money for anything truly new. Boeing had put its own money into the Model 299 project and was rewarded with a paltry contract for 13 aircraft for further tests - typical of the times.

I hope you enjoy the attached.

AlanG


Attachments

  • Boeing 316 Specifications - 1.jpg
    Boeing 316 Specifications - 1.jpg
    329.3 KB · Views: 66
  • Boeing 316 Specifications - 2.jpg
    Boeing 316 Specifications - 2.jpg
    306.1 KB · Views: 69
