BETA & BETA II Spaceplane?

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
122
Are there any unclass pictures or drawings of the BETA and BETA II spaceplane study from the 1980's. I'm working on another project and I tried the search engine. The only images I found were the Beta SSTO from, and (shaking my head 'no') "Blackstar". IIRC, The BETA I'm looking for was part of a project called Science Realm.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,168
Reaction score
4,339
Website
www.amazon.com
Please see http://www.spacefuture.com/archive/beta_a_single_stage_reusable_ballistic_space_shuttle_concept.shtml


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,795

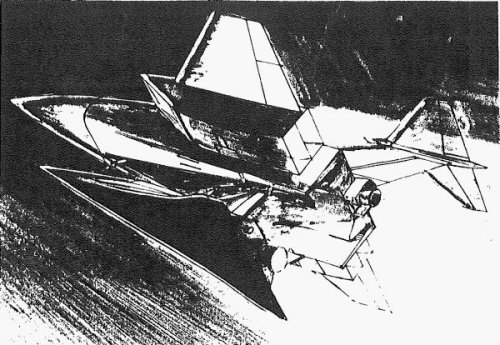

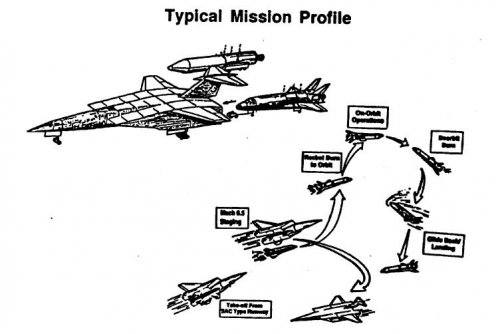

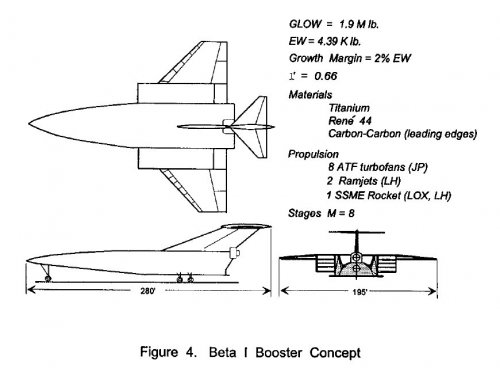

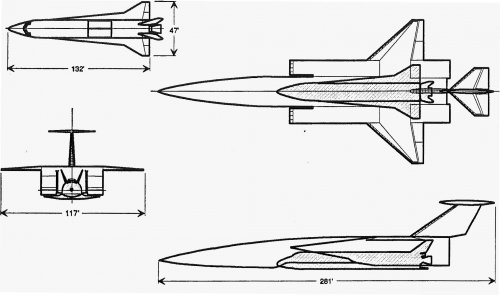

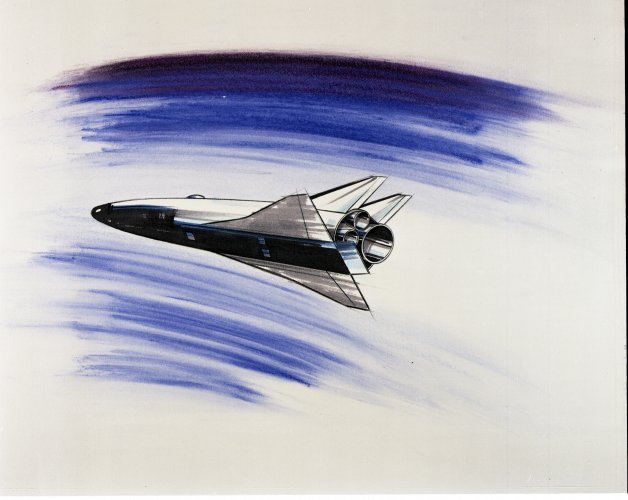

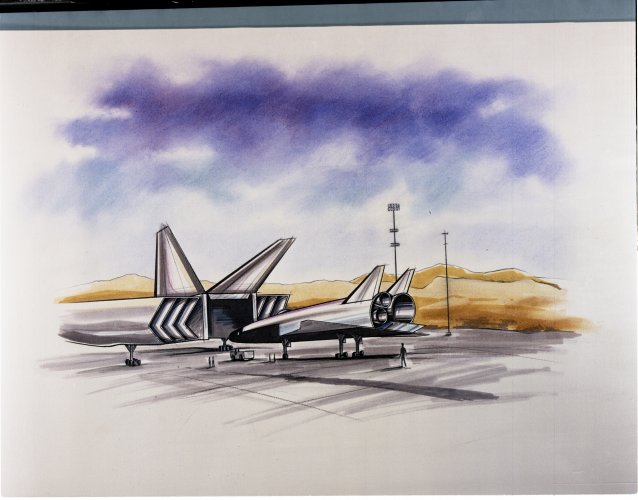

Not this one...these ones...

The Aeropropulsion Analysis Office of the NASA Lewis Research Center was studying
propulsion systems for possible low-risk replacements for the space shuttle. This study focused its work on a
smaller version of an Boeing / USAF two-stage-to-orbit (TSTO) concept called Beta.

The NASA concept, Beta II, is to deliver 10,000 pounds to low polar orbit. (The original Beta vehicle is sized to delivered 50,000 pounds.)


Attachments

  • USAF-Boeing BETA.jpg
    USAF-Boeing BETA.jpg
    98.4 KB · Views: 799
  • USAF-Boeing BETA-a.jpg
    USAF-Boeing BETA-a.jpg
    126.8 KB · Views: 793
  • USAF-Boeing BETA - b.jpg
    USAF-Boeing BETA - b.jpg
    66 KB · Views: 795
  • USAF-Boeing BETA - c.jpg
    USAF-Boeing BETA - c.jpg
    64.9 KB · Views: 760

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,795

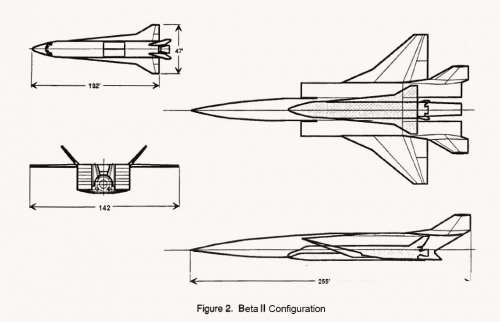

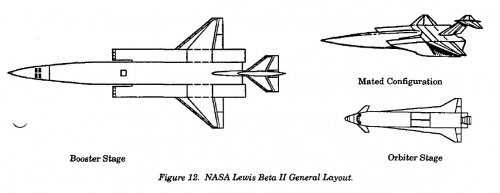

NASA Lewis BETA II


Attachments

  • BETA II config.jpg
    BETA II config.jpg
    70.3 KB · Views: 155
  • BETA II original config.jpg
    BETA II original config.jpg
    157.2 KB · Views: 163
  • BETA II original config 2.jpg
    BETA II original config 2.jpg
    56.4 KB · Views: 736

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
789
Reaction score
148

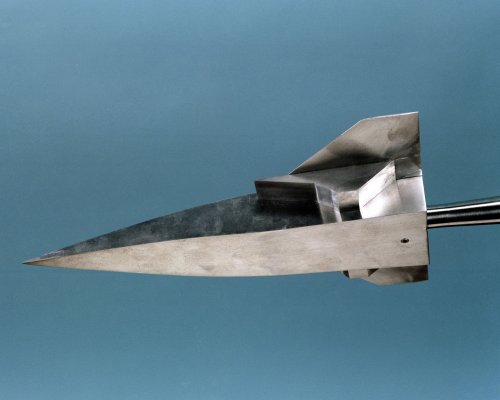

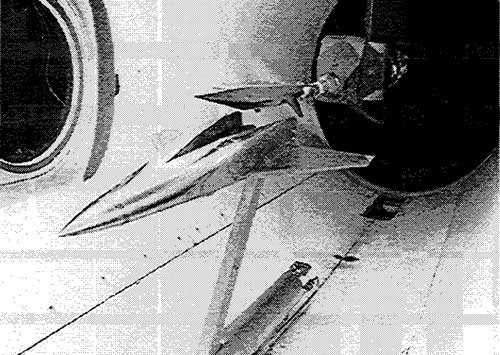

Also. BETA. Wind tunnel config. tested. As far as I can remember, in an AEDC tunnel. Better res image may even have been released in an AEDC leaflet. Saw that once, a long time agao...

Regards


Attachments

  • BETA-Wind-Tunnel.jpg
    44.2 KB · Views: 157

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
789
Reaction score
148
More.

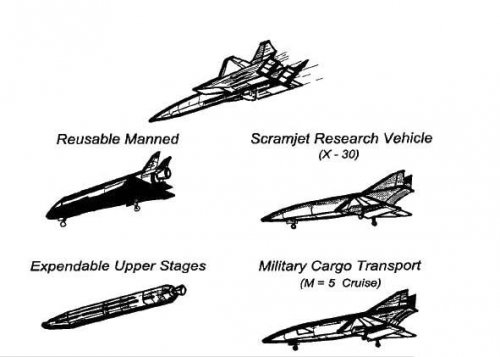

BETA explored various types of potential upper stages, including a manned "mini" space shuttle, and "air-launched" X-30 / Nasp.


By the way, BETA puzzled me a lot and I would be grateful to anyone of you who would be able to tell why the project was called BETA. Was STS (aka Space Shuttle) ALPHA? For those who can remember in the early 1980s, the "space station" (yet to become ISS...) was sometimes refereed to as ALPHA, then Freedom, etc.


Attachments

  • Boeing-BETA-upper-stages.jpg
    25.1 KB · Views: 189

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
789
Reaction score
148

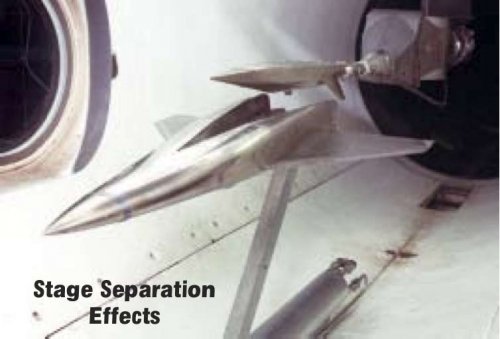

Re: BETA & BETA II Spaceplane? Image Sateg separation effects

Confirmed. BETA stage separation effect color image taken from AEDC brochure.

Antigravite


Attachments

  • AEDC-Brochure.jpg
    27.4 KB · Views: 171

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,795

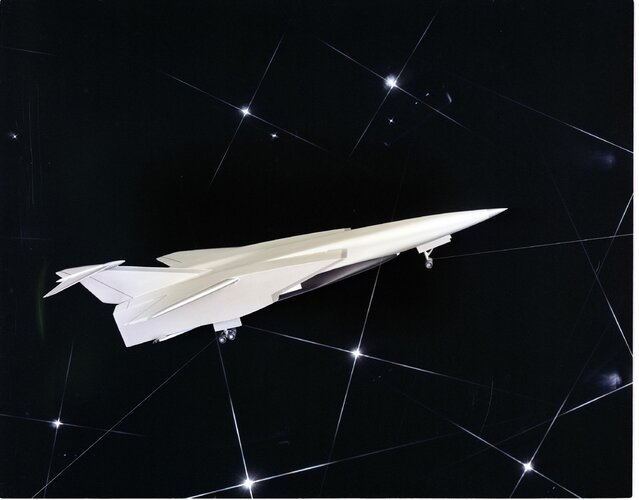

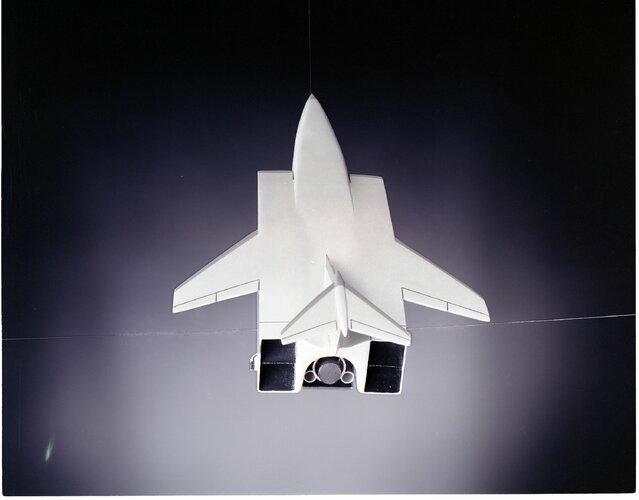

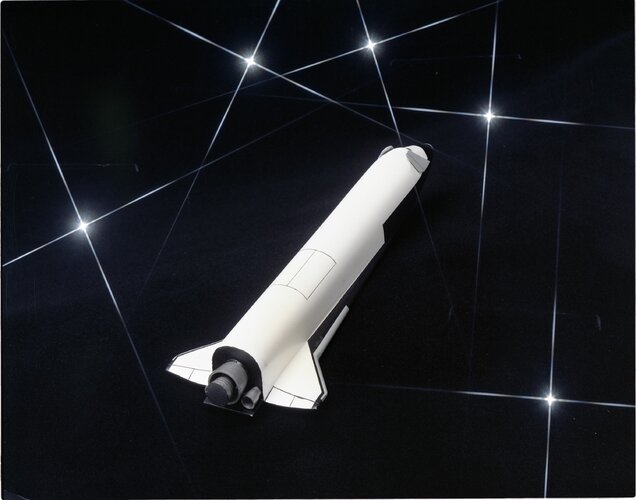

USAF BETA wind tunell model


Attachments

  • DF-SC-91-00021s.jpg
    208.4 KB · Views: 139
  • DF-SC-91-00022sm.jpg
    145.4 KB · Views: 144

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
789
Reaction score
148
Weird. Looks like BETA but I can't relate it to other published material. Looks like student work or publicity...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,109
Hi,

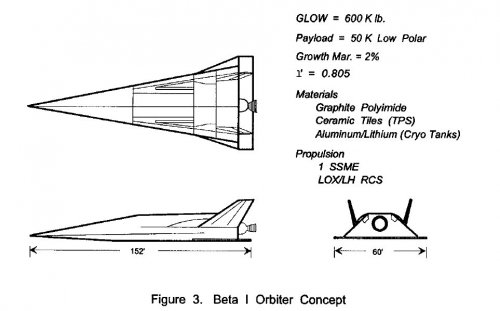

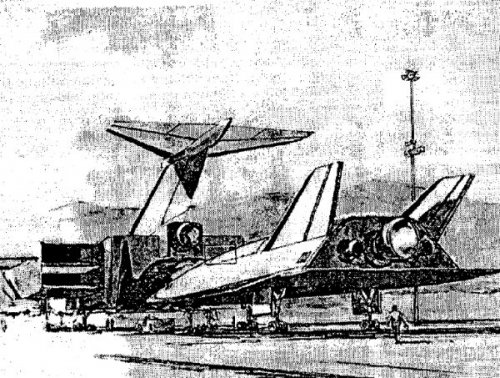

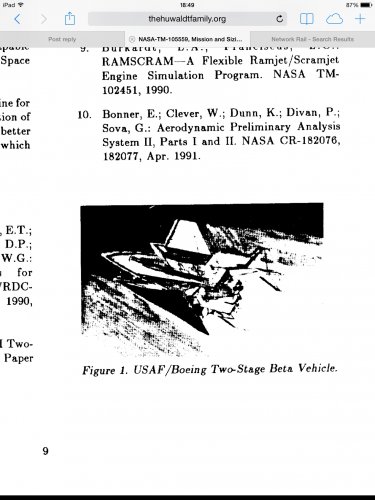

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920012293_1992012293.pdf


Attachments

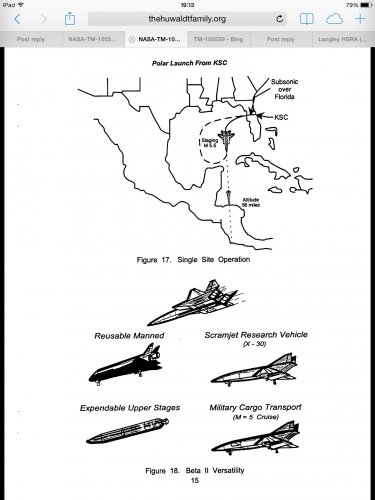

  • 2.JPG
    45.3 KB · Views: 170
  • 1.JPG
    36.4 KB · Views: 108

Mr London 24/7

ACCESS: Secret
Senior Member
Joined
Apr 27, 2008
Messages
407
Reaction score
98
Overview of the BETA II Two-Stage-To-Orbit Design [AIAA-91-3175]:

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920001816_1992001816.pdf


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,223
Reaction score
330
I'm fairly certain all of the images in the thread are BETA II configurations. I've never seen a BETA image in the public domain.


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
988
Reaction score
488
quellish said:
I'm fairly certain all of the images in the thread are BETA II configurations. I've never seen a BETA image in the public domain.
According to the BETA-II history paper the BETA design is the one with the T-Tail but never really proceeded beyond a vesability study. The AF changed the parameters and re-issued the contract for the BETA-II and that became the more published and illustrated version it would seem.

Randy


Mr London 24/7

ACCESS: Secret
Senior Member
Joined
Apr 27, 2008
Messages
407
Reaction score
98

Attachments

  • image.jpg
    439.7 KB · Views: 81
  • image.jpg
    325.2 KB · Views: 126

bob225

ACCESS: Confidential
Joined
Dec 12, 2009
Messages
135
Reaction score
125
I know it's the drive, but great boeing artwork
http://www.thedrive.com/the-war-zone/26156/is-this-concept-art-of-a-mysterious-space-launch-mothership-a-missing-link-in-area-51s-past


sublight is back

ACCESS: Top Secret
Senior Member
Joined
Aug 25, 2012
Messages
858
Reaction score
162

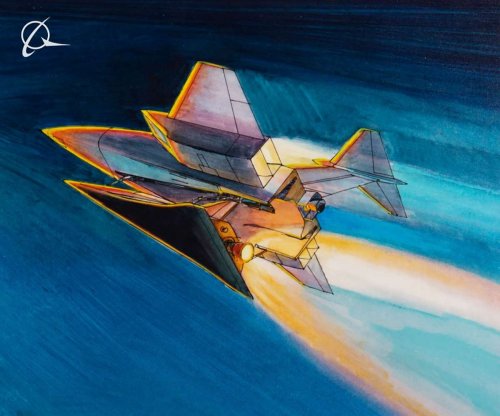

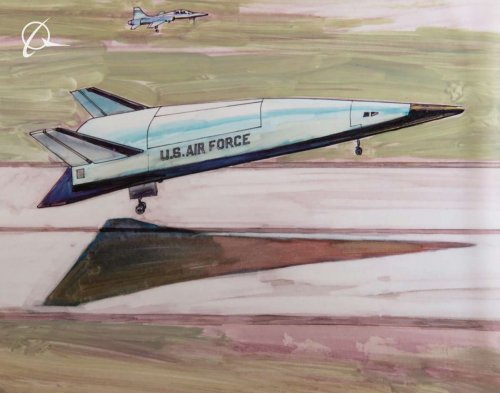

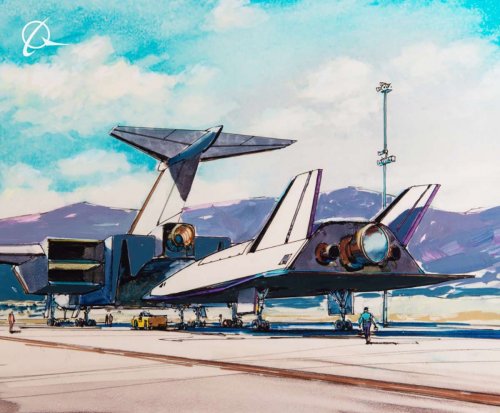

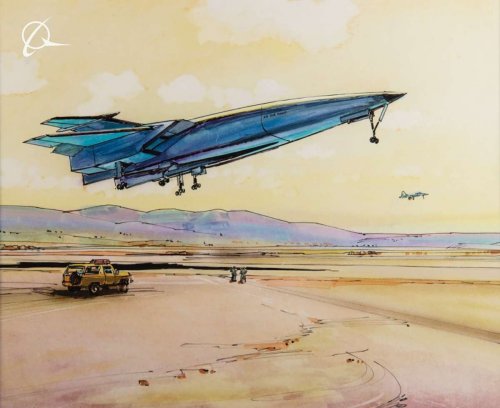

The pics.


Attachments

  • four.jpeg
    84.4 KB · Views: 459
  • three.jpeg
    101.1 KB · Views: 459
  • two.jpeg
    85.6 KB · Views: 471
  • one.jpeg
    120.3 KB · Views: 498

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,939
Reaction score
5,800
Very nice. Was this related to the german SSTO projects, also called Beta ? by Dietrich Koelle ?

http://www.astronautix.com/b/beta.html


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
842
Reaction score
383
Archibald said:
Very nice. Was this related to the german SSTO projects, also called Beta ? by Dietrich Koelle ?

http://www.astronautix.com/b/beta.html

No - as the Astronautix entry already indicates, Koelle's BETA is the German acronym for Ballistisches Einstufiges Traeger-Aggregat (literally translated ballistic single stage carrier unit [or more correctly launch vehicle]).


bob225

ACCESS: Confidential
Joined
Dec 12, 2009
Messages
135
Reaction score
125

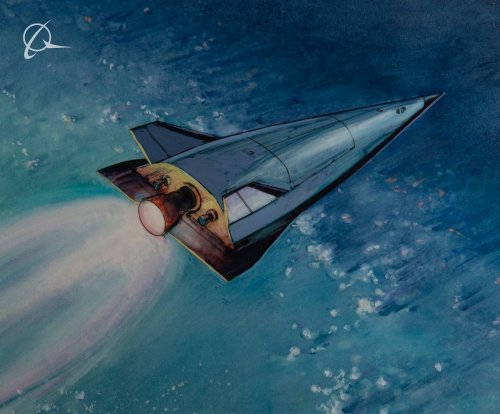

Another picture


Attachments

  • Dl3oGuoXcAACUca.jpg
    189.8 KB · Views: 398

Nigelhg

ACCESS: Confidential
Joined
Mar 25, 2012
Messages
71
Reaction score
53
Some great drawings and detail in Boeing's patent
https://patents.google.com/patent/US4802639A/en


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
221

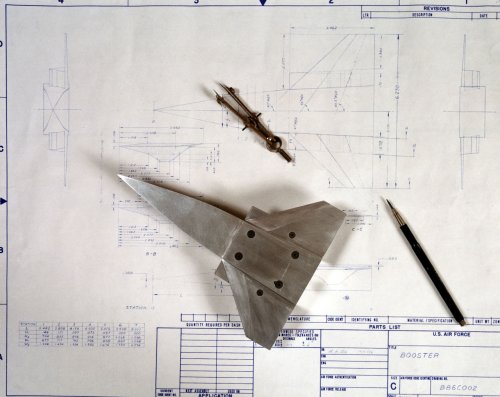

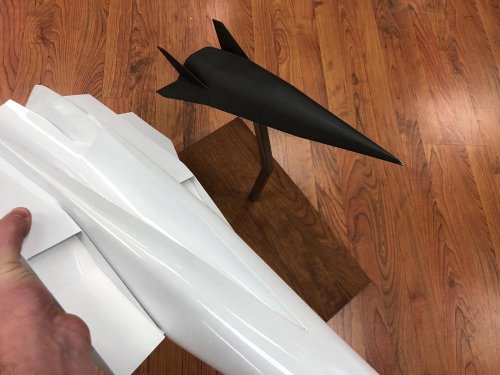

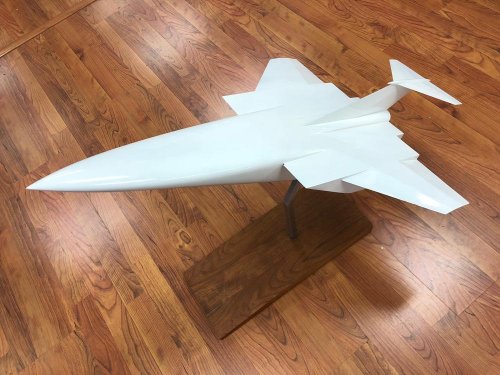

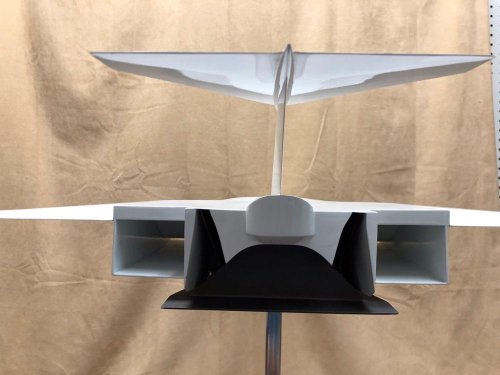

Factory model of Boeing Beta-I:


Attachments

  • Boeing BETA-I Model 01e.jpg
    Boeing BETA-I Model 01e.jpg
    117.8 KB · Views: 114
  • Boeing BETA-I Model 02e.jpg
    Boeing BETA-I Model 02e.jpg
    61.5 KB · Views: 107
  • Boeing BETA-I Model 03e.jpg
    Boeing BETA-I Model 03e.jpg
    83.7 KB · Views: 110

flanker

ACCESS: Top Secret
Joined
Mar 20, 2008
Messages
911
Reaction score
168
Sorry for bringing this thread back up again; But am i understanding correctly that all of the "new" Boeing artwork show BETA-I (NOT BETA-II) since it has T-tail configuration and so on. If BRILLIANT BUZZARD was/is real it would be a follow up to BETA-II configuration but the sightnings and detail seem to suggest a configuration in size closer to original BETA-I in terms of payload?


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
988
Reaction score
488
Sorry for bringing this thread back up again; But am i understanding correctly that all of the "new" Boeing artwork show BETA-I (NOT BETA-II) since it has T-tail configuration and so on. If BRILLIANT BUZZARD was/is real it would be a follow up to BETA-II configuration but the sightnings and detail seem to suggest a configuration in size closer to original BETA-I in terms of payload?
I don't think there's been much 'new' artwork for the design. Most of it is what Boeing released from their initial studies and work which was mostly to 'pitch' the BETA I before the Air Force changed the specifications. Boeing dropped out and then NASA-Lewis took over and worked with the Air Force on the BETA II design. Unlike BETA-1, which was designed for an orbital payload of 50,000lbs the BETA II was only designed to put a total 10,000lbs of payload into orbit so the Booster only used air-breathing kerosene engines rather than the kerosene/LH2 engines of the BETA 1.

"BRILLIANT BUZZARD" (if it exists) is supposed to be "very-SR-71" like as opposed to either of the BETA designs which would be better described as "super-sized" F-15 like :) Also the BETA 1 was pretty big considering it had to mount an SSME and the LOX/LH2 tanks to feed it PLUS the LOX/LH2 for the 'orbiter' stage as well.

Since the above links no longer work here's the "Design Evolution" paper no NTRS:

And they "Payload Sizing" paper for the BETA II:

Randy
