Hi,

Who knows the Bestetti-Colombo C-3 twin engined transport aircraft,
which powered by Alfa Romeo engines ?.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
350
hesham said:
Hi,

Who knows the Bestetti-Colombo C-3 twin engined transport aircraft,
which powered by Alfa Romeo engines ?.

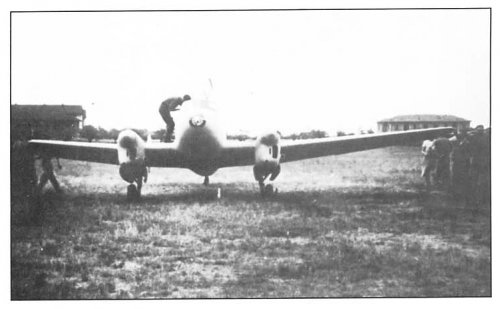

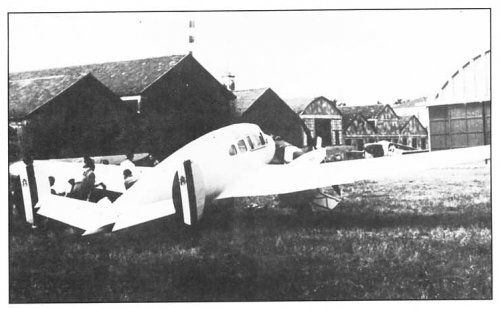

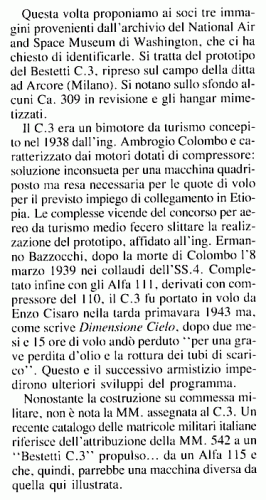

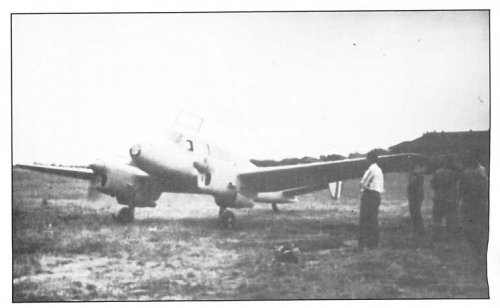

As no-one seems ever to have answered that question, allow me to share three pictures of that aircraft (and a text in Italian...):


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,749
Reaction score
2,728
Great find Stargazer.


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,425
Reaction score
633
Thanks Stéphane! A rough translation:

"This time we offer three images from the Archives of the National Air and Space Museum in Washington, who asked us for an identification. This is the prototype of the Besetti C.3 photographed at the camp of the Arcore company (Milan). In the background can be seen some Ca.309s and camouflaged hangars.

The C.3 was a twin-engined tourer conceived in 1938 by Ing. Ambrogio Colombo and characterized by engines equipped with compressors: this was an unusual solution for a 4-seater aircraft but became necessary for use in Ethiopia. The complexity of the competition for light aircraft resulted in modest delays in the completion of the prototype. This work was assigned to Ing. Ermanno Bazzocchi, after the death of Columbus on March 8, 1939 while testing the SS .4. Finally completed with the Alfa 111, a 110 derivative with a compressor, the C.3 was flown by Enzo Cisaro in the late spring of 1943 but, as written in 'Dimensione Cielo', after two months and 15 hours of flight, the aircraft was lost due to "a serious oil loss and break down of the drain pipes. This, and the subsequent armistice, prevented further development of the program.

Despite being constructed for the military, no known MM. was assigned to the C.3. A recent catalogu of Italian matricole militari attribution of MM.542 refers to a "Bestetti C.3" propelled ... Alfa 115 and, therefore, appears to be a different machine from the one shown here."


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,749
Reaction score
2,728
Very good translation my dear Apophenia.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,905
Reaction score
1,255
So it was a colonial liaison aircraft, in other words.


VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
245
Reaction score
342
Some specifications for the Bestetti C.3 taken from http://www.airwar.ru/enc/other2/c3.html
Wing span: 12.50 m
Length: 8.40 m
Height: 2.50 m
Wing area: 19.60 m2
Weight:
empty, 1300 kg
maximum take-off, 1950 kg
Powerplant: 2 x PD Alfa Romeo 111 producing 155 hp
Maximum speed: 317 km/h
Cruising speed: 290 km/h
Practical range: 1600 km
Practical ceiling: 6400m
Crew: 2
Payload: 2 passengers
First flight: summer 1943

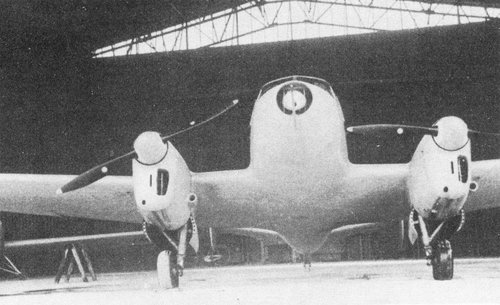

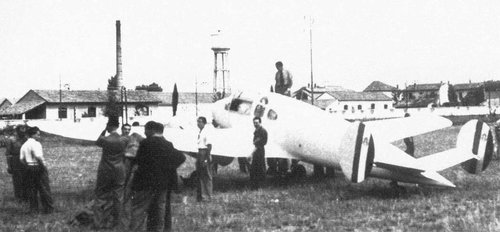

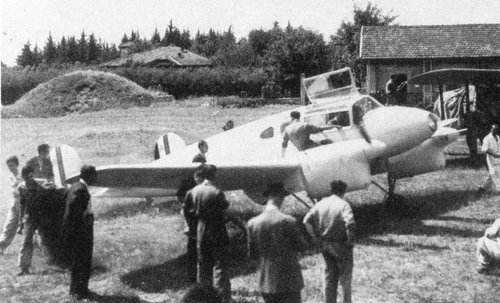

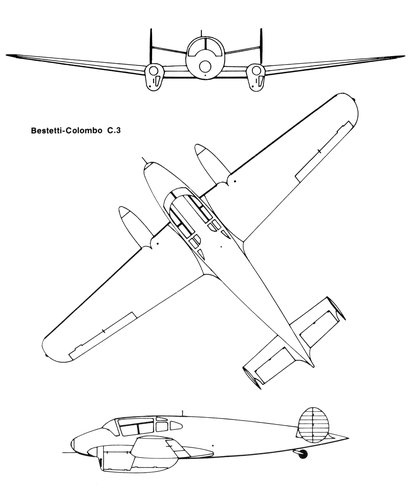

Also some more pictures together with a GA drawing taken from http://aviastar.org/air/italy/bestelli-colombo_c-3.php and http://www.airwar.ru/enc/other2/c3.html
Bestetti C.3 pic 04.jpg Bestetti C.3 pic 05.jpgBestetti C.3 pic 06.jpg Bestetti C.3 pic 07.jpgBestetti C.3 GA.gif

Last edited:

VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
245
Reaction score
342
One interesting point I noticed, which had been taken from one of the sources for the airwar.ru entry for the Bestetti C.3 was that documentation for the type was believed to have been passed to Macchi, and this was used in the development of the MB.320 light twin. What basis that was taken I do not know.
