Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Beriev Be-2500 Neptun (Neptune)

From the Beriev Aircraft Company website as of Aug 21, 2009:

The Be-2500 super-heavy transport seaplane will come a part of commerce and special service transportation on transoceanic routes.

The design concept of super-heavy seaplane allows operate the a/c both in WIG mode above the ocean and in aircraft mode. The Be-2500 seaplane may become a perfect platform to deliver the spaceships to the upper atmosphere of the Earth equatorial area.

The Be-2500 may also be used for landing operations, search and rescue missions, as well as the vehicle for prospecting and extraction operations at shelves and archipelagoes areas.

The facilities of existing major ports may provide sufficient support for operation and anchorage of the seaplane.

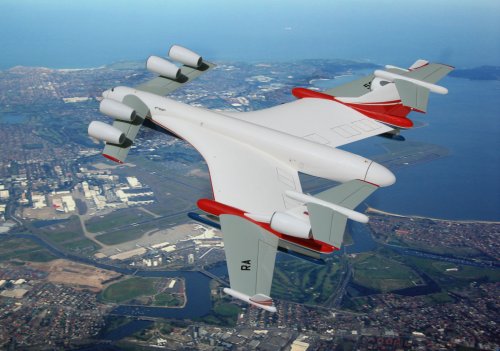

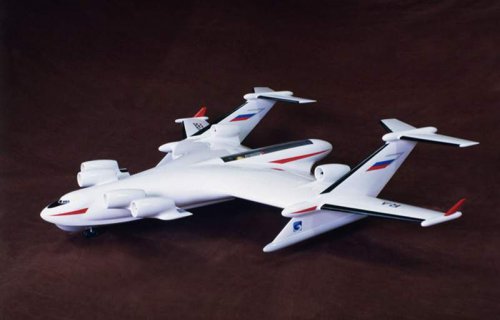

First four images were found on the Beriev Aircraft Company web site.

According to Wikipedia:

The Beriev Be-2500 Neptun (Cyrillic: Бериев Бе-2500 Нептун) is a super-heavy amphibian cargo aircraft concept being developed by the Beriev Aircraft Company of Russia. Its maximum takeoff weight is projected to be 2,500 metric tons, hence the designation.

It is designed to function as both a conventional high-altitude jet and as an Ekranoplan. It is intended to fly transcontinental routes, taking off from conventional sea-ports and requiring no special infrastructure.

If it enters service, it will become the new largest aircraft in the world, surpassing another aircraft designed in a territory of the former Soviet Union, the Antonov An-225.

Beriev states that if this plane is to become a reality investments from several countries are needed.
http://en.wikipedia.org/wiki/Beriev_Be-2500

To date, it appears that the design has not generated customer interest or foreign investment and is likely to be a unbuilt project according to some sources.

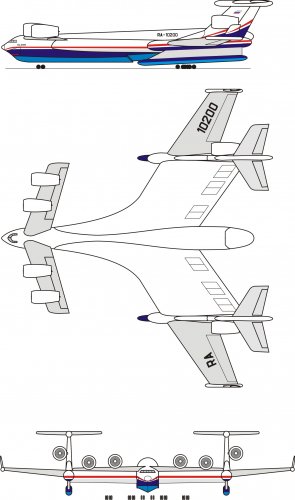

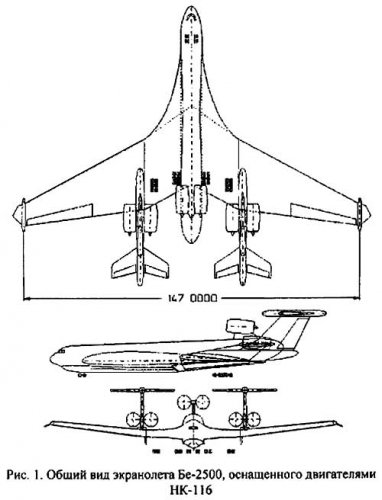

Some sources and drawings have identified this design as the Beriev Be-2500P.

Specifications
==========

As of June 2001


Powerplant

Six Trud/Samara NK-116 high-bypass-ratio turbofans, each with 1,030 kN (231,485 pounds) of thrust


Performance

Cruise speed: 800 km/h (432 kts/497 mph)
Ceiling: 10,000 m (32,800 ft)
Range with full fuel: 17,000 km (9173 nm/10,563 mi)
Range with 480,000 kg 10,000 km: (5396 nm/6214 mi)
Range with 700,000 kg 7,000 km: (3777 nm/4350 mi)
Take-off run: 15km (8.1 nm/9.3 mi) at 450km/h (243 kts/280 mph)

Weights

MTOW: 2,500,000 kg (5,511,550 lb)
Payload: 1,000,000 kg (2,204,620 lb)


Dimensions

Wingspan: 147 m (482 ft 3 in)
Length: 121 m (397 ft)
Height: 27.46 m (90 ft 1 in)



http://www.alexstoll.com/AircraftOfTheMonth/6-01.html
http://www.beriev.com/eng/Be-2500_e/Be-2500_e.html
http://www.sergib.agava.ru/russia/beriev/be/2500/be2500_e.htm


Attachments

  • Be-2500_back.jpg
    75.9 KB · Views: 109
  • Be-2500_frontleft.jpg
    79.2 KB · Views: 108
  • be2500tu5.jpg
    52.4 KB · Views: 339
  • Be-2500.jpg
    371.1 KB · Views: 451
  • be-2500+.jpg
    28.8 KB · Views: 1,563
  • Be-2500view.jpg
    380.3 KB · Views: 499

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Beriev Be-1200

The Beriev Be-1200 appears to be a variant powered by six Rolls-Royce Trents, with 490 kN (110,230 pounds) of thrust each with reduced range (10,000 km (5396 nm/6214 mi)) and cargo weight capacity (450,000 kg (991,190 lb)). All other characteristics appear to be identical to the Beriev Be-2500.

Information about a model Be-1200 does not appear on the Beriev Aircraft Company website. Information comes from a blog written in June 2001.
http://www.alexstoll.com/AircraftOfTheMonth/6-01.html


Attachments

  • Be-1200.jpg
    39.2 KB · Views: 96

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Beriev Be-2500

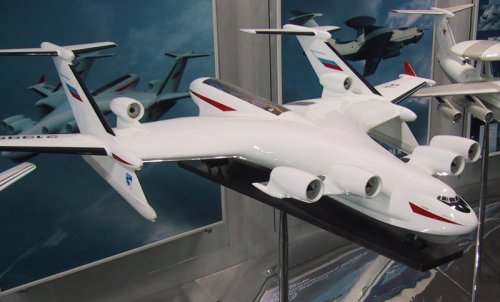

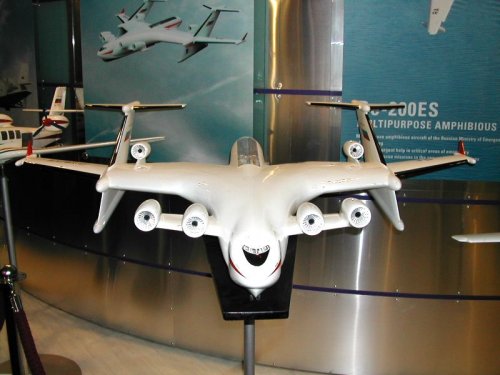

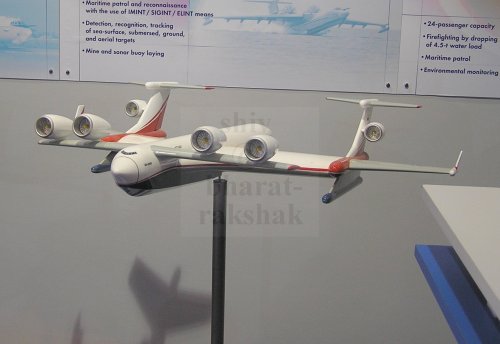

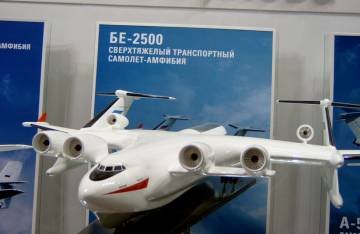

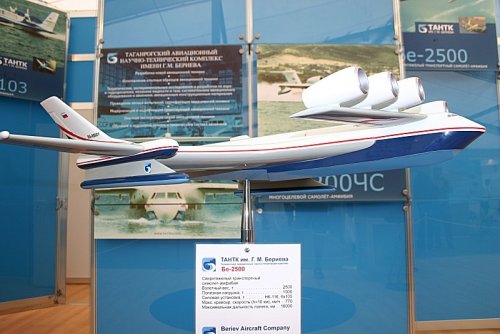

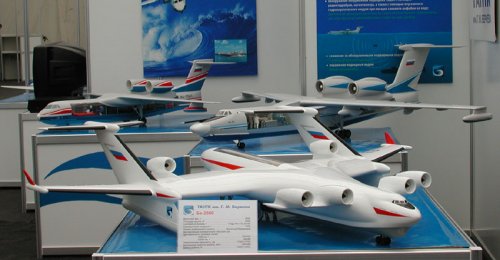

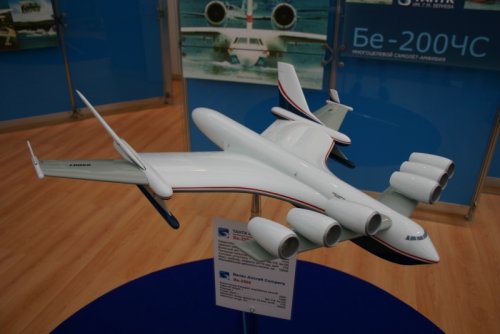

First two images are of a model on display at the Beriev booth at the Aero India, 6th International Aerospace & Defence Exhibition. February 7-11, 2007, Air Force Station, Yelahanka, Bangalore.

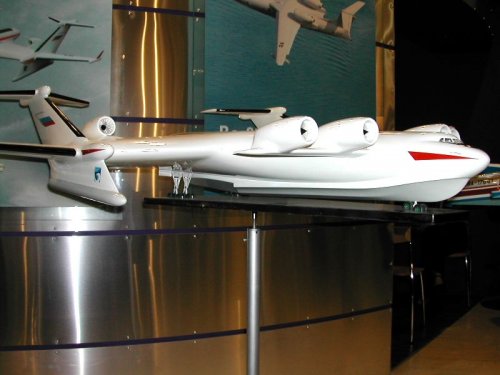

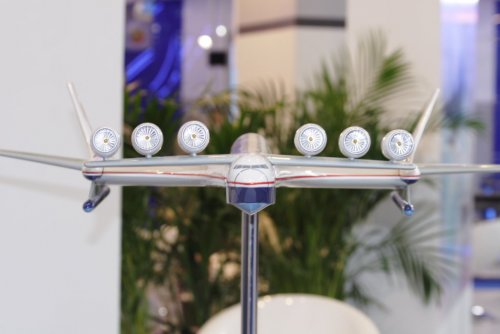

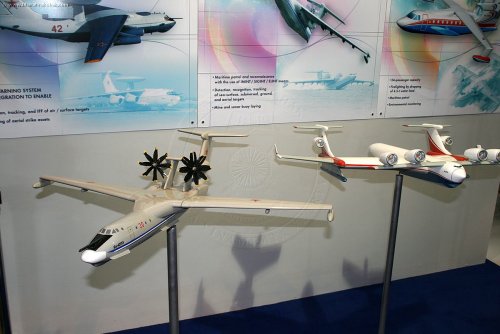

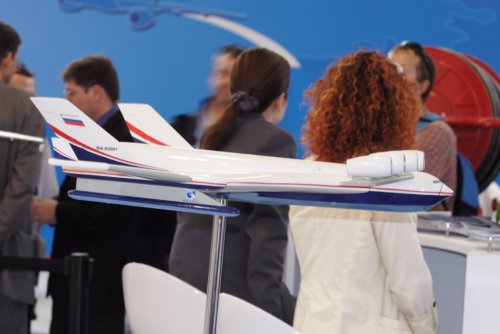

Remaining images are of a model on display at the Beriev booth I believe were taken at the Dubai Air Show November 11-15, 2007.

Last image was taken at Dubai Air Show November 11-15, 2007.


Attachments

  • 20080120_07.jpg
    28.5 KB · Views: 50
  • Beriev-2500_03.jpg
    119 KB · Views: 44
  • beriev2500046143786in2.jpg
    140.5 KB · Views: 77
  • beriev2500a.jpg
    182.8 KB · Views: 77
  • beriev2500.jpg
    232.3 KB · Views: 89
  • Futuristic Beriev Models.jpg
    Futuristic Beriev Models.jpg
    119.7 KB · Views: 117
  • Be-2500.jpg
    663.7 KB · Views: 101

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

Attachments

  • BE-2500cargo.jpg
    61.3 KB · Views: 94
  • BE-2500-3model.jpg
    67.6 KB · Views: 70
  • BE-2500-2model.jpg
    59.7 KB · Views: 55
  • BE-2500model.jpg
    68.8 KB · Views: 57

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

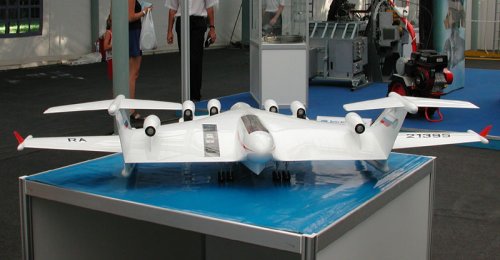

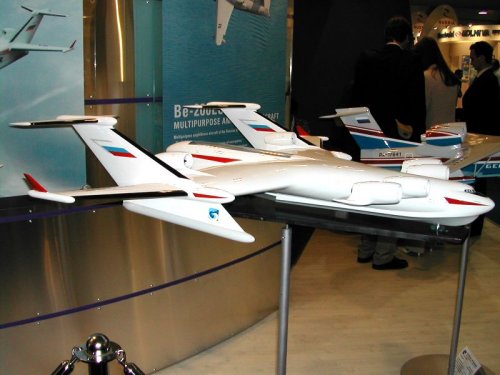

Model of Beriev Be-2500 on display at the 2005 World Exposition in Aichi, Japan.

http://www.youtube.com/watch?v=R22lLKW4fL8


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

Attachments

  • DPP_0725.JPG
    71.2 KB · Views: 78
  • DPP_0726.JPG
    93.6 KB · Views: 81
  • DPP_0727.JPG
    83.5 KB · Views: 69

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,999
Reaction score
6,635
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

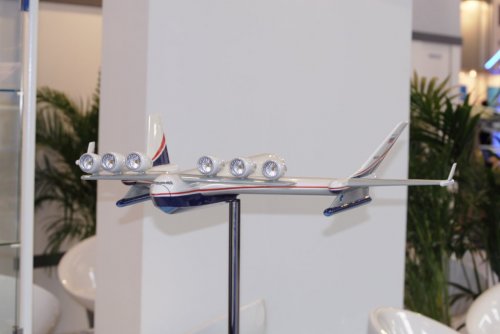

The revised design has all six engines forward. Maintenance considerations?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
211
Website
www.hitechweb.genezis.eu
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Air blowing over the wing? Center of the gravity issues on the revised design?


piko1

< LFM Cow Level >
Joined
May 20, 2009
Messages
142
Reaction score
7
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Hello,

here the proper question is wing generating the ekran effect with out the help of the engines if yes why should you need all of the trust to be under the wing ( if i understand Matej question correctly )

there will be no maintenance problems as we know the seaplanes of that caliber will have special designed dry-dock's with the proper equipment for the maintenance ( see the Luna dry-dock for an example )


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

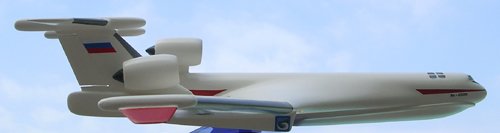

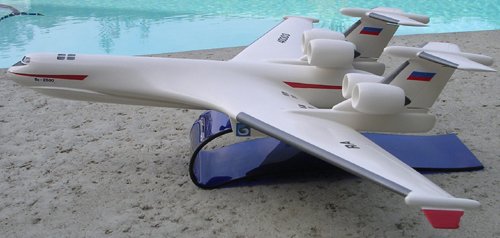

Model of Beriev Be-2500 from USSR-Russian Aviation and Space Collectibles.

17.5 inches wing span Beriev Design Bureau heavy resin model of Be-2500 huge machine weighting 2500t(5,500.000 lb) at take-off is a further development of the Be-1200(Be-2000) layout. It combines the properties of a traditional seaplane (flying boat) and a WIG Ekranoplane vehicle, being capable of flying both in ground effect and at high altitude. The basic specifications of the Be-2500 are as follows.Powerplant: six Kuznetsov NK-116 turbofans; maximum payload, 1000t (2,200,000lb);cruising speed in high altitude 10 km (32,810ft), 700 km/h; in ground-effect mode, 450 km/h;ferrying range in high-altitude flight, 17,000 km(10600 miles). First project presented by Beriev factory at Hydro Aviation Show 2000 in Ghelendzhik in September 2000. This project is a long-term prospective design not intended to be implemented in the immediate future.It is presumed that such ultra-heavy aerial vehicles may be used for transportation on transatlantic and transpacific routes. The unique potential of Design Bureau named after Beriev with regard to designing and producing hydroplanes in any weight category and for any duties (including Ekranoplanes) called forth a very unorthodox idea of creating a maritime space complex (MSC) designed to tackle a wide range of tasks of global scope.This complex would make it possible to launch any space objects and manned space vehicles in a wide range of latitudes and trajectories and bring them back into the required point of the world`s oceans which cover 71 per cent of the globe`s surface.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_48&products_id=1810


Attachments

  • 03162127.jpg
    81.9 KB · Views: 24
  • 03162123.jpg
    159.1 KB · Views: 24
  • 03162117.jpg
    76.7 KB · Views: 69
  • 03162106.jpg
    118.9 KB · Views: 91
  • 03162059.jpg
    140.2 KB · Views: 91

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

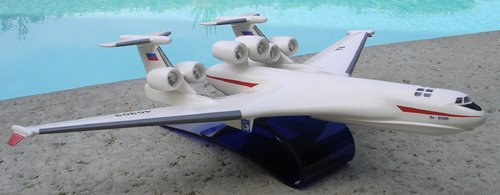

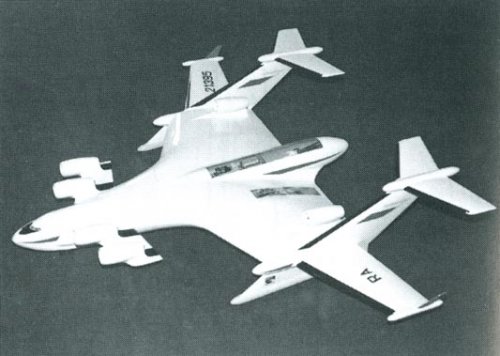

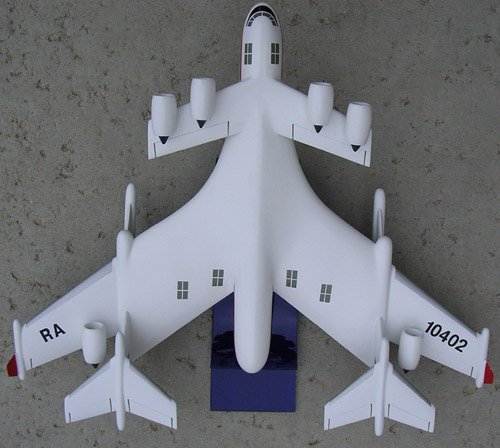

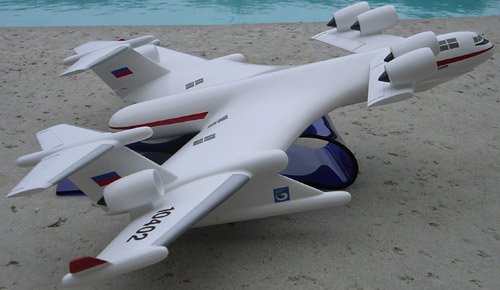

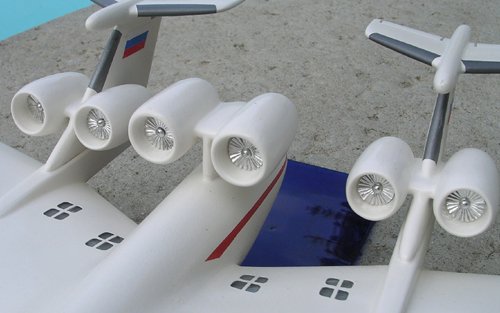

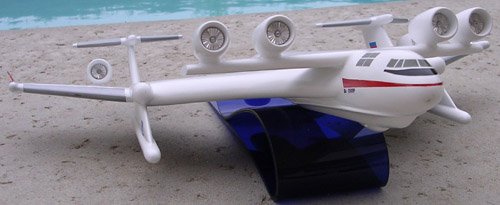

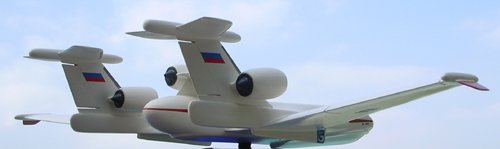

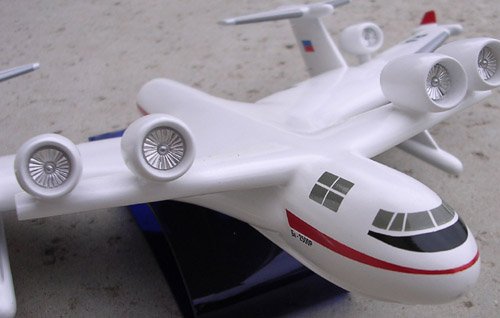

Model of Beriev Be-2500 from USSR-Russian Aviation and Space Collectibles identified as Beriev Be-2500P.


16 inches wing span heavy resin model of Beriev Design Bureau on blue Plexiglas stand made in the shape of Oceanic wave. This outstanding quality model features Beriev factory logo, clear windows on fuselage and wings, detailed engines and entire craft. Original model custom hand made for presentations to VIP guests and Officials during airshows. Model represent second version of Be-2500 (Be-2500P), which differ in aerodynamic layout from Be-2500.Layout of Be-2500P is almost identical to that of the Be-1200(Be-2000), the only difference being the shape of the wing center section trailing edge and the location of aft-mounted engines which are placed outboard of the fins, not inboard.Thus Be-2500P, unlike the Be-2500, can use its nose-mounted engines for power-augmented take-oof, directing their exhaust under the wing. Be-2500/Be-2500P project is a long-term prospective design of Beriev`s Bureau and not intended to be implemented in the immediate future. It is presumed that such ultra-heavy aerial vehicles may be used for transportation on transatlantic and transpacific routes.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_49&products_id=2258


Attachments

  • 07160659.jpg
    91.7 KB · Views: 35
  • 07160709.jpg
    75.4 KB · Views: 36
  • 07160716.jpg
    70.8 KB · Views: 25
  • 07160724.jpg
    65.8 KB · Views: 33

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
324
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

Attached below is the 2012 issue from Beriev/UAC for the Be-2500 super-heavy transport project.


Attachments

  • Beriev_Be-2500_2012_(UAC)_Brochure.PDF
    380.5 KB · Views: 97

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
Re: Re: Beriev Be-2500 « Neptun » super-heavy amphibian cargo aircraft

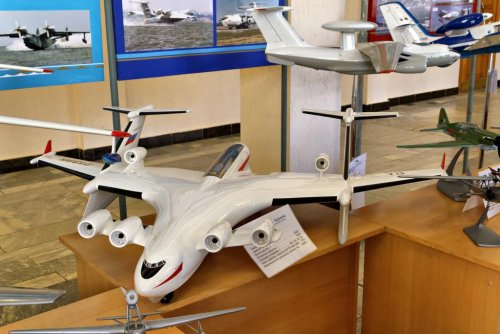

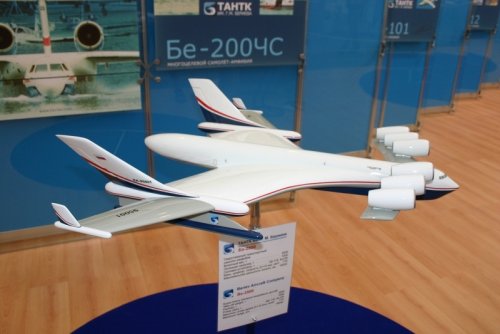

Model of Beriev Be-2500 Neptun

Source:
http://farm9.staticflickr.com/8120/8843583268_5ce270ce82_b.jpg


Attachments

  • 8843583268_5ce270ce82_b.jpg
    99.2 KB · Views: 186
