Bell Model 32 lightweight fighter (USAAF XP-77)

Stargazer

ACCESS: USAP
Senior Member
Joined
25 June 2009
Messages
13,541
Reaction score
2,425

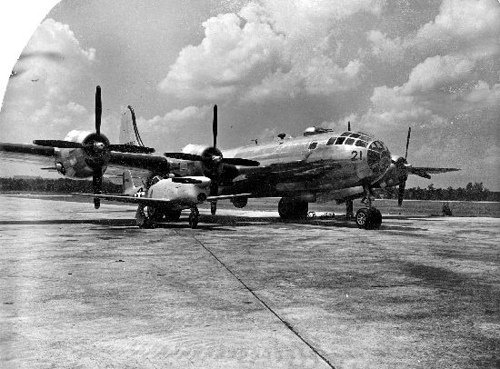

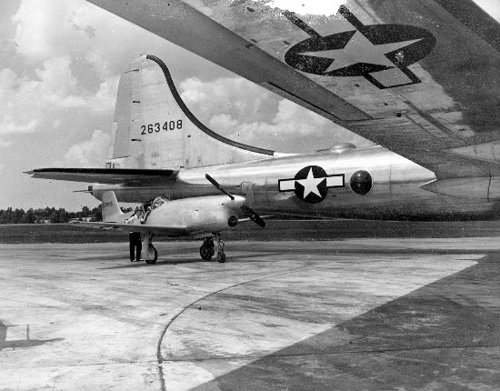

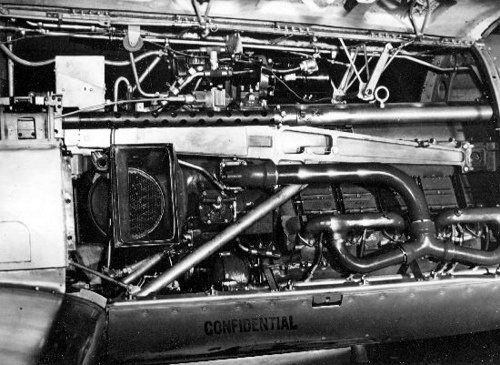

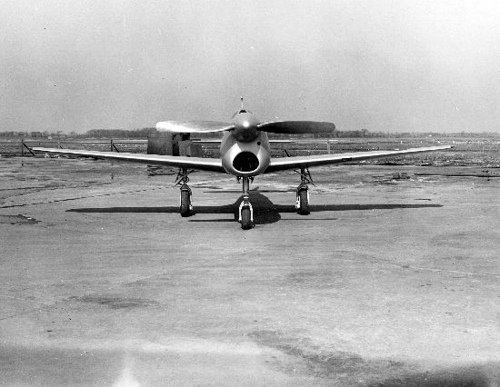

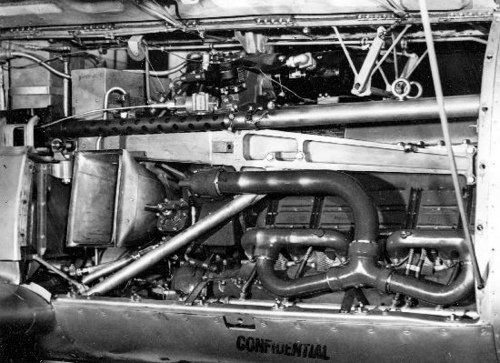

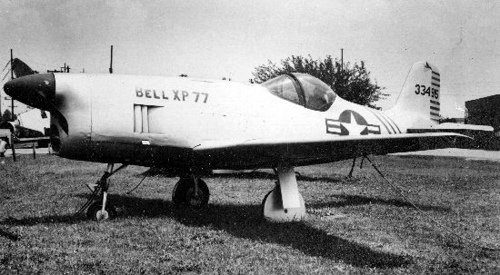

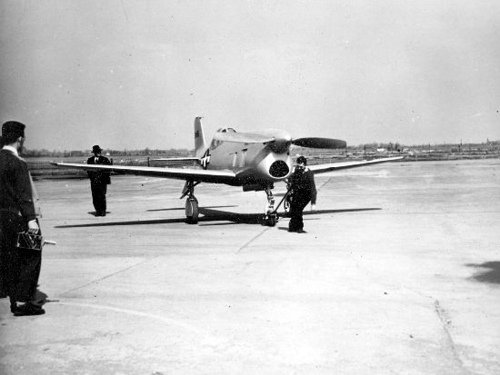

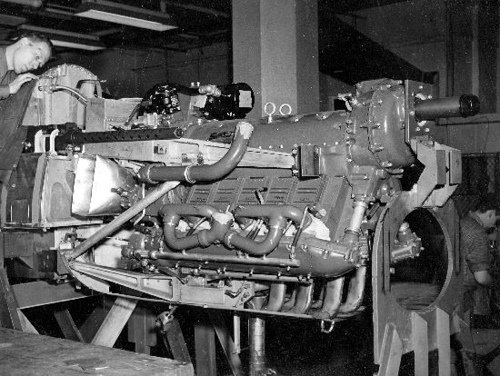

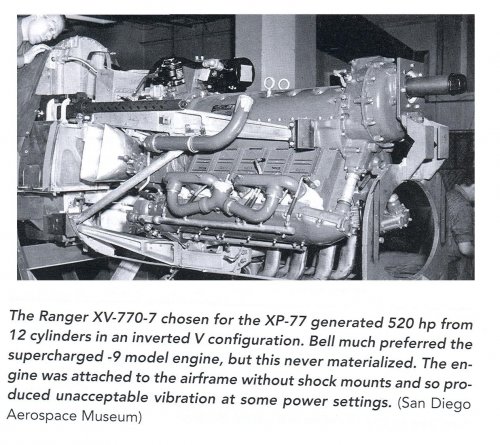

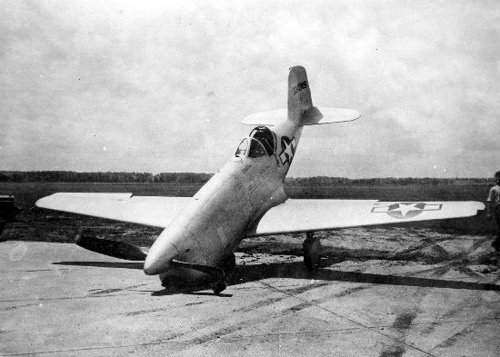

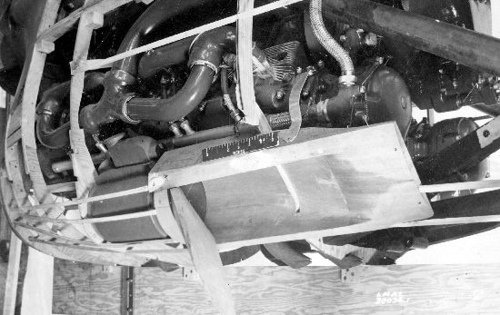

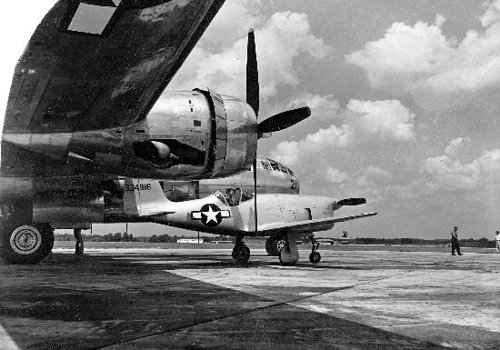

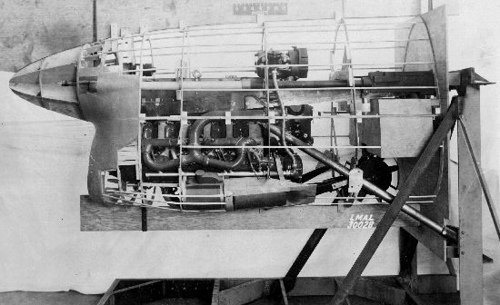

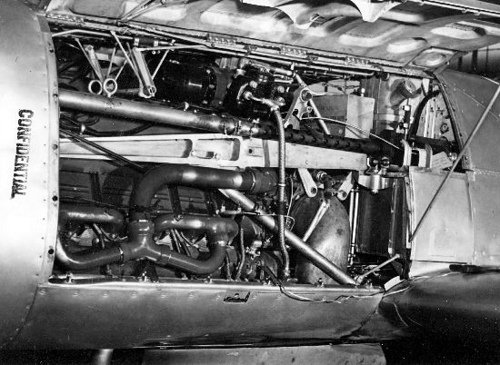

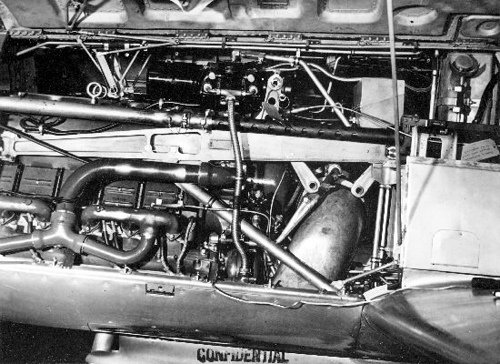

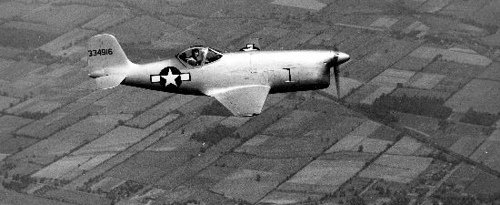

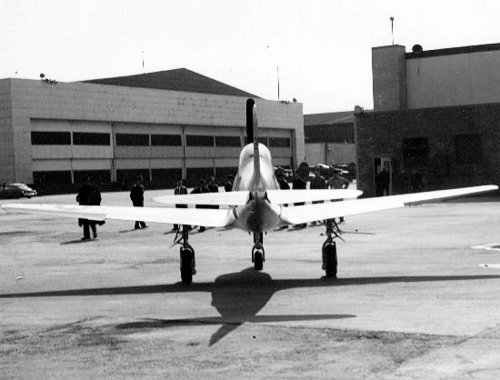

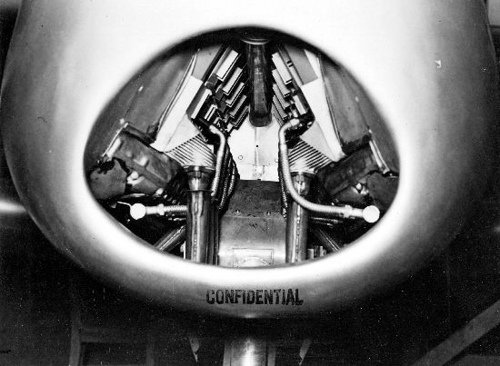

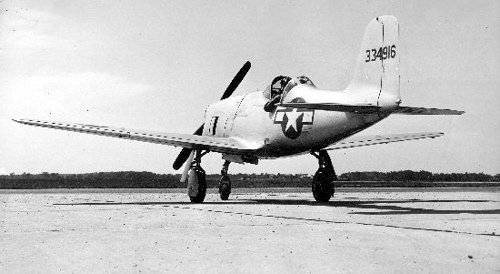

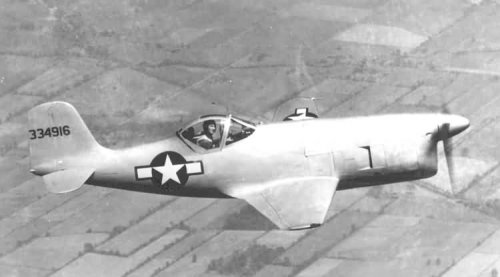

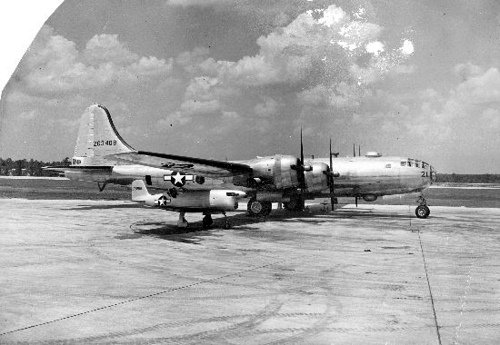

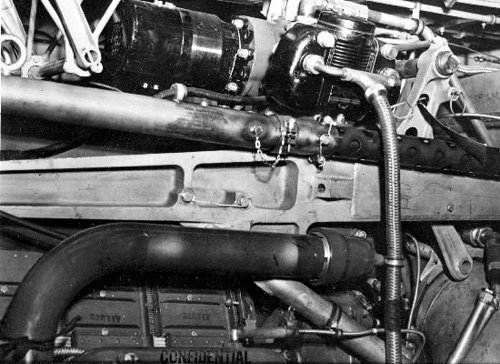

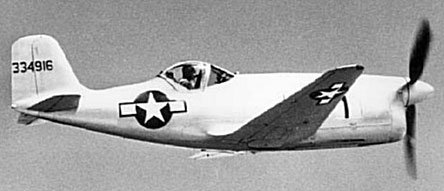

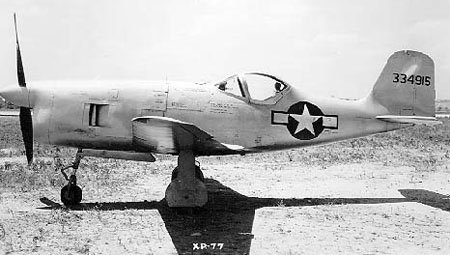

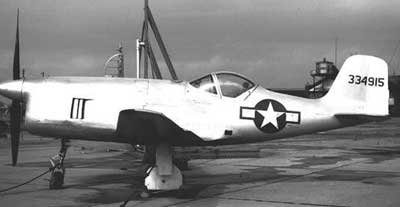

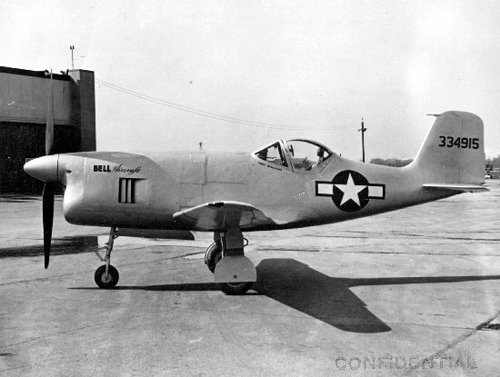

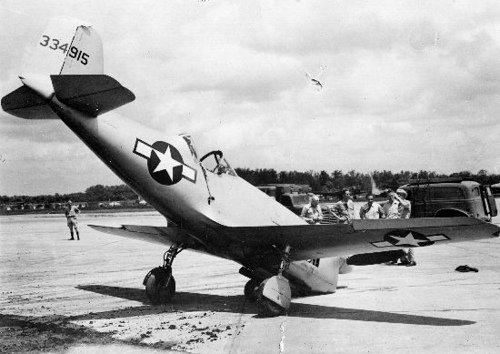

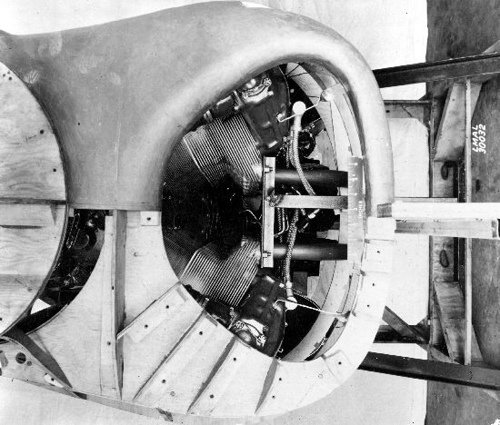

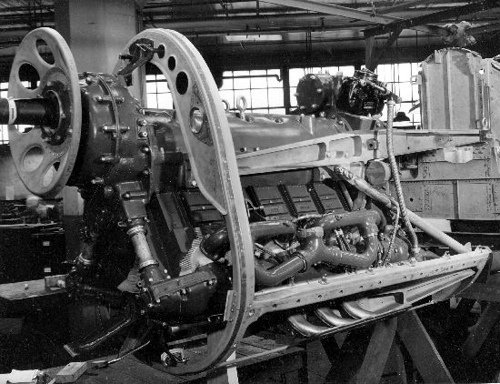

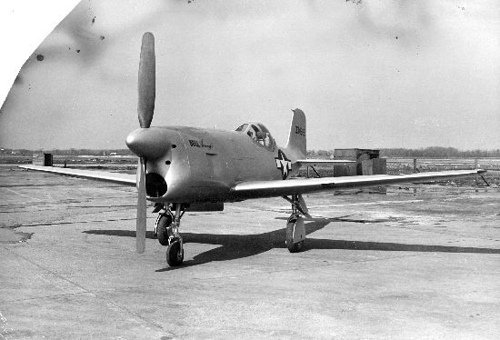

Direct from the online San Diego Air and Space Museum archives on Flickr (Part 1 of 4):


Attachments

  • 4561528873.jpg
    57.6 KB · Views: 901
  • 4561529147.jpg
    99.6 KB · Views: 90
  • 4561529123.jpg
    76.9 KB · Views: 84
  • 4561529077.jpg
    97.2 KB · Views: 96
  • 4561529047.jpg
    99.1 KB · Views: 710
  • 4561529027.jpg
    96 KB · Views: 724
  • 4561528989.jpg
    105.2 KB · Views: 750
  • 4561528907.jpg
    69 KB · Views: 801
Direct from the online San Diego Air and Space Museum archives on Flickr (Part 2 of 4):


Attachments

  • 4562158278.jpg
    79.9 KB · Views: 113
  • 4562158270.jpg
    70.8 KB · Views: 124
  • 4561529383.jpg
    72.4 KB · Views: 107
  • 4561529343.jpg
    53.4 KB · Views: 118
  • 4561529293.jpg
    86.1 KB · Views: 99
  • 4561529271.jpg
    96.5 KB · Views: 116
  • 4561529265.jpg
    76.6 KB · Views: 126
  • 4561529195.jpg
    95.4 KB · Views: 73
Direct from the online San Diego Air and Space Museum archives on Flickr (Part 3 of 4):


Attachments

  • 4562158548.jpg
    70.3 KB · Views: 104
  • 4562158526.jpg
    83.3 KB · Views: 98
  • 4562158490.jpg
    101.9 KB · Views: 80
  • 4562158438.jpg
    95.1 KB · Views: 59
  • 4562158396.jpg
    97.1 KB · Views: 69
  • 4562158362.jpg
    105.1 KB · Views: 91
  • 4562158354.jpg
    76.6 KB · Views: 91
  • 4562158320.jpg
    70.6 KB · Views: 87
Direct from the online San Diego Air and Space Museum archives on Flickr (Part 4 of 4):


Attachments

  • 4562158852.jpg
    73.1 KB · Views: 94
  • 4562158842.jpg
    75.9 KB · Views: 96
  • 4562158816.jpg
    55.8 KB · Views: 96
  • 4562158794.jpg
    70.1 KB · Views: 96
  • 4562158718.jpg
    90.5 KB · Views: 89
  • 4562158694.jpg
    67 KB · Views: 96
  • 4562158676.jpg
    89.1 KB · Views: 107
  • 4562158586.jpg
    95.4 KB · Views: 84

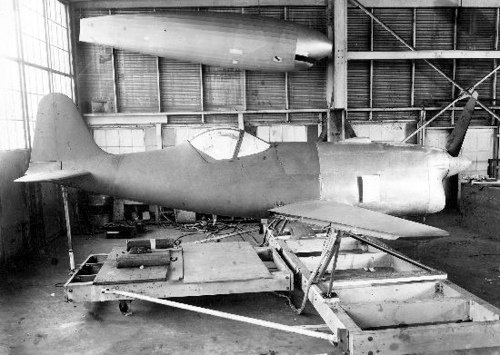

Thanks Stargazer'! Anyone know what the upside down transport fuselage mockup is in 4562158676.jpg ?

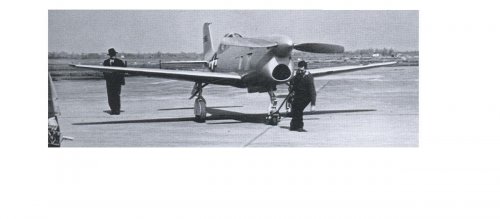

I have found more info
Post-1


Attachments

  • Escanear0006.jpg
    81.8 KB · Views: 121
  • Escanear0005.jpg
    182.5 KB · Views: 143
  • Escanear0004.jpg
    204.3 KB · Views: 162
  • Escanear0003.jpg
    231 KB · Views: 175
  • Escanear0002.jpg
    51.1 KB · Views: 181
  • Escanear0001.jpg
    602.8 KB · Views: 193
I have found more info
Post-2


Attachments

  • Escanear0012.jpg
    107.3 KB · Views: 98
  • Escanear0011.jpg
    144.9 KB · Views: 108
  • Escanear0010.jpg
    132.5 KB · Views: 126
  • Escanear0009.jpg
    339.9 KB · Views: 280
  • Escanear0008.jpg
    391.8 KB · Views: 358
  • Escanear0007.jpg
    25.4 KB · Views: 88

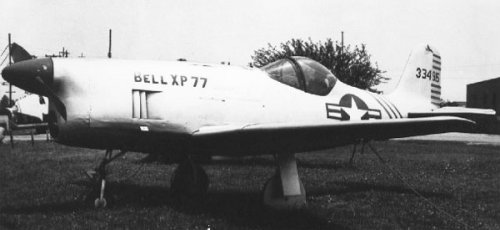

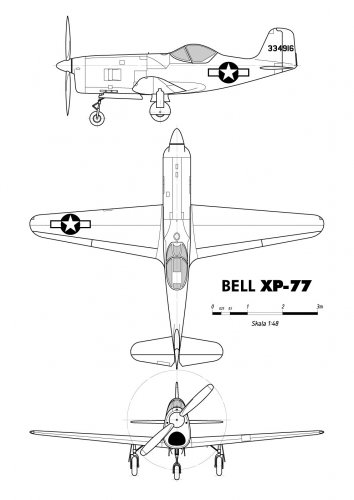

Great! Here's a few more:


Attachments

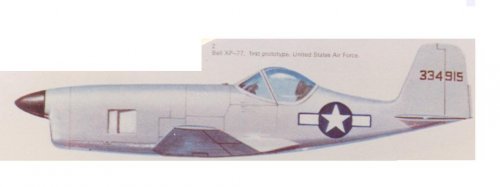

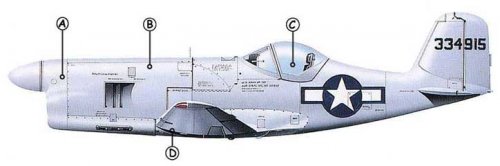

  • Bell-XP-77-Callout.jpg
    17.5 KB · Views: 91

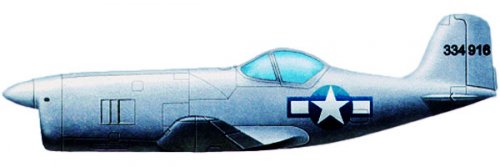

  • Bell_XP-77_side_view.jpg
    57.4 KB · Views: 76
  • Bell_XP-77.jpg
    18.9 KB · Views: 76
  • rys157.jpg
    91.5 KB · Views: 92
  • bell_xp77_3v.jpg
    68.5 KB · Views: 94
  • 022215de.jpg
    26.5 KB · Views: 85

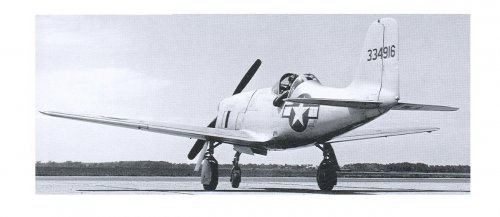

  • Bell-XP-77-WWII-Fighter-Parked.jpg
    27.6 KB · Views: 70
  • fot412.jpg
    49.4 KB · Views: 62
And...


Attachments

  • Bell-XP-77-WWII-Wooden-Fighter-Side-View.jpg
    9.1 KB · Views: 66

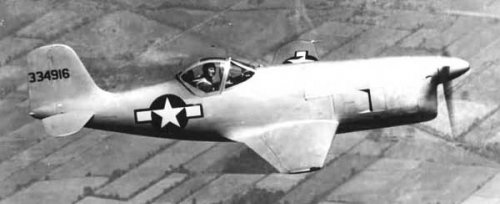

  • Bell-XP-77-WWII-Wooden-Fighter-Inflight.jpg
    15.1 KB · Views: 67
  • Bell-XP-77-Wooden-Fighter-Inflight2.jpg
    18.6 KB · Views: 73
  • Bell-XP-77-Title.jpg
    22.8 KB · Views: 67
Some great images, thank you!

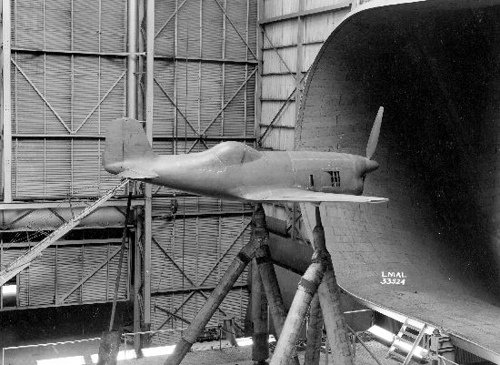

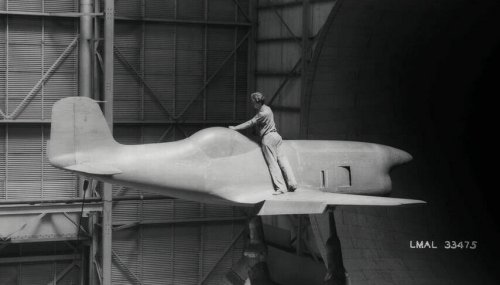

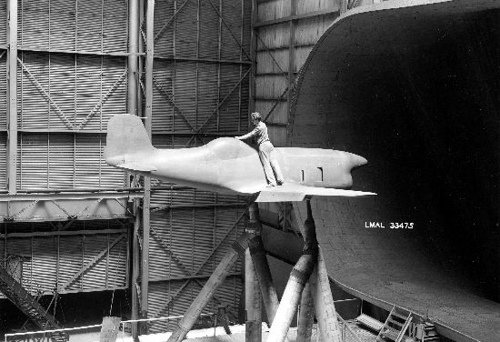

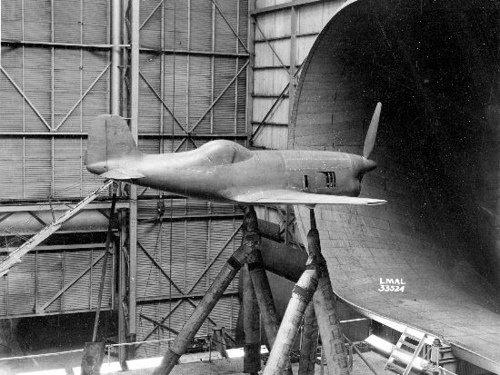

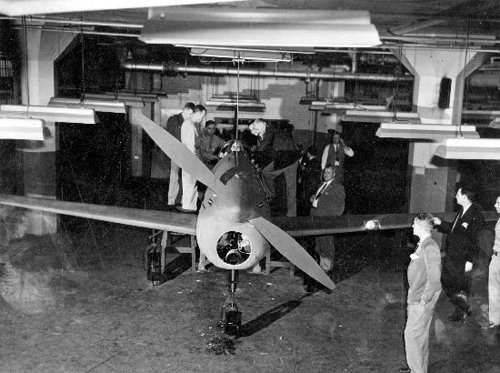

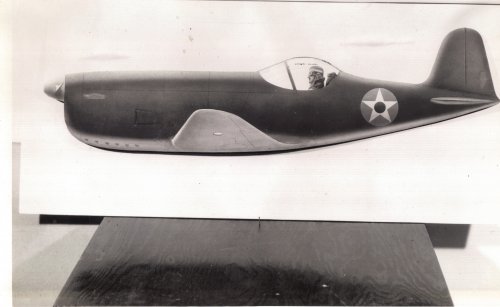

Am I the only one who on first glance at this picture:

index.php


thought that it's unusual to do a wind tunnel test of how an aircraft flies when the maintenance enginer forgot to climb down before take-off? ;D

Anyone know the fate of the first XP-77? It was supposed to have been displayed at "Wood City" after the war, but after that it is a blank...

Courtesy of our very own Jared, an article on an improved XP-77.

http://retromechanix.com/article/fighters/proposal-for-improved-bell-xp-77-1944/

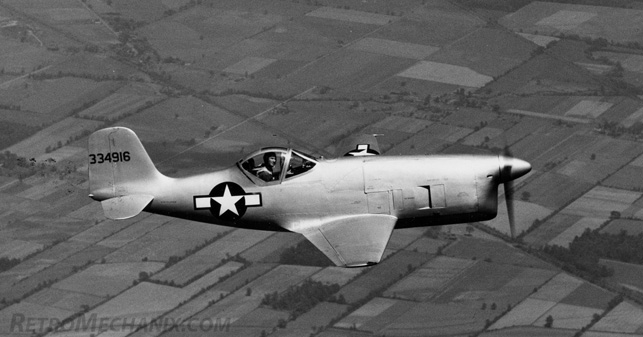

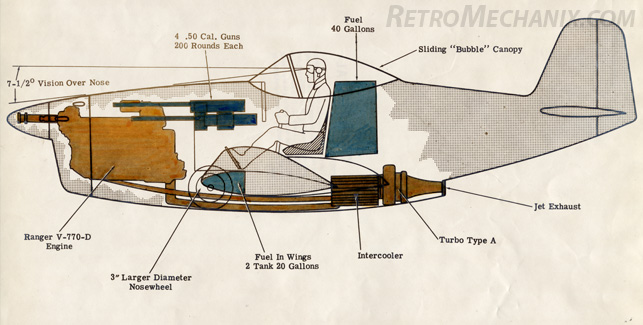

Beat me to it again, XP67_Moonbat! :) Just want everyone to know that the Bell XP-77 article at RetroMechanix.com reproduces a vintage Bell report providing an excellent history of this unusual fighter prototype up to mid-1944, one of the best summaries I've come across. The end of the document also features a proposal for an improved all-metal version with a turbosupercharger and a bubble canopy, as shown immediately below. The accompanying gallery features 37 images, including several high resolution photos and drawings.





-Jared

jzichek said:
The end of the document also features a proposal for an improved all-metal version with a turbosupercharger and a bubble canopy, as shown immediately below.

Makes me wonder if this is similar to the Model 35, which was the planned P-77A.


Attachments

  • xp-77-1small.jpg
    262.2 KB · Views: 961
  • xp-77-2small.jpg
    442.1 KB · Views: 913
  • xp-77-3small.jpg
    643.3 KB · Views: 818
  • xp-77-4small.png
    308.8 KB · Views: 722
  • xp-77-5small.jpg
    478.6 KB · Views: 681
  • xp-77-6small.jpg
    419.9 KB · Views: 187
Very cool, sienar! I will add the link to that report in my article. Some of the tail configurations remind me of those tested on the Bell P-39/P-63.

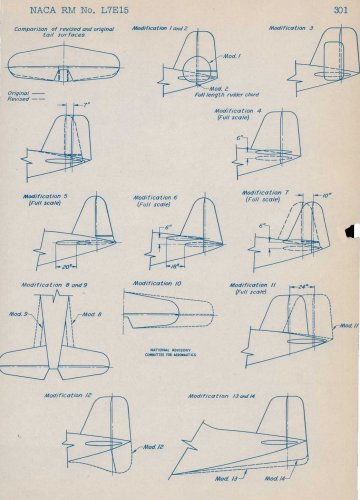

You should read the full document, it covers the different tail configurations for those planes - it even has an all moving tail P-39d.

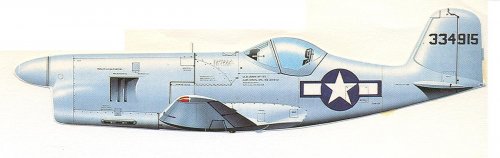

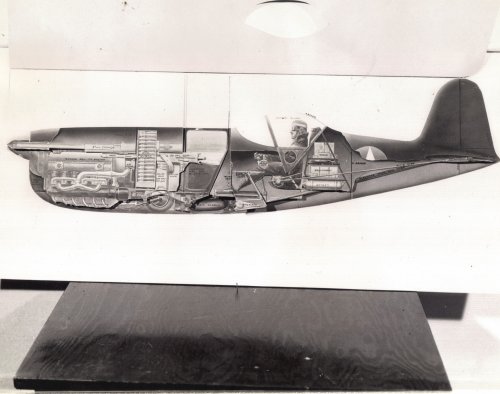

Two pieces of bell artwork. I'm not sure how accurately the cutaway represents the final arrangement of the prototype aircraft as this has the earlier tail and cowling design.

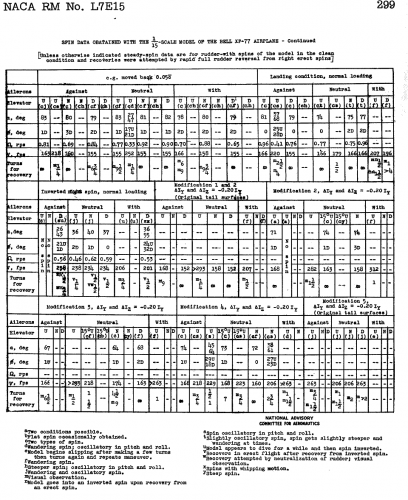

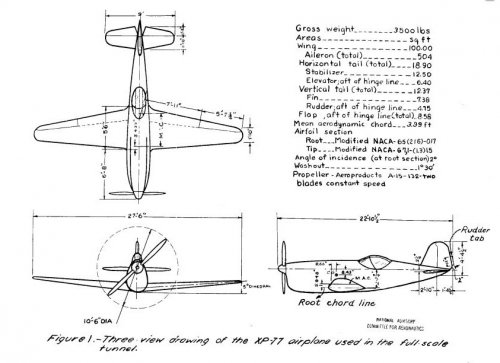

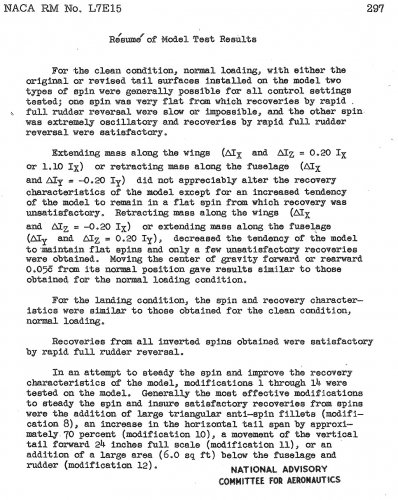

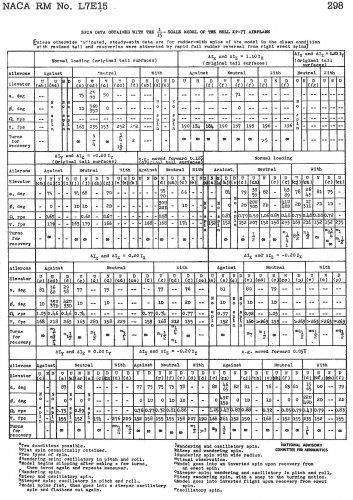

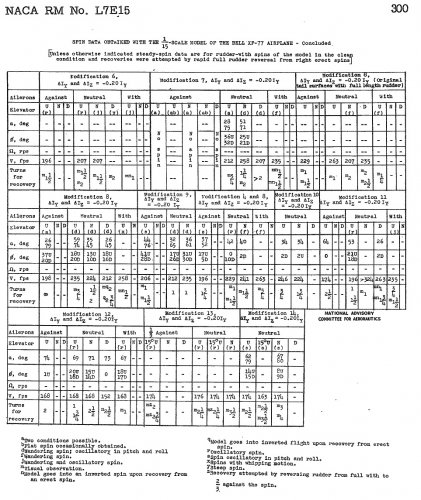

There are 2 documents concerning the handling of the bell Xp-77 located in this much larger document here (be warned, its a near 100mb pdf); http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19770022115_1977022115.pdf


The relevant reports are on pages 232 and 316.


Again, the version wind tunnel tested here is pre enlarged vert stab. The reports note mostly satisfactory handling and a high rate of roll, but unsatisfactory stability with flaps deflected for landing and climb under power with flaps partially deflected, as well as instability due to sideslip in some speed regimens.


However the main thing of interest in this document is the mention of a high and low altitude version of the Xp-77, but not much info is given. Apparently the high altitude version was to have a larger diameter propeller (10.5') and a different line of thrust. Power is listed as 515 military and 450 nominal for the low altitude version with a critical alt of 12,000' and the high altitude version of approximately the same power ratings and a critical altitude of 27,000'


Given the date of the report I do not believe the high alt version described here is the improved xp-7 discussed above.

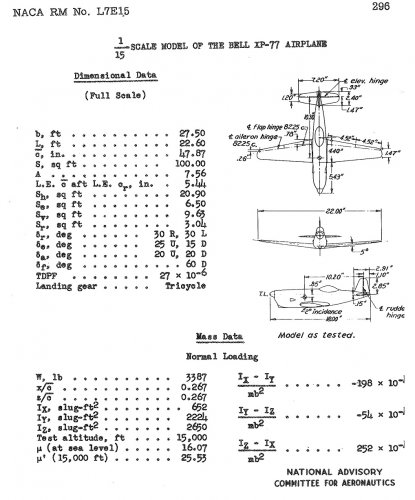

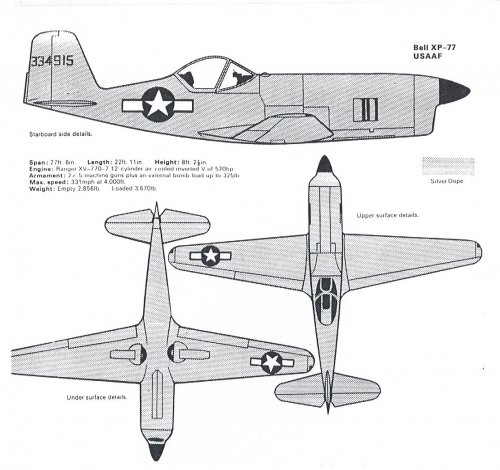

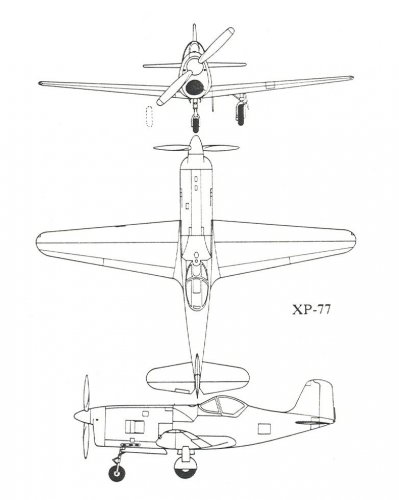

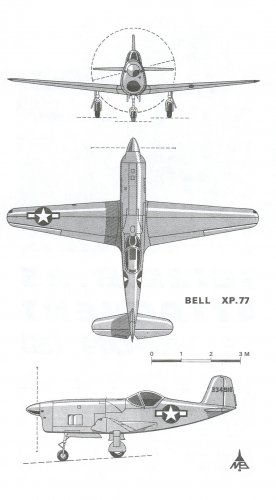

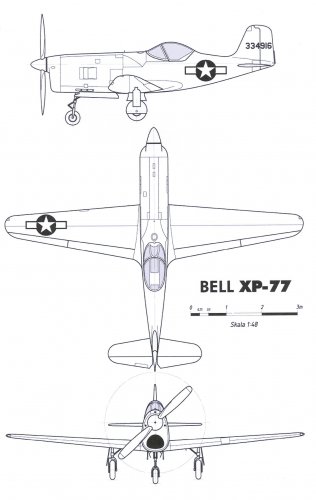

The 3-view here is from the above report because, well, it never hurts to have more 3 views!


Attachments

  • xp-77donlan.JPG
    117.1 KB · Views: 207
  • Bell XP-77 Profile.jpg
    Bell XP-77 Profile.jpg
    901.8 KB · Views: 239
  • Bell XP-77 cut-a-way.jpg
    Bell XP-77 cut-a-way.jpg
    984.9 KB · Views: 249

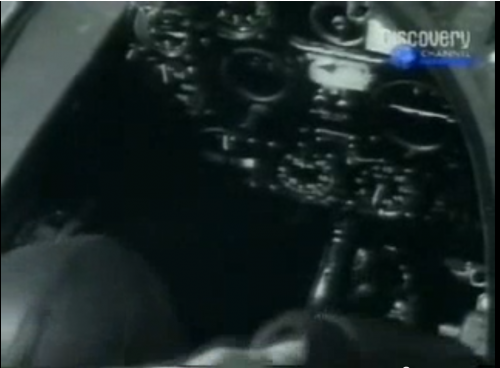

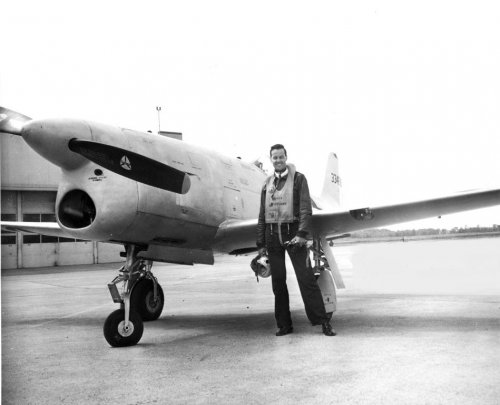

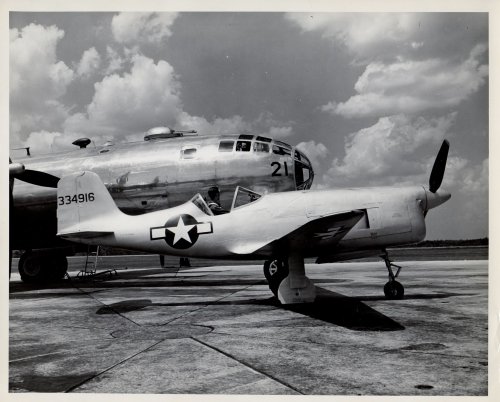

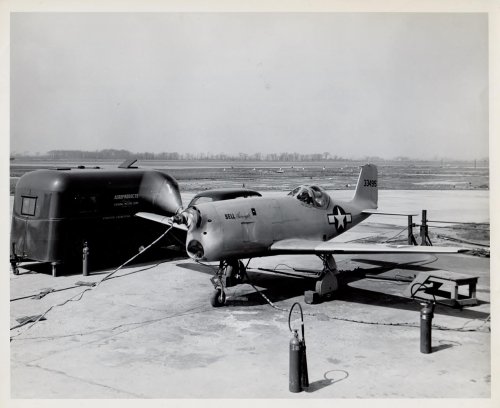

Some photos that are new to me including a screencap from a discover show of the cockpit.


Attachments

  • xp773.PNG
    794.1 KB · Views: 99
  • 400662_10151361231150997_1640333362_n.jpg
    42.8 KB · Views: 146
  • 249157_10151361178205997_476858115_n.jpg
    51.8 KB · Views: 142
Awesome pics. Give a good idea of the aircraft's size. Not as tiny as its shape suggests!

sienar said:
You should read the full document, it covers the different tail configurations for those planes - it even has an all moving tail P-39d.

Wait - they considered giving the P-39 (*with its weird cg due to the engine placement*) - a WWI style all-moving tail?? I can imagine how popular that would've been.

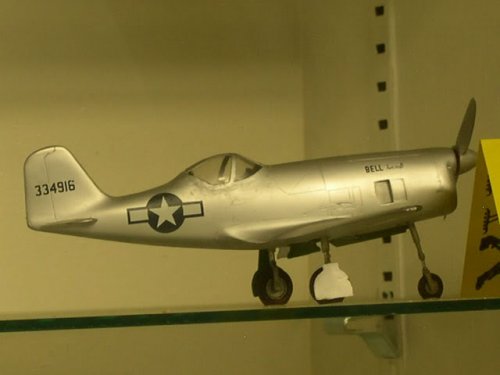

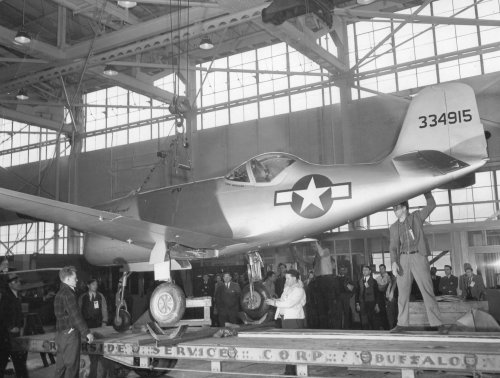

From Niagara Aerospace Museum


Attachments

  • 413114_10150726063445997_1292856639_o (1).jpg
    413114_10150726063445997_1292856639_o (1).jpg
    319.9 KB · Views: 101
  • 400662_10151361231150997_1640333362_n (3).jpg
    400662_10151361231150997_1640333362_n (3).jpg
    63.2 KB · Views: 90
  • 10472816_10152301560330997_672369261892663182_o (2).jpg
    10472816_10152301560330997_672369261892663182_o (2).jpg
    130.2 KB · Views: 102
  • 10700772_10152301559300997_1753672370643273368_o (2).jpg
    10700772_10152301559300997_1753672370643273368_o (2).jpg
    370.6 KB · Views: 103
  • 10644235_10152301558990997_1489940496151886451_o (2).jpg
    10644235_10152301558990997_1489940496151886451_o (2).jpg
    220.1 KB · Views: 98
  • 919118_10151361178205997_476858115_o (1).jpg
    919118_10151361178205997_476858115_o (1).jpg
    286.1 KB · Views: 88
Absolutely splendid pics. Thanks for bringing these (and the other Bell pics) to our attention.

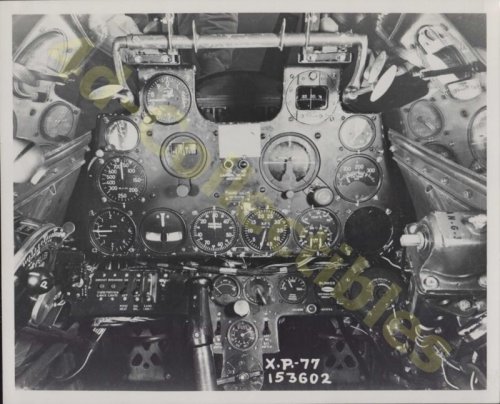

Xp-77 cockpit from an ebay auction.

http://m.ebay.com/itm/Photograph-reprint-8x10-Bell-XP-77-Cockpit-153602-/121834962827?nav=SEARCH


Attachments

  • $_3.JPG.jpeg
    93.6 KB · Views: 105
