Folks,

Does anyone have a 3-view drawing of the Bell Model 207 Sioux Scout (see below)?


regards,

Greg


Attachments

  • bell_207.jpg
    30.7 KB · Views: 800

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,534
Reaction score
313
I have a couple of pics from Putnam's "Bell Aircraft" but no 3-view drawing.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,181
Reaction score
871
Website
beyondthesprues.com
Yes, me too - it seems especially difficult to find a drawing though.

Regards,

Greg


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
699
Reaction score
111
Website
www.tommythomason.com

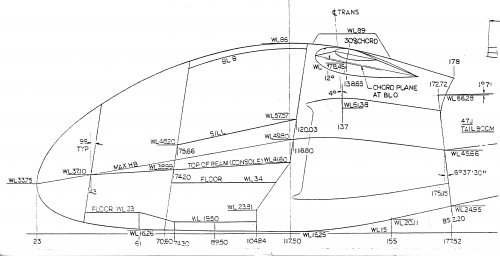

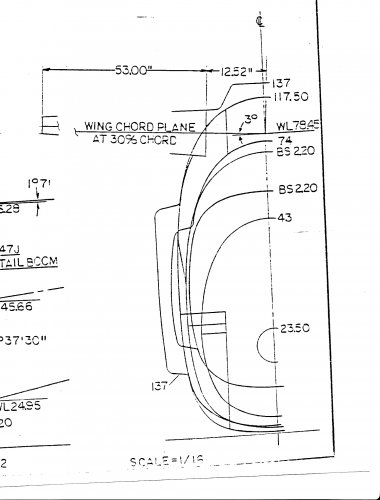

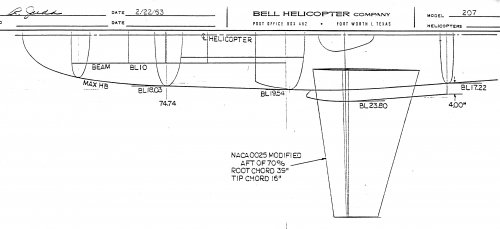

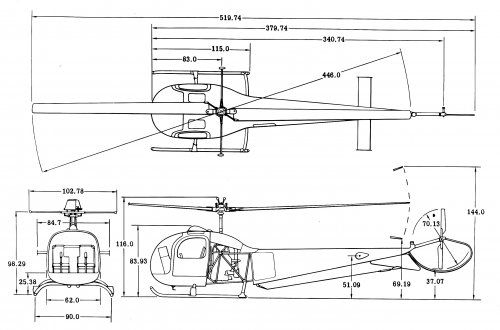

Think of this as a drawing kit...


Attachments

  • Ranger 3 View.JPG
    Ranger 3 View.JPG
    546.6 KB · Views: 807
  • Sioux Scout Front View.JPG
    Sioux Scout Front View.JPG
    322.5 KB · Views: 691
  • Sioux Scout Side View.JPG
    Sioux Scout Side View.JPG
    667.9 KB · Views: 650
  • Sioux Scout Top View.JPG
    Sioux Scout Top View.JPG
    475.9 KB · Views: 596
  • Sioux Scout.JPG
    Sioux Scout.JPG
    593.2 KB · Views: 218

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,068
Reaction score
1,506
Website
www.aerospaceprojectsreview.com

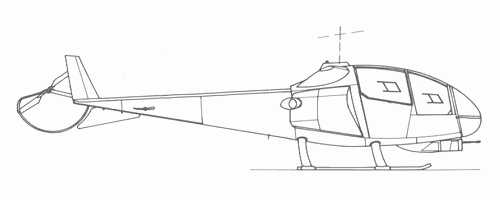

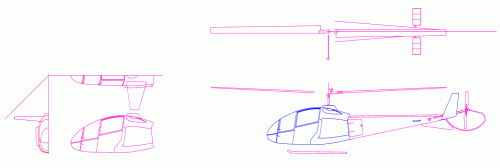

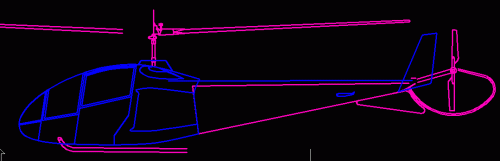

Progress. Purple lines are from TT's Model 47 drawing; blue lines from TT's 207 drawings. A lot lines up; a few things don't (like the landing skids, clearly not Model 47 standard, at least in placement). I expect to get it down to the rivet patterns eventually.


Attachments

  • scoutrecon1.gif
    7.6 KB · Views: 140

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,181
Reaction score
871
Website
beyondthesprues.com
Orionblamblam said:
Tailspin Turtle said:
Think of this as a drawing kit...

Sigh... fine...

:p

CAD work is now underway. So... who's willing to throw me a grant? I'm not greedy... a hundred grand will do just fine...

100,000 Thankyous are on their way.... ;)...probably not what you meant but still :D

Regards,

Greg


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600

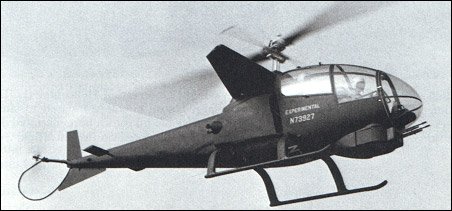

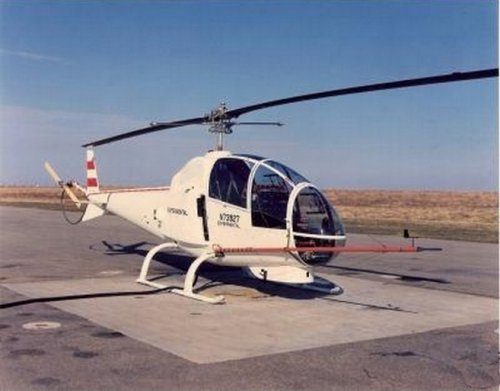

A better resolution picture of the image posted at the top of the page.

Developed in 1963 by Textron's Bell Helicopter Company, Fort Worth, Texas, the Sioux Scout was presented to the Army Aviation Museum at Ft. Rucker, Ala., for permanent display. The Sioux Scout was developed to prove the concept of an integrated helicopter weapons system.

Source: Bell promotional photo


Topic moved to a more appropriate section.



Attachments

  • Bell 207.jpg
    Bell 207.jpg
    376.6 KB · Views: 135

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
782
Website
deeptowild.blogspot.com

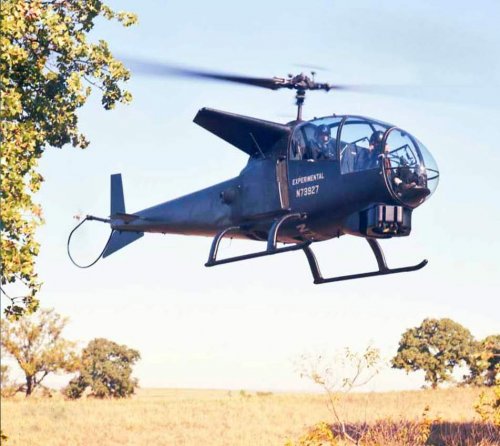

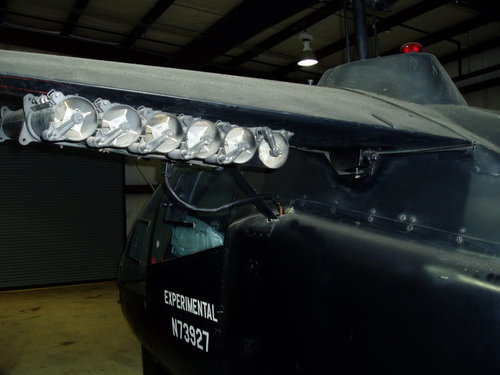

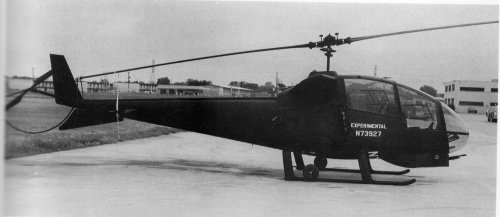

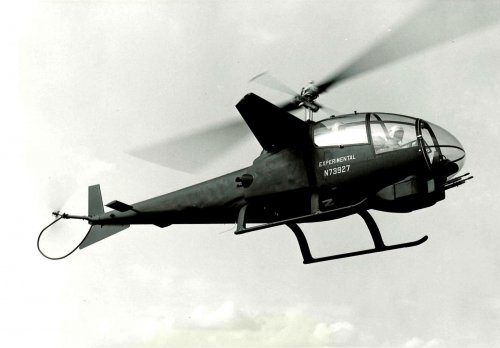

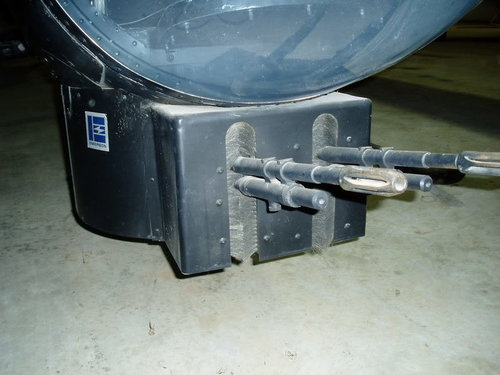

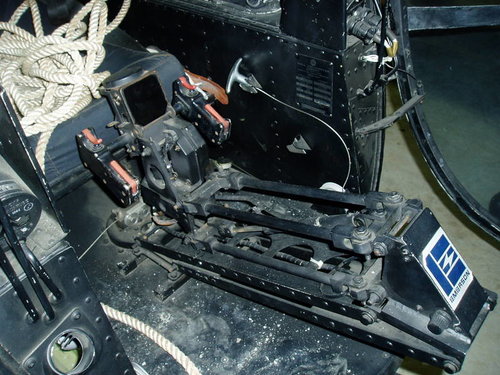

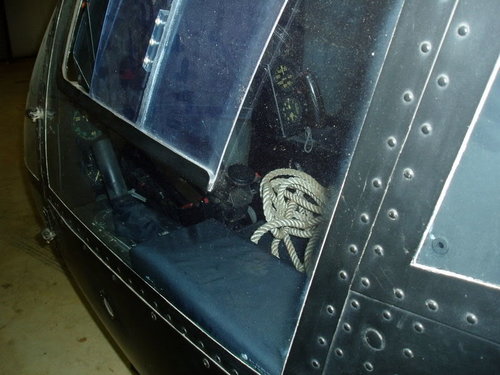

Bell Helicopter Company photos of Model 207 Sioux Scout.

Source:
http://cs.finescale.com/fsm/modeling_subjects/f/16/t/56710.aspx


Attachments

  • 207012.jpg
    189.9 KB · Views: 160
  • 207011.jpg
    173.1 KB · Views: 140
  • 207006.jpg
    170.8 KB · Views: 101
  • 207008.jpg
    165 KB · Views: 99
  • 207007.jpg
    183 KB · Views: 120
  • 207004.jpg
    168.5 KB · Views: 133
  • 207002.jpg
    176.6 KB · Views: 142

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
I have always day dreamed about the Sioux Scout with a small turbine engine and a four blade rigid rotor sytem. Probably need a new tail rotor too, but ... what a fun aircraft that would have been to fly.


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53
address https://vtol.org/store/department/novelties-8.cfm?killnav=1


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53
address http://www.worthpoint.com/worthopedia/bell-207-47-sioux-scout-prototype-helicopter


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,465
Reaction score
953

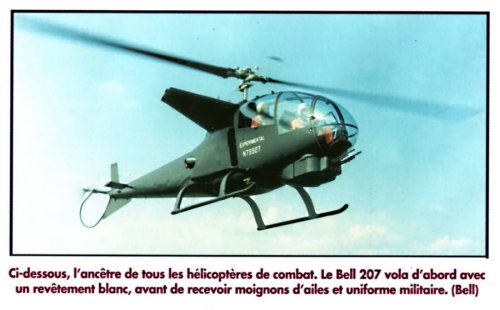

Source: Le Fana de L'Aviation 2000-07 (#368), page 16, in an article about the Lockheed AH-56A Cheyenne.


Attachments

  • Bell_207_Sioux_Scout_Fana_July_2000_n368_page16.jpg
    109.2 KB · Views: 304

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820

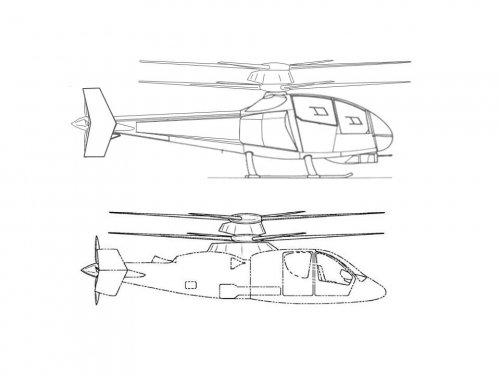

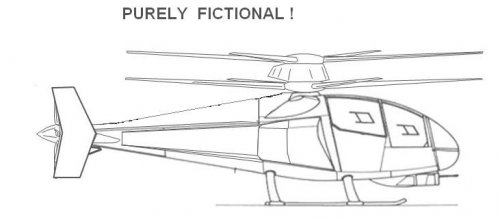

I know, not a what ifs thread, but I could not resist.


Attachments

  • newsiscout.jpg
    37.9 KB · Views: 261

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,286
Reaction score
1,218
yasotay said:
..., but I could not resist.

But please, no with such a chopped off transition from the rotor to the tail section ! ;)


Attachments

  • newsiscout_mod.JPG
    23.4 KB · Views: 200

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,670
Reaction score
693
Is it in storage at the Fort Rucker Army Aviation Museum? Mark


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
It is in short term storage at the Army Aviation Museum. Probably will be put back on display when the new extension is completed in a couple years.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,465
Reaction score
953
Ron Downey said:
Bell 207 Sioux Scout Photos
A few photos of the Bell 207 Sioux Scout prototype helicopter of 1963.

From Wikipedia:The Bell 207 Sioux Scout was a modified Bell 47 helicopter, developed by Bell Helicopter under contract from the United States Army, as a proof-of-concept demonstrator for the Bell D-255 helicopter gunship design, featuring a tandem cockpit, stub wings, and a chin-mounted gun turret.
Download here or here (2.6 Megs)

Source: http://aviationarchives.blogspot.com/2020/04/bell-207-sioux-scout-photos.html


William207

ACCESS: Restricted
Joined
Dec 12, 2020
Messages
2
Reaction score
5

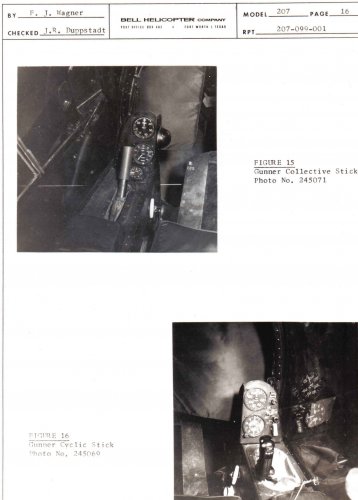

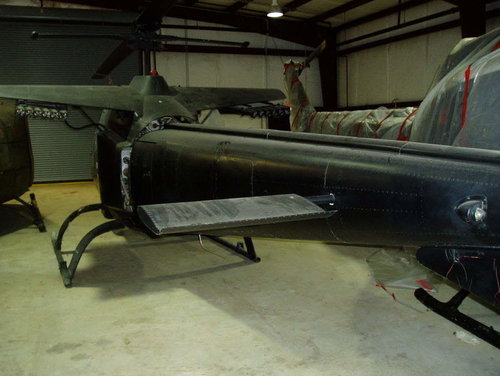

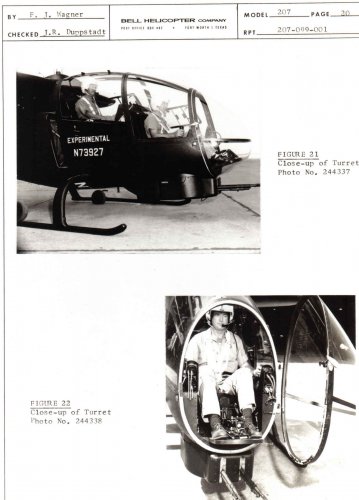

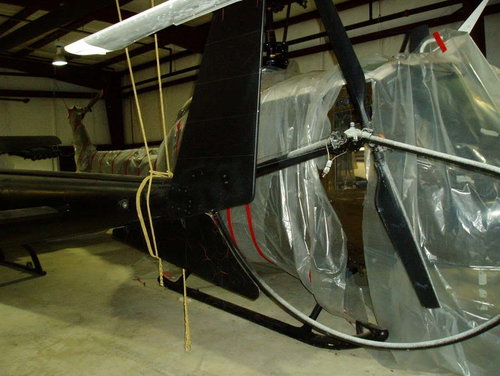

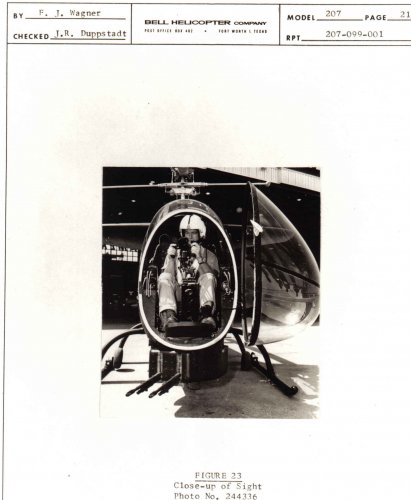

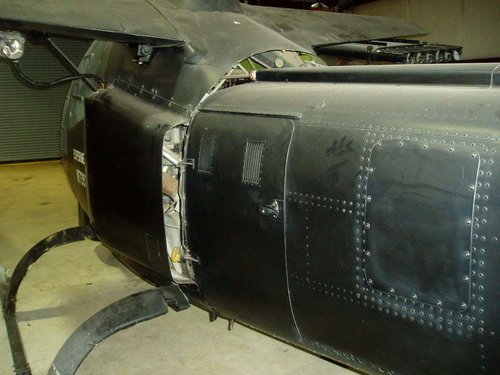

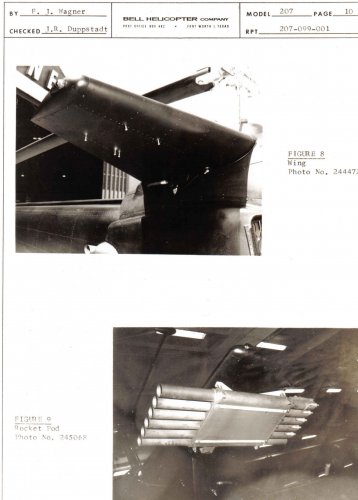

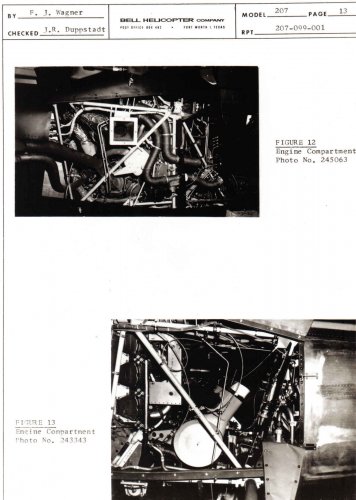

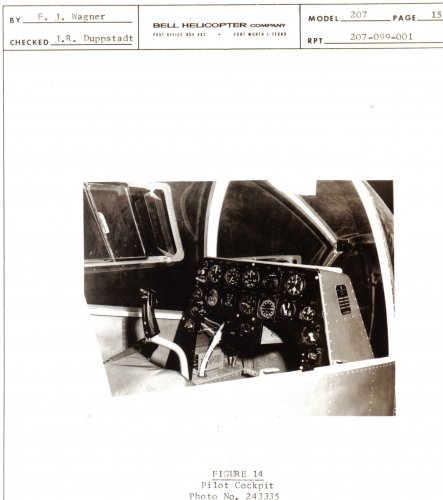

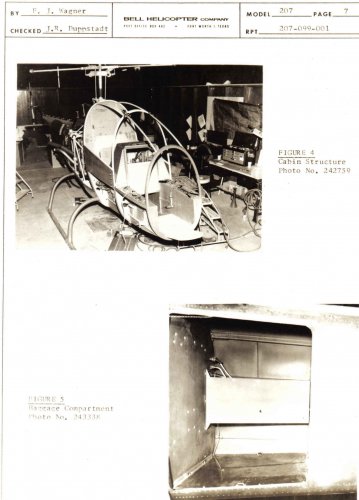

Think of this as a drawing kit...

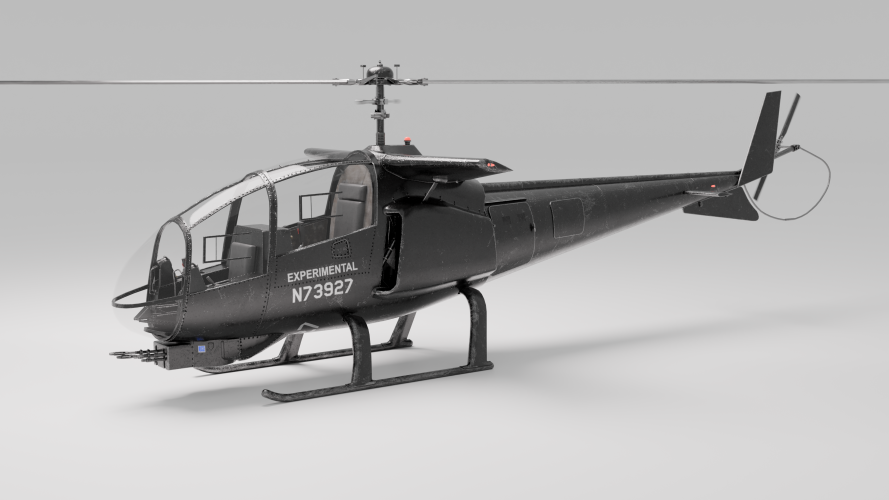

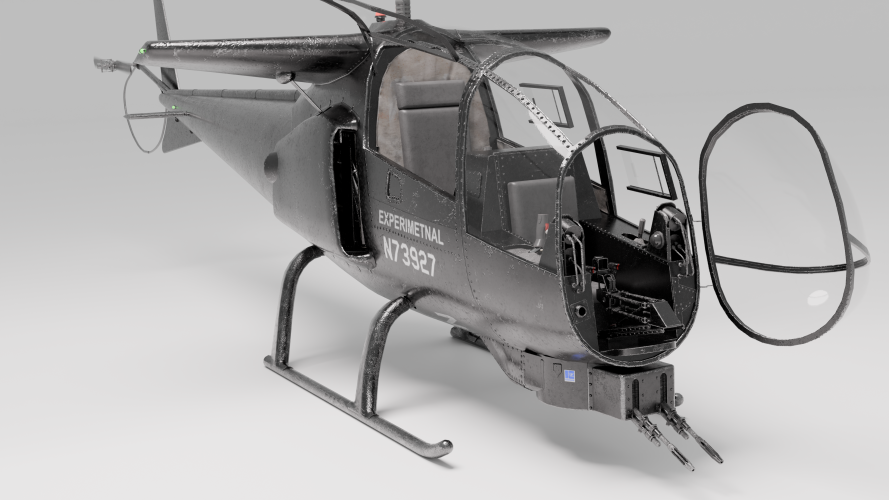

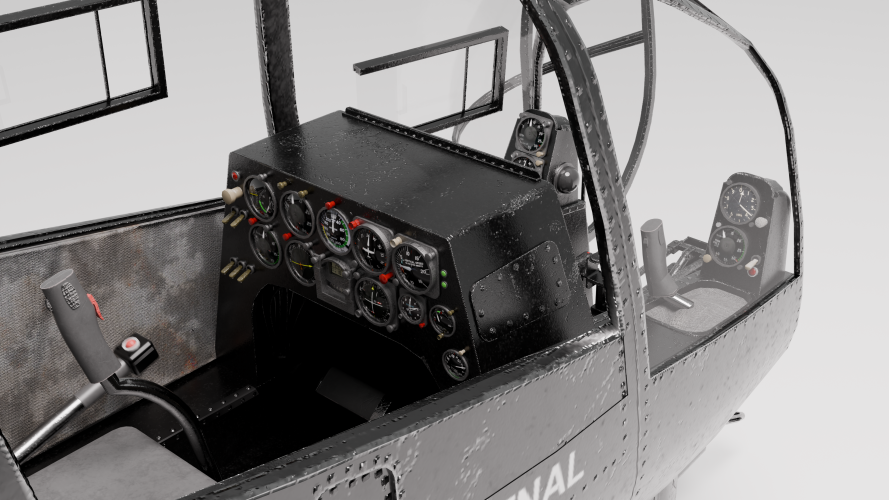

You posted some drawings the appear to be pages from an original booklet that Bell produced about the 207 project. I got most of that book from Ft. Rucker where the one example of the 207 is housed. The Army's book at Rucker has pages missing. There were about 15 copies of this book passed out to key people. I'm looking for a complete book or the missing pages, most of the people that got books are dead. Bell says they gave everything to the Army. Where did you get that copy of that cross section drawing.

After getting DOD clearance, I went to Rucker and was granted access to the 207. We took hundreds of pics and detailed measurements.
I'm two years of intense work into duplicating a 207.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
Think of this as a drawing kit...
You posted some drawings the appear to be pages from an original booklet that Bell produced about the 207 project. I got most of that book from Ft. Rucker where the one example of the 207 is housed. The Army's book at Rucker has pages missing. There were about 15 copies of this book passed out to key people. I'm looking for a complete book or the missing pages, most of the people that got books are dead. Bell says they gave everything to the Army. Where did you get that copy of that cross section drawing.

After getting DOD clearance, I went to Rucker and was granted access to the 207. We took hundreds of pics and detailed measurements.
I'm two years of intense work into duplicating a 207.
When you say "I'm two years of intense work into duplicating a 207", do you mean that you are building a flying 207?


William207

ACCESS: Restricted
Joined
Dec 12, 2020
Messages
2
Reaction score
5
Think of this as a drawing kit...
You posted some drawings the appear to be pages from an original booklet that Bell produced about the 207 project. I got most of that book from Ft. Rucker where the one example of the 207 is housed. The Army's book at Rucker has pages missing. There were about 15 copies of this book passed out to key people. I'm looking for a complete book or the missing pages, most of the people that got books are dead. Bell says they gave everything to the Army. Where did you get that copy of that cross section drawing.

After getting DOD clearance, I went to Rucker and was granted access to the 207. We took hundreds of pics and detailed measurements.
I'm two years of intense work into duplicating a 207.
When you say "I'm two years of intense work into duplicating a 207", do you mean that you are building a flying 207
Yes a full size copy, but with improvements to address the tail rotor bearing issues Bell had originally flying over 120mph. We have addressed the overheating problems as well that plagued the original ship. We have build a blue printed Lycoming 540 that should give us 325hp
I have several 47s one of was a H13 gunship equipped with two functional M37 Brownings. Warbird Digest did a photo shoot last month to go with article on the build, suppose to be out this spring I believe. So......This is not a first attempt at building a helicopter but it is a complex project.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
Well I wish the best of luck to you and your team in this endeavor. It would be great to see the progenitor of all modern attack helicopters flying again.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
699
Reaction score
111
Website
www.tommythomason.com
Think of this as a drawing kit...
You posted some drawings the appear to be pages from an original booklet that Bell produced about the 207 project. I got most of that book from Ft. Rucker where the one example of the 207 is housed. The Army's book at Rucker has pages missing. There were about 15 copies of this book passed out to key people. I'm looking for a complete book or the missing pages, most of the people that got books are dead. Bell says they gave everything to the Army. Where did you get that copy of that cross section drawing.

After getting DOD clearance, I went to Rucker and was granted access to the 207. We took hundreds of pics and detailed measurements.
I'm two years of intense work into duplicating a 207.
No joy - those were from a collection of lines drawings of various Bell helicopters that I happened to xerox many years ago when I worked there.


jstar

ACCESS: Secret
Joined
Oct 12, 2007
Messages
200
Reaction score
107
Think of this as a drawing kit...
You posted some drawings the appear to be pages from an original booklet that Bell produced about the 207 project. I got most of that book from Ft. Rucker where the one example of the 207 is housed. The Army's book at Rucker has pages missing. There were about 15 copies of this book passed out to key people. I'm looking for a complete book or the missing pages, most of the people that got books are dead. Bell says they gave everything to the Army. Where did you get that copy of that cross section drawing.

After getting DOD clearance, I went to Rucker and was granted access to the 207. We took hundreds of pics and detailed measurements.
I'm two years of intense work into duplicating a 207.
When you say "I'm two years of intense work into duplicating a 207", do you mean that you are building a flying 207
Yes a full size copy, but with improvements to address the tail rotor bearing issues Bell had originally flying over 120mph. We have addressed the overheating problems as well that plagued the original ship. We have build a blue printed Lycoming 540 that should give us 325hp
I have several 47s one of was a H13 gunship equipped with two functional M37 Brownings. Warbird Digest did a photo shoot last month to go with article on the build, suppose to be out this spring I believe. So......This is not a first attempt at building a helicopter but it is a complex project.
Keep us posted please.. pictures if possible. Be very interesting to see this flying.
