I spoke before about the Bell D-216 project which was developed from
Model-61 as 25-seat commercial helicopter and powered by three turbine
engines,and there is an artist picture to it.

Source, Flightglobal


Attachments

  • Bell D-216.JPG

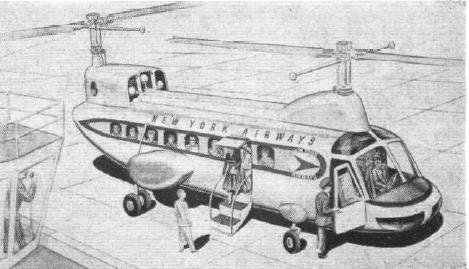

    Bell D-216.JPG
    26.9 KB · Views: 370

SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
8
I was hoping to find out more information on the Bell D216 design.

The Bell Aircraft Corporation are to build a 25-passenger turbine helicopter for New York Airways. The machine, to known as the Bell D216, will have twin tip-rotors and is said to be capable of reducing costs to 10 cents per seat-mile.
from FLIGHT, 6 April 1956.

An artist's impression of Bell's three-engined, 25-passenger turbine helicopter project, the D216. It will carry a maximum pay load of between 6,000 lb and 8,000 lb at 120 m.p.h. An operating cost of 10 cents per seat mile is expected.
from FLIGHT, 26 October 1956

That is all the information that I have been able to find


Attachments

  • Bell D216.JPG

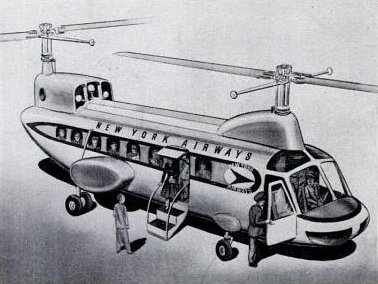

    Bell D216.JPG
    63 KB · Views: 303

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,026
Reaction score
1,359
Website
www.aerospaceprojectsreview.com
Bell 216??? Hmmmm.... checking records..... nope, got nuthin.'

Well, except for all the art, drawings and photos I just posted of this to my blog....

http://up-ship.com/blog/



:p


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
84
Website
www.tommythomason.com
There's about a page on it in my monograph on the HSL published by Steve Ginter. It used the HSL dynamics (rotors, transmissions, drive shafts) with a new fuselage and three turbine engines, T58s or T53s. It was similar in size to the Boeing Vertol 107 that became the CH-46. It was first proposed to the Army and then to New York Airways as a 21 to 24-passenger airliner. The Army evaluated the BV 107 and contracted for a bigger version, the CH-47. New York Airways bought a civil certified version of the H-21.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,086
Reaction score
983
Tailspin Turtle said:
There's about a page on it in my monograph on the HSL published by Steve Ginter.

??? Monograph? What monograph?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
583
He's talking about this one:

http://www.aviationbookcentre.com/__12_product_info3_asp2_5_prdID4_43395_usrID1_12.html

Nice work Tommy - ditto x 10 on your " U.S. NAVAL AIR SUPERIORITY: Development of Shipborne Jet Fighters 1943-1962" Excellent read!

http://www.cartechbooks.com/vstore/showdetl.cfm?Product_ID=1771&DID=8

Okay, what's next on your list of books to be published?!

Enjoy the Day! Mark


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
8
Thanks for the great response.

Orionblamblam will be visiting to get the data - I looked all over for this.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
478
More pictures of the D216:


Attachments

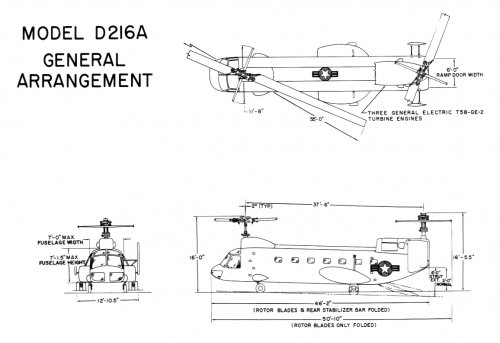

  • arrangement.jpg
    170.7 KB · Views: 98
  • armament.jpg
    264 KB · Views: 167
  • 216 artwork.jpg

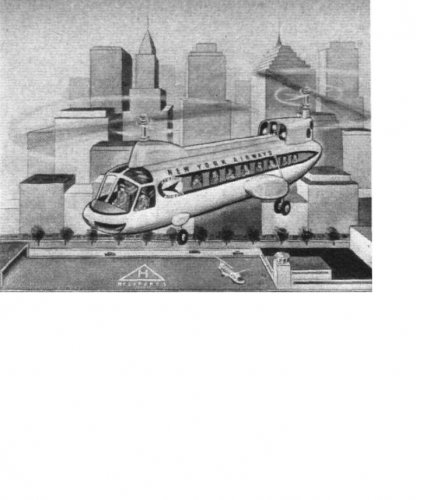

    216 artwork.jpg
    83.1 KB · Views: 228

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
549

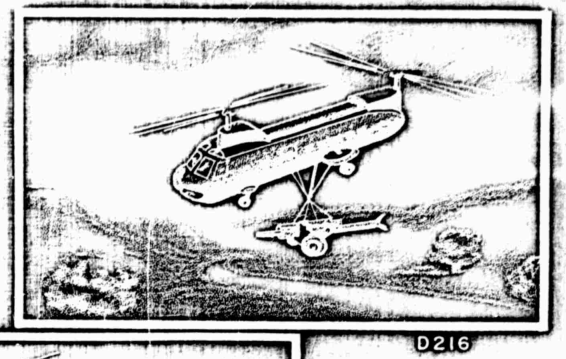

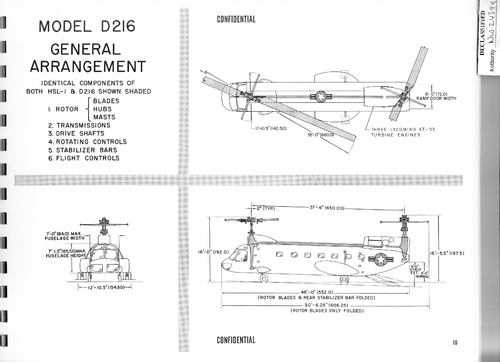

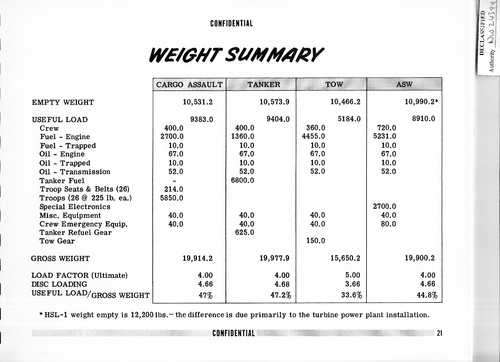

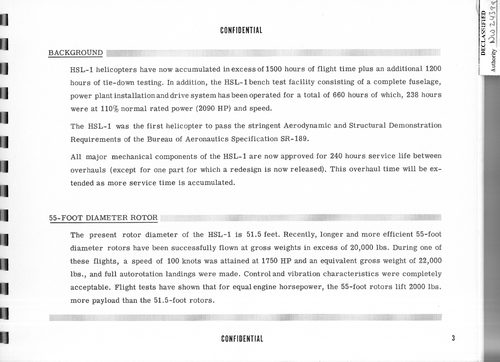

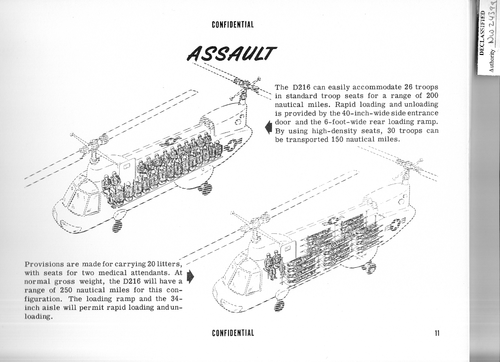

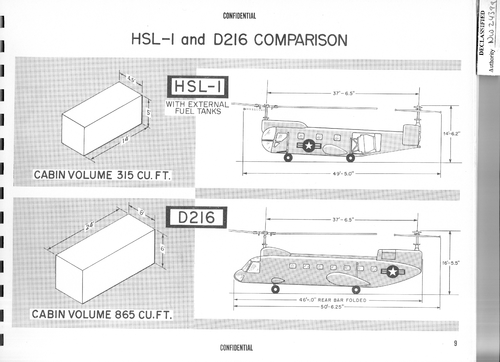

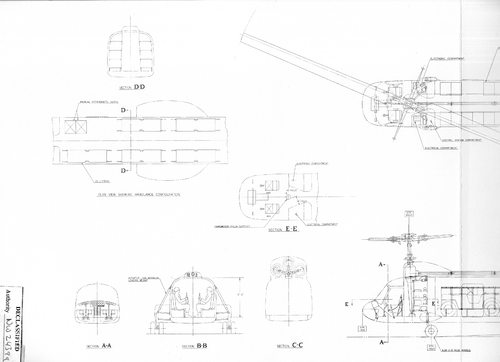

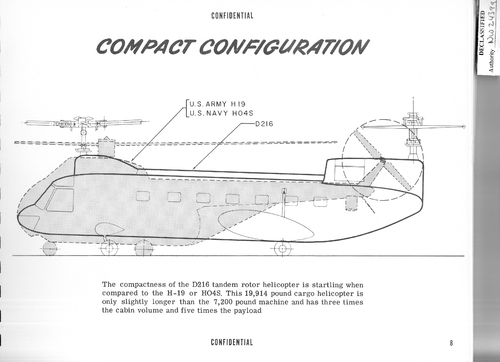

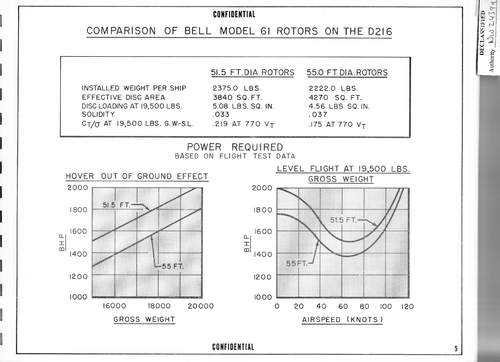

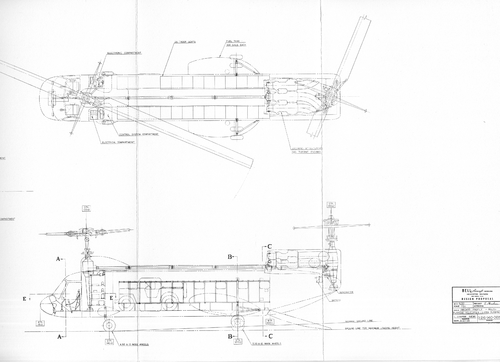

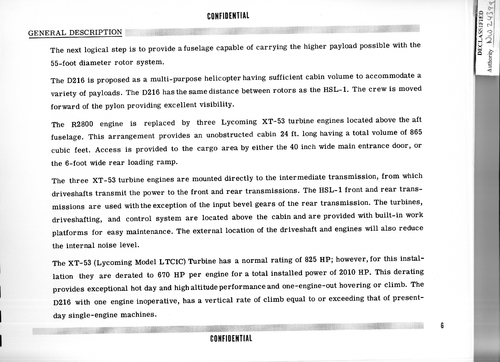

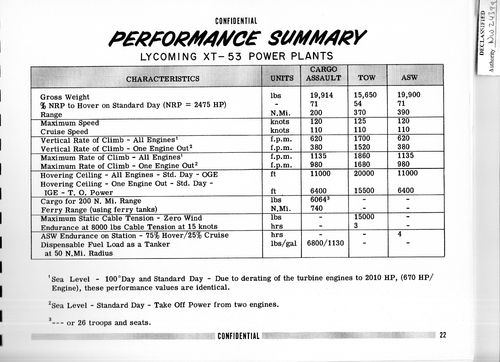

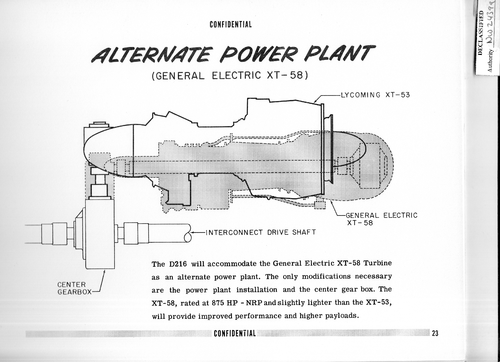

This is the military proposal for the D-216 to the Navy. From NARA. Read from bottom up......Sorry, 5 files too big, will have to send later.


Attachments

  • -000`0010.png
    7.8 MB · Views: 43
  • -000`0009.png
    5.3 MB · Views: 43
  • -000`0007.png
    5.3 MB · Views: 38
  • -000`0006.png
    6.5 MB · Views: 34
  • -000`0004.png
    6.9 MB · Views: 34

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
549
Last of the booklet


Attachments

  • -000`0026.png
    5.8 MB · Views: 53
  • -000`0025.png
    6.8 MB · Views: 53
  • -000`0024.png
    7.6 MB · Views: 51
  • -000`0023.png
    7.7 MB · Views: 42
  • -000`0022.png
    7.3 MB · Views: 40
  • -000`0021.png
    6.4 MB · Views: 33

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247

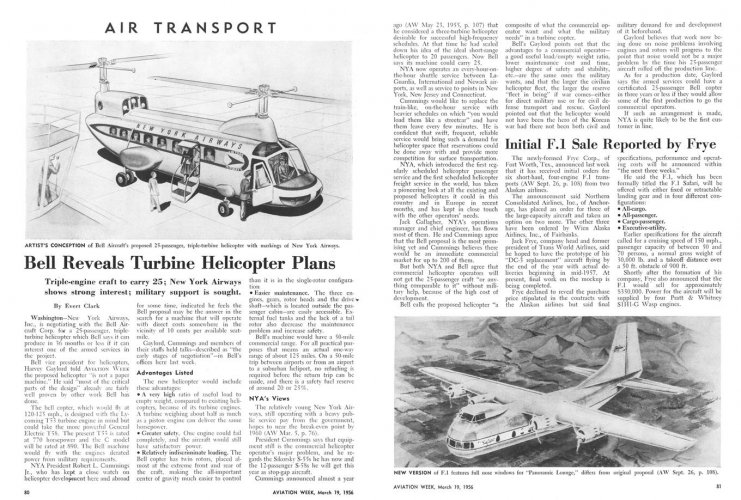

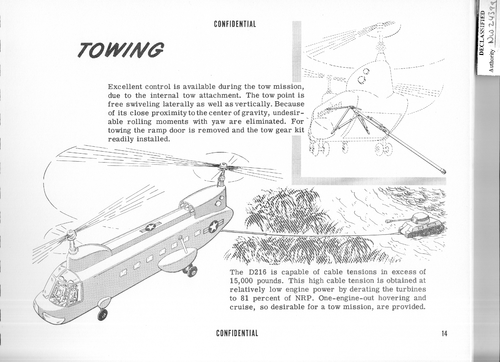

-----6 files too big....
"Towing and the towing mission"
That's a new, but interesting concept/mission! Can't say I've ever seen, let alone read of helicopters towing tanks.
An amazing find masher47, thanks heaps for sharing!!

Regards
Pioneer
