Barnes Wallis Green Lizard

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

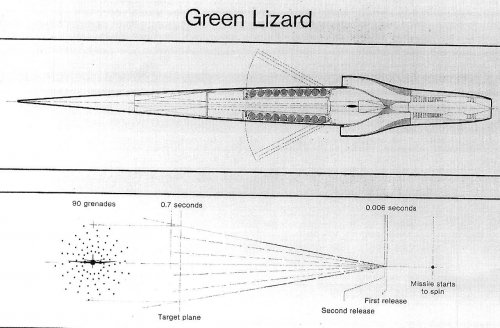

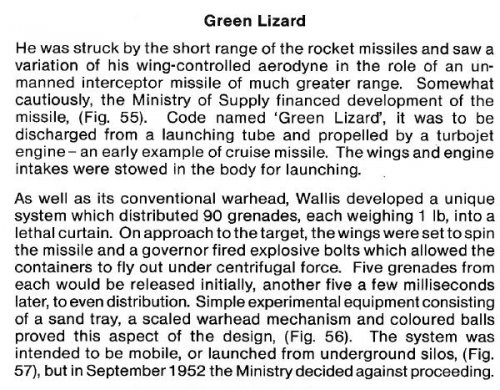

A different Green Lizard than that which appears in Derek Wood's Project Cancelled :-\


Attachments

  • scan0041 (2).jpg
    scan0041 (2).jpg
    196.7 KB · Views: 513
  • scan0040 (2).jpg
    scan0040 (2).jpg
    129.8 KB · Views: 494
  • scan0012 (2).jpg
    scan0012 (2).jpg
    104.9 KB · Views: 382

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929
Good find, would it have been a ring shaped intake ? Can't
imagine, how it would have fit into a gun otherwise. In "Project
Cancelled" a test vehicle is shown, which may have had such an
intake, too.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
In Project Canceled the diagram shows a nose intake yet the photo seems to show a ring intake as you suggest which this one could be :-\ ???

Regards,
Barry


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
I seem to remember a post-war gun-missile launcher developed by Vickers for naval use. This missile would seem to fit. I'll have a look for the info.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
I found some stuff on it from patent no's

GB759677
GB759678
GB759679
GB759680
GB764292

Explosive charge propels the missile out of the barrel where the turbine takes over and the wings swing out from the sides.




Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
929

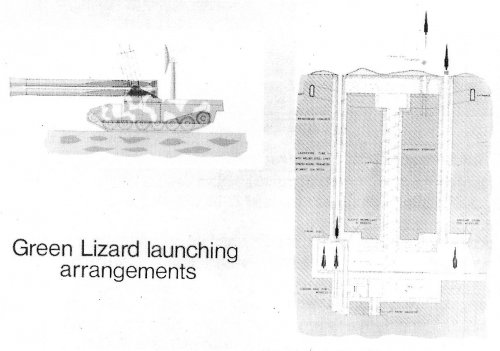

With regards to dimensions, this installation would have been roughly
equivalent to an 8in twin turret, I think. Not suitable for destroyer sized
ships ! :eek:


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
Almost, it was planned to replace the triple 6" turrets with this instead. I can't imagine that the missile load would be very large given the size.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
740
Reaction score
82
What would be the minimum barrel size that could use this type of projectile and would you need a purpose built barrel or can existing guns be used?

What kind of ranges were expected for the system?


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
948
Reaction score
389
Website
www.steelpillow.com
Where do the scans which open this thread come from?

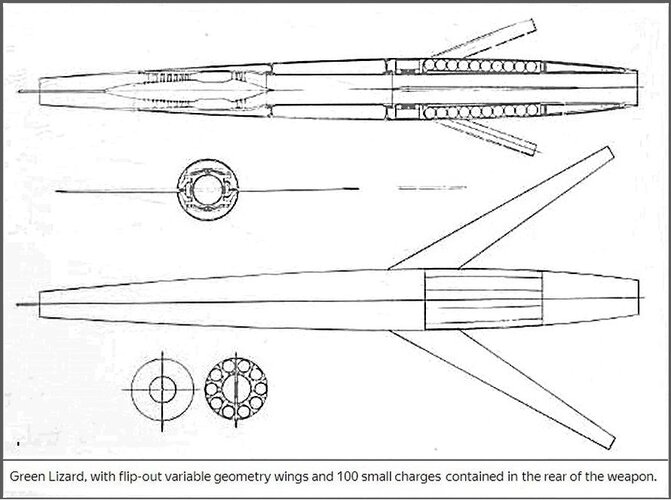

I certainly think the version in Project Cancelled must have been an early drawing, as it shows the engine near the front with the grenades packed around the hot exhaust jet pipe, which can hardly have been a good idea.
