BAe DEMON UAV demonstrator makes first flight

bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,285
Reaction score
1,239
From Aerospace and Defense News - http://www.asd-network.com/press_detail_B.asp?ID=22986


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,358
Reaction score
3,382
They are looking at thrust vectoring and circulation control, according to the website (http://www.flaviir.com/aerodynamics.htm)

I

Ian33

Guest
http://www.geocities.com/m_mason007/Paper.pdf

Fluidic thrust vecoring.

http://www.geocities.com/m_mason007/home.html


bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,285
Reaction score
1,239
I believe the X-44 (tailless F-22) was to have very few or no control surfaces. Increases stealth tremendously as I understand it.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
Maybe someone here can remember, I recall reading about circulation control technology that uses a porous material that basically makes parts of wings "invisible" to the air, but that is of course, a euphemism for letting the airflow through parts of the wing when you want it too. Do you think they are using that technology, or just bleed air from the engine? I was wondering if that's what the two whitish stripes near the trailing edge of the wing and the small white stripes on the leading edge are?


PNorwood

ACCESS: Restricted
Joined
Aug 18, 2009
Messages
49
Reaction score
2
overscan said:
They are looking at thrust vectoring and circulation control, according to the website (http://www.flaviir.com/aerodynamics.htm)

That would do the trick!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
27 Sep 2010 - Showcase UAV demonstrates 'Flapless Flight'

A novel unmanned air vehicle (UAV) which showcases a wide range of new technologies has successfully demonstrated ‘flapless flight’ in the UK.

The UAV, called DEMON, made the historic flight from an airfield at Walney Island in Cumbria on Friday 17 September. Developed by Cranfield University, BAE Systems, and nine other UK universities, DEMON is designed to be able to forgo the use of conventional mechanical elevators and ailerons which usually control the movement of an aircraft in favour of novel aerodynamic control devices using blown jets of air.

Such an approach offers several advantages over ‘moving flap’ technology which has been used since the early days of aviation, in that it means fewer moving parts, less maintenance, and a more stealthy profile for the aircraft. DEMON’s trial flights were the first ‘flapless flights’ ever to be authorised by the UK Civil Aviation Authority.

In Cumbria, DEMON successfully demonstrated flapless flight when, for a planned portion of a test-flight, the conventional flap control system was turned off and the aircraft flew and manoeuvred using the new technology. BAE Systems promoted the development of the £6.2m FLAVIIR (Flapless Air Vehicle Integrated Industrial Research) programme which led to the DEMON demonstrator after laying down a ‘Grand Challenge’ to UK universities five years ago.

Professor John Fielding, chief engineer and lead for the DEMON demonstrator team from Cranfield University, said: “To make an aircraft fly and manoeuvre safely without the use of conventional control surfaces is an achievement in itself; to do that while at the same time bringing together new construction techniques and new control mechanisms could be said to be over-ambitious – but we have done it. The DEMON UAV has been developed within a research programme but it is a representative, complex, high technology aircraft. Gaining approval from the CAA and flying it successfully has required great skill, dedication and patience by the team and they should be very proud of their achievement.”

Richard Williams, BAE Systems programme director for Future Capability, said: “What the FLAVIIR Team have achieved in such a short time is nothing short of remarkable. I was in Cumbria to watch DEMON fly and I feel sure I have witnessed a significant moment in aviation history.” He added: “What makes it even more poignant is that this is the result of British brains collaborating to produce world-leading technology. It, and other initiatives like it, will help ensure we maintain both a level of sovereign capability and a competitive edge.”

The flapless system, developed around a concept called fluidic flight control, was the result of collaborative work between Cranfield and Manchester universities together with BAE Systems' Advanced Technology Centre and was tested in wind tunnels and on models before the full-scale trials on DEMON took place.

While Demon itself is not expected to become a production aircraft, a number of the technologies it contains have and will continue to filter through to a range of other aviation platforms.

ENDS

Further information

The programme to develop the aircraft and its technologies has been jointly funded by BAE Systems and the Engineering and Physical Sciences Research Council (EPSRC). As well as the successful demonstration of flapless flight technology, the programme also showcases new methods of UAV construction, new control systems, and more advanced integration of technologies.

The FLAVIIR programme will help inform the development of affordable and low-maintenance UAVs for the future and provides valuable information on the fluid dynamics of flight and the potential for low observability. As well as Cranfield University and BAE Systems, DEMON was developed in conjunction with the Imperial College of Science, Technology and Medicine; Leicester; Liverpool, Manchester; Nottingham; Southampton; Swansea; Warwick and York universities.

DEMON Key Facts:

Weight: 200 lbs (90 kg); Dimensions:approximately 8-foot (2.5m) wingspan Flight speed 70 -150kts.
It was developed by BAE Systems and Cranfield University in the UK. It incorporates fluidic flight controls developed at Cranfield and Manchester Universities and flight control algorithms developed at Leicester University and Imperial College
The DEMON is designed to fly with no conventional elevators or ailerons, getting its pitch and roll control from technologies which rely on blown air and so requires much fewer moving parts, therefore making it a lot easier to maintain and repair.
DEMON can fly parts of its mission by itself but, as it is currently an experimental vehicle, is not fully autonomous unlike, for example, BAE Systems’ MANTIS.
The shape of the DEMON aircraft is referred to as a "blended wing-body" configuration.
Cranfield University is a wholly postgraduate institution with a worldwide reputation for excellence and expertise in aerospace, automotive, defence, engineering, environment and water, health, management and manufacturing. The University is made up of the following Schools: Cranfield Health, School of Management, School of Applied Sciences, School of Engineering, and Cranfield Defence and Security at Shrivenham. For more information visit www.cranfield.ac.uk

BAE Systems is a global defence, security and aerospace company with approximately 107,000 employees worldwide. The Company delivers a full range of products and services for air, land and naval forces, as well as advanced electronics, security, information technology solutions and customer support services. In 2009 BAE Systems reported sales of £22.4 billion (US$ 36.2 billion).


For further information please contact: Naomie Stanford-Jones, Media Relations Executive, Cranfield University, tel: +44 (0) 1234 754999

Media Relations – Corporate Communications

Building 30
Cranfield University
Cranfield
Bedfordshire MK43 0AL

Tel: +44 (0) 1234 754999
Fax: +44 (0) 1234 758051

Email: mediarelations@cranfield.ac.uk
Website: www.cranfield.ac.uk

Simon Shrouder, BAE Systems, tel: +44 (0) 1772 856525 E: simon.shrouder@baesystems.com

Press release number: PR-20-10-SOE

http://www.cranfield.ac.uk/news/pressreleases/2010/page50603.html


Attachments

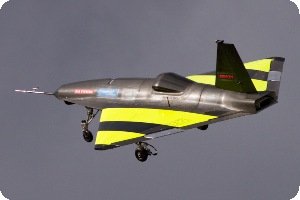

  • 1-showcaseuavd.jpg
    20.3 KB · Views: 419

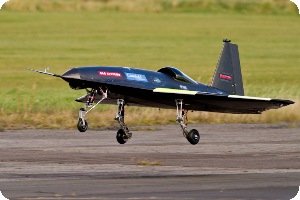

  • showcaseuavd.jpg
    12.8 KB · Views: 418

Gerard

ACCESS: Restricted
Joined
May 27, 2008
Messages
18
Reaction score
1
flateric,

They had a report on this on my local BBC tv North-West Tonight news programme tonight.

Most of it was what you just said, but they had film of it flying around too.


Also.....

http://www.dailymail.co.uk/sciencetech/article-1315570/Unmanned-jet-aircraft-world-fly-flaps.html

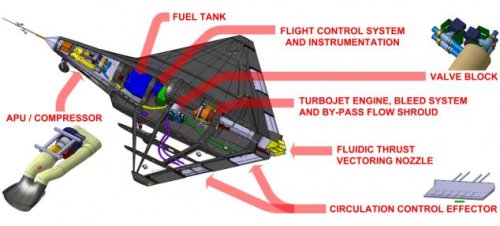

There is what the newspaper calls a tech diagram of how it all works, and further down the page a YouTube video.....

http://www.youtube.com/v/FqnAm0rPEJ4&rel=0&hl=en_US&feature=player_embedded&version=3


Regards,
Gerard


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Added images from the article.


Attachments

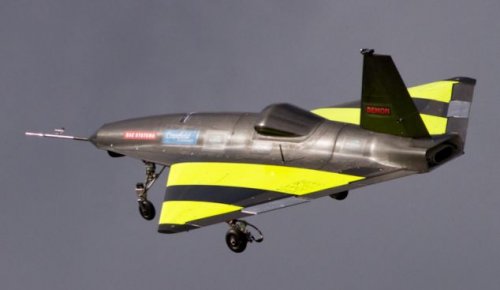

  • article-0-0B5E7A7F000005DC-775_634x286.jpg
    36.9 KB · Views: 135

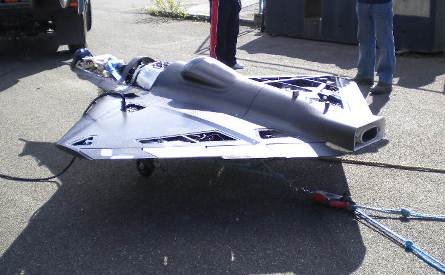

  • article-0-0B5E7A85000005DC-954_634x367.jpg
    21 KB · Views: 81

Kryptid

ACCESS: Secret
Joined
Mar 13, 2009
Messages
275
Reaction score
7
Website
www.facebook.com
A very interesting program indeed.

I can see this as being a pretty useful technology for future aircraft designs...assuming that an engine stall wouldn't render the aircraft uncontrollable. I see that the APU is shown on the diagram; might that mean the APU can power the air jets if the engine dies?

I suppose that conventional control surfaces could be used as a back-up, but that would eliminate the advantage of "fewer moving parts, less maintenance, and a more stealthy profile".


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
BBC report mentioned by Gerard above:

http://www.bbc.co.uk/news/uk-england-11431662


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
BAE website:

http://www.baesystems.com/AboutUs/ShowcaseUAVDemonstratesFlaplessFlight/index.htm

Paper looking at design and development:

http://www.icas-proceedings.net/ICAS2008/PAPERS/316.PDF

Research programme brochure:

http://www.flaviir.com/flaviir_brochure.pdf


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
much moar!
http://www.flaviir.com/posters.htm


Gridlock

ACCESS: Secret
Joined
Aug 4, 2010
Messages
241
Reaction score
4
I can't look at that rear-3/4 aerial shot in the OP without thinking "Spitfire" - just the shape of the nose and the 'canopy' is really evocative of it, wonder if that's deliberate?


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
Kryptid said:
I can see this as being a pretty useful technology for future aircraft designs...assuming that an engine stall wouldn't render the aircraft uncontrollable. I see that the APU is shown on the diagram; might that mean the APU can power the air jets if the engine dies?

Quite possibly. I was talking to the team at Farnborough earlier in the year. The engine bleed air to the control surfaces is only a couple of percent. I wouldn't think engine stall would have been too much of a problem. It's not a high alpha vehicle. You're going to be cruising around at a fair altitude and should have time to restart the engine.
