BAC QSTOL STOL airliner

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,523

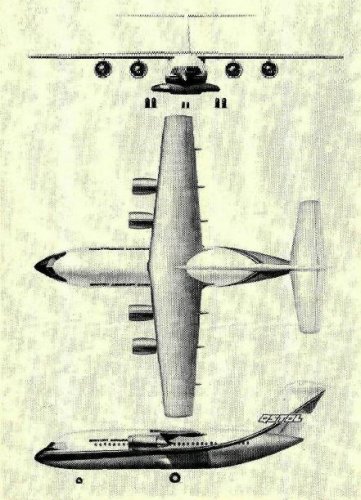

Widebody transport seating 108-140 passengers with an externally blown flap system for STOL.

Powered by 4 6,600kgp RR/SNECMA M45S/RB410 geared-fan turbofans, based on the M45H gas generator with a Dowty Rotol variable pitch fan added. STOL MTOW is 56,170kg, carrying 108 passengers for 965km from 600m field lengths, with ranges up to 1610km with higher weights and longer takeoff run. Span: 34.9m, Length: 33.63m.

Source:
Air Enthusiast August 1971


Attachments

  • BAC-QSTOL.jpg
    25.4 KB · Views: 992

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
Wasn't the BAC QSTOL simply the first stage of what ultimately became the British Aerospace BAe 146?


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,133
Reaction score
260
Stargazer2006 said:
Wasn't the BAC QSTOL simply the first stage of what ultimately became the British Aerospace BAe 146?

No, the BAe 146 derived from the Hawker Siddley side of the merger, more specifically De Havilland.


Pirate Pete

ACCESS: Confidential
Joined
Jul 25, 2007
Messages
180
Reaction score
172
Probably COMPLETELY WRONG, but I thought the 146 originated in the Avro division!!???


zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
206
Reaction score
218
Website
www.flickr.com
Nope.. De Havilland I'm afraid... 146 is in the same Hatfield design number series as the 125, 121 (Trident), 106 (Comet).. Avro Numbers start at 500... and continued into the HS era with 801 (Nimrod) and BAe era with 858 (aka ATP)

Zeb


zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
206
Reaction score
218
Website
www.flickr.com
Sorry should have added that it did kind of end up an Avro by default... when the second production line was set up at Woodford... and the revised version was rebranded as the Avro RJ...

Zeb


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661
Hi,

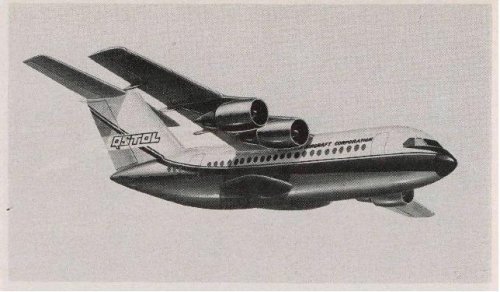

http://www.flightglobal.com/pdfarchive/view/1972/1972%20-%200914.html


Attachments

  • QSTOL.JPG
    52 KB · Views: 791

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661

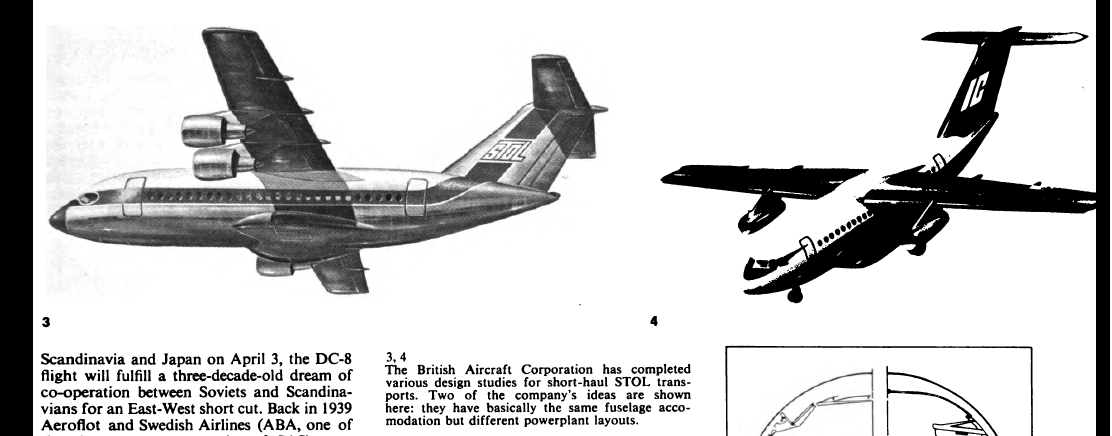

From Flying Review Volume 19 No 4,


sorry,it was for AW.681.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661
May be you are right Starviking,


I will correct it.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
30

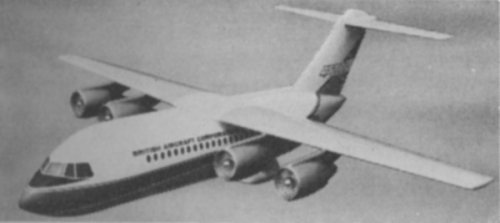

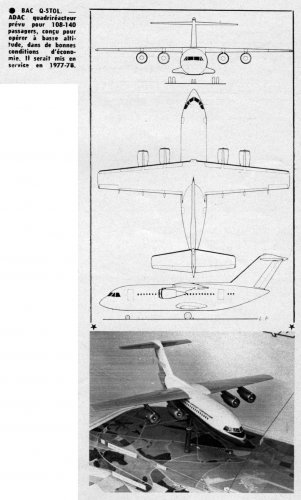

Model of the BAC Q-STOL exhibited at Le Bourget 1971, from Aviation Magazine 565.


Attachments

  • BAC_Q-STOL_avimag_565_p50.jpg
    489.5 KB · Views: 454

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
206
Reaction score
218
Website
www.flickr.com

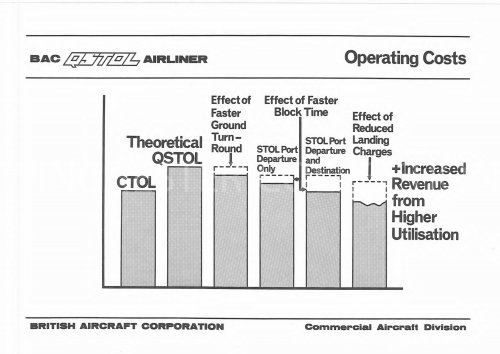

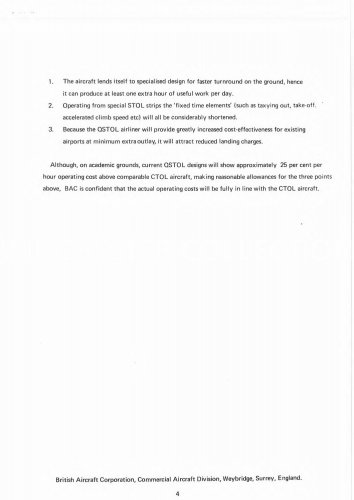

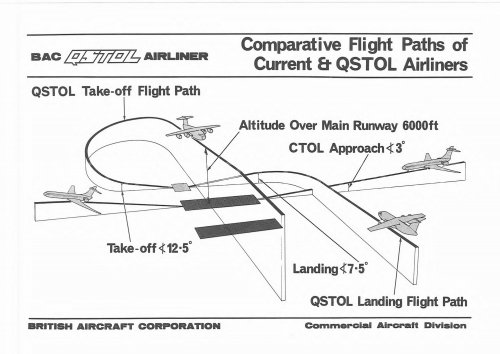

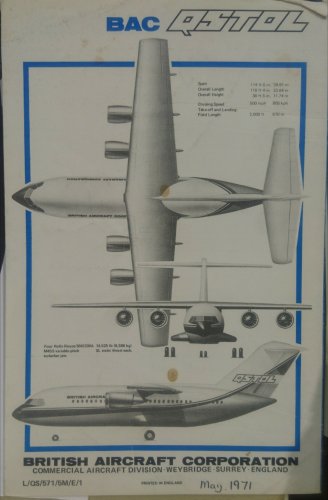

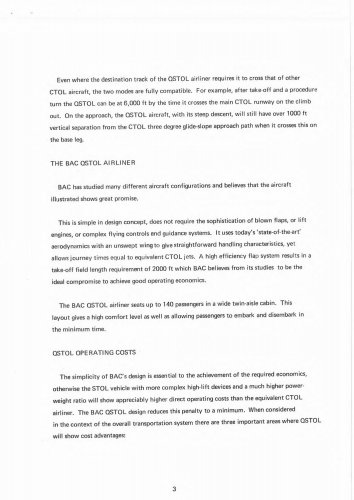

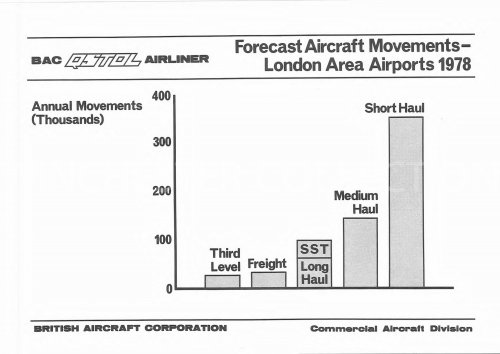

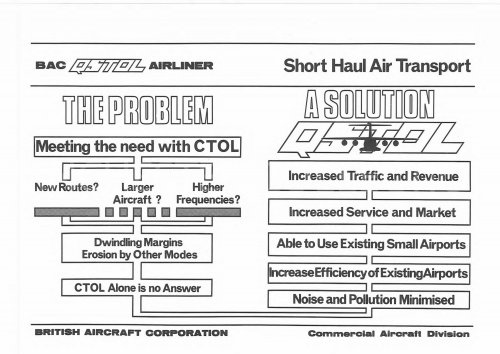

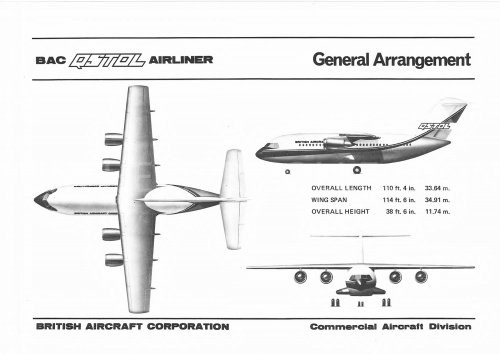

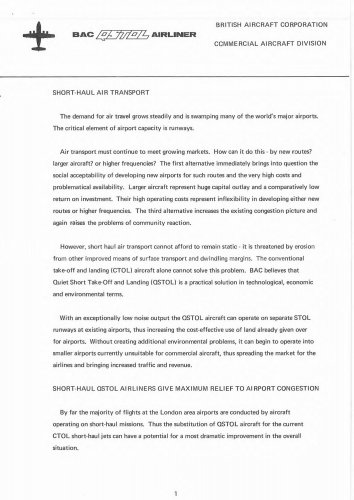

BAC QSTOL manufactures brochure, a recent addition to my collection...

Zeb


Attachments

  • qstol-11.jpg
    216.4 KB · Views: 86
  • qstol-10.jpg
    226.3 KB · Views: 97
  • qstol-9.jpg
    158.6 KB · Views: 92
  • qstol-8.jpg
    261.4 KB · Views: 56
  • qstol-7.jpg
    178.3 KB · Views: 57
  • qstol-6.jpg
    261.9 KB · Views: 55
  • qstol-5.jpg
    124.4 KB · Views: 47
  • qstol-4.jpg
    218.1 KB · Views: 48
  • qstol-3.jpg
    223.8 KB · Views: 51
  • qstol-2.jpg
    251.4 KB · Views: 279

TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
447
Reaction score
333

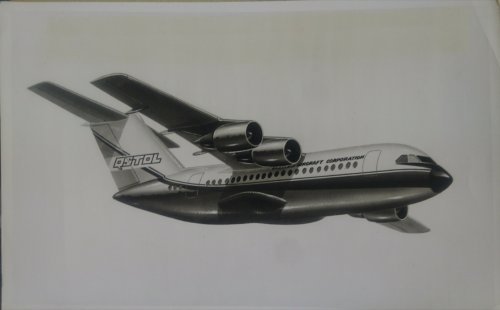

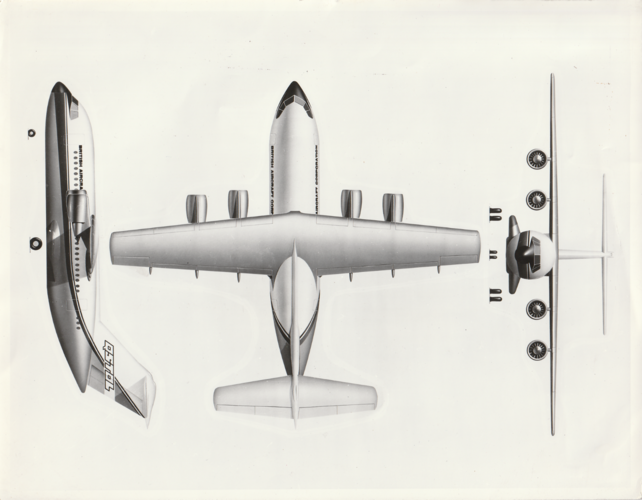

QSTOL.


Attachments

  • _20181111_195605.JPG
    533.4 KB · Views: 65
  • _20181111_195549.JPG
    672.7 KB · Views: 113

coanda

ACCESS: Confidential
Joined
Feb 3, 2009
Messages
190
Reaction score
70
zebedee said:
Sorry should have added that it did kind of end up an Avro by default... when the second production line was set up at Woodford... and the revised version was rebranded as the Avro RJ...

Zeb

Probably because they didn't own the de Havilland name. Which is now for sale over at Bombardier...


zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
206
Reaction score
218
Website
www.flickr.com
I believe it was discussed... I remember someone from BAe at the time saying it would have been too confusing having two deHavilland on the market...

As for the name being up for sale, Viking would be daft if they didn't buy it...

Zeb


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,661

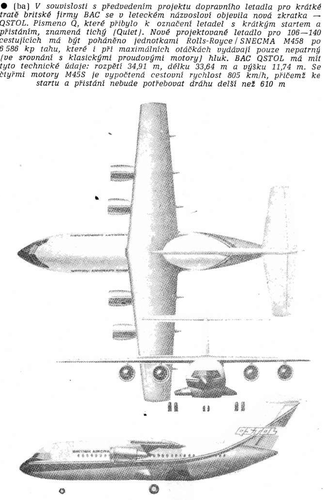

From L+K 1971/18,

with more Info.
