Australian hypersonic

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
11
Website
RetroFlight.com
Now the Aussie's are getting in the game with inward 3D sugar scoop spillage inlets in over\under configuration. Appears the Aussie's are picking up where the now defunct FALCON "Blackswift" concept left off.

http://www.uq.edu.au/news/?article=20353


Attachments

  • supersonic.jpg
    40.5 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,805
Reaction score
4,972
Hi,

http://blogs.crikey.com.au/planetalking/2009/12/30/why-australian-efforts-to-beat-the-hypersonic-heat-barrier-mean-more-to-military-interests-than-the-airlines/


Attachments

  • scene-01.jpg
    179.8 KB · Views: 62
  • scene-02.jpg
    115 KB · Views: 59

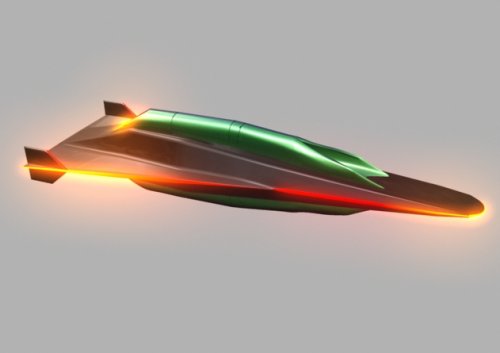

  • 2.jpg
    15.3 KB · Views: 49

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
11
Website
RetroFlight.com
Inward 3D type Billig inspired inlets to the max. Way to go Aussie's!!! USA has stepped back to 2D hyper inlet tech appears the Aussie's could soon rule the 3D realm with the Chinese who are also hot into the 3D inlet tech.


Simon666

ACCESS: Confidential
Joined
May 9, 2007
Messages
105
Reaction score
0
airrocket said:
Inward 3D type Billig inspired inlets to the max. Way to go Aussie's!!! USA has stepped back to 2D hyper inlet tech appears the Aussie's could soon rule the 3D realm with the Chinese who are also hot into the 3D inlet tech.
I haven't read that many papers comparing (mixed) external compression inlets with all internal compression inlets but it looks to me like those inward 3D type inlets might rather be a technological hype like nano technology. They need to be a LOT longer (=heavier) than (mixed) external compression inlets and from what I've read, bleed requirements are also significantly higher, although that's from older papers. I don't know what'spossible now. Main advantage that is claimed of all internal compression inlets is less surface area needs cooling, other advantage is higher pressure recovery is possible. Increases in the amount of internal compression also increases the headaches with regard to unstarts.
