Armstrong Whitworth A.W.52G

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,908
Reaction score
3,862
Website
www.amazon.com
Aeroplane October 2006
Air Enthusiast / Seventeen
"Les Ailes Volantes" by Alain Pelletier
The-Blueprints
IPMS Stockholm 8z4.net AW52


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,995
Reaction score
4,009
Hi!
AW52G : Span=16.41m(54ft10in), Length=5.89m(19ft4in)
AW52 : Span=27.40m(90t), Length=11.4m(14ft4in)
https://www.youtube.com/watch?v=7H1tyMRtcho


Attachments

  • 7978736662_0f3d955272_o.jpg
    138.5 KB · Views: 179
  • Armstrong_Whitworth_AW_52_in_1946.jpg
    38.8 KB · Views: 174
  • AW-52_2.jpg
    58.2 KB · Views: 171
  • AW-52_4.jpg
    57.5 KB · Views: 163

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,995
Reaction score
4,009

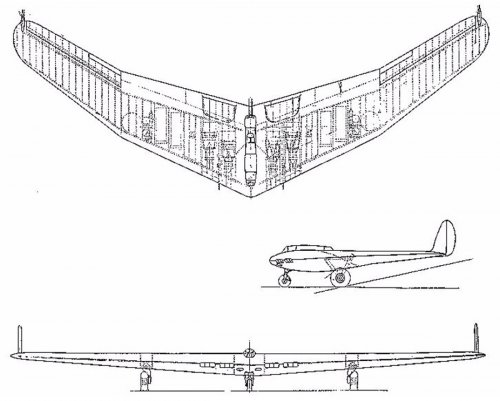

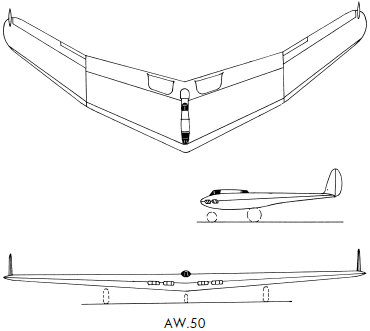

What is this design? A.W.50 bomber?
Is it true?
"A.W.52 was intended as a sub-scale prototype for a full size bomber, the AW.50."

http://historylib.org/historybooks/Mikhail-Kozyrev_Reaktivnaya-aviatsiya-Vtoroy-mirovoy-voyny/28

In mid-December 1942 g. English company Armstrong Whitworth has begun to develop a jet bomber AW. 50, executed according to the scheme "flying wing." Aircraft powerplant consisted of four Metrovick TURBOJET ENGINE (the Metropolitan Vickers) F-3 thrust on 1700 kgs located in pairs on both sides of the cockpit. Bomb load was placed in internal compartments of the wing, defensive armament consisted of two guns in the nose and rear dual turrets, which subsequently abandoned.


Attachments

  • i_127.png
    11.4 KB · Views: 47
  • What is this.jpg
    What is this.jpg
    150.5 KB · Views: 176

roadrunner2

ACCESS: Restricted
Joined
Jul 26, 2007
Messages
39
Reaction score
4
Hello,

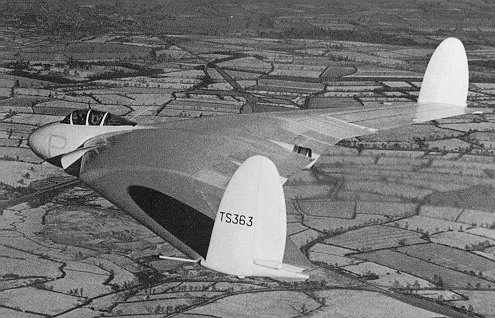

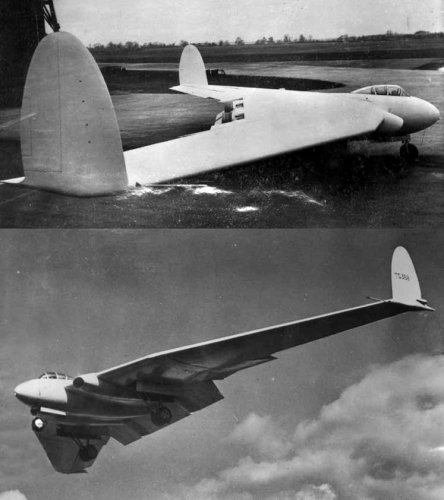

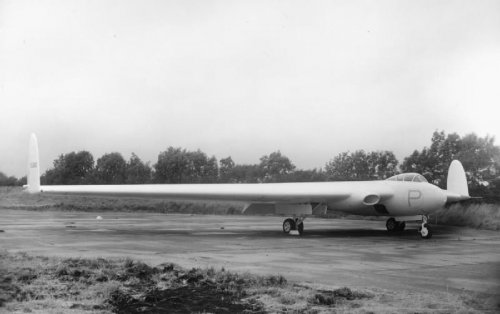

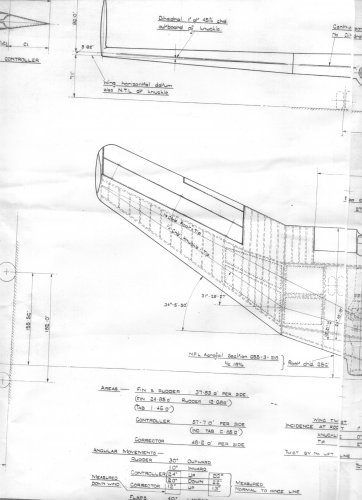

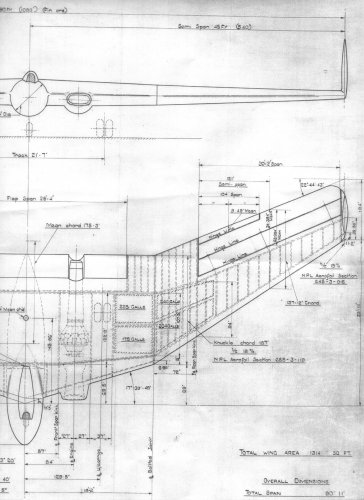

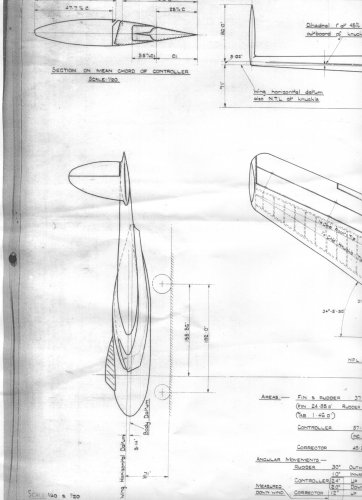

some doc I have.


Attachments

  • AW-52-007.pdf
    332 KB · Views: 42
  • AW-52-006.pdf
    355.2 KB · Views: 31
  • AW-52-005.pdf
    322.1 KB · Views: 34
  • AW-52-004.pdf
    297.3 KB · Views: 37
  • AW-52-003.pdf
    340.6 KB · Views: 32
  • AW-52-002.pdf
    352.4 KB · Views: 33
  • AW-52-001.pdf
    311 KB · Views: 43
  • AW52#3.jpg
    652.7 KB · Views: 62
  • AW52#1.jpg
    936.8 KB · Views: 49
  • AW52#2.jpg
    529.2 KB · Views: 49

roadrunner2

ACCESS: Restricted
Joined
Jul 26, 2007
Messages
39
Reaction score
4
....and more.


Attachments

  • AW-52-014.jpg
    710.9 KB · Views: 80
  • AW-52-013.pdf
    364.3 KB · Views: 39
  • AW-52-012.pdf
    353.3 KB · Views: 34
  • AW-52-011.pdf
    228 KB · Views: 40
  • AW-52-010.pdf
    206.5 KB · Views: 36
  • AW-52-009.pdf
    299.9 KB · Views: 37
  • AW-52-008.pdf
    289.7 KB · Views: 39

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
773
Awesome stuff here, folks! Thanks a lot for sharing all this material, Justo Miranda and roadrunner2!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
773

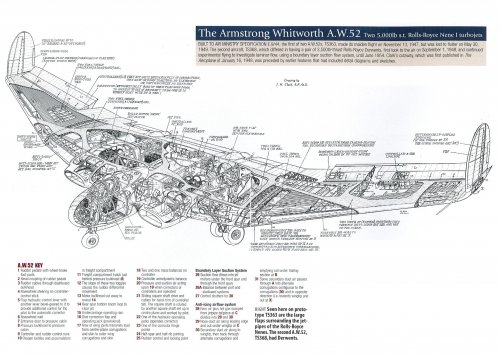

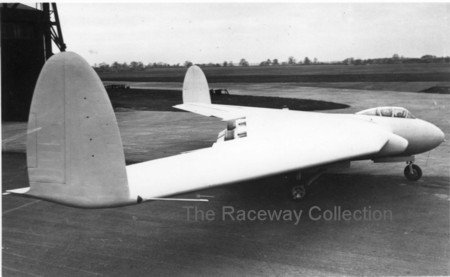

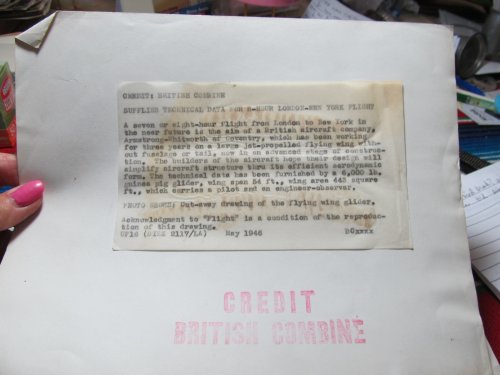

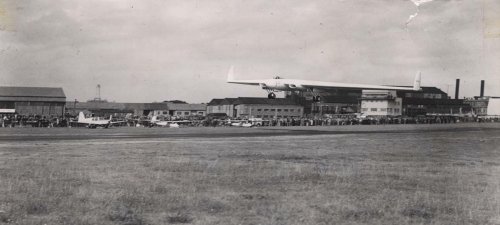

A couple more images from my own folder on the A.W.52G:


Attachments

  • from S&V.jpg
    from S&V.jpg
    698 KB · Views: 37
  • $T2eC16dHJHYFFkW!tUJyBSQ17Zofpw~~60_57.jpg
    291 KB · Views: 39
  • $T2eC16dHJG!FFmNp5+,+BSQ17RRll!~~60_57.jpg
    312.2 KB · Views: 39

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
773

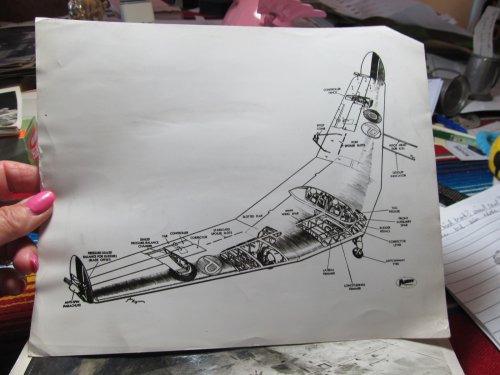

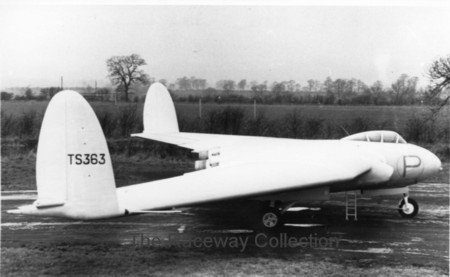

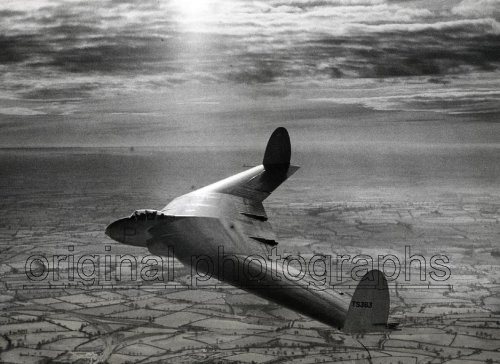

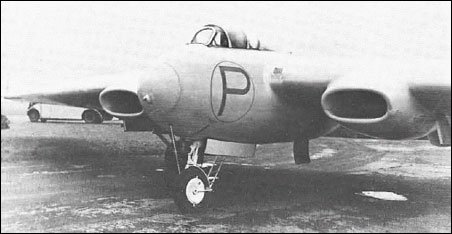

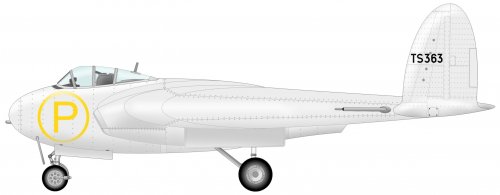

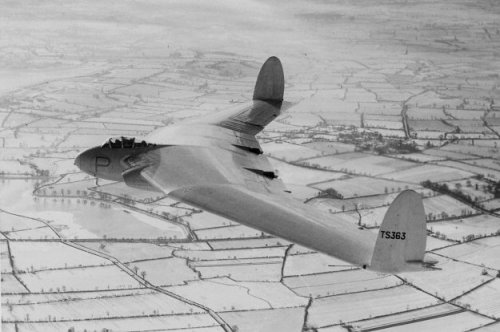

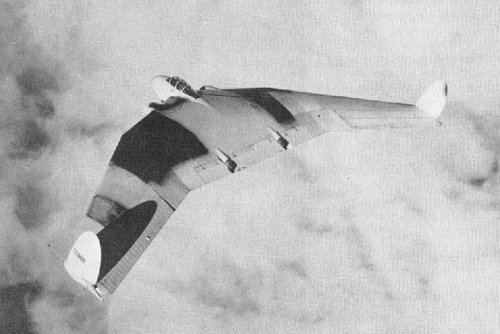

A few more images on the A.W.52:
