Armstrong Whitworth A.W. 21

lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
40
Website
www.res-aeronautica.com
Hi!

In the book "The british aircraft specification file" at pg 46, there is an artist impression of the Armstrong Whitworth A.W. 21, a monoplane fighter designed for the specification F.7/30. Unfortunatly I don't have a scanner, so I can't post the picture, sorry. I'd like to know more about this aricraft and I ask if there are anyone who have more information or drawings about the A.W. 21.

Thank you for your help and, as always, sorry for my english ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,980
Reaction score
5,267
Hi,

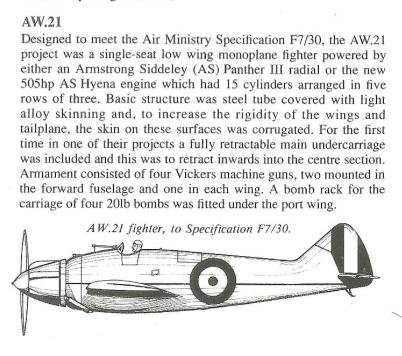

from Air Enthusiast No 43.


Attachments

  • AW.21.jpg
    36.6 KB · Views: 179

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,993
Reaction score
433
Armstrong Whitworth AW.21 :-

This aircraft, along with the AW.35 Scimitar, was submitted to specification F.7/30,
for a 'Day/Night Interceptor'.

Span (hyena version) 37' 6" (11.43m)

Length ( " " ) 31' 5" (9.58m)


Engine- Armstrong-Siddeley Hyena 15 cylinder radial rated at 505hp
OR Armstrong-Siddeley Panther III rated at 500hp.

Armament- 4 Vickers guns, two each in the forward fuselage and wings.

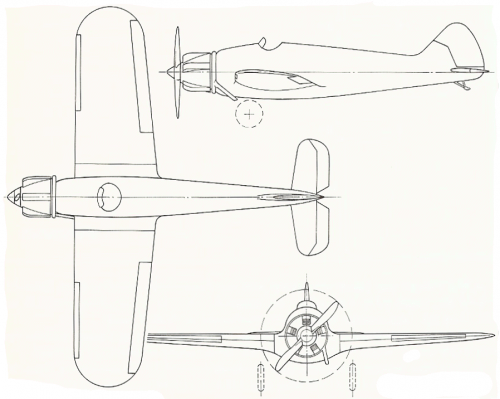

3-view from Putnam's 'Armstrong Whitworth', page 338.

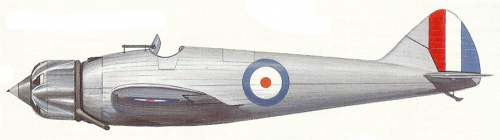

Colour profile from 'Twentyfirst Profile', volume 1, number 10, page 304.


cheers,
Robin.


Attachments

  • AW.21 3-view.png
    AW.21 3-view.png
    174.5 KB · Views: 163
  • AW.21 profile.png
    AW.21 profile.png
    80.8 KB · Views: 161

lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
40
Website
www.res-aeronautica.com
Thank you robunos for the very interesting pictures and for the technical data. It's a shame that the plane has not been further developed: compared to the Scimitar seemed much better.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
246
Reaction score
40
Website
www.res-aeronautica.com

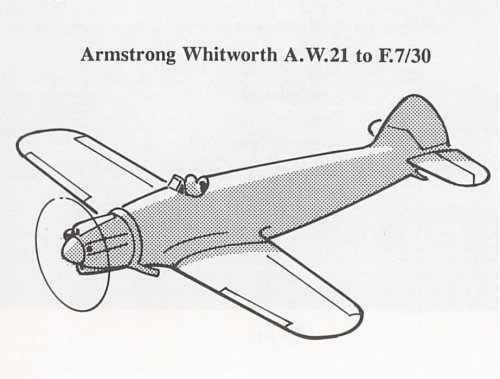

I finally bought a scanner and I can post the picture of the book (The british aircraft specification file)


Attachments

  • A.W.21.png
    295.3 KB · Views: 109
