ARES Advanced Individual Combat Weapon for the Advanced Combat Rifle competition

Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
26

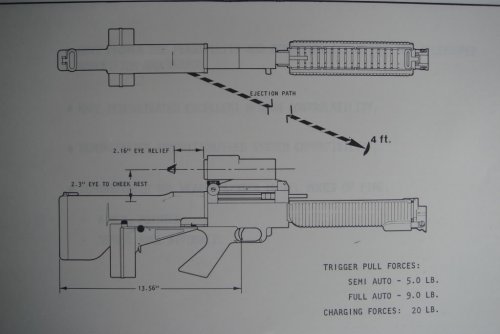

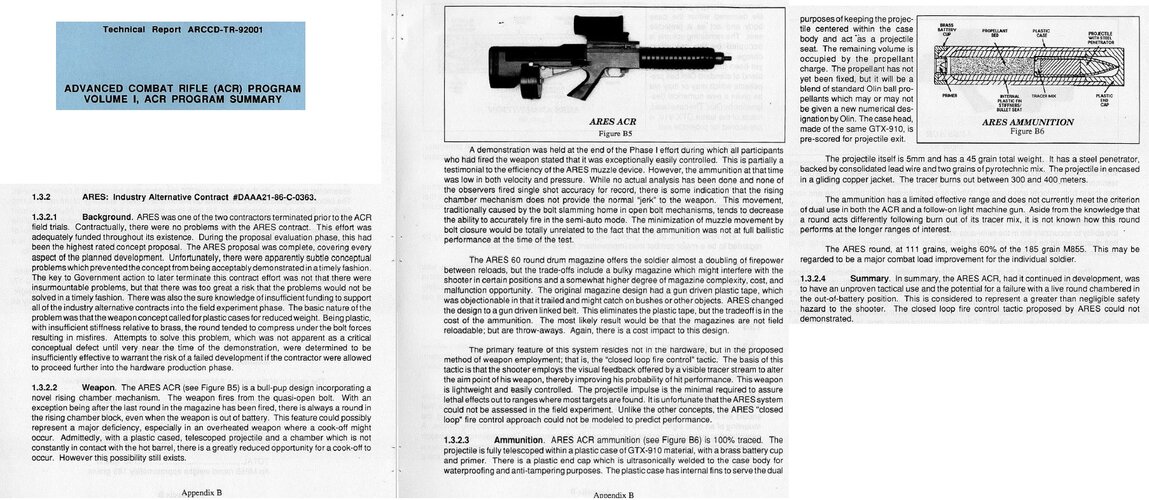

-Rising Chamber
-Cased telescoped ammunition
-Withdrawn after Phase I of the ACR competition
-Related to Future Assault Rifle Concept (FARC)?


Attachments

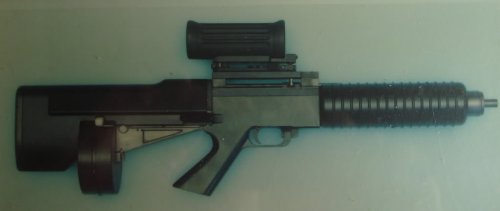

  • colorproto.jpg
    29 KB · Views: 442

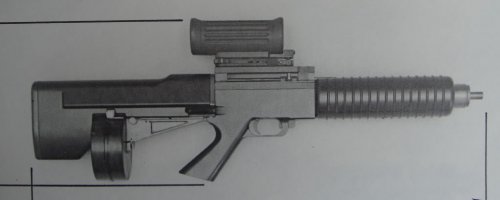

  • bwproto.jpg
    54.4 KB · Views: 198
  • drum.jpg
    71.7 KB · Views: 390
  • aicw1.jpg
    66.3 KB · Views: 391

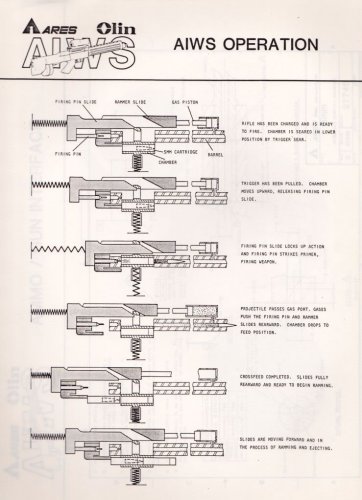

  • aiwsoperation.jpg
    105.2 KB · Views: 428

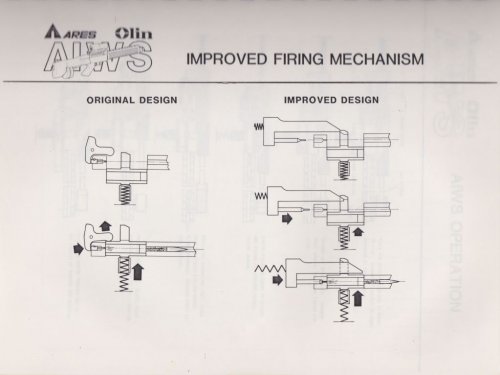

  • k155330_aiwsfiringmechanism.jpg
    55.3 KB · Views: 422

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
Great pictures Phyrrihc. ARES under the technical leadership of Eugene Stoner (designer of the M16) and funded by DARPA developed Case Telescoped Ammunition (CTA) technology in the 1970s. They realised the first CTA weapons in 5mm (this rifle), 12.7mm (TARG), 35mm (TALON) and 75mm (XM274). They also designed CTA solutions for everything from 5.56mm to 90mm.


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
13
Never heard of this one before (and I'm supposed to be a small-arms guy - I hate that :mad:)

Polymer case-telescoped ammunition could be making a come-back with the US Lightweight Small Arms Technologies programme:

http://www.dtic.mil/ndia/2005smallarms/wednesday/spiegel.pdf

Regards & all,

Thomas L. Nielsen
Luxembourg


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,068
Reaction score
162
Interesting design. How were the rounds moved from the drum magazine to the chamber?

That magazine would cause problems nowadays. The location versus the widespread use of armour would make it impossible to aim effectively with it.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
rickshaw said:
Interesting design. How were the rounds moved from the drum magazine to the chamber?

It’s pretty clearly shown in the action diagrams above. The round at the top feed position of the magazine is moved forward by a protrusion of the bolt into the chamber pushing out the empty casing forward. When the trigger is pulled the chamber moves upwards freeing the under spring pressure bolt which moves forward so the firing pin can engage the round.

rickshaw said:
That magazine would cause problems nowadays. The location versus the widespread use of armour would make it impossible to aim effectively with it.

No it wouldn’t. The greater width of the drum magazine is still about three inches forward of the butt. This would still allow for a traditional angled away from the line of fire stance without coming into contact with the chest or vest. Soldiers are now trained to have a stance at a right angle to the line of fire so as to expose the hard face of the body armour to enemy fire. The benefit of this is that even through your profile may be bigger the armour can stop the bullet rather than it entering under your left arm and into the chest cavity.


vajt

ACCESS: Confidential
Joined
May 6, 2007
Messages
74
Reaction score
1
Very interesting design. Looks better than AAI's current LSAT design. Go to the bottom of page 2 on the pdf to see the latest cased-telescoped LSAT prototype.

http://www.aaicorp.com/pdfs/lsatps09-09-08.pdf

I hope AAI will take advantage of the fact that a cased-telescoped (and even more a caseless) round is lighter and smaller to increase the rounds carried in a clip or drum.

-----JT-----


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
The LSAT is designed to be a replacement for the M249 light machinegun (aka Minimi) and is therefore a very different weapon to the ARES AIWS. The LSAT trial methodology is that the new weapon and ammunition needs to be able to meet every M249 performance specification except to be as light as possible. So this means belt feed, changeable barrel, etc. They are claiming a 45% weight reduction with polymer CTA ammunition to date. The magazine feed rifle variant is just a minimal change of the primary LMG. At this level of development (TRL 5) they can't be expected to customise this weapon for the infantry combat weapon role.


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
473
Reaction score
115
Thanks for the links ! The rotary loader gave me an idea for something a little larger...


Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
726
Reaction score
87
Abraham Gubler said:
Great pictures Phyrrihc. ARES under the technical leadership of Eugene Stoner (designer of the M16) and funded by DARPA developed Case Telescoped Ammunition (CTA) technology in the 1970s. They realised the first CTA weapons in 5mm (this rifle), 12.7mm (TARG), 35mm (TALON) and 75mm (XM274). They also designed CTA solutions for everything from 5.56mm to 90mm.

Was the 75mm XM274 the same gun planned for use on the AAI RDF light tank?


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
Colonial-Marine said:
Was the 75mm XM274 the same gun planned for use on the AAI RDF light tank?

It was the same gun but it was actually used in a range of US Army 1970s and 80s tank demonstrators and prototypes.


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
10
My apologises for replying to such a dated discussion but I thought this to be the appropriate forum to seek the wisdom of Abraham on whether flechettes were considered for CTA rounds? I also read somewhere that flechettes for some advanced rifle program was supposed to manufactured by growing them from seed crystals using a process not unlike that employed for turbine blades.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
I don’t know about wisdom, just memory. The Steyr entry in the US Army’s 1980s ACR competition fired a flechette round through CTA ammunition. This round had a lot of problems with robustness of the case and stability of the flechette (sabot release, etc) so very much underperformed. On paper it was pretty lethal with a muzzle velocity of 1,450 ms that was retained through much of the flight. From memory it was still travelling at around 1,000 ms at 1km range. The use of CTA ammunition also enabled it to have an annular primer and a fixed, right angle firing pin. The action of the weapon was extremely simple and likely to be very robust in use.

The flechette used in the Steyr ACR was not a micro flechette it had a diameter of about 1-1.5mm so it would be quite easy to make in conventional castings or machining. Even made from such methods it would be highly effective at body armour penetration thanks to its velocity and sectional density. I guess single crystal super alloys could be a material for producing very strong small arms flechettes. But then you would have an infantry small arm able to penetrate tank armour!


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
13
The AAI entry for phase II of the ACR competition also fired a flechette type round, this one using a standard 5.56x45mm cartridge case.

According to http://www.globalsecurity.org/military/systems/ground/acr.htm, the data for the flechette itself was size 1.5x42 mm, mass 0.66 grams and muzzle velocity 1400 m/s.

Regards & all,

Thomas L. Nielsen
Luxembourg


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
10
Abraham,

Thank you again. Btw, could flechettes be made through the die-stamping process?


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
Lauge said:
The AAI entry for phase II of the ACR competition also fired a flechette type round, this one using a standard 5.56x45mm cartridge case.

According to http://www.globalsecurity.org/military/systems/ground/acr.htm, the data for the flechette itself was size 1.5x42 mm, mass 0.66 grams and muzzle velocity 1400 m/s.

Its interesting looking at the combat accuracy results of the ACR competition. The two flechette firing weapons achieved about 80% at 50m and then dropped down past 20% for the 150-300m range targets. The AAI weapon had about a 5-10% advantage at 50m over the Steyr weapon but dropped down behind it at range. The flechettes were effective at short range (50m) and then lost their stability after this providing very poor at range effects when their very short time of flights and very low loss of heights were on paper supposed to provide them with an advantage.

The difference between the Steyr and AAI weapons at close range can be attributed to the complete rigging of the ACR competition by the US Army. All of the US weapons (M16 baseline, AAI flechette and Colt duplex) had the advantage of ACOG or ELCAN ~x4 magnified combat optics compared to the ~x1 optics of the European weapons (H&K G11 and Steyr). This provides them with a significant improvement in accuracy caused by the sight not the weapon.

The clear winner of the ACR was the G11 which outshoot the M16 and the Colt duplex despite having a far inferior combat optic. That a rifle can outshoot another out to 300m with a x4 deficit in magnification of the sight is a clear indication that it is far superior. Of course since the test had been rigged and such a *minor* detail was overlooked in the result summary it appeared that no new weapon provided a clear advantage over the M16 so no new weapon was acquired.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
amsci99 said:
Btw, could flechettes be made through the die-stamping process?

Probably not as the flechette (French: little dart) needs to have fins for yaw for in flight stability. Flechettes for artillery munitions are actually produced from steel wire in a similar manner to nails.


Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
26

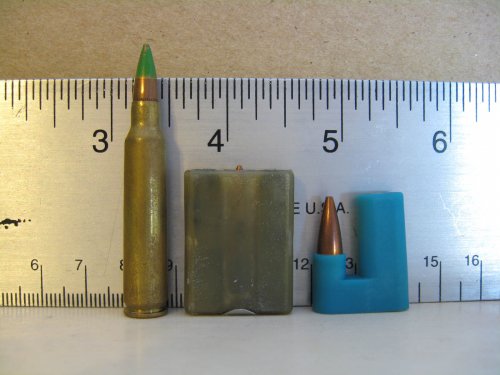

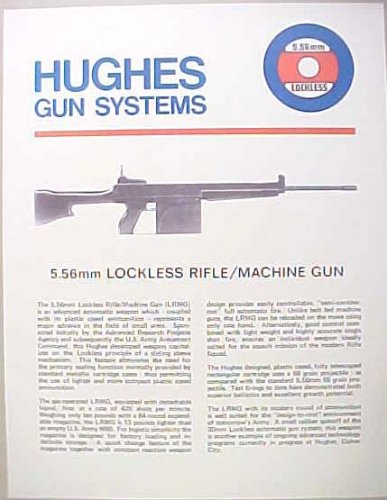

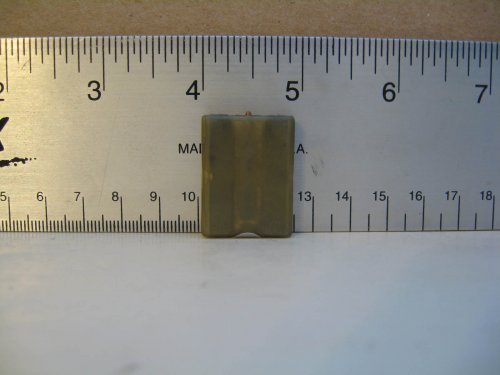

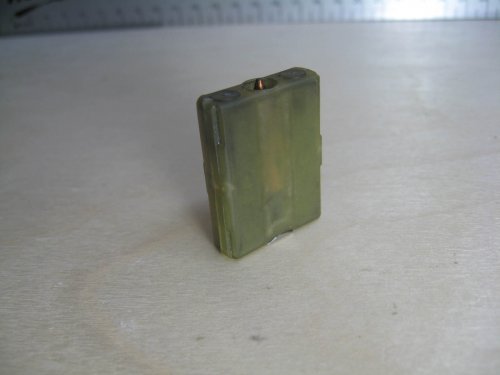

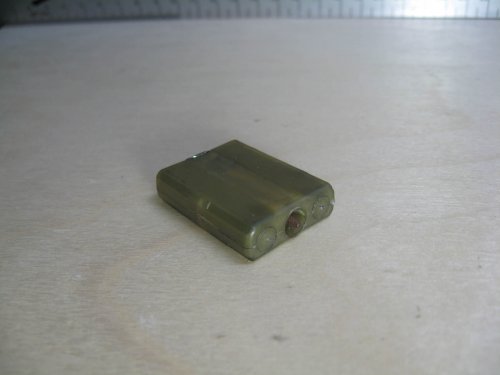

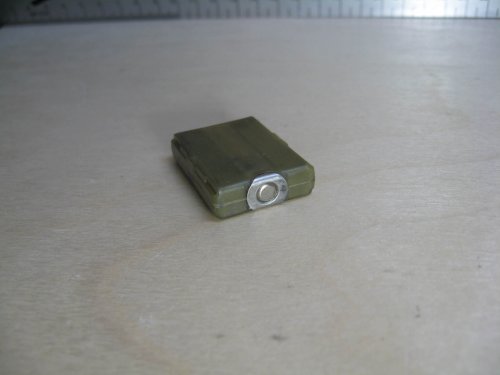

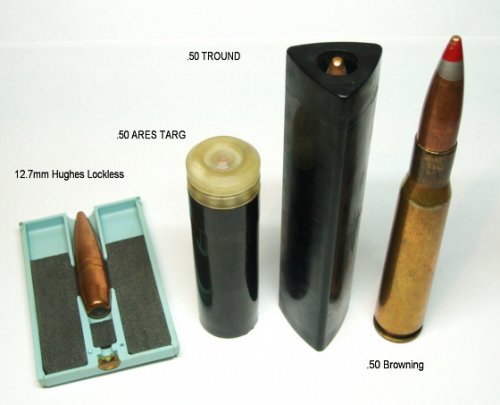

Hughes Lockless weapons + ammunition


Attachments

  • HMGexp.jpg
    63.5 KB · Views: 109
  • hl5.jpg
    201.9 KB · Views: 68
  • hl4.jpg
    156.9 KB · Views: 45
  • hl3.jpg
    115.8 KB · Views: 142
  • hl2.jpg
    112.5 KB · Views: 149
  • hl1.jpg
    113.1 KB · Views: 188
  • hughes2.jpg
    35 KB · Views: 243
  • hughes1.jpg
    40.8 KB · Views: 231

Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
26

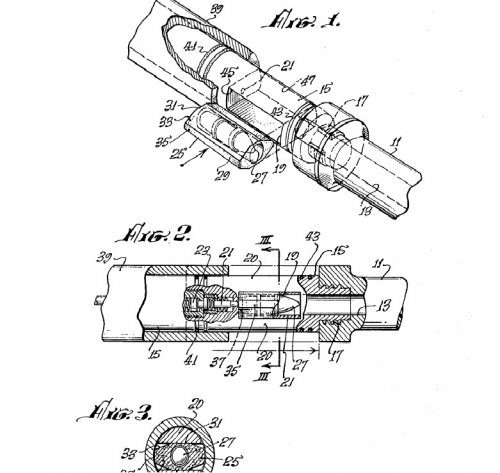

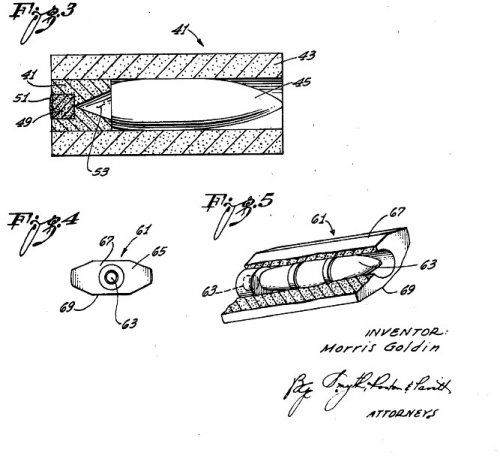

Patents for telescoped casing and rising chamber weapon

http://www.google.com/patents/about?id=F4ouAAAAEBAJ
http://www.google.com/patents/about?id=Tu80AAAAEBAJ
http://www.google.com/patents/about?id=8-E4AAAAEBAJ
http://www.google.com/patents/about?id=uOM0AAAAEBAJ


Attachments

  • HLP.jpg
    100.2 KB · Views: 64
  • lockless.jpg
    135.7 KB · Views: 62

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230
Abraham Gubler said:
Its interesting looking at the combat accuracy results of the ACR competition. The two flechette firing weapons achieved about 80% at 50m and then dropped down past 20% for the 150-300m range targets. The AAI weapon had about a 5-10% advantage at 50m over the Steyr weapon but dropped down behind it at range. The flechettes were effective at short range (50m) and then lost their stability after this providing very poor at range effects when their very short time of flights and very low loss of heights were on paper supposed to provide them with an advantage.

The difference between the Steyr and AAI weapons at close range can be attributed to the complete rigging of the ACR competition by the US Army. All of the US weapons (M16 baseline, AAI flechette and Colt duplex) had the advantage of ACOG or ELCAN ~x4 magnified combat optics compared to the ~x1 optics of the European weapons (H&K G11 and Steyr). This provides them with a significant improvement in accuracy caused by the sight not the weapon.

The clear winner of the ACR was the G11 which outshoot the M16 and the Colt duplex despite having a far inferior combat optic. That a rifle can outshoot another out to 300m with a x4 deficit in magnification of the sight is a clear indication that it is far superior. Of course since the test had been rigged and such a *minor* detail was overlooked in the result summary it appeared that no new weapon provided a clear advantage over the M16 so no new weapon was acquired.

A forum member has asked about my source for the ACR hit probability and I promised to upload it when I could. It is from two Ph tables as quoted in Wolfgang Seel’s “Die G11 Story: Die Entwicklungsgeschichte Einer High-tech Waffe” and supported by commentary in the text.

As you can see from the attached tables despite having a far inferior combat optic the G11’s three round burst function enabled it to match and/or exceed the Ph of the M16A2 and Colt ACR using x3-4 magnifying optics. What it could achieved if the sighting issue was a level playing field remains to be seen. If the ACR trials had been conducted in such a fair manner maybe the G11 would be in service today with the US Army…

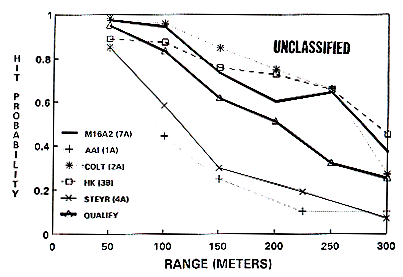

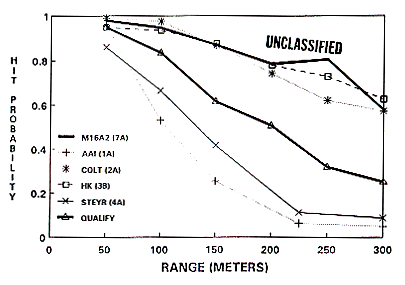

Hit probability as a function of range of the ACR candidates in Phase I (Picture 12) and Phase II(Picture 13) trials. Source: US Army Material Systems Analysis Activity: Independent Evaluation Report No. 5-91 of the Advanced Combat Rifle, August 1991


Attachments

  • Report_5-91_Pic_12.png
    33.7 KB · Views: 79
  • Report_5-91_Pic_13.png
    30.4 KB · Views: 84

Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
230

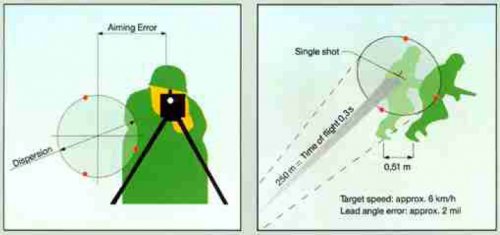

Attached is the original H&K G11 brochure from back when it was a going thing. Also an image explaining the very important controlled dispersion of its unique salvo burst fire.


Attachments

  • G11_dispersion.jpg
    141.8 KB · Views: 139
  • Hk G11.pdf
    528.4 KB · Views: 43

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,877
Reaction score
2,149
This might be of interest to you guys:

http://www.quarry.nildram.co.uk/Assault.htm

ASSAULT RIFLES AND THEIR AMMUNITION:

HISTORY AND PROSPECTS


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
940
Reaction score
404
Pyrrhic victory said:
-Rising Chamber
-Cased telescoped ammunition
-Withdrawn after Phase I of the ACR competition
-Related to Future Assault Rifle Concept (FARC)?
I'm probably the only one who did, but I still have to ask....

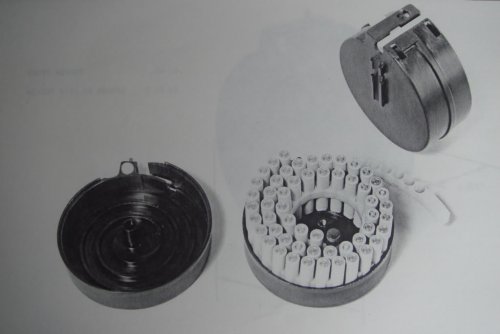

Did anyone else look at "drum-jpg" and think "NERF gun!"????
