Grzesio said:

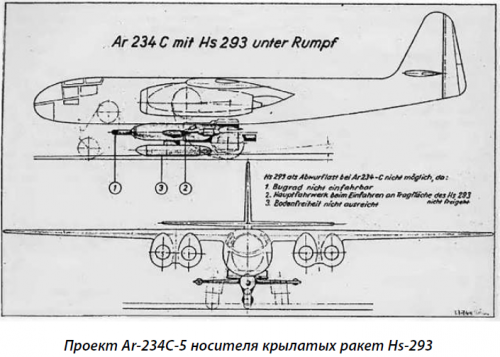

...For example, the Ar 234 with Hs 293 A is drawn after an original German scheme explaining, why Hs 293 A cannot be carried by Ar 234 in this fashion. :)

Was thinking of to low ground clearance, but for such oversized loads a launch trolley seem to have been considered
again. Which other reasons were given ?


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
275
Reaction score
110
Website
chemnitzer27kb.blogspot.com

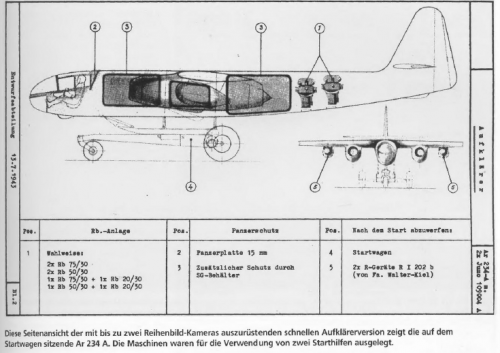

Was thinking of to low ground clearance
Yes, and retracting of the launding gear was impossible - the nose wheel would collide with the ballast weight at the missile nose, while main wheels would collide with missile wings.

but for such oversized loads a launch trolley seem to have been considered
Really was there such an idea? A great care and a lot of effort was put into providing sufficient ground clearance for a number of bigger weapons, some were simply disqualified because of the insufficient GC... Life would have been much easier if there had been a launch trolley on hand. :)


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Grzesio said:
Really was there such an idea?

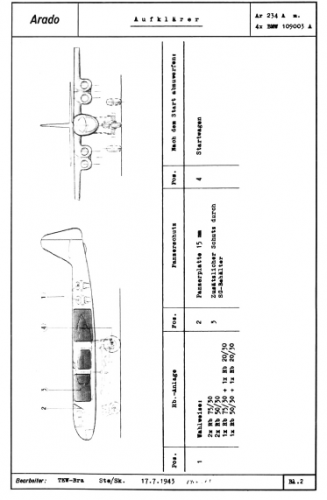

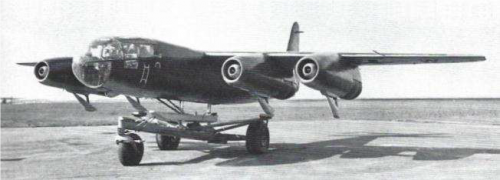

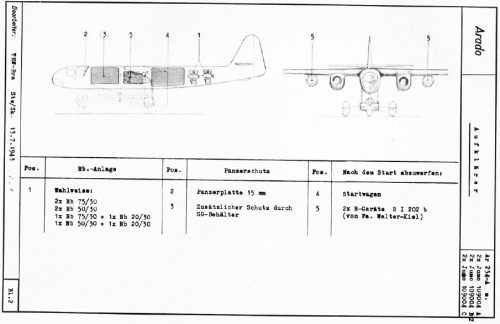

The use of a trolley at least is shown in several drawings, so I think, it was at least contemplated and
with the V8 prototype, a four engined variant actually used it. How serious such thoughts actually were,
who knows ? Without doubt, the Arado engineers came up with them, when the outcome of WW II for
Germany was undoubtly foreseeable.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,378
Reaction score
2,469
Grzesio said:
Really was there such an idea?

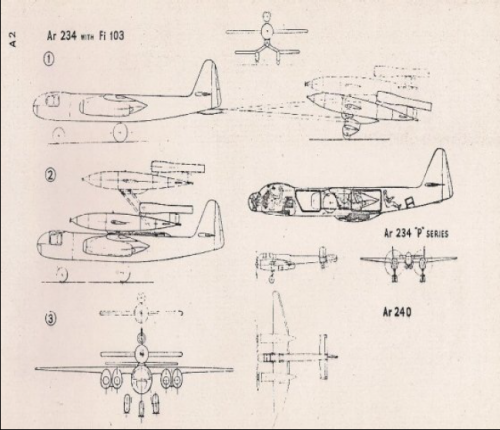

The Orlginal AR 234 concept, had to land on three retractable skids as landing gear
For take off it use a jettisonable three-wheeled, nosegear-style trolley.
after first trails they discovered how stupid this idea was.
so the B version was modified to have fully retractable tricycle landing gear.

but the idea stuck for bigger payload like V1 (also for Hs 293 A ?)
the reason why ? was simple, the AR 234 was the biggest Jet aircraft the Luftwaffe had in 1944/45.
It could fly those mission and get back alive.

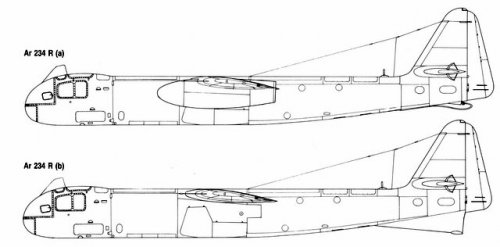

i got a question on AR 234 R

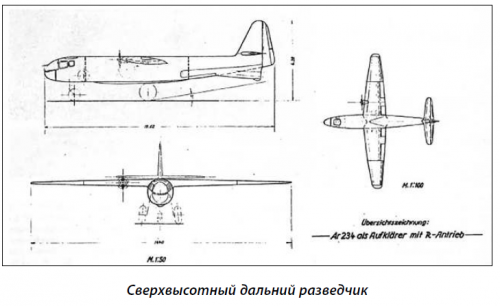

it seems that is a Rocket-powered short range high-altitude reconnaissance version
now had 234 R had to use pure rocket power with Walter HWK 109-509 or it use BMW 003R form Me 262 C-2b ?


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
275
Reaction score
110
Website
chemnitzer27kb.blogspot.com
Hmmm... But do we have any evidence, trolley was actually considered for Ar 234 B/C with any bigger load (except Mistel), or is it just a speculation? I don't think I've ever seen such a combination.

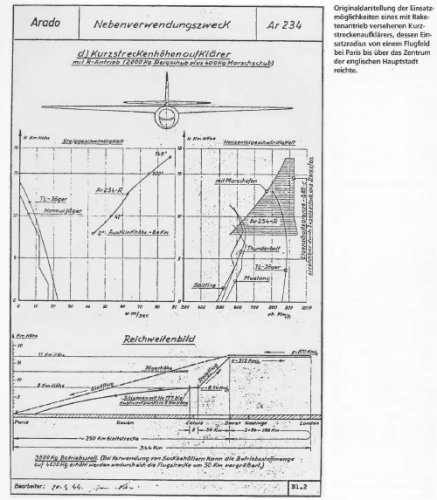

i got a question on AR 234 R
it seems that is a Rocket-powered short range high-altitude reconnaissance version
now had 234 R had to use pure rocket power with Walter HWK 109-509 or it use BMW 003R form Me 262 C-2b ?
Both. :) Three rocket Ar 234 variants were considered:
- with two HWK 109-509 C-1 in nacelles under wings;
- with one HWK 109-509 C-1 (?) under the tail; both were cancelled in mid 1944.
- with two BMW 109-003 R; Ar 234 V16 was planned in but never completed.
All are illustrated just above in hesham's post, drawing 25.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
Hi,

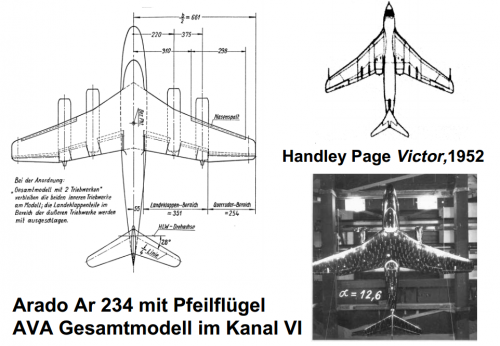

http://www.fzt.haw-hamburg.de/pers/Scholz/dglr/hh/text_2011_03_03_Swept_Wing.pdf


Attachments

  • 1.png
    257.8 KB · Views: 493

J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
6
Interesting comparison there H, & makes an intriguing contrast with the similar Junkers/B-52 resemblance,
almost like they had traded podded/buried engine layout ideas..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114

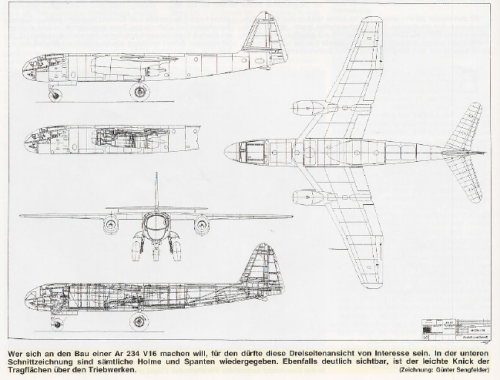

From Jet & Prop 3/2005,

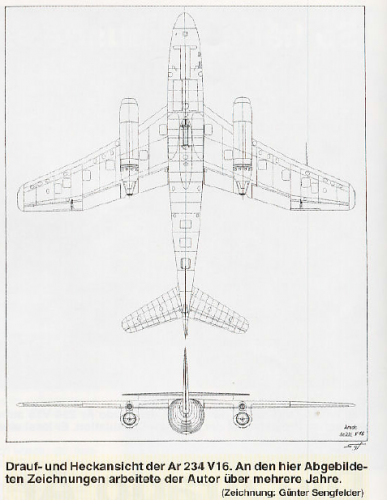

here is the drawings to Arado Ar.234 V.16.


Attachments

  • 234-V.16-1.png
    273.6 KB · Views: 476
  • 234-V.16-2.png
    373.9 KB · Views: 497

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114

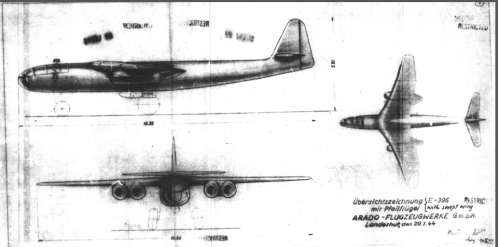

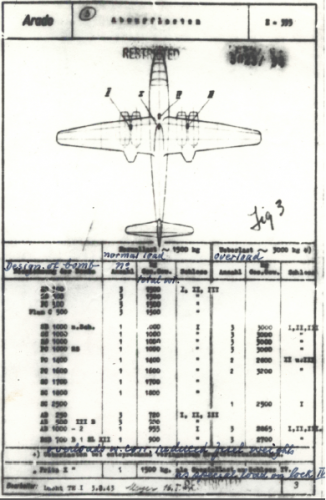

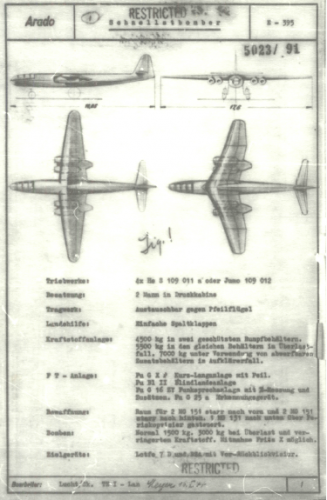

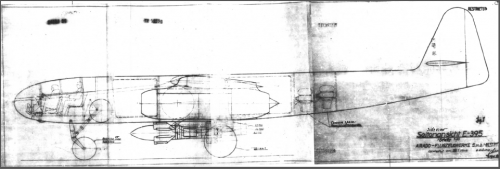

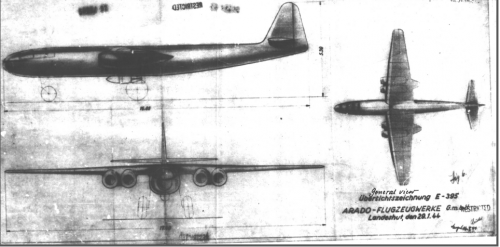

Re: LOCKHEED INFO FOLDER ON THE GERMAN ARADO E-395 SUPERSPEED BOMBER

PaulMM (Overscan) said:
Item has sold.


My dear Paul,


here is the same report as I guess;


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/a/Alliierte/Lockheed%20E_395.pdf


Attachments

  • 5.png
    204.9 KB · Views: 222
  • 4.png
    299.5 KB · Views: 179
  • 3.png
    347.1 KB · Views: 161
  • 2.png
    365.2 KB · Views: 293
  • 1.png
    338.4 KB · Views: 322

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114

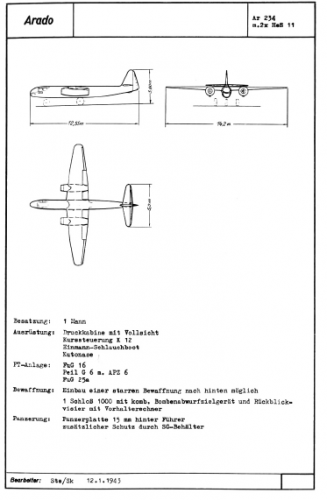

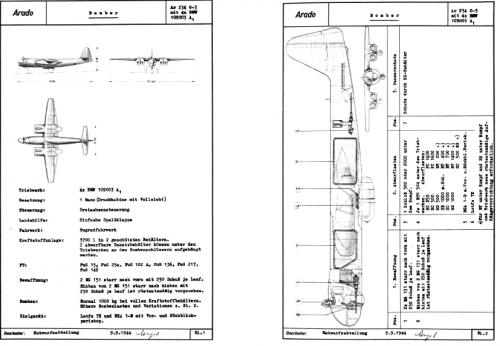

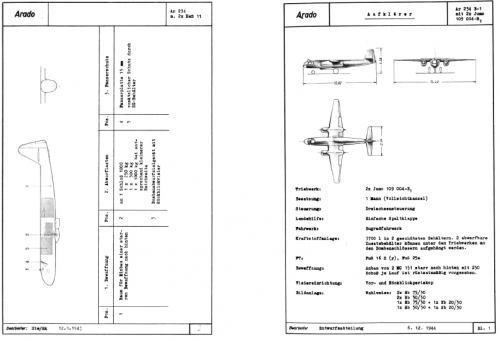

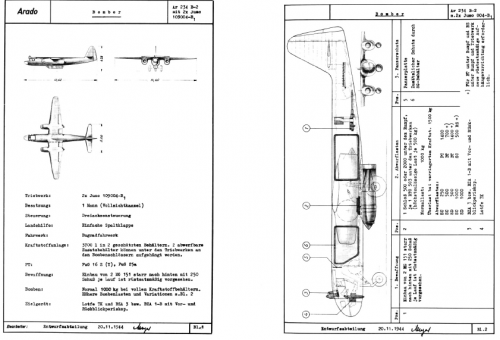

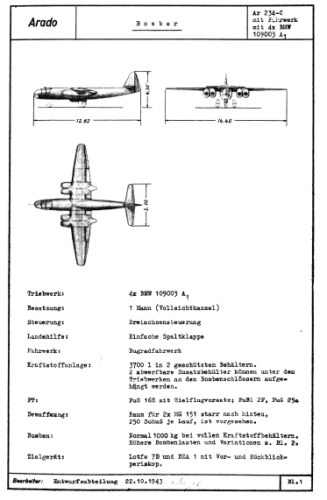

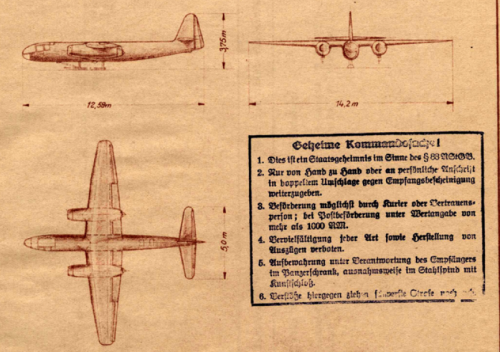

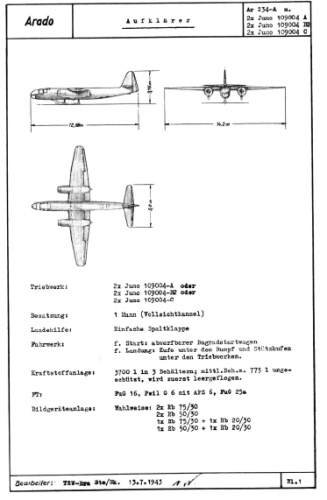

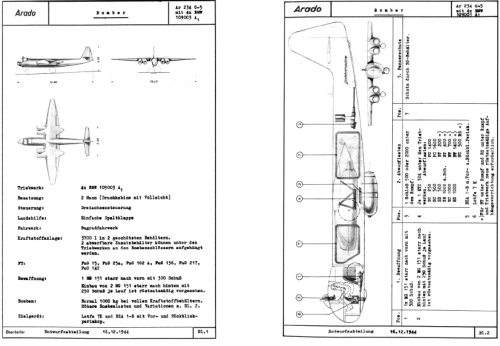

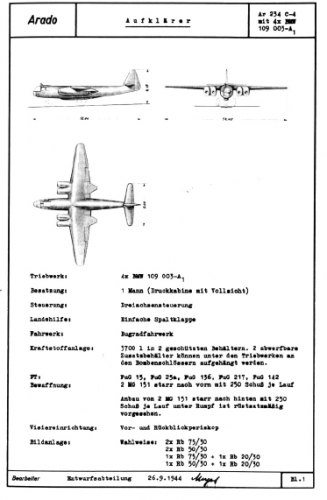

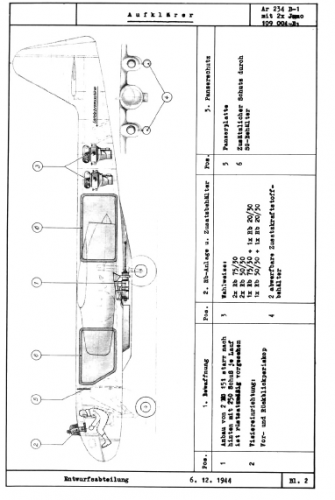

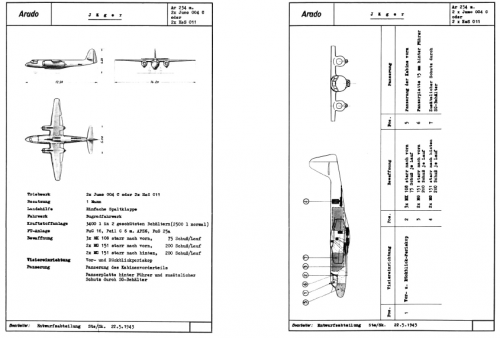

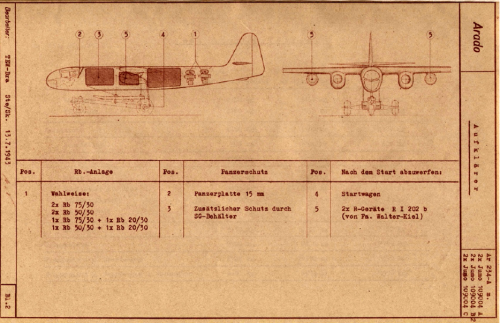

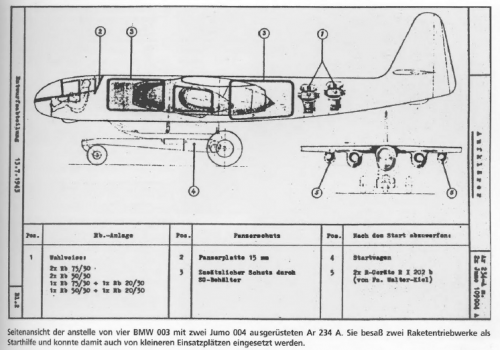

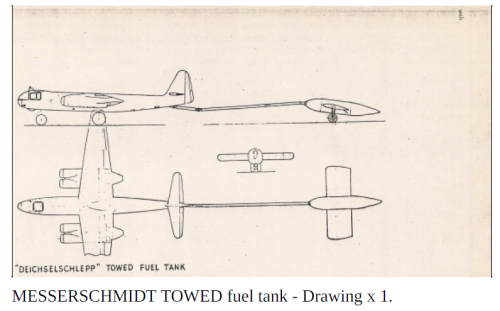

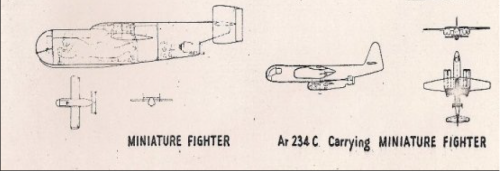

And anther report about Ar.234;


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/a/Arado/Ar%20234/Arado_Ar234_Dokumente_Konvolut.pdf


Attachments

  • 8.png
    135 KB · Views: 104
  • 7.png
    58.1 KB · Views: 88
  • 6.png
    120.5 KB · Views: 86
  • 5.png
    137.5 KB · Views: 83
  • 4.png
    67.3 KB · Views: 89
  • 3.png
    155.8 KB · Views: 89
  • 2.png
    278.9 KB · Views: 82
  • 1.png
    82.6 KB · Views: 79

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
And;


Attachments

  • 15.png
    177.2 KB · Views: 1,446
  • 14.png
    104.3 KB · Views: 92
  • 13.png
    74.6 KB · Views: 80
  • 12.png
    181 KB · Views: 75
  • 11.png
    75.9 KB · Views: 75
  • 10.png
    177.2 KB · Views: 75
  • 10.png
    177.2 KB · Views: 79
  • 9.png
    93.8 KB · Views: 86

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
From; Secret Nazi Aircraft 1939 -1945 Luftwaffe's Advanced Aircraft Projects


Attachments

  • 234-3.png
    363.9 KB · Views: 151
  • 234-2.png
    517 KB · Views: 143
  • 234.png
    439.9 KB · Views: 128

Clipper996

Indeed
Joined
Apr 16, 2013
Messages
20
Reaction score
0

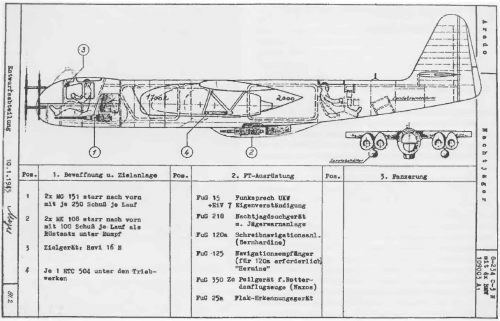

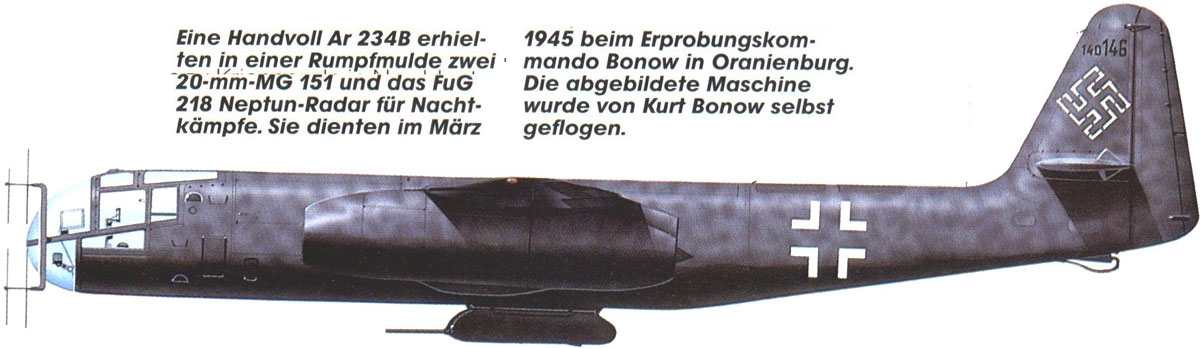

Arado Ar 234C-3/N

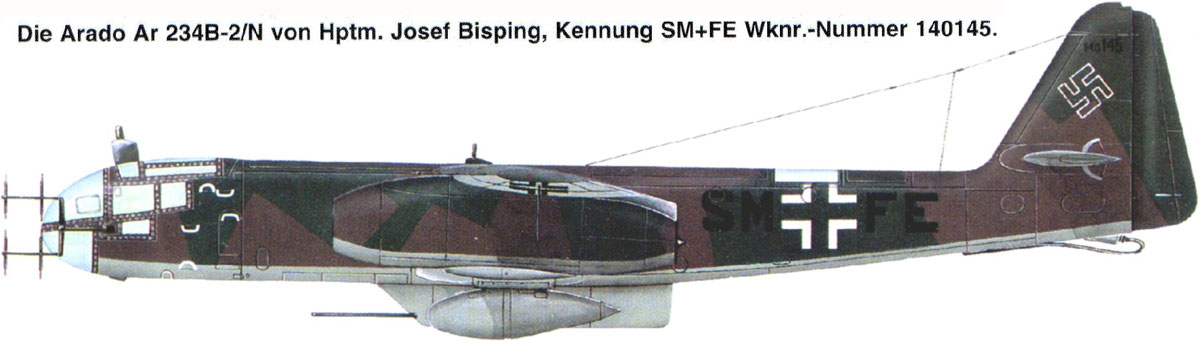

I've got this small excerpt detailing the night fighter version of the four-engined Ar 234 (very similar to the two-engined Ar 234B-2/N which saw limited service), i'm wondering if someone has the full report detailing weight etc.


Attachments

  • Ar 234 C-3 N.png
    Ar 234 C-3 N.png
    446.2 KB · Views: 583

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
Re: Arado Ar 234C-3/N

Hi Clipper,

a small info about it;

https://en.wikipedia.org/wiki/Arado_Ar_234

Ar 234 C-3/N
Proposed two-seat night fighter version, armed with two forward-firing 20 mm MG 151/20 and two 30 mm (1.18 in) MK 108 cannons, fitted with a mid-VHF band FuG 218 Neptun V radar.


Clipper996

Indeed
Joined
Apr 16, 2013
Messages
20
Reaction score
0
Re: Arado Ar 234C-3/N

Well that's basically a summary of what's on that excerpt i already posted, but i'm looking for more details, e.g. the rest of the report.

Thank you for the input nevertheless.

UPDATE

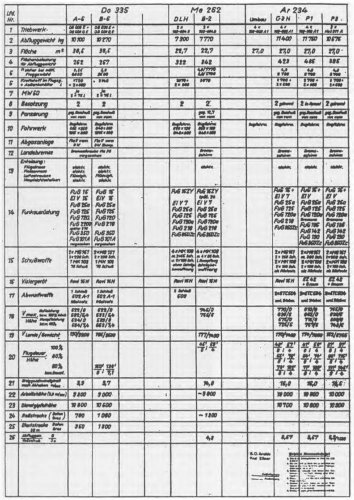

I've founds some info which apparently compares Do 335, Me 262 and Ar 234 night fighter variants;

Source: Dornier Do 335, 435, 635 by Manfred Griehl


Attachments

  • Do 335 Me 262 Ar 234.jpg
    Do 335 Me 262 Ar 234.jpg
    821.8 KB · Views: 465

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
Re: Arado Ar 234C-3/N

Nice find Clipper,

also we can merge those topics;

http://www.secretprojects.co.uk/forum/index.php/topic,5631.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
Hi,

here is in Pictures No 2 & 3 a variants of Ar.234,but I don't know Ar.234 Type-E,also
what was in the pictures No 4,5 & 6,a glider and a motor glider or something else ?.

Strahflugzeug Arado Ar 234 Blitz


Attachments

  • 6.png
    187.1 KB · Views: 124
  • 5.png
    183.1 KB · Views: 136
  • 4.png
    177.2 KB · Views: 126
  • 3.png
    262.5 KB · Views: 339
  • 2.png
    249.8 KB · Views: 352
  • 1.png
    99.6 KB · Views: 353

Imperialist

Shipbucket FD-Scale Artist
Joined
Dec 18, 2013
Messages
17
Reaction score
3
Dear Hesham,

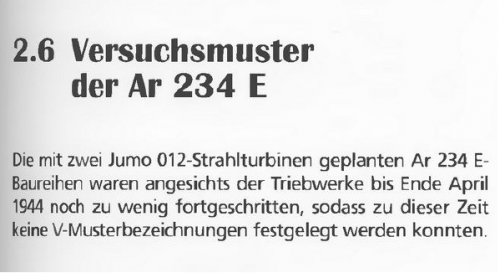

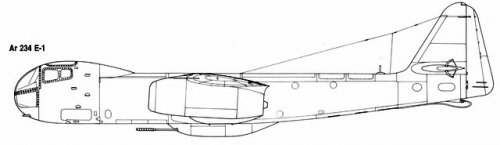

I believe the pictures 4 and 5 portray an Arado Ar 234R variant with rocket-assisted take off. Arado 234E-1 variant was to have He S011 engines and Mk 103 (i think) in a gunpod under the fuselage.

Sources:
Kagero Monnografie 33 "Ar 234" by Marek J. Murawski
Monografie Lotniczie 32 "Ar 234 Blitz" by Seweryn Fleischer, Marek Rys


Attachments

  • Ar.234E.jpg
    18.6 KB · Views: 132
  • Ar234R.jpg
    31.8 KB · Views: 136

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114
many thanks,and you are welcome Imperialist,

but what was in the wing,a propeller ?.


Attachments

  • 5.png
    183.1 KB · Views: 156

Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
275
Reaction score
110
Website
chemnitzer27kb.blogspot.com

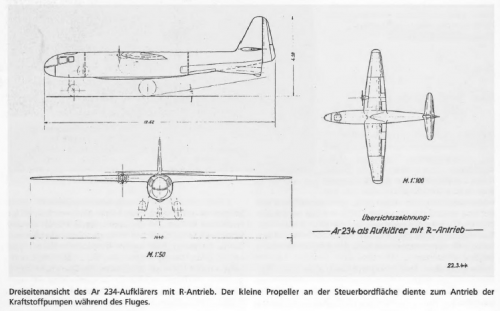

A small propeller driving fuel pumps, according to the caption (I wonder if it wasn't just an electric generator as in the Me 163...?).
The variant in the picture is purely rocket propelled.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114

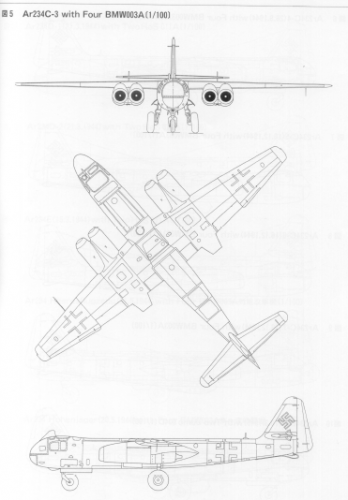

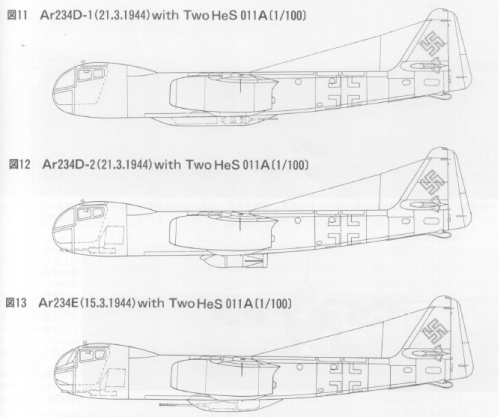

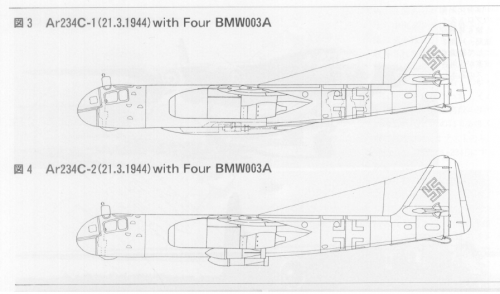

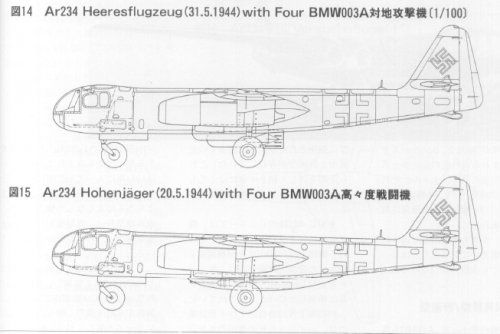

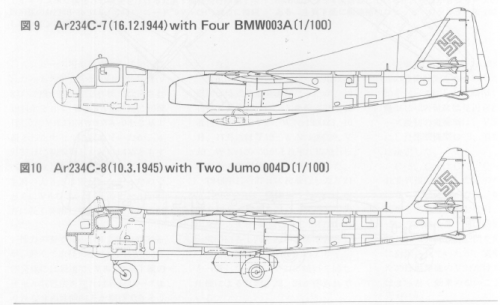

Also from Model Art 348 German Jets in WW II


Attachments

  • 6.png
    206.5 KB · Views: 135
  • 5.png
    270.1 KB · Views: 135
  • 4.png
    195.1 KB · Views: 122
  • 3.png
    283.5 KB · Views: 124
  • 2.png
    133.1 KB · Views: 133
  • 1.png
    332.1 KB · Views: 142

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210
Re: Re: Rare Aircraft

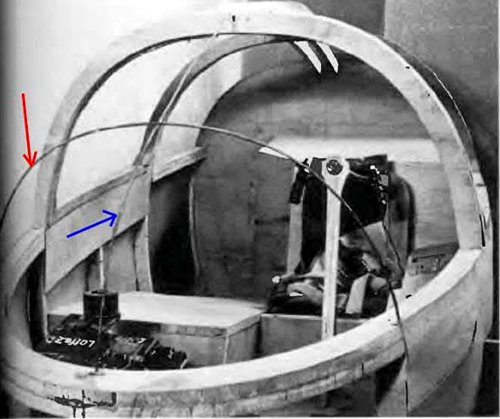

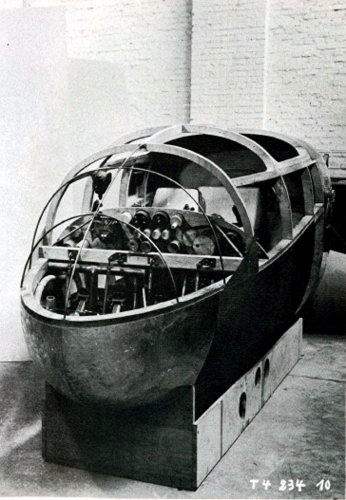

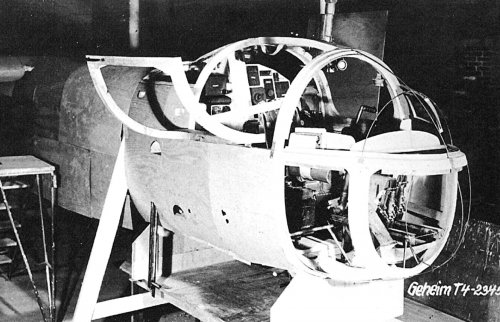

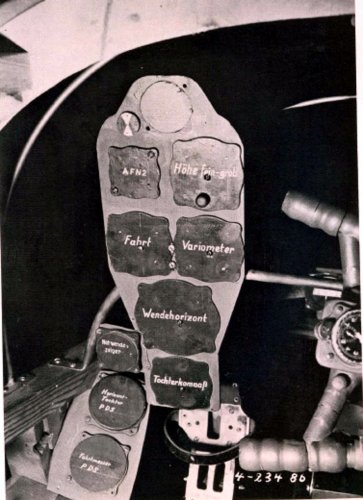

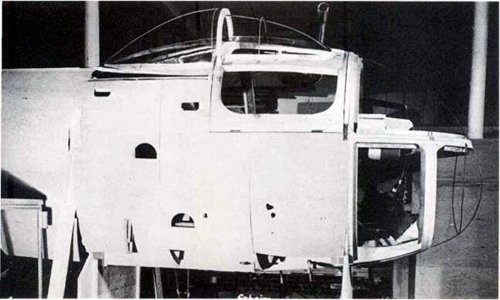

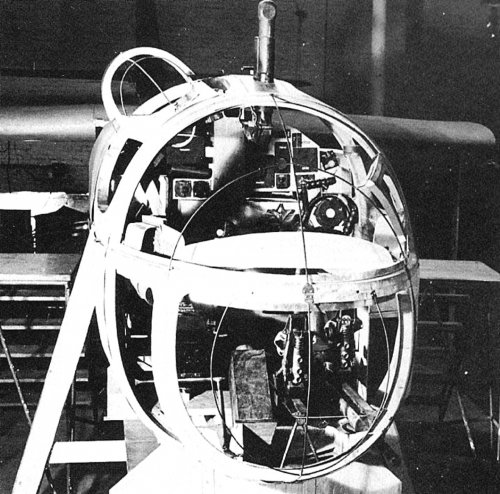

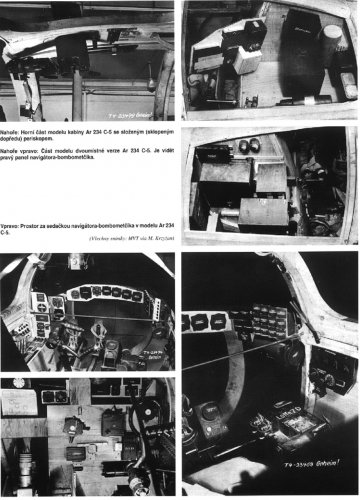

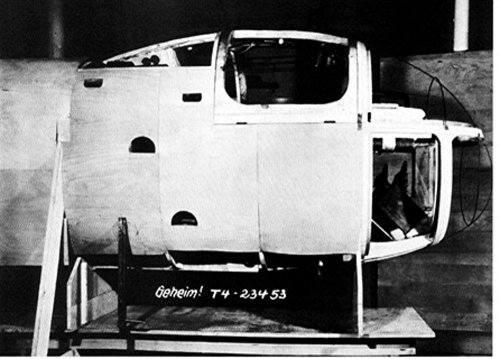

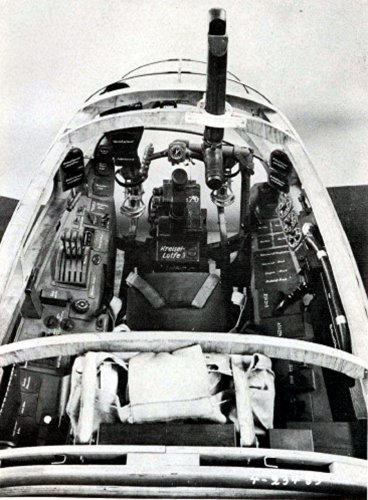

Arado Ar234 Blitz 2 place mockup.! place mockup


Attachments

  • 227-.jpg
    242.7 KB · Views: 522
  • 227-5.jpg
    283.7 KB · Views: 504
  • 239-9.jpg
    266.8 KB · Views: 470
  • 239-90ca.jpg
    225.7 KB · Views: 449

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210
Re: Re: Rare Aircraft

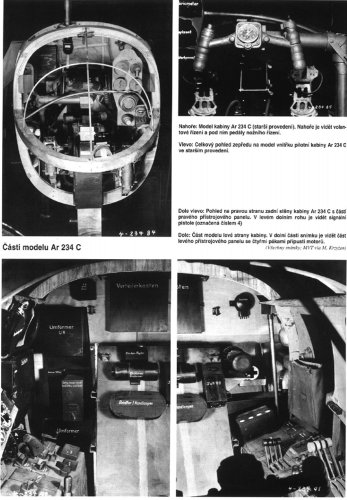

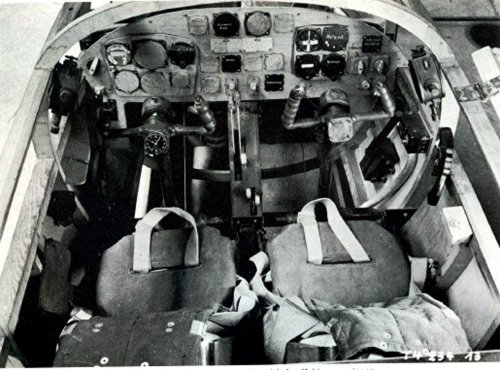

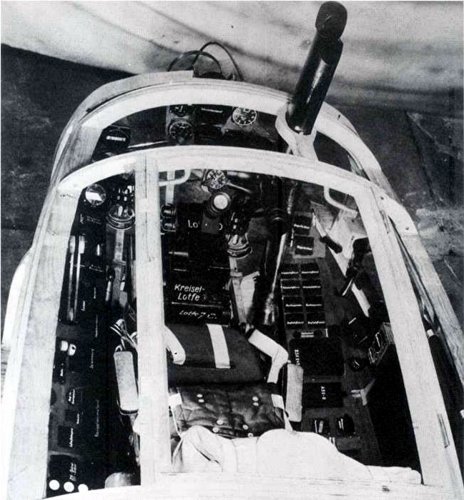

Two more this is the Ar-234c-7 mockup.


Attachments

  • Ar.234_6jpg.jpg
    147.6 KB · Views: 92
  • Arado Ar 234c-7 mockup.jpg
    Arado Ar 234c-7 mockup.jpg
    535.6 KB · Views: 85
  • _Ar-234c-3.jpg
    213.8 KB · Views: 91
  • ar234c5_.jpg
    430.9 KB · Views: 444

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Re: Re: Rare Aircraft

Thanks a lot. Breath taking!!


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
981
Reaction score
447
Re: Re: Rare Aircraft

Arado Ar234 with split nacelles prototype.


Attachments

  • Arado Ar234 V6.png
    Arado Ar234 V6.png
    207.7 KB · Views: 148

hermankeil

ACCESS: Restricted
Joined
Sep 21, 2006
Messages
33
Reaction score
13
Re: Re: Rare Aircraft

I get a site unconfigured message at this site. What am I doing wrong/


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210
Re: Re: Rare Aircraft

From a site that I lost. But I think it was a German site or a Russian one. Found one
http://www.germanluftwaffe.com/archiv/Dokumente/ABC/a/Arado/Ar%20234/Arado_Ar234_Dokumente_Konvolut.pdf


Attachments

  • Ar.234_8.jpg
    333.2 KB · Views: 120
  • Ar.234_B11.jpg
    349.1 KB · Views: 92

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210
Re: Re: Rare Aircraft

I cleaned these ones up.


Attachments

  • 069_0.jpg
    278.6 KB · Views: 88
  • 071_.jpg
    173.5 KB · Views: 90
  • 085.jpg
    156 KB · Views: 84

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
210
Re: Re: Rare Aircraft

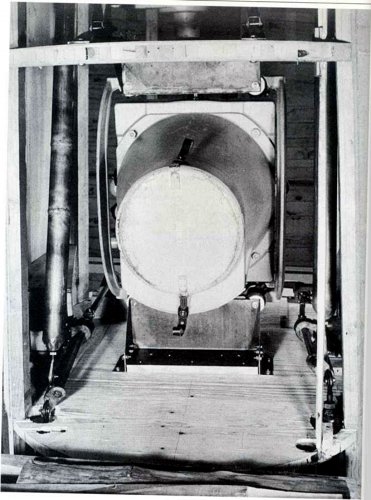

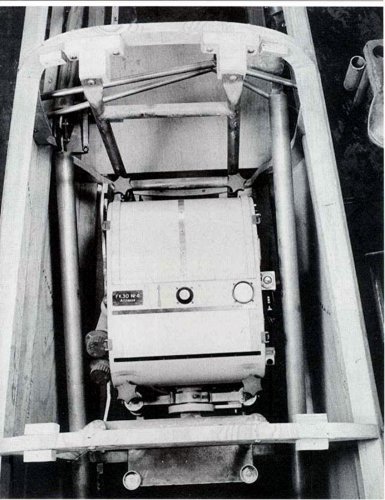

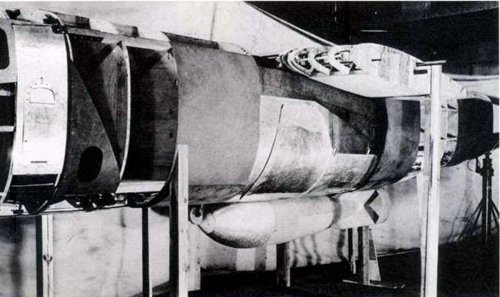

Two views of the wooden mock-up of the camera itallations inside the rear section of the Ar 234’s fuselage. These lOtographs may have belonged to a series of prints sent to the, M before a first prototype jet reconnaissance aircraft was rebuilt


Attachments

  • 077+.jpg
    309.1 KB · Views: 74
  • 078+.jpg
    307.5 KB · Views: 96

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Amazing pictures!! Thanks a lot. :D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,462
Reaction score
6,114

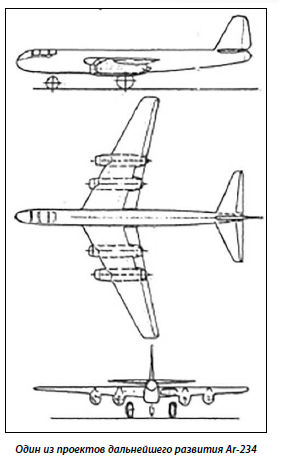

From the book, Ar-234 «Блиц» (Война и мы. Авиаколлекция).


Attachments

  • A-1.png
    157.9 KB · Views: 120
  • A-2.png
    126 KB · Views: 127
  • A-3.png
    230 KB · Views: 122
  • A-4.png
    48.5 KB · Views: 153

Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
259
Reaction score
368
Website
www.armedconflicts.com

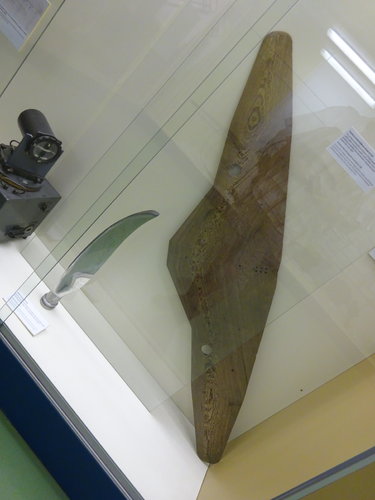

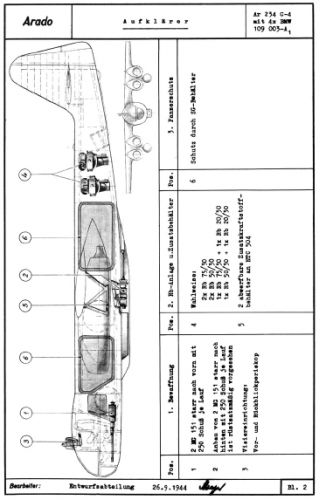

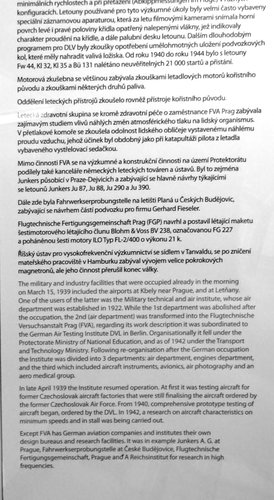

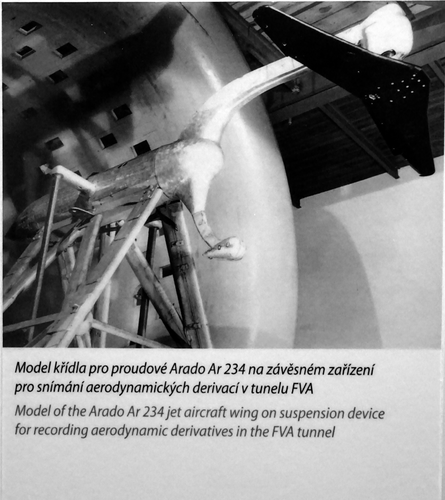

Exhibits from the Kbely museum: arrow-wing Ar 234 diagram (note: it should be straight wing, not "fixed"; bad translation), wooden model of an experimental Ar 234 wing, picture of the wind tunel tests of said wings, as tested in the Flugtechnische Versuchanstalt Prag.


Attachments

  • DSC00365.JPG
    2.9 MB · Views: 124
  • DSC00354.JPG
    1.5 MB · Views: 118
  • 1.png
    1.9 MB · Views: 114

edwest2

ACCESS: Top Secret
Joined
Nov 9, 2007
Messages
2,158
Reaction score
1,363
Thank you. Is there more published information about the Flugtechnische Versuchanstalt Prag?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
619
Reaction score
211
different magirus for the B2N



Similar threads

Top
