Aqrion,Strange Hang Glider Ducted-Fan

[hesham]

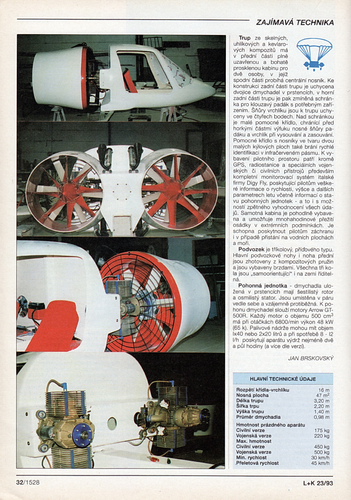

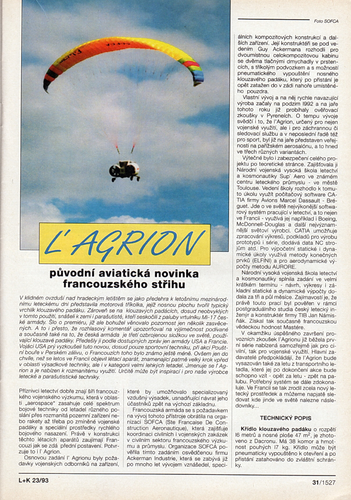

From L+K 12/1993,

here is a strange hang glider ducted fan concept,I can't translate well,and I don't know if it was
its name or not,want help ?.



[Deltafan]

From L+K 12/1993,

here is a strange hang glider ducted fan concept,I can't translate well,and I don't know if it was
its name or not,want help ?.

Hi, I did not know this aircraft.

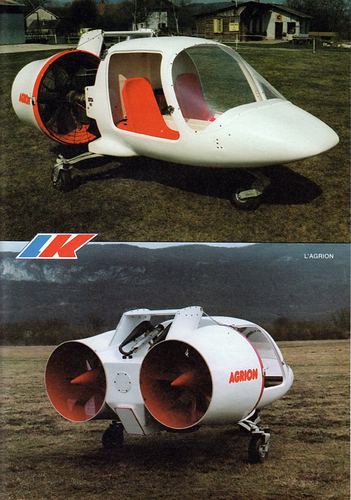

it was French, named L'Agrion (An insect that looks like a dragonfly)
From around 1993
Are involved in its construction : Société française de construction aéronautique SOFCA (French aeronautical building company, specialist in microlight flying devices) and Ackerman Industrie (which builds hydroplanes, hovercrafts, aircrafts).

-2 Italian engines Arrow GT-500 R (500 cc), 65 hp each

-Fuel tanks 40 L or 2x 20 L

-Wingspan : 16 m

-Wing area : 47 m²

-Hull length : 3,20 m

-Hull width : 2,20 m

-Hull height : 1,40 m

-Propeller (not sure) diameter : 0,98 m

-Empty weight :
civilian version : 175 kgs
Military version : 220 kgs

-Max weight :
civilian version : 450 kgs
military version : 500 kgs

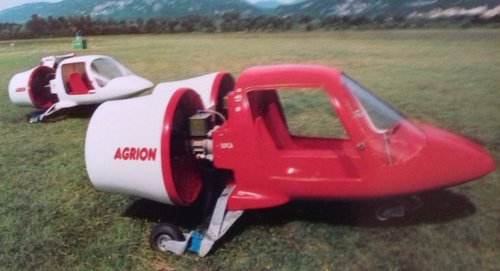

At least two were built : https://www.paravol.info/t1910-Vous-cherchiez-un-plan.htm



[hesham]

Many thanks to you my dear Deltafan,

and did this firm design a normal aircraft or not ?.



[Deltafan]

Many thanks to you my dear Deltafan,

and did this firm design a normal aircraft or not ?.

I searched yesterday, but I did not find a "normal" aircraft designed by SOFCA or Ackerman Industrie.
