Hi,

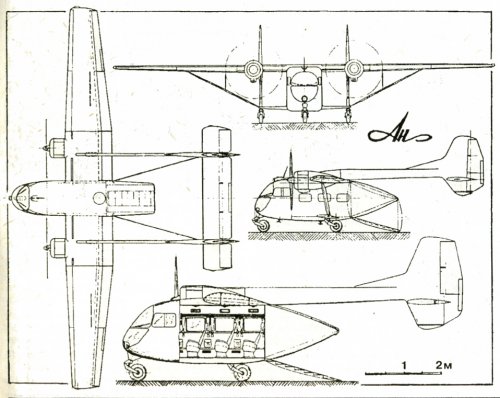

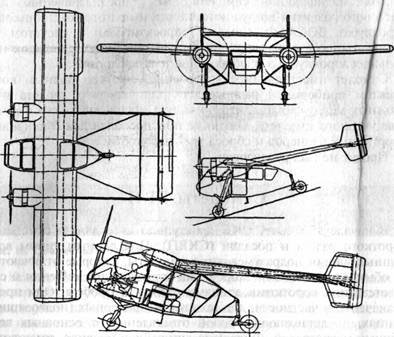

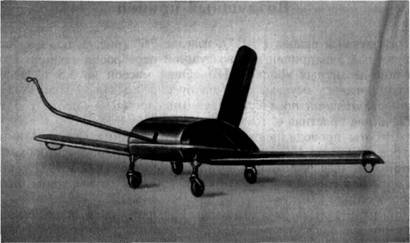

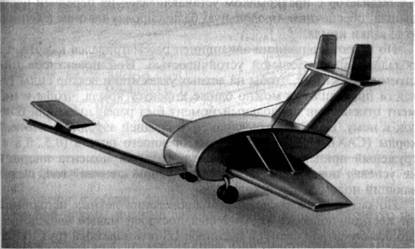

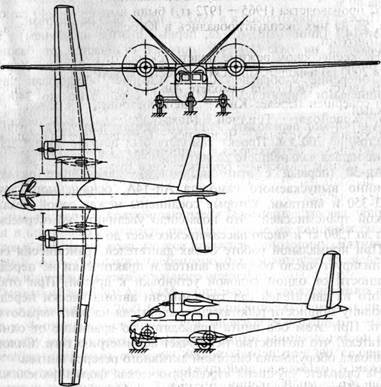

Antonov SKV VTOL aircraft project which led to develope An-14;


Attachments

  • CKB.jpg
    69.3 KB · Views: 1,778
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,

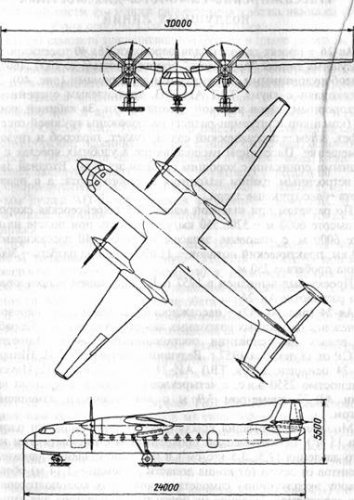

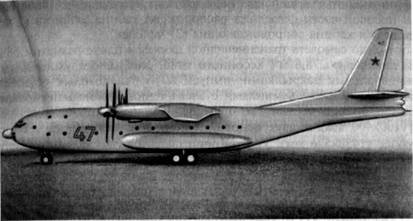

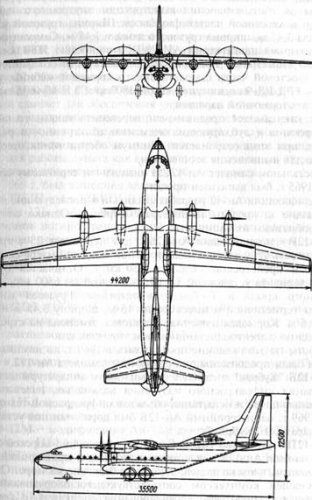

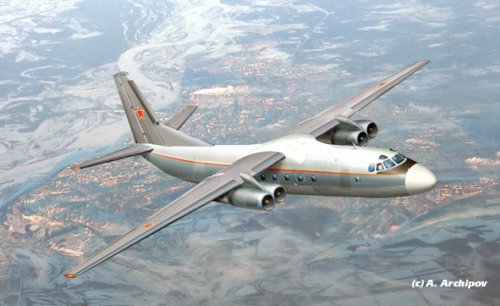

The Antonov AN-40 (PLO) STOL aircraft project was based on AN-12,and also the
AN-42 project was developed from AN-40.


Attachments

  • An-40.jpg
    31.2 KB · Views: 1,629

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,

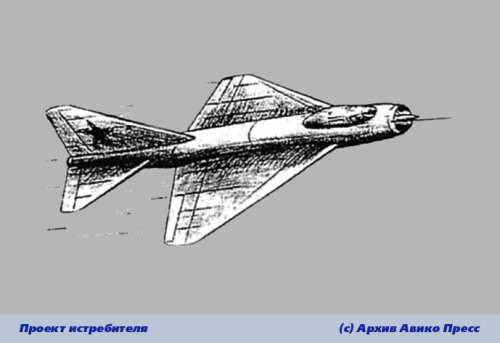

What is that fighter to Antonov ?.


Attachments

  • an fighter.jpg
    an fighter.jpg
    8.7 KB · Views: 1,471

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
This is one of the configurations of the OKB-153 (Oleg K.Antonov)
Antonov 'Masha' abreviated 'M'

Project was cancelled in July 1948.

Soviet "X" planes - Yefim Gordon-Bill Gunston - Midland Publishing UK.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
In "Flugzeug Classic "3/2003 :

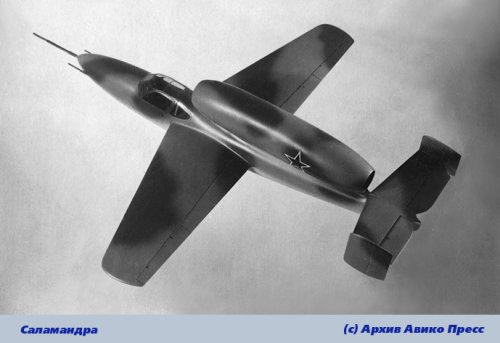

Antonov Salamander designed after close study of the captured He 162


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Many thanks to you dear borovik,

And can I ask if was there existing of two projects to Antonov
called An.18 & An.20 or not ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
hesham said:
And can I ask if was there existing of two projects to Antonov
called An.18 & An.20 or not ?.

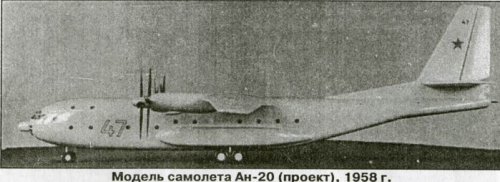

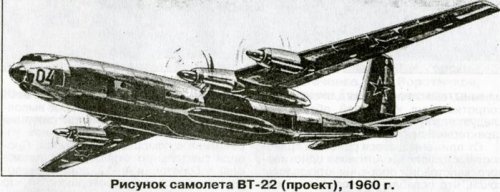

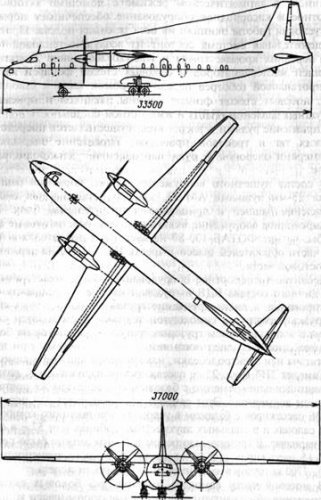

The draft An-20 was designed At June 1958.
Engine :2 x NK-12 turboprop
Weights max 40000 kg
Work on An-20 have stopped in favour of more heavy VT-22 (future "Antei")


Attachments

  • An-20.jpg
    40.8 KB · Views: 1,698
  • VT-22 (pre An-22).jpg
    VT-22 (pre An-22).jpg
    39.5 KB · Views: 1,680

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140

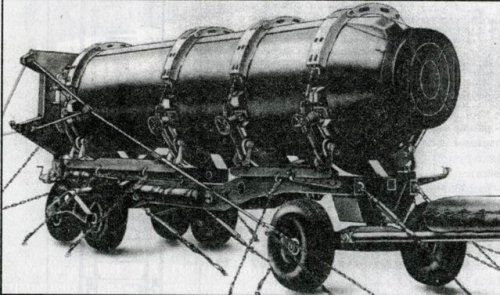

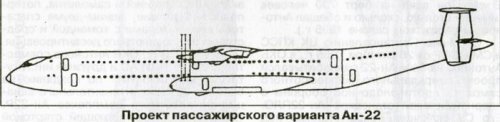

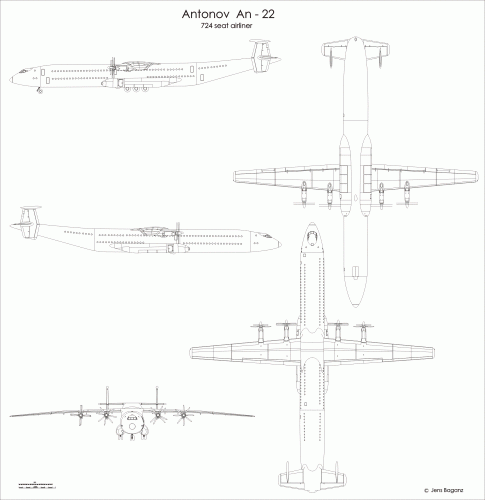

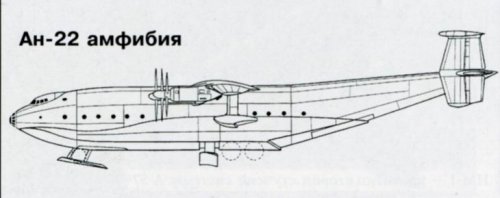

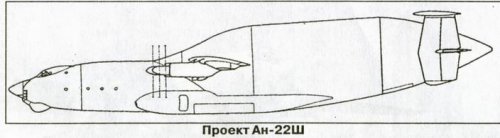

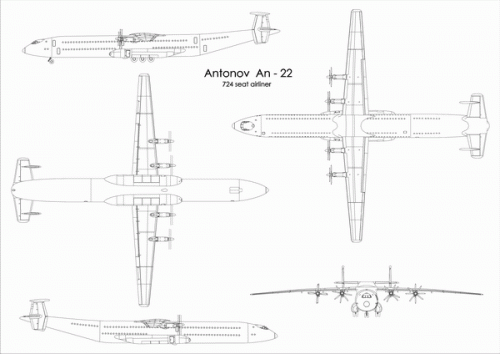

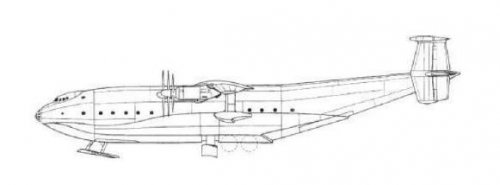

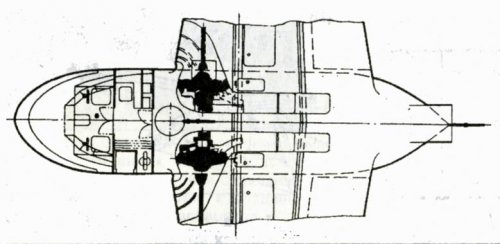

In trace of the previous subject. Several projects An-22:

1-2) - An-22 amphibian (variants)
3) - Аn -22 Р (П) passenger variant on 724 persons
4) - An-22 Sh (Ш) derivative from (широкофюзеляжный) = broadly fuselage / i think/
5) - rocket R-27
Not expelled that on this base in mildly changed type was based aircraft-missile complex An-22 R. Plane was shown flying launching pad and was equiped three containers with rocket R-27 stated in fuselage vertically.
Detailed and with best graphics Jens Beganz on page:ICBM carrier http://www.secretprojects.co.uk/forum/index.php?PHPSESSID=d6afaf3444faca5956ffcc9bb81bad77&topic=1958.0


Attachments

  • rocket R-27 .jpg
    rocket R-27 .jpg
    59.9 KB · Views: 309
  • An-22 Sh (Ш).jpg
    An-22 Sh (Ш).jpg
    21.9 KB · Views: 446
  • An-22 P (П).jpg
    An-22 P (П).jpg
    23.1 KB · Views: 504
  • An-22 amphibian 2.jpg
    An-22 amphibian 2.jpg
    25.4 KB · Views: 443
  • An-22 amphibian 1.jpg
    An-22 amphibian 1.jpg
    29.1 KB · Views: 461

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
"In trace of the previous subject"
Ah, that's the drawings, I've got from boxkite for a series
of An-22 drawings. Very interesting projects, I really would
have loved especially to see the amphibians ...
About the An-22R : I at first though, too, that the ICBM carrier
would have looked like the transport for oversized cargo, but in the
meantime, I think, that the rockets better would have be positioned
near the CG. But, of course, thats just a gues, based on an estimated
weight of between 12 to 15 tons for such a missile.


Attachments

  • An-22-3.GIF
    47.4 KB · Views: 597
  • An-22-5.GIF
    42.5 KB · Views: 618
  • An-22-6.GIF
    52.3 KB · Views: 602

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,

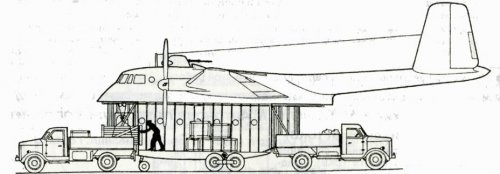

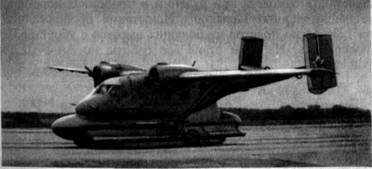

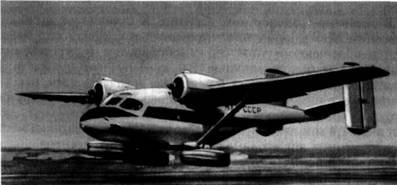

here is many Antonov projects,such as;

VP,Utka,A-6,SKV,Bee,An-14B with V-tail,An-714,An-14SH
(with new idea),Aircraft R,DT 5/8,Aircraft N,Aircraft Yu,
An-25,An-12SN (for T-54),An-40,An-42,An-24 (early
concept) and many other projects.

http://www.airwar.ru/other/shawrov/htmls/glava01.html

http://translate.google.com/translate?js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&sl=ru&tl=en&u=http://www.airwar.ru/other/shawrov/htmls/index.html


Attachments

  • R.jpg
    28.2 KB · Views: 208
  • An-14SH.jpg
    9.8 KB · Views: 164
  • An-714.jpg
    11.5 KB · Views: 161
  • An-14B.jpg
    28 KB · Views: 362
  • Bee.jpg
    26.7 KB · Views: 370
  • SKV.jpg
    29.6 KB · Views: 366
  • Utka.jpg
    13.7 KB · Views: 328
  • VP.jpg
    16.2 KB · Views: 327

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
And;


Attachments

  • AN-20.jpg
    14.6 KB · Views: 163
  • A-6.jpg
    16.7 KB · Views: 167
  • An-24.jpg
    37 KB · Views: 229
  • An-12SN.jpg
    35.5 KB · Views: 225
  • An-25.jpg
    15.3 KB · Views: 162
  • Yu.jpg
    14.5 KB · Views: 150
  • N.jpg
    38.9 KB · Views: 173
  • DT 5-8.jpg
    DT 5-8.jpg
    13.1 KB · Views: 150

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140

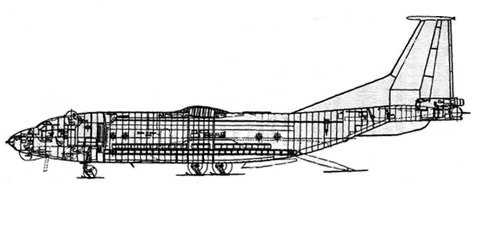

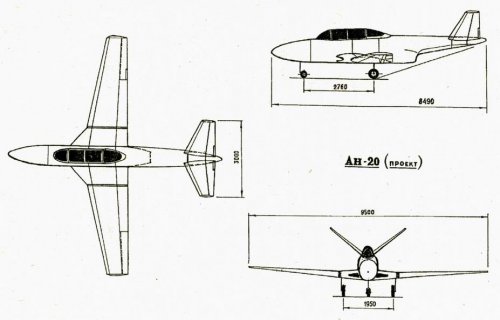

An-20 (the second of that name) 1960. Competitor Yak-30, L-29.
3 views of books I. Sultanov, "History of the first domestic jet aircraft"

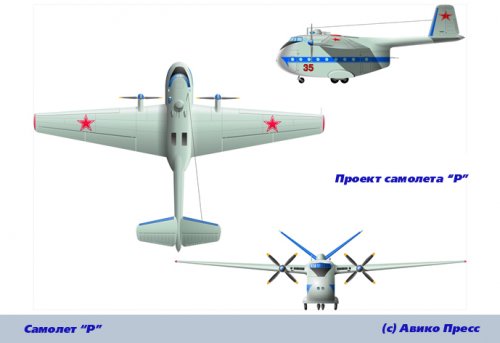

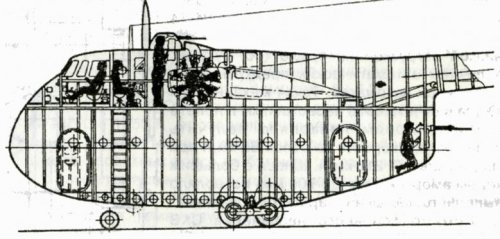

"Pchela - Bee" in the best quality and the troop-transport plane "R" from magazine "Aviation and Time"


Attachments

  • 'Pchela' - Bee (1955).jpg
    'Pchela' - Bee (1955).jpg
    394.2 KB · Views: 199
  • 'R'  3.jpg
    'R' 3.jpg
    56.3 KB · Views: 164
  • 'R'  2.jpg
    'R' 2.jpg
    39.7 KB · Views: 152
  • 'R'  1.jpg
    'R' 1.jpg
    42.9 KB · Views: 189
  • An-20 (1960).jpg
    An-20 (1960).jpg
    44.6 KB · Views: 203

admanta

ACCESS: Restricted
Joined
Nov 7, 2010
Messages
4
Reaction score
0
borovik said:
An-20 (the second of that name) 1960. Competitor Yak-30, L-29.
3 views of books I. Sultanov, "History of the first domestic jet aircraft"
"Pchela - Bee" in the best quality and the troop-transport plane "R" from magazine "Aviation and Time"

The Pchela Bee looks almost exactly like the IAI Arava, though the Arava appears to be about 25% larger.



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Very very interesting my dear Borovik,

specially the An-20,and you sent before the An-22 may be
early design and An-40.


Attachments

  • AN-22 DOUBLE.jpg
    AN-22 DOUBLE.jpg
    23.1 KB · Views: 549
  • AN-40.jpg
    31.2 KB · Views: 528

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,

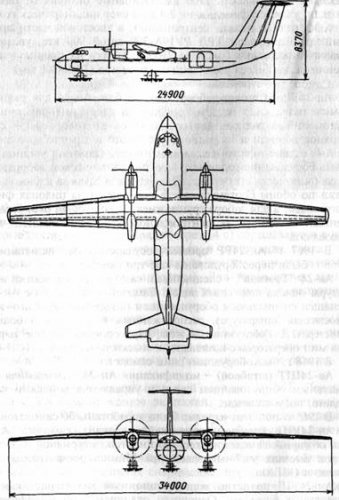

the Antonov An-44 is a project developed from An-24,
distinguished by a large cargo door on the left side.

http://www.airwar.ru/other/shawrov/htmls/glava01.html

http://translate.google.com/translate?js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&sl=ru&tl=en&u=http://www.airwar.ru/other/shawrov/htmls/index.html


Attachments

  • An-44.jpg
    33.7 KB · Views: 505

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
Another drawing of the An-22 airliner version:


Attachments

  • An-22_Airliner.gif
    115 KB · Views: 651

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,

we still there in that Russian great site,and there is many
Antonov little known aircraft and projects;

Aircraft T light cargo aircraft of 1945.
An-23A a modified Aircraft K.

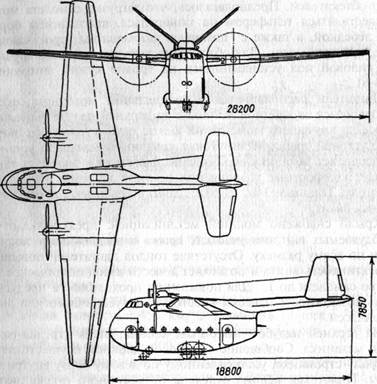

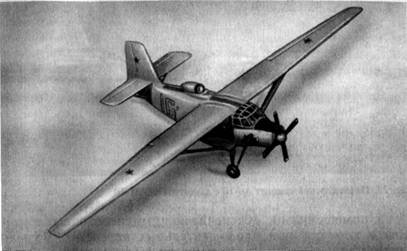

An-2F (second use of designation) VTOL project 1956,with the
lift turbojet engine in the rear fuselage.

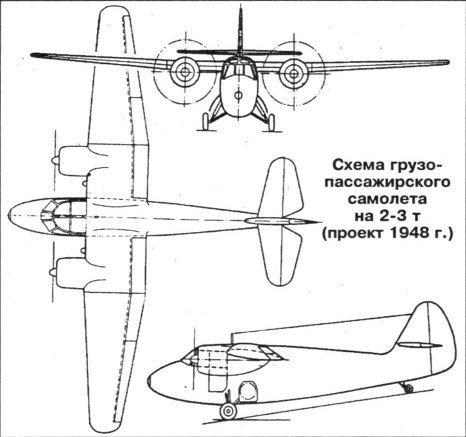

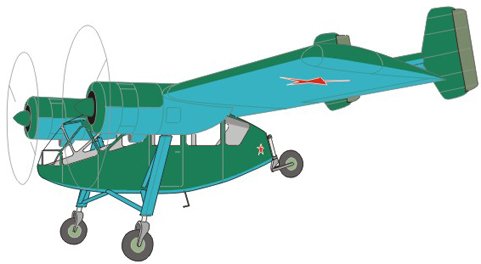

2AI-14R a four-seat and cargo aircraft powered by two AI-14V
engines,project of 1948.
An-122 a further development of An-22
VT-22 cargo and passenger aircraft led to An-22.
An-122/II anther aircraft powered by four engines.
An-126 heavy transport aircraft of 1968.
An-7X alternative design to An-70.
An-102 light agricultural aircraft early 1990s.
An-171 The project is a heavy transport aircraft (An-70 variant
with a longer fuselage).

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/36/


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

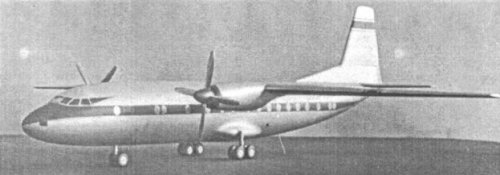

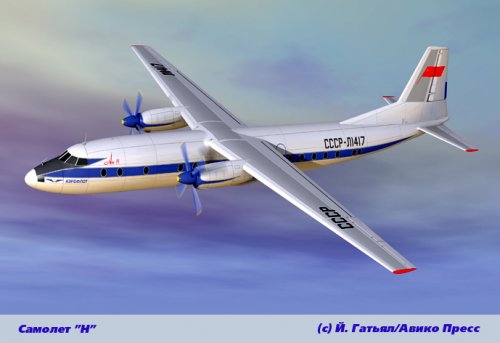

Samolet "N"
More info and drawings see http://avicopress.ru/index.php/aviation/russian/122-planen


Attachments

  • N-001.jpg
    190.7 KB · Views: 508

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

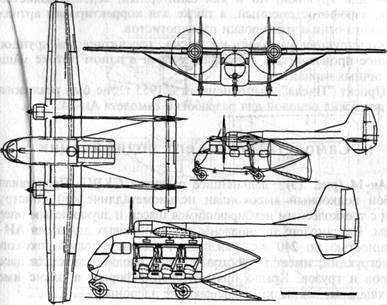

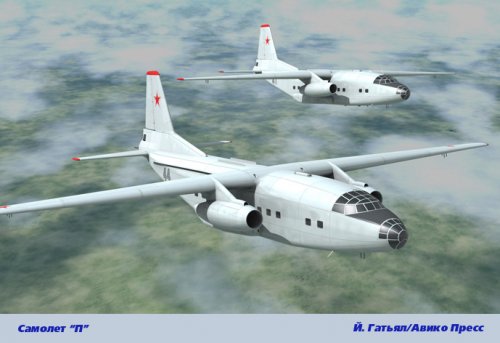

Samolet "P"
More info and drawings see http://avicopress.ru/index.php/aviation/russian/123--lr


Attachments

  • P-001.jpg
    201.5 KB · Views: 271

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

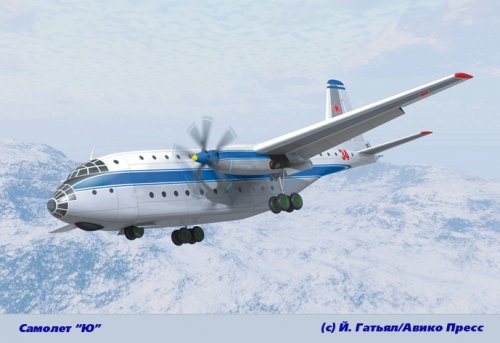

Samolet "Yu"
More info and drawings see http://avicopress.ru/index.php/aviation/russian/124---lr


Attachments

  • Yu-001.jpg
    260.1 KB · Views: 235

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256

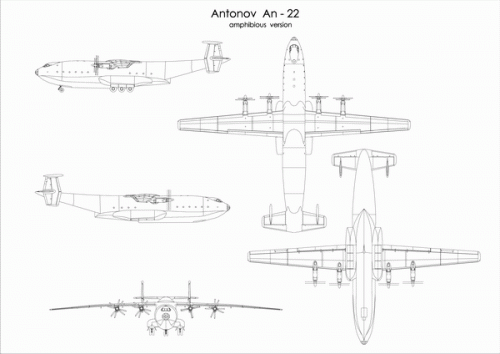

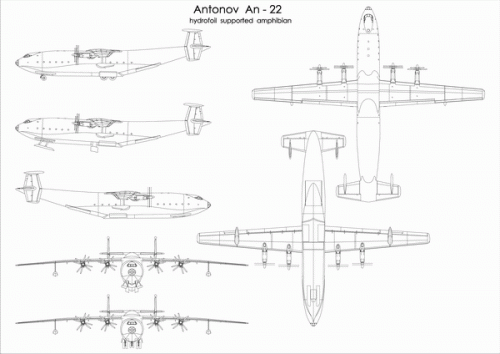

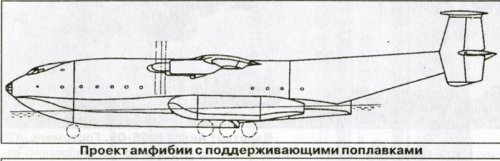

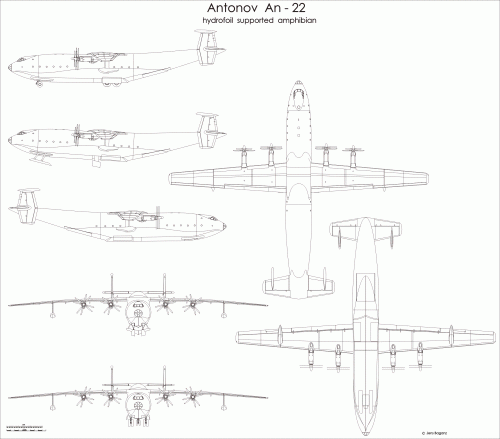

Two other "wet" versions of the An-22, the first an amphibious aircraft,
the other too, but with additional hydrofoils and auxiliary floats.


Attachments

  • An-22_amphibious.gif
    111.7 KB · Views: 283
  • An-22_hydrofoil.gif
    139.8 KB · Views: 284

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

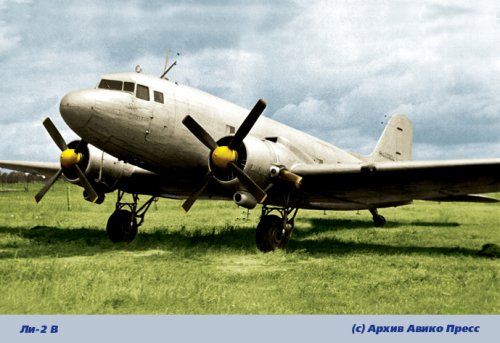

Antonov Li-2V (high altitude aircraft)
More info and drawings see http://avicopress.ru/index.php/aviation/russian/115---2


Attachments

  • Li-2?-001.jpg
    310.8 KB · Views: 140

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

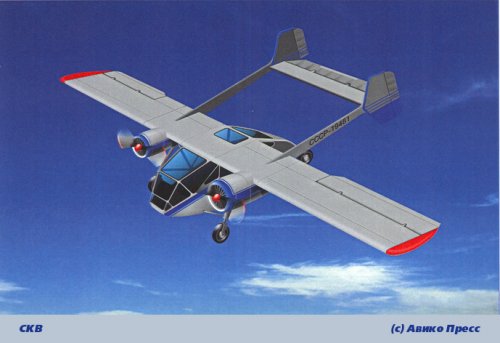

Antonov SKV
More info and drawings see http://avicopress.ru/index.php/aviation/russian/110---lr


Attachments

  • SKV-001.jpg
    377.2 KB · Views: 492

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Antonov VP
More info and drawings see http://avicopress.ru/index.php/aviation/russian/116-2010-10-05-18-34-32


Attachments

  • VP-007.jpg
    258.7 KB · Views: 416
  • VP-001.jpg
    230.3 KB · Views: 449

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

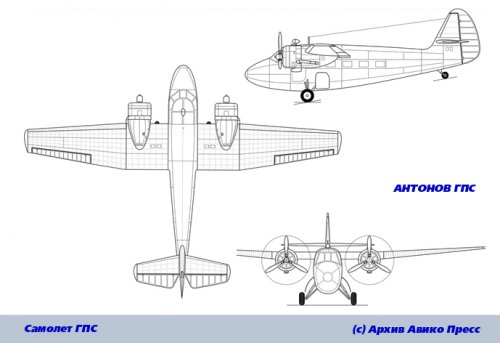

Antonov GPS
More info and drawings see http://avicopress.ru/index.php/aviation/russian/109---lr


Attachments

  • GPS-003.jpg
    111.2 KB · Views: 444

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru

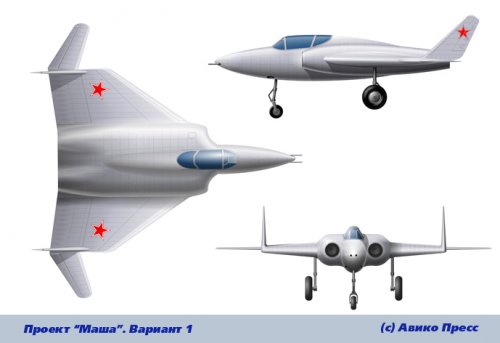

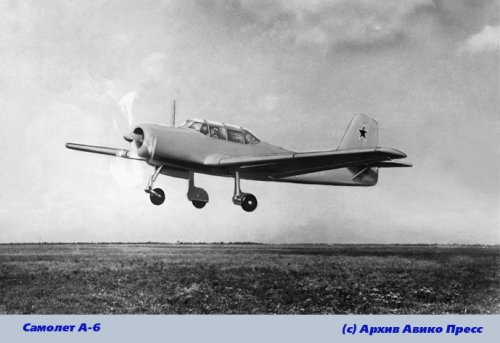

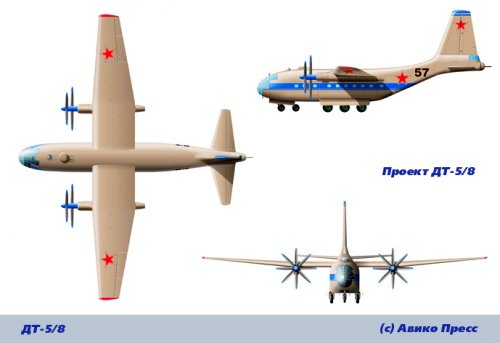

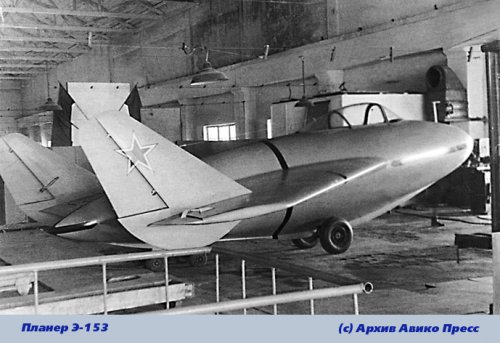

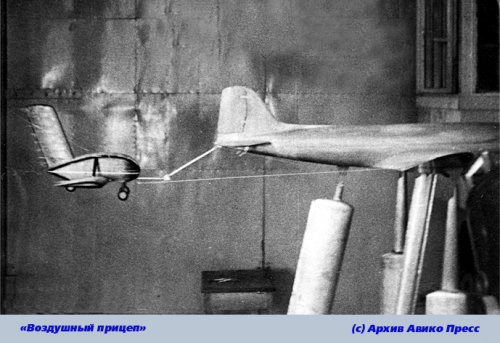

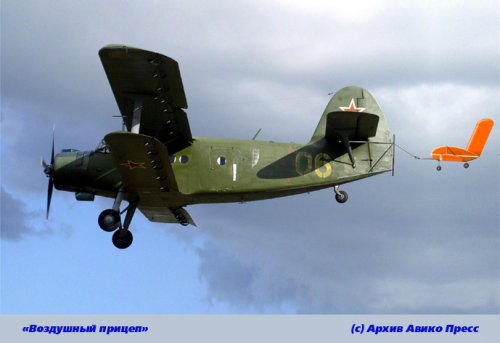

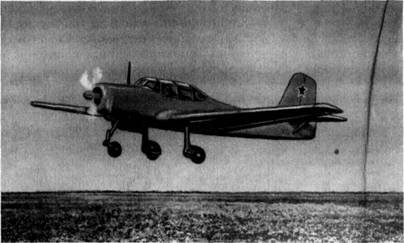

Some more post-war Antonov projects
Additional info and drawings see in www.avicopress.ru


Attachments

  • A-6-02.jpg
    200.2 KB · Views: 199
  • dt-5-04.jpg
    128.4 KB · Views: 250
  • E-153-01.jpg
    240.1 KB · Views: 208
  • Masha-01.jpg
    107.6 KB · Views: 224
  • Per-01.jpg
    106 KB · Views: 206
  • R-02.jpg
    115.3 KB · Views: 228
  • Salavandra-04.jpg
    190.7 KB · Views: 388

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Thank you my dear Ucon,

and what was the per-01 ?,was it a fighter and did it compete
in contender for fighters ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
140
Reply # 1 error in the images

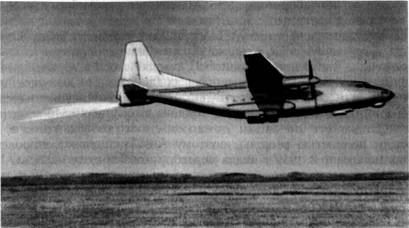

= Yu.jpg = should read - An-8 RU (rocket booster)
= An-25.jpg = - An-3 (the first one with this name)
= An-12SN.jpg = - An-12D (UPS)
= An-24.jpg = - An-26

Edit: after combining topic's, my comments relate to Reply #11 of 27 November 2010


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,034
Reaction score
222
Dear Boys and Girls; here is a contemporary description in French showing how to cram/fit/squeeze 724 passengers into a stretched Antonov AN-22; it isn't "secret", but it is a "project"......

The article is one of a series on Soviet transport aircraft from the 15th April 1966 issue of Aviation Magazine International......

Terry (Caravellarella)


foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
25
Terry, thanks for this info on the stretch Antonov, I find it very interesting and attractive. Does anyone know who long it would have been?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
The caption speaks of an extension of 15m, so overall length would be
about 73 m. By comparing and measuring the sideviews of the transport
and the passenger Anteus, I got a length of about 77m, although both
drawings are made to the same scale. Well, just a difference of 4 m,
negligible with regards to the size of that aircraft ! ;D


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,182
Reaction score
1,905
There was at least one civil An-8 project, the An-8 airliner, known as izdeliye N.
It was developed alongside the An-8 (much like the later An-10/12 design) and was designed to seat 57 passengers in max density or 30-46 in more comfort. All the seats were aft-facing. There was a dual-role use as it could be converted into a cargo carrier carrying 7,000kgs. It was Khrushchev that had the aircraft cancelled as he wanted the OKB to develop a four-engined variant for safety- the An-10.

Other An-8 projects include the An-8Sh navigator trainer with 18 workstations in the hold developed in 1959 and the An-8PS SAR aircraft to paradrop resuce teams and equipment and supplies, life rafts etc to provide aid for 240-675 people.

There were a few An-10 projects;
An-10B: Designation used twice, one of these featured improved avionics and seating for 118. The other was actually built from an An-10A Antonov OKB had to seat 132 passengers and increased fuel.
An-10V (later An-16): New wider fuselage which was also 6m longer, 175 passengers seven-abreast, a new tail was also fitted. A cutaway model was displayed during 1967 at Moscow-Khodynka airport.
An-16: Another use of designation for an An-10 variant with a 3m fuselage plug, 130 seats and a range of 2,000km. This was a 1957 project so the above A-16 is probably the second use on the An-16 designator.
An-10D: 1960 project to increase range to 3650km by fitting fuel cells in the wing torsion box. Capacity was to be 124 seats, the engines would be moved 1m outboard and fibreglass propeller blades would be fitted to reduce noise and increase effiency. It was planned to begin production of a prototype in 1960.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
Yes, that's the version with hydrofoils from #13. Just a question: Where do you found
the suffix "AS" ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Sorry my dear Jemiba,


I meant "as" the word,and I was hurry,so I didn't see it,I will correct it.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Topic consolidated with elements from older topics. Please use this for post-war projects that are insufficiently documented for now to have their own topic.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,957
Hi,


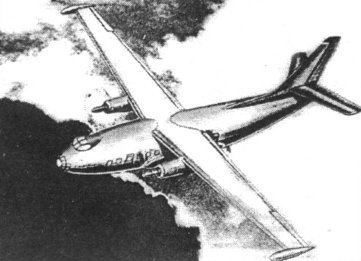

here is the Antonov project of 1948 for twin engined soulder wing transport
and cargo aircraft,and the Models H and P,which were developed from An-8.


http://crimso.msk.ru/Site/Crafts/Craft21339.htm
http://crimso.msk.ru/Site/Crafts/Craft21186.htm


Attachments

  • 1948.jpg
    36.6 KB · Views: 963
  • H.jpg
    24.1 KB · Views: 919
  • P.jpg
    19.7 KB · Views: 893

Similar threads

Top
