Antonov An-218

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
Looking for any pictorial info on this unbuilt airliner. Thanks in advance.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
175

Attachments

  • 05140641.jpg
    72.3 KB · Views: 1,033
  • 05140645.jpg
    48 KB · Views: 885
  • 05140649.jpg
    46.9 KB · Views: 860

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,736
Reaction score
1,194
http://ram-home.com/ram-old/an-218.html
http://ram-home.com/ram-old/an-218-aviahistory.gif


Attachments

  • an-218-aviahistory.gif
    18.8 KB · Views: 850

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
An-218 full-scale mockup appears at the backstage of these Kirill 'Guevara' series of An-70 vertical tail pictures.
http://kirill-guevara.livejournal.com/53052.html#cutid1
Timeframe of pictures is 2001-2004, mockup was destroyed in early or mid of 2006.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297

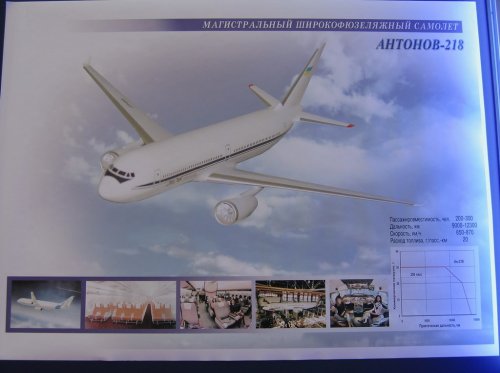

Exhibition placard


Attachments

  • d59a35d5ddaf.jpg
    150.2 KB · Views: 810

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Antonov An-218

Type: Twin-turbofan passenger transport.

Program: Announced at 1991 Paris Air Show; mockup contstructed; first flight originally scheduled for 1996, but development now deferred.

Current versions

An-218-100: Basic version described in detail below.

An-218-200: Extended range; two D-18TR (modified D-18TM), each 275 kN (61,820 lb st), or PW4060, CF6-80CB6, or RB211-524H4 engines; additional fuel tanks in cargo compartments; enhanced cabin comfort for 220 passengers; range 5,720 n miles (10,600 km; 6,585 miles).

An-218-300: Long-range version; fuselage shortened by 11.50 m (37 ft 8.75 in) by removal of plugs; additional fuel in cargo compartments; 195 passengers; range 6,045 n miles (11,200 km; 6,960 miles).

An-218-400: Under study; fuselage lengthened; 400 passengers; range 5,935 to 6,745 n miles (11,000 to 12,000 km; 6,835 to 7,455 miles).

Design features: In general class of very similar Airbus A330, but slightly smaller and lighter in weight, with less fuel. Certification to ICAO Cat. IIIa standards intended.

Power plant: Two ZMKB Progress D-18TM turbofans, each 250-275 kN (56,200-61,820 lb st), in underwing pods.

Accomodation: Two pilots on modern flight deck with electronic displays; three basic cabin configurations: (1) 292 passengers: 18 first class six-abreast at 102 cm (40 in) pitch, 64 business class at 87 cm (34.25 in) pitch, and 210 economy class at 81 cm (32 in) pitch. (2) 350 passengers seven/eight abreast, all economy class. (3) 400 passengers seven/nine abreast at 75 cm (29.5 in) pitch. 24 freight/baggage containers in underfloor compartments. Four cabin doors on port side; service doors opposite.

Dimensions external
Wing span: 50.00 m (164 ft 0.5 in)
Length overall: 59.79 m (196 ft 2 in)
Height overall: 15.70 m (51 ft 6 in)

Dimensions internal
Cargo compartment volume front: 81.0 cu m (2,860 cu ft)

Cargo compartment volume rear: 57.5 cu m (2,030 cu ft)
Baggage compartment volume for outsize cargoes: 42.0 cu m (1,483 cu ft)

Weights and loadings
Max payload: 42,000 kg (92.600 lb)

Performance (estimated)
Nominal cruising speed at 10,600-11,600 m (34,775-38,000 ft): 458-470 kts (850-870 km/h; 528-540 mph)
Required runway length at 30 degrees C: 2,900 m (9,500 ft)
Range with reserves and 350 passengers: 3,400-4,045 n miles (6,300-7,500 km; 3,915-4,660 miles)
Range with reserves and 292 passengers: 3,885-4,585 n miles (7,200-8,500 km; 4,475-5,280 miles)
Fuel efficiency: 18 g/passenger-km

Source: Jackson, Paul ed. Jane's All the World's Aircraft 1995-96 Jane's Information Group Ltd 1995 p. 443.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

Attachments

  • 28180445.jpg
    26 KB · Views: 62
  • an-218-brochure-1.jpg
    21.3 KB · Views: 62

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
Ill hope some one has good photos of the full size mockup of the An-218


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
This are from my stuff about An-218:


Attachments

  • 218-2.jpg
    114.1 KB · Views: 80
  • An-218.jpg
    604.9 KB · Views: 84

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
25

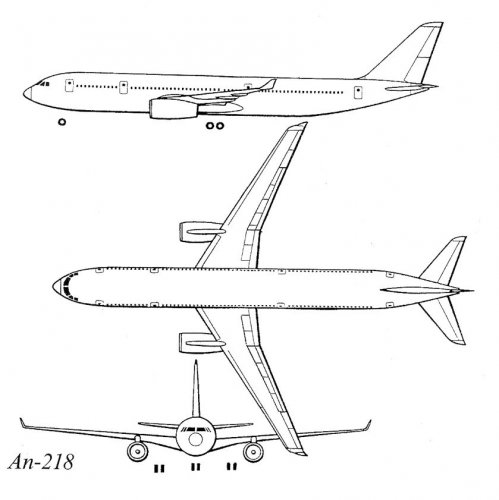

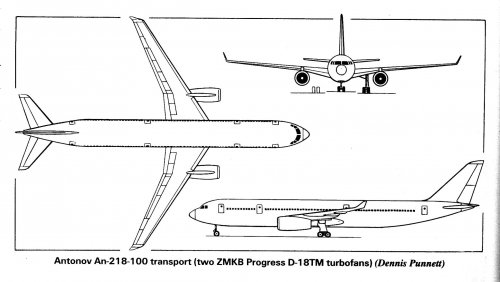

I have two general arrangements: one is from Gunston's "Osprey Encyclopedia of Russian Aircraft", and the other is from Jane's 1993 -1994. I hope they are of some value to you. It's an attractive-looking aircraft.


Attachments

  • Antonov An-218.jpg
    Antonov An-218.jpg
    52.1 KB · Views: 78
  • Antonov An-218-100 (janes 1993-4).jpg
    Antonov An-218-100 (janes 1993-4).jpg
    154.8 KB · Views: 86

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
584
Reaction score
249

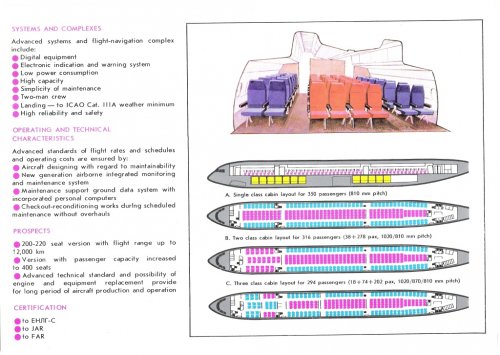

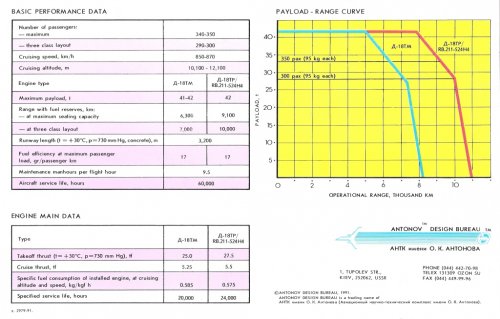

Please find below a 1991 company brochure on the Antonov An-218.


Attachments

  • Antonov_An-218_1991_04.jpg
    239.2 KB · Views: 80
  • Antonov_An-218_1991_03.jpg
    299.8 KB · Views: 98
  • Antonov_An-218_1991_02.jpg
    275.3 KB · Views: 87
  • Antonov_An-218_1991_01.jpg
    278.5 KB · Views: 59

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

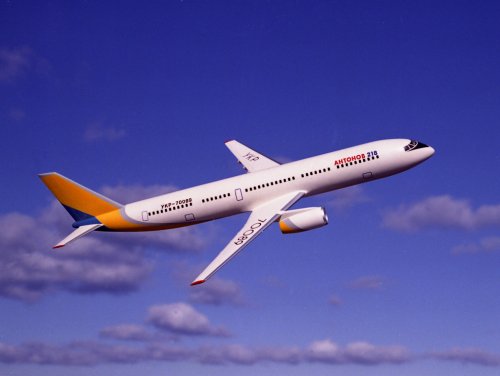

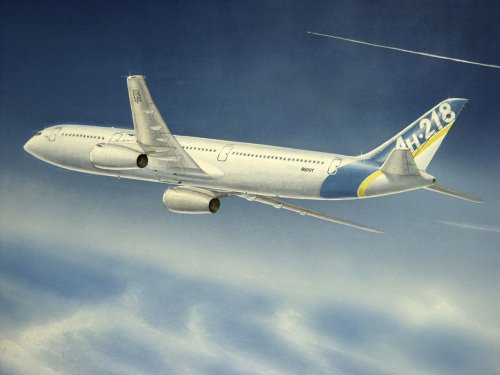

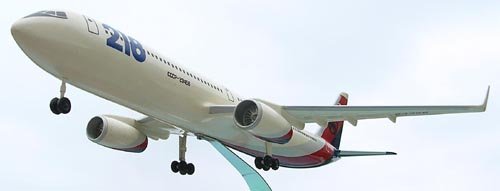

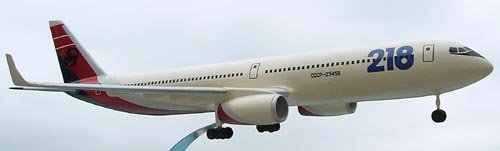

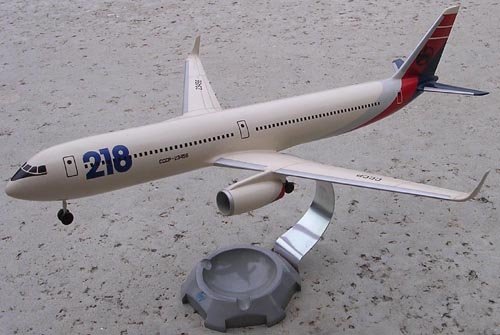

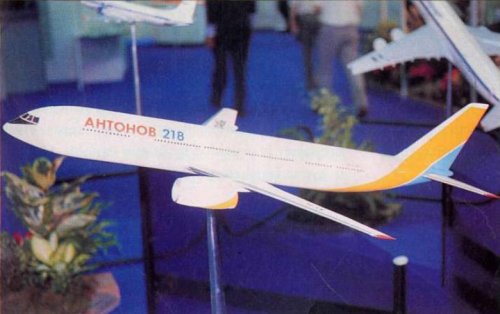

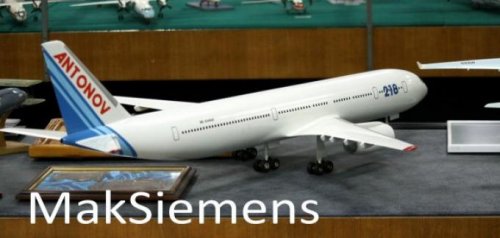

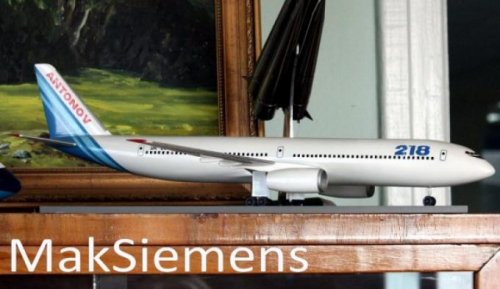

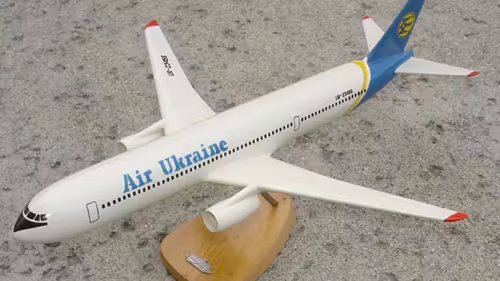

Model of Antonov An-218

Source:
http://alternathistory.org.ua/proekt-shirokofyuzelyazhnogo-srednemagistralnogo-passazhirskogo-samoleta-218-ukraina


Attachments

  • an218-01-680x323.jpg
    30.5 KB · Views: 56
  • an218-04-680x392.jpg
    39.3 KB · Views: 73

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
584
Reaction score
249

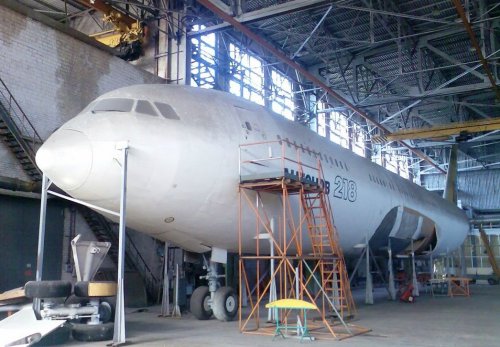

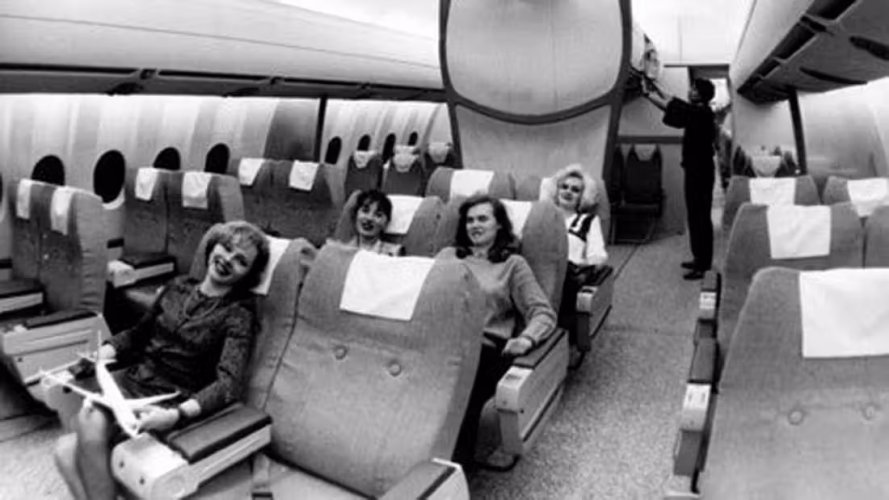

There is a piece on the An-218 (in Russian) at http://civilavia.info/?page_id=3516 it includes a photo of a mock-up similar to the one in my files from an unknown source.


Attachments

  • Antonov_An-218_Mockup_Image.jpg
    163.4 KB · Views: 71
