One French aircraft I don't seem to find much about is the Starck AS35A, a very odd-looking twin-pusher with had its ailerons on the surfaces boxing in the wingtips.

Does anyone have any info on this most peculiar bird?


Attachments

  • AS35A.jpg
    275.7 KB · Views: 788

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

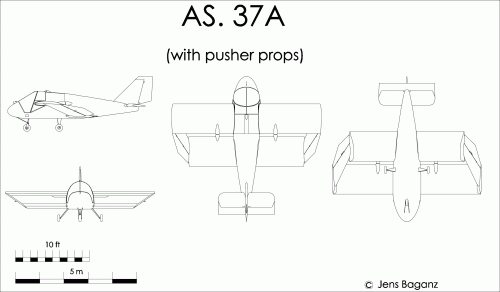

Are you sure, that it's the A.35 ? I would think, it's the A.37A, which was built in
several versions, at first with pusher props, as shown here, but modified, too, to
pulling props. Some photos and short descriptions can be found in Gaillards "Les
Avions Francais"


Attachments

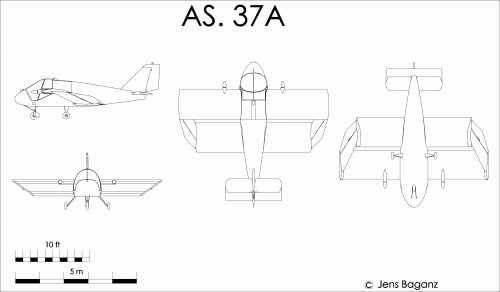

  • AS-37.GIF
    70.4 KB · Views: 643
  • AS-37_pusher.GIF
    74 KB · Views: 601

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807

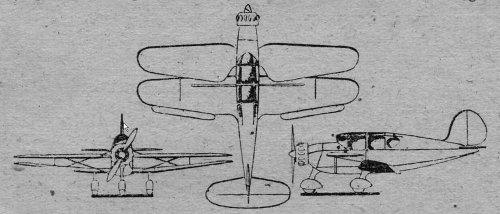

Well the book I found it in refered to it as AS35A, but from the plans you've posted, it could very well be one and the same aircraft. I'm not quite sure about the wing tips, though, they don't look quite the same. I'd need photos of the AS.37 to be able to compare.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,376
Reaction score
393
It is quite curious that the designer chose to put rudders on the wingtip endplates. There is very little moment arm to the c.g., and that might explain the additional, more conventional rudder in the back.
Pretty cool design, do post more info if you find some! :)


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

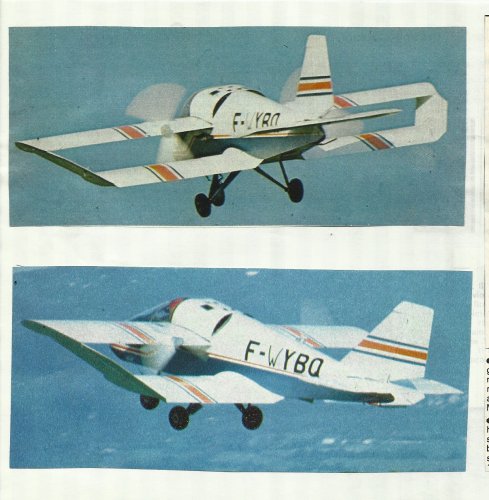

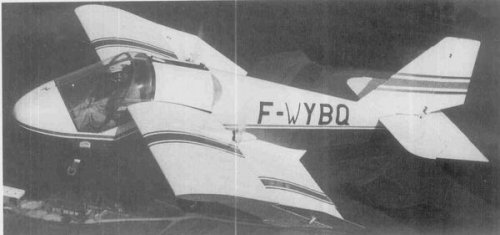

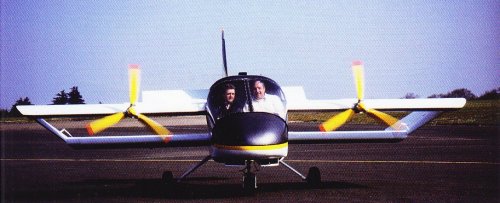

Here are the photos from Pierre Gaillards "Avions Francais 1965-90".
The endplates are set at an angle of about 35° against the horizontal,
so the rudders are used as ailerons, I think.


Attachments

  • AS-37_01.jpg
    23.8 KB · Views: 549
  • AS-37_02.jpg
    25.3 KB · Views: 551

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
In the French press I have seen the term "Nenadovich biplane" applied both to tandem-wing designs (Mignet, Delanne, etc.) and to aircraft with conventional tail surfaces but using two biplane wings in a staggered, box-wing configuration (Stark AS.27 and AS.37, for example). The key concept seems to be the slot effect between the two wings. Does anyone know any more about the origin of this terminology and, presumably, the aircraft designed or built by Mr. Nenadovich that inspired it?


Attachments

  • Avion%20Ancien%20Starck%20AS-37b.jpg
    9.2 KB · Views: 1,047

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
156

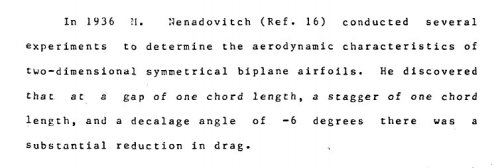

Miroslave Nenadovitch was working at the Institut Aeronautique of St Cyr, close to Paris, in 1936.

Rush translation of the article (below) from Aviation magazine concerning the Starck AS-27 (date ?).
"Nenadovitch tested in wind-tunnel around 150 biplanes configurations. His configuration presented a lower Cx max and higher Cz max than an equivalent monoplane formula. His configuration did not stalled at high incidence angles. In fact the top of the polar was absolutely flat. The two planes parameters interacting as a big slot always open."


I don't think he designed an aircraft as such, out of his wind tunnel tests. But André Starck did designed and tested his AS-20 in 1942 retaining this formula, then he used it on his AS-27 and AS-37.

Extracts from:
http://www.engbrasil.eng.br/index_arquivos/art72.pdf
Aviation Magazine (Date ?)
Sport Aviation August 1976


Attachments

  • Starck AS-37.jpg
    Starck AS-37.jpg
    94.2 KB · Views: 271
  • Starck AS-27.jpg
    Starck AS-27.jpg
    118.7 KB · Views: 283
  • Nenadovitch2.jpg
    24.6 KB · Views: 233
  • Nenadovitch1.jpg
    35.6 KB · Views: 252

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
156

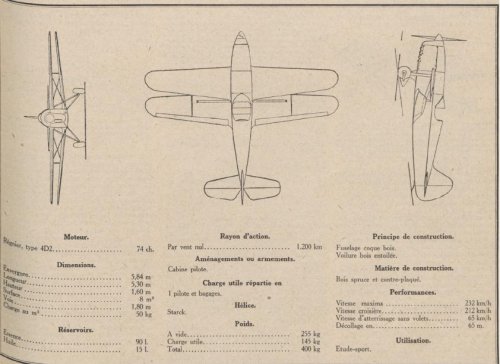

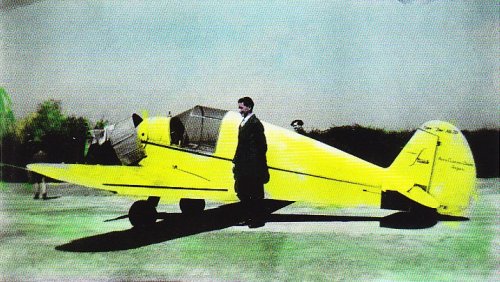

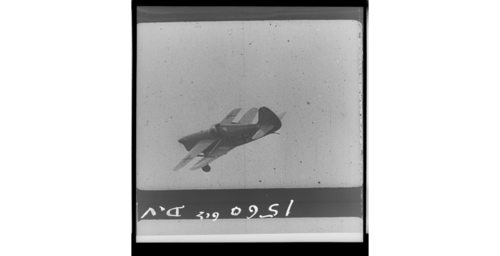

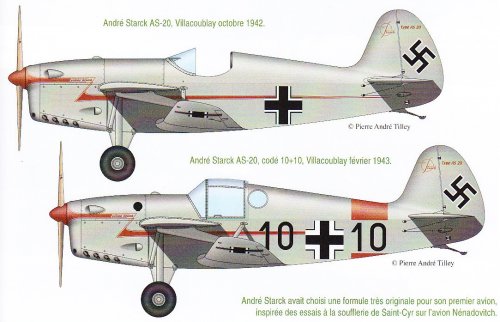

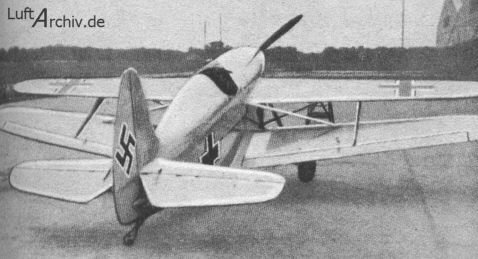

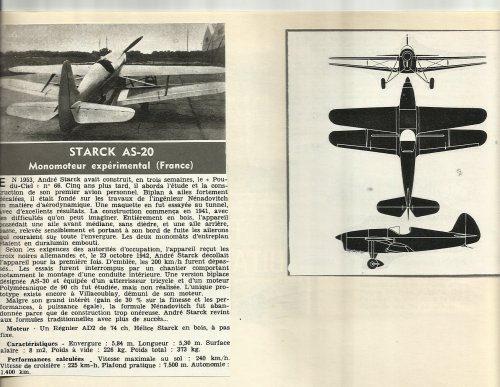

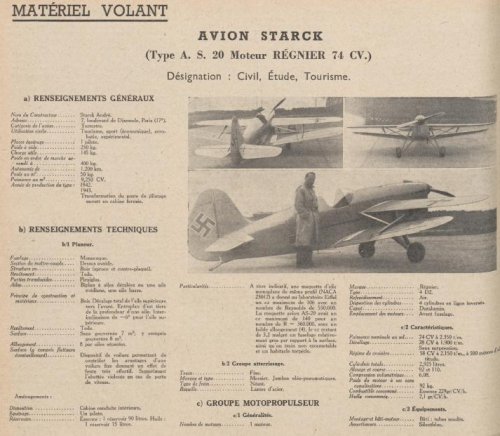

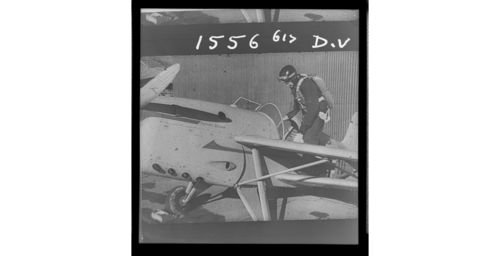

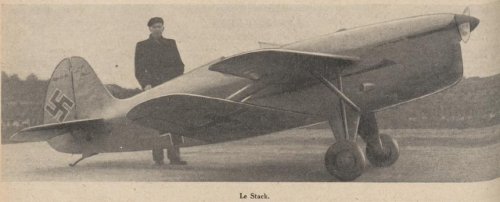

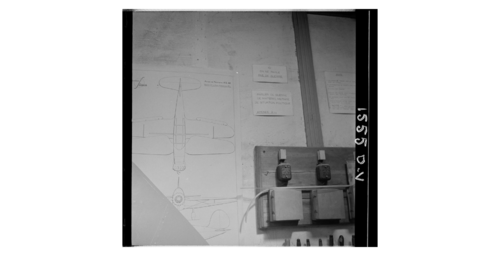

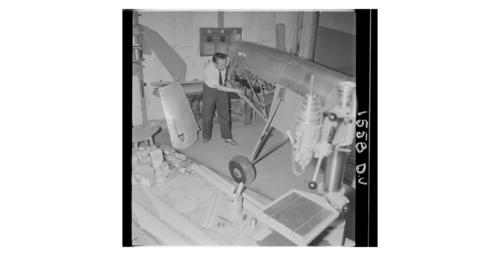

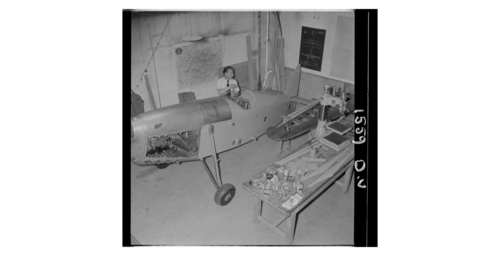

Some details concerning the first Nenadovich biplane type aircraft built by André Starck, the AS-20:
1st flight: Oct 23, 1942 (during the German occupation of France, hence the German markings)
Span: 5,84m; Lenght: 5,30m; Wing area: 8m2; EW: 226kg; TW: 373kg; Max speed: 240 km/h; Ceiling: 7500m; Engine: 1 x Régnier 4D2, 74hp.

Photo source: LuftAchiv.de
3V drawing: ukn

Philippe


Attachments

  • starck_as20.jpeg
    29.4 KB · Views: 98
  • AS-20.JPG
    31.4 KB · Views: 117

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
With the exception of the AS.20 we are principally in the wrong section, as all others
are post-war types. But as the Nenadovich principal is older and there are pre-war
examples, too, I think, we could leave it here. About the AS.37 we had a thread here
http://www.secretprojects.co.uk/forum/index.php/topic,9070.msg81557.html#msg81557

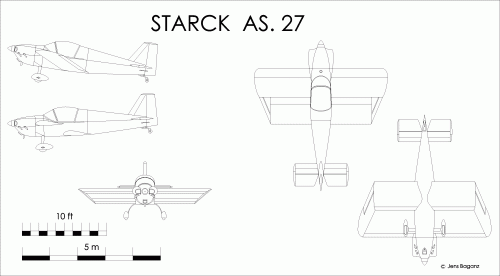

Attached a drawing of the AS.27.
I once saw a small film of flight tests with the AS.20, in German colours, but couldn't
download it then. Will search again.


Attachments

  • Starck_AS-27.gif
    41.6 KB · Views: 121

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
By the way,


nothing called AS.35,it was AS.37,and here is the AS.07 Stabiplan,I don't know
why they called it biplan (biplane),and what was the second drawing,it was a
sailplane,and not related to first one.


http://www.rexresearch.com/starck/starck.htm


Attachments

  • AS-07.jpg
    26.6 KB · Views: 657
  • AS-07 3-view.jpg
    AS-07 3-view.jpg
    39.5 KB · Views: 80
  • AS-37.jpg
    128.6 KB · Views: 94

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

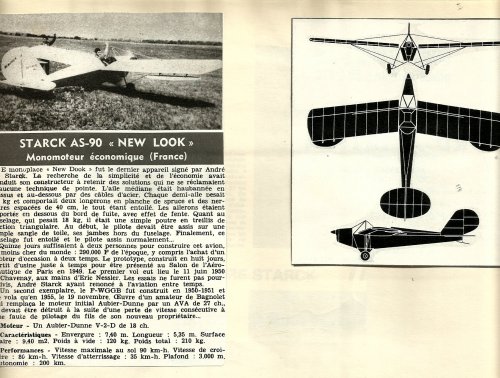

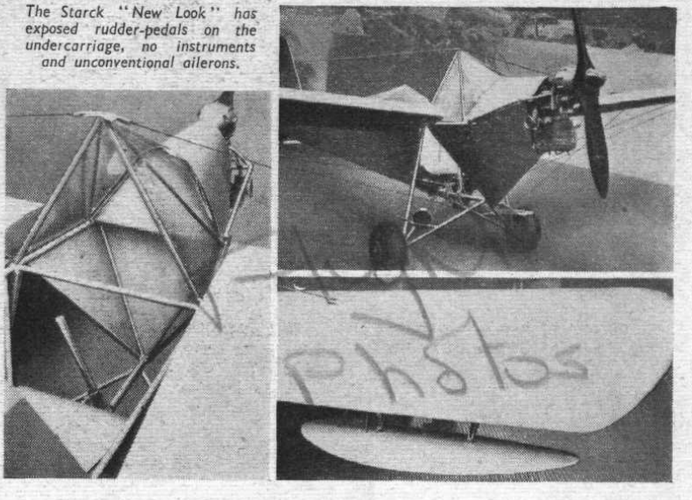

Hi hesham, the first youve posted actually is the AS.90 "New Look", not the AS.07.
On the site you gave the link for, you'll find this link http://www.macla.fr/Projet%20%20Stark%20AS90.html
alongside the wrong labelled photo (actually, the link already has the correct name in it !)
And the real AS.07 actually is a kind of biplane ! ;)


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139

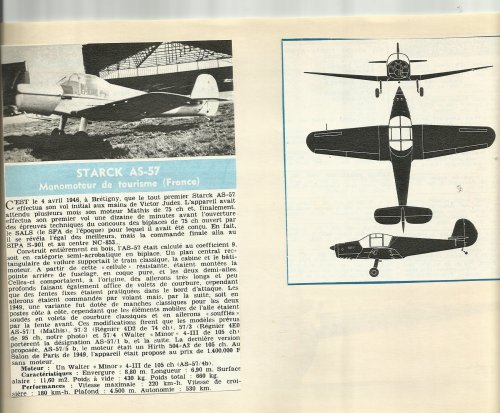

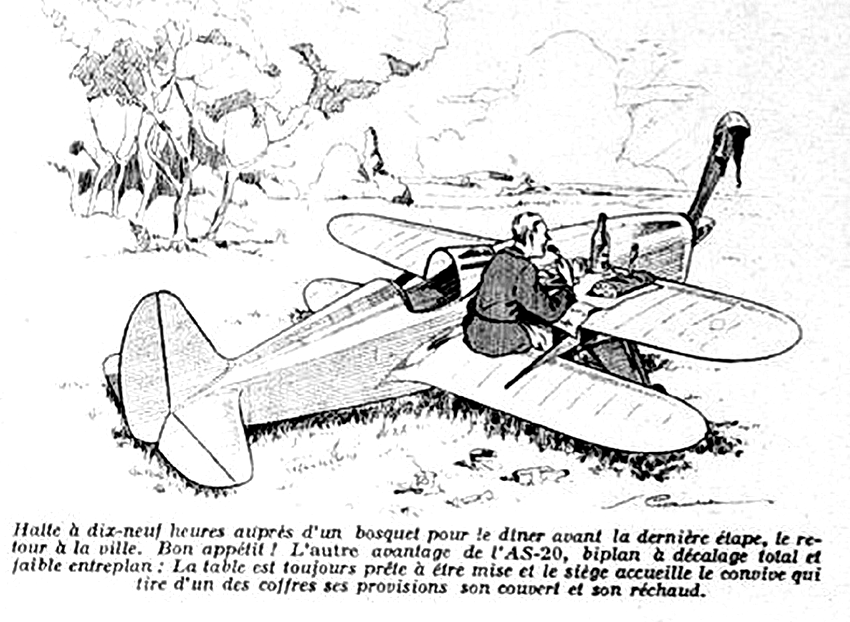

from "aviation magazine"


Attachments

  • starck as 37.jpg
    starck as 37.jpg
    404.1 KB · Views: 103
  • starck as 20.jpg
    starck as 20.jpg
    566.5 KB · Views: 100
  • starck as 17.jpg
    starck as 17.jpg
    336.7 KB · Views: 90

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139

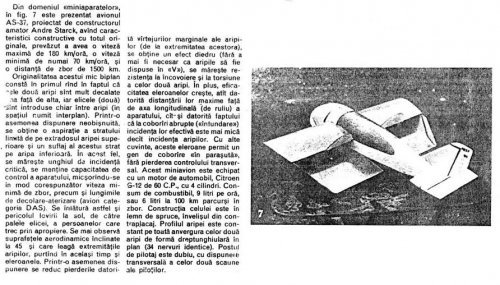

aviation magazine


Attachments

  • as 37.jpg
    as 37.jpg
    287.4 KB · Views: 83
  • as 57.jpg
    as 57.jpg
    622.5 KB · Views: 88

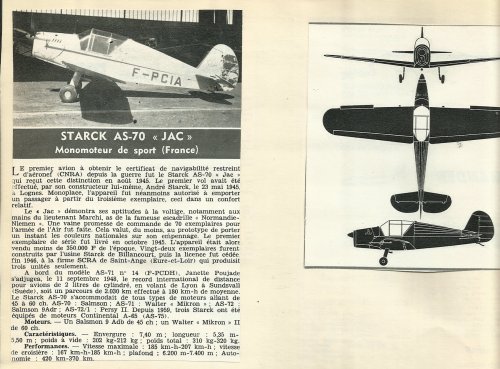

  • as 70.jpg
    as 70.jpg
    575.5 KB · Views: 80

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
OK my dear Jemiba,


I speak generally,nothing called AS.35.


Great thanks to my dear Toura,and does any know AS.47 ?,I think it was not a project.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
always "aviation magazine"


Attachments

  • sharck as 90.jpg
    sharck as 90.jpg
    605.1 KB · Views: 679

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

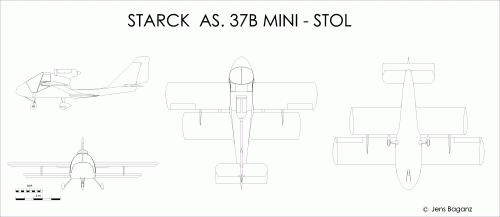

There were two more versions of the AS.37. The AS.37B with a Porsche engine, recognisable
by the cooling intakes, and the AS.37 MINI STOL, a more radical modification with a single pusher
prop behind the cockpit, necessitating a much lower rear fuselage.


Attachments

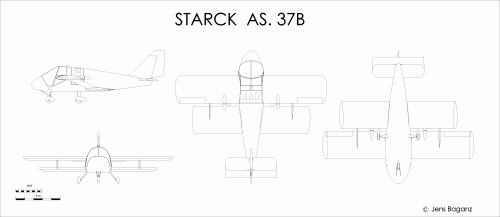

  • Starck_AS-37B_Mini-STOL.gif
    58.5 KB · Views: 544
  • Starck_AS-37B.gif
    55.8 KB · Views: 569

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Retrofit said:
Some details concerning the first Nenadovich biplane type aircraft built by André Starck, the AS-20:
1st flight: Oct 23, 1942 (during the German occupation of France, hence the German markings)
Span: 5,84m; Lenght: 5,30m; Wing area: 8m2; EW: 226kg; TW: 373kg; Max speed: 240 km/h; Ceiling: 7500m; Engine: 1 x Régnier 4D2, 74hp.

Photo source: LuftAchiv.de
3V drawing: ukn

Philippe


And from Aerophile magazine.


Attachments

  • AS-20.JPG
    73.7 KB · Views: 454
  • AS-20   2.JPG
    AS-20 2.JPG
    39.7 KB · Views: 436
  • AS-20   3.JPG
    AS-20 3.JPG
    70.1 KB · Views: 120

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
304
Reaction score
120
AS.37b (F-PYLM) and AS.57 (F-PEAY) are in storage in the reserve collection of Espace Air Passion at Angers-Marcé (q.v. http://www.musee-aviation-angers.fr/collections/avions-et-voilures-tournantes/).


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
Not qiute correct to post it here, as the design is from 1943, but as the AS.20 is mentioned here, too,
and a French project from that time probably wouldn't have taken to the air before the end of the war,
I'll post it here:
The AS.30, mentioned here http://www.secretprojects.co.uk/forum/index.php/topic,19129.msg187861.html#msg187861
by hesham, was a two-seat light a/c, similar to the earlier AS.20, but with a 90 hp Polymechanique engine, enclosed
cockpit and tricycle landing gear. Span was 6,90 m, loaded weight 562 kg and max. speed 225 km/h.
The short text isn't quite clear, if it purely remained a project, or if construction was started and maybe
even finished
(From The Aeroplane Spotter 23rd of September 1943)


Attachments

  • Starck_AS-30.jpg
    80.6 KB · Views: 100

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

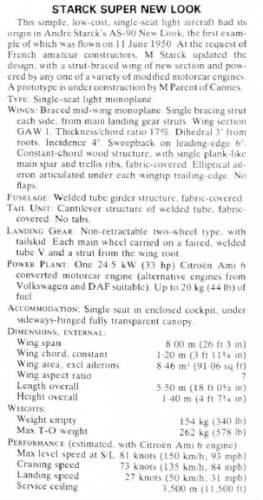

Hi,

there is anther aircraft developed from AS.90 called Super New Look.

Jane's All the World's Aircraft 1982-1983


Attachments

  • 1.png
    123.8 KB · Views: 73

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
156

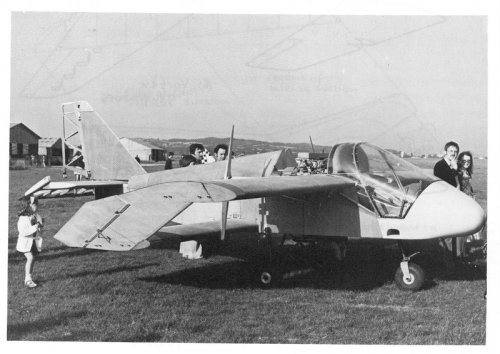

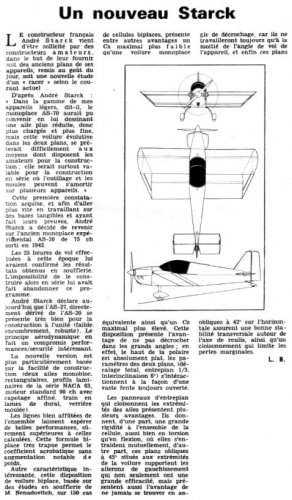

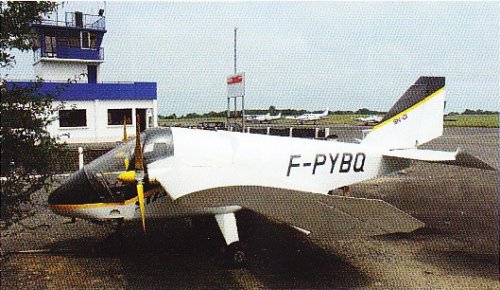

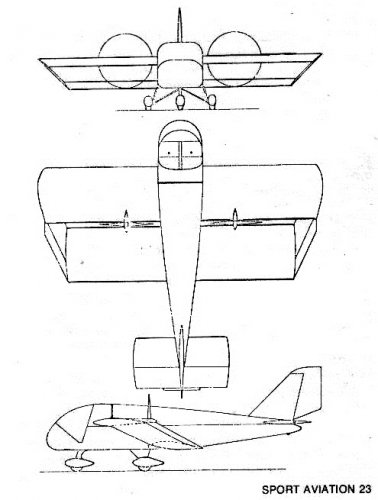

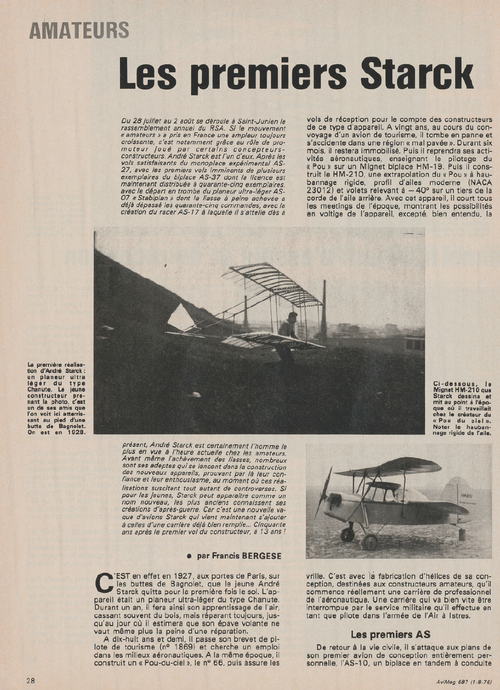

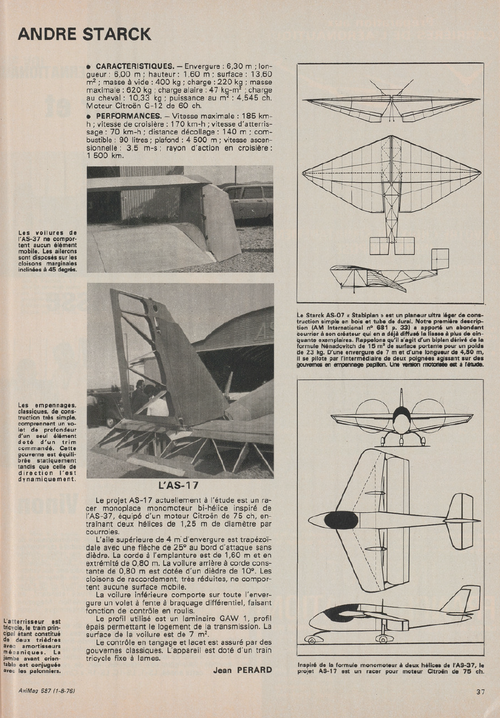

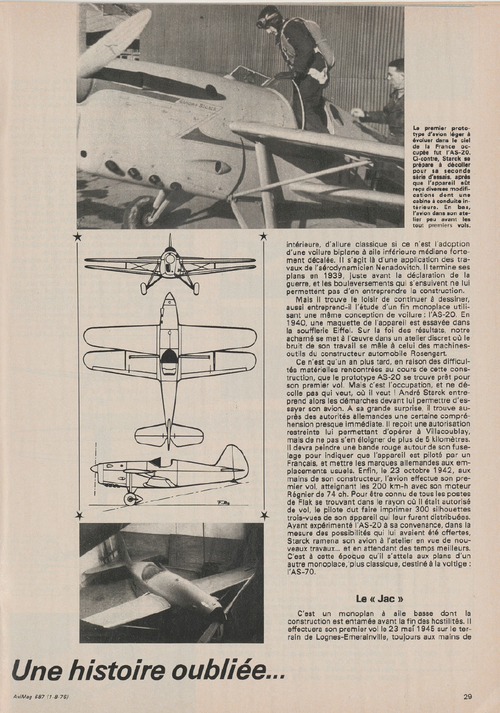

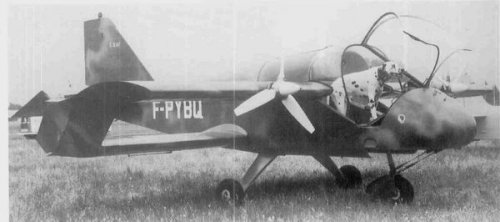

Here-under 2 profiles published in the two-issue "Avions Hors serie" magazine this year "Les avions francais aux couleurs allemandes durant la seconde guerre mondiale / French aircraft under German colors during WW2" by Philippe Ricco (Tremendous work and stunning color profiles. Highly recommended!)

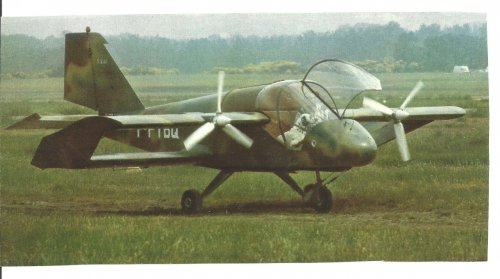

Concerning the Starck 37 F-PYBQ built by Rudolf Nickel, this aircraft has been donated in December 2015 to the Musée Régional de l'Air d'Angers (www.musee-aviation-angers.fr) where it will be on display soon.
Also attached a photo of the Stark AS-70 n°2 F-PBGI (original photo: Jean Bretaud).
This 3 photos were published in the "Magazine du Musée Régional de l'Air" n° 126 -Spring 2016


Attachments

  • IMG_0011.jpg
    213.8 KB · Views: 68
  • IMG_0010.jpg
    123.7 KB · Views: 67
  • IMG_0010z.jpg
    313.5 KB · Views: 85
  • IMG.jpg
    302.7 KB · Views: 84

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

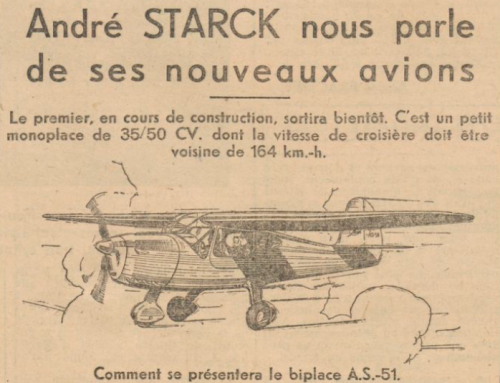

From Ailes Journal 12/1944,

the Starck AS.51.


Attachments

  • 1.png
    642.1 KB · Views: 52
  • 2.png
    539.6 KB · Views: 60

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

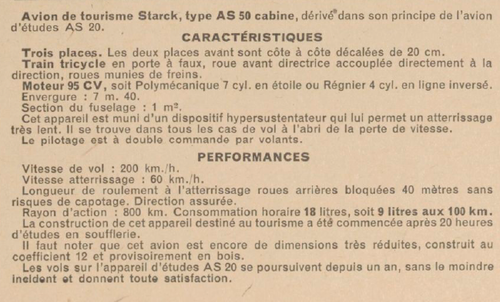

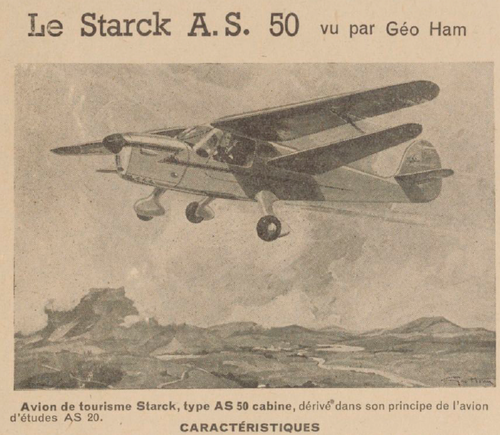

From L'Air Revue 1943,

here is a Starck AS.50 Project.


Attachments

  • 1.png
    571.9 KB · Views: 48
  • 2.png
    377.3 KB · Views: 56

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
170
Reaction score
194

Attachments

  • starck 30 001.png
    starck 30 001.png
    1.8 MB · Views: 38
  • starck 30 006.png
    starck 30 006.png
    2.2 MB · Views: 36
  • starck 30 005.png
    starck 30 005.png
    1.7 MB · Views: 40
  • starck 30 004.png
    starck 30 004.png
    2 MB · Views: 40
  • starck 30 003.png
    starck 30 003.png
    1.9 MB · Views: 41

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
Parenthetical note for anyone who doesn't know.... André Starck was the father of Philippe Starck, the well-known French designer who has done everything from consumer products to major architectural projects.


Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
170
Reaction score
194

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

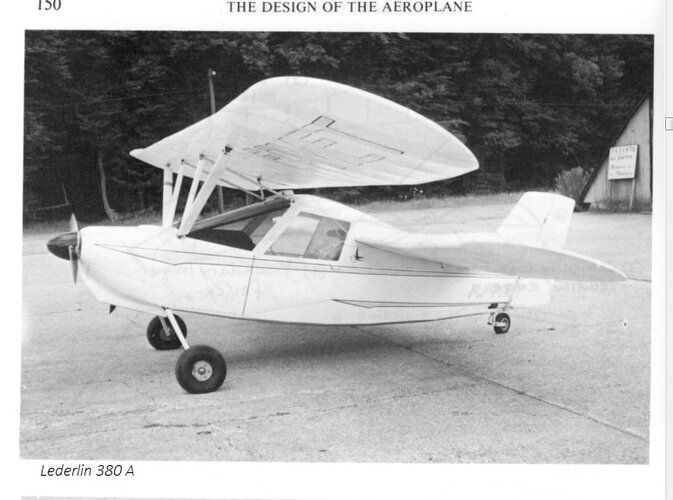

That's a Mignet (Pou du Ciel) layout, without a tailplane, so I would rather regard it as a tandem wing design,
whereas for the Starck designs, having a tailplane, I would lean to staggered biplane. But you can find both
designations for both types ...
