Amazing Flying Wing Projects,M. Henter from 1930s

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,042
Reaction score
0
Hi,

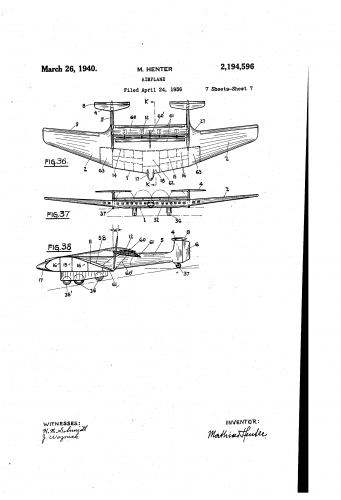

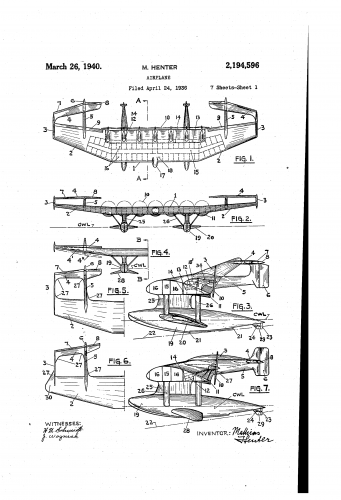

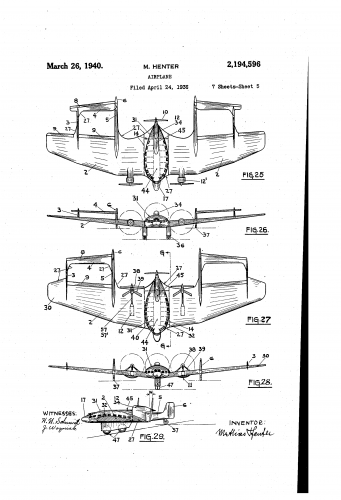

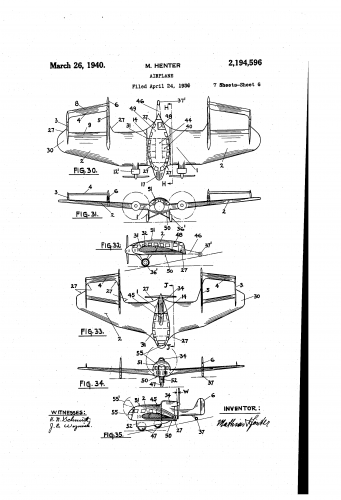

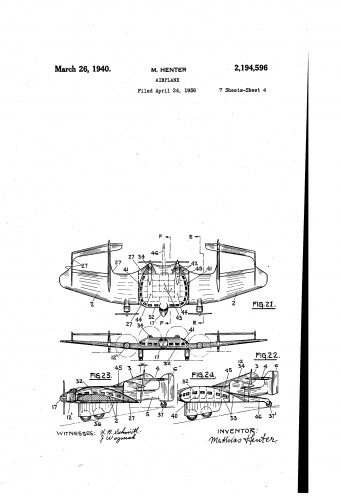

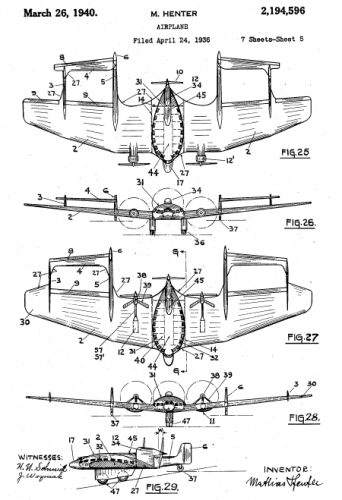

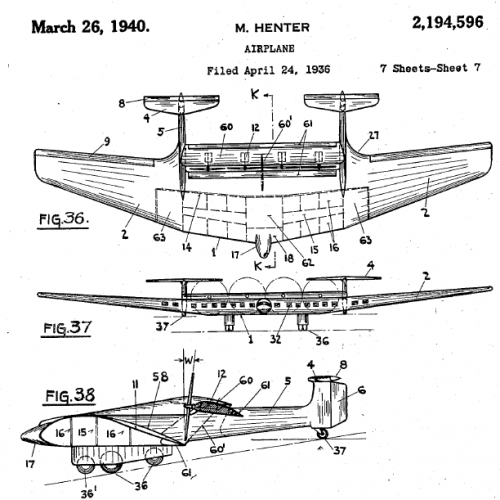

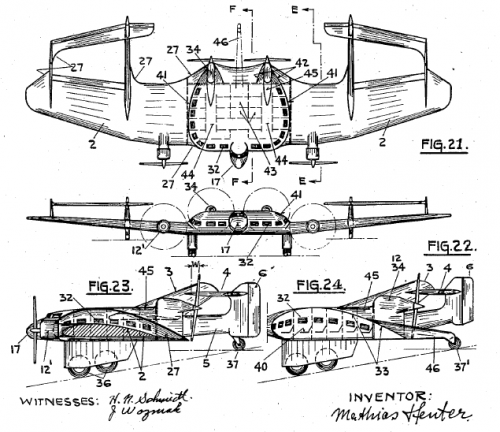

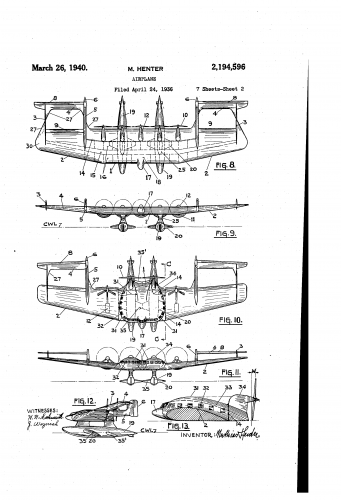

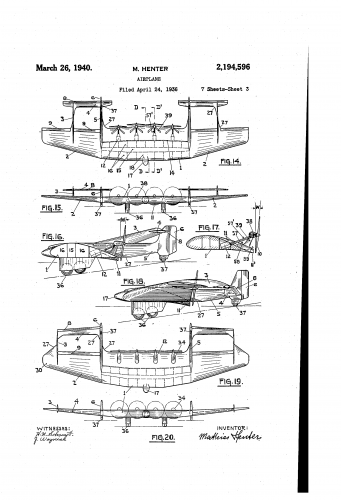

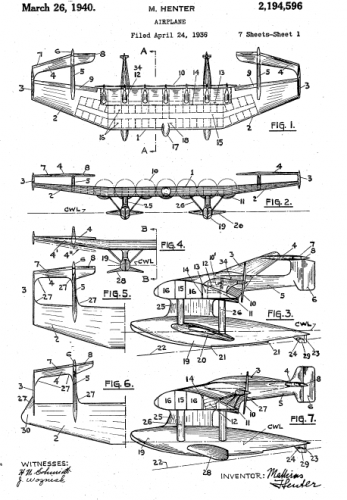

please see those amazing flying wing Projects,designed by M. Henter during 1930s.

https://www.google.com/patents/US2194596?dq=M.+Henter+airplane&hl=ar&sa=X&ved=0ahUKEwi0gtLWj-PUAhVCXRoKHT8yB9UQ6AEIJjAA


Attachments

Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,138
Reaction score
0
The list of badly-conceived flying wing designs in patents seems to be endless ::)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,042
Reaction score
0
Via my dear Tophe,

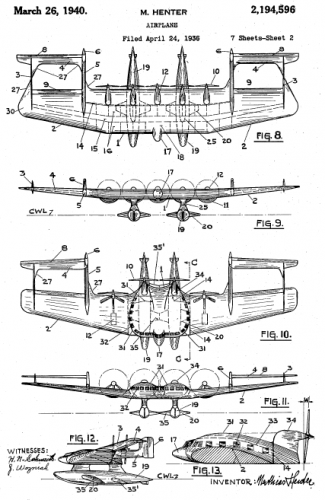

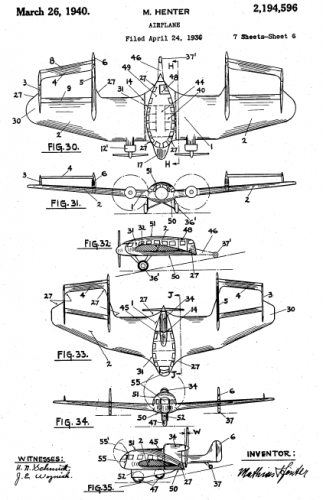

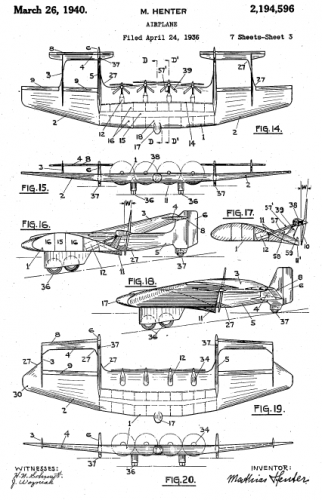

a clearer views.

https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=US&NR=2194596A&KC=A&FT=D&ND=3&date=19400326&DB=&locale=en_EP


Attachments

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,873
Reaction score
0
Schneiderman said:
The list of badly-conceived flying wing designs in patents seems to be endless ::)
Hello Sir - what do you find to be badly-conceived about these designs?

They appear like they would be quite able to fly (even if they'd have less than optimal efficiency).


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,873
Reaction score
0
Schneiderman said:
Are you serious?
Yeah, except for the landing gear configuration / float volume. I don't see any reason why these designs couldn't fly.


John Frazer

I really should change my personal text
Joined
Jan 1, 2018
Messages
9
Reaction score
0
It wold be interesting to see how they behave.One thing which wold help is some way to blow a prop or two over each rudder. Embedded engines and prop units above the wing wold do this.

Tails are what "all-wing" designs need, and most of these have tails.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,042
Reaction score
0
John Frazer said:
It wold be interesting to see how they behave.One thing which wold help is some way to blow a prop or two over each rudder. Embedded engines and prop units above the wing wold do this.

Tails are what "all-wing" designs need, and most of these have tails.
Good question.


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
536
Reaction score
0
Schneiderman said:
The list of badly-conceived flying wing designs in patents seems to be endless ::)
Well, some concepts have been re-used both by Boeing-NASA on the "C-Wing" (McMaster-Paisley-Hubert-Kroo-Bofah-Sullivan-Drela) and by Synergy Aircraft

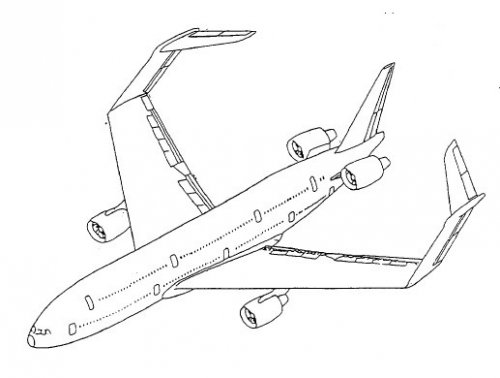

C-Wing:
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19970003675.pdf

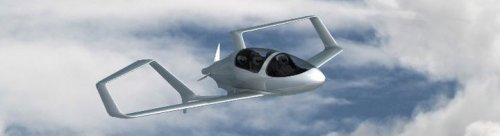

McGinnis Synergy:
http://synergyaircraft.com/


Attachments
