Alexander Lippisch's weird designs for Collins

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891
If there is one word that really can't apply to Alexander M. Lippisch at any point in his long-enduring and all-the-way fascinating career, it certainly is "conventional." Whether under the Luftwaffe's auspices, in post-war America or back in Germany later in his life, Lippisch's designs were everything but conventional.

Yet it seems that the designs he developed while working for the Collins Radio Company (an unlikely player in the 1950s aerospace scene) were especially weird, sometimes corny, even wacky...

I have gone through the various patents that were granted to Collins for Lippisch's designs and tried to extract the essence of each set of plans into single-image downloads. I will also give the full link to the complete patent for each of them.

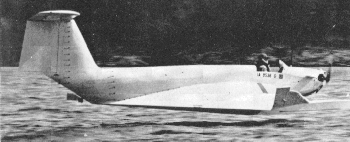

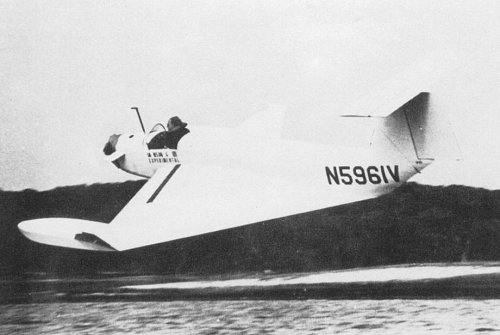

Most famous, most practical and most copied of all of Lippisch's Collins designs was the X-112, the only one that actually got built and flown. We've already got a topic on this forum about the designs that it has inspired up to this day: http://www.secretprojects.co.uk/forum/index.php/topic,4913.0

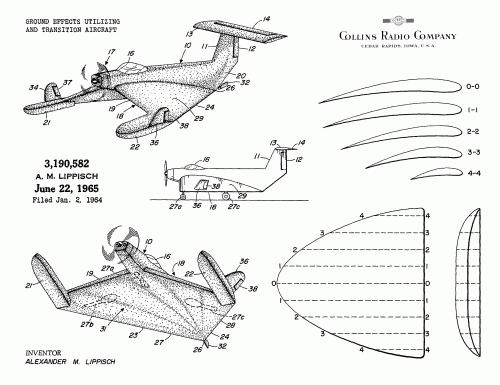

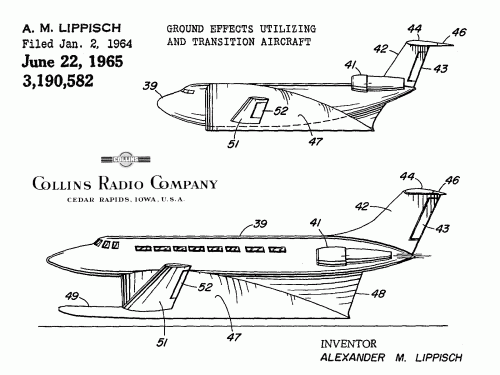

Original patent here, as GROUND EFFECTS UTILIZING AND TRANSITION AIRCRAFT: http://www.google.com/patents/US3190582


Attachments

  • 3190582 art.gif
    3190582 art.gif
    105.7 KB · Views: 403
  • x112.jpg
    6.1 KB · Views: 404
  • X-112.jpg
    127.7 KB · Views: 358
  • x112_1.gif
    29.3 KB · Views: 354

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

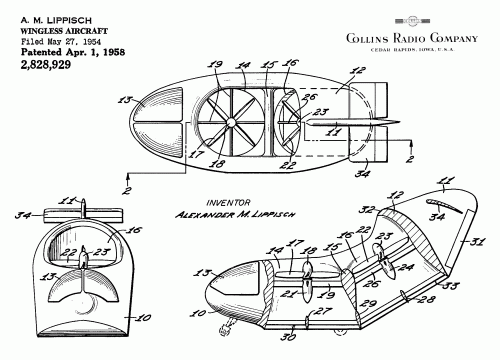

Be warned: we are now entering a world of ever weirder designs. This one, simply entitled WINGLESS AIRCRAFT, looks more like a sock (in my son's own words) than an aircraft per se...

Original patent online: http://www.google.com/patents/US2828929


Attachments

  • 2828929 art.gif
    2828929 art.gif
    77.3 KB · Views: 343

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

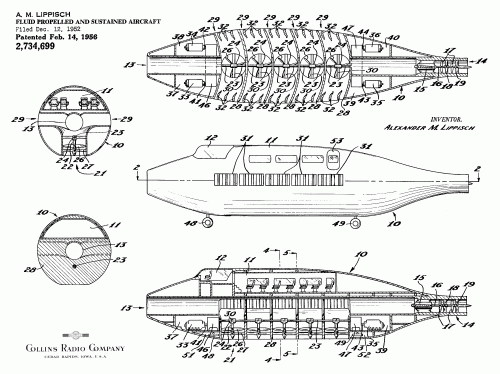

The design called FLUID PROPELLED AND SUSTAINED AIRCRAFT (note inversion of adjectives from previous entry) was basically a big flying tunnel transport using five lift-fans for VTOL capability and a turbine in the rear for forward propulsion. How lateral motion could be achieved in unclear...

Original patent: http://www.google.com/patents/US2734699


Attachments

  • 2734699 art.gif
    2734699 art.gif
    153.5 KB · Views: 90

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

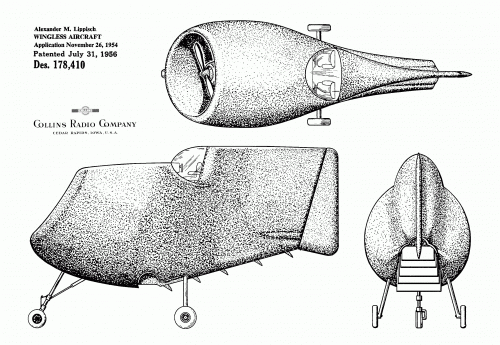

Can it get any weirder than this second WINGLESS AIRCRAFT?? Wonder what's more scary: that someone can come up with such a weird-looking device, or that a company was willing to finance the project and perhaps even build it at some point!?

Original patent: http://www.google.com/patents/USD178410


Attachments

  • 178410 art.gif
    178410 art.gif
    193.7 KB · Views: 94

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

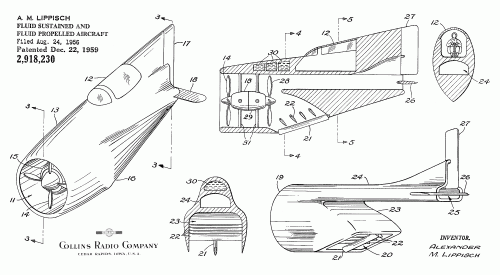

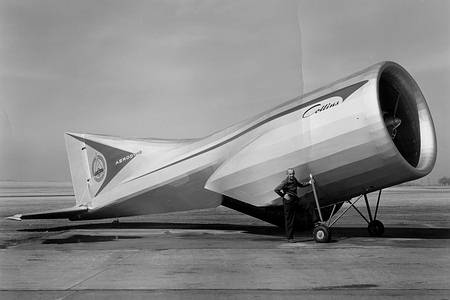

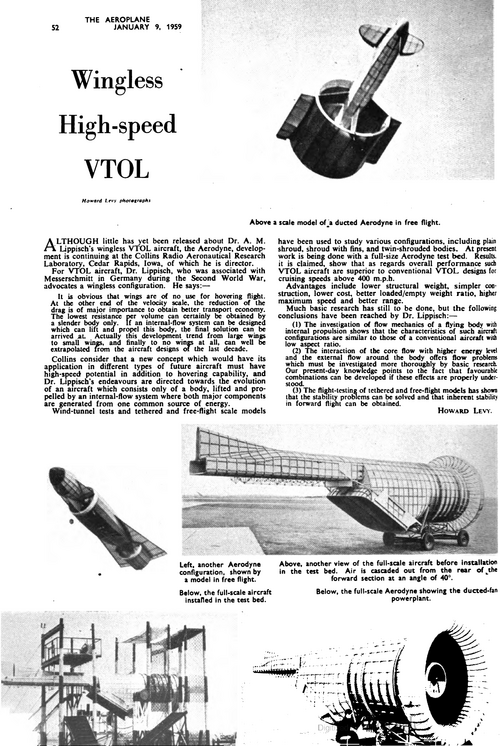

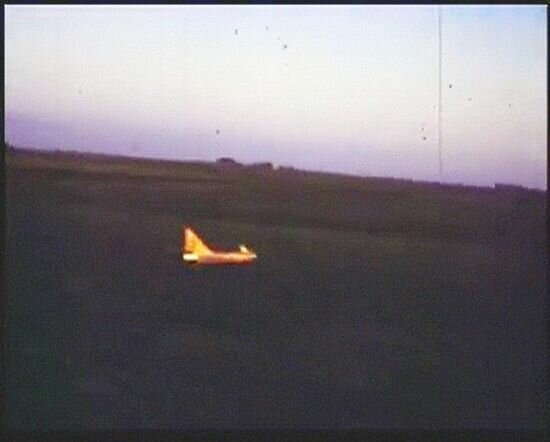

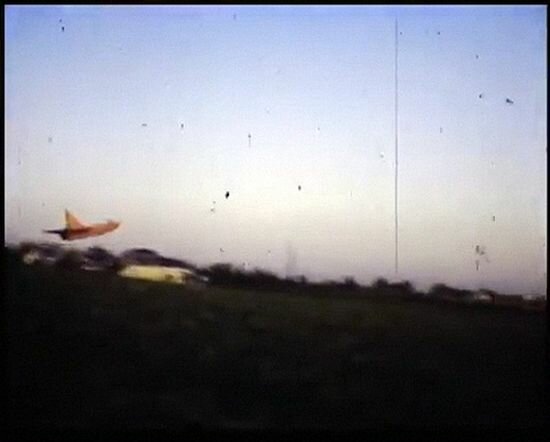

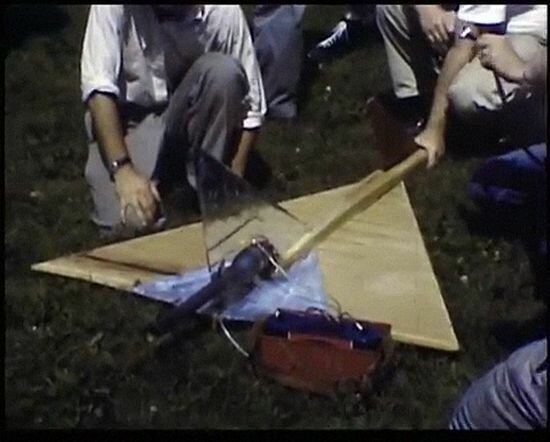

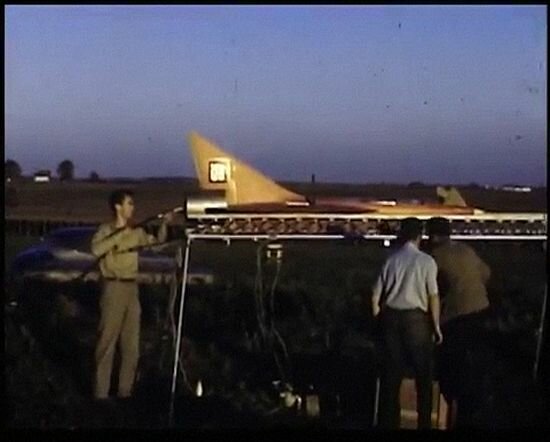

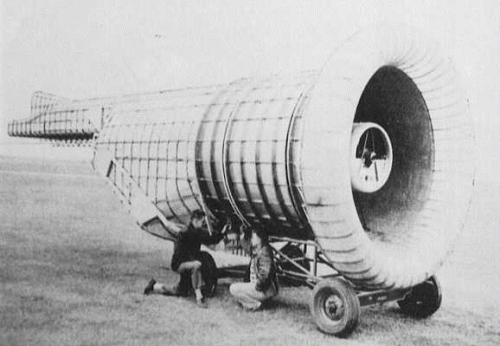

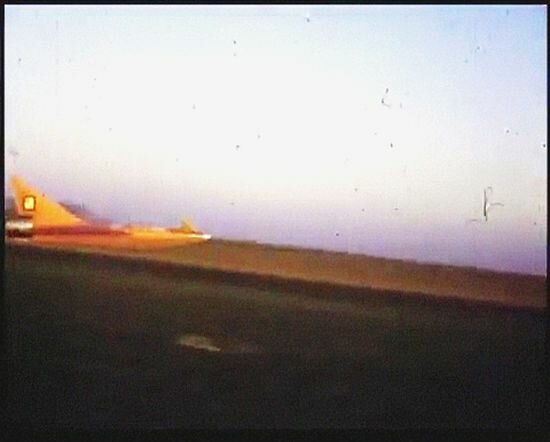

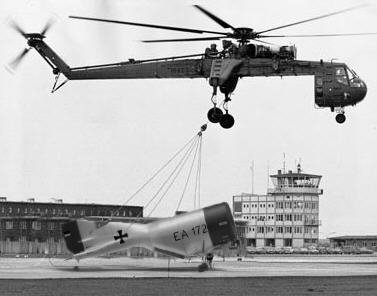

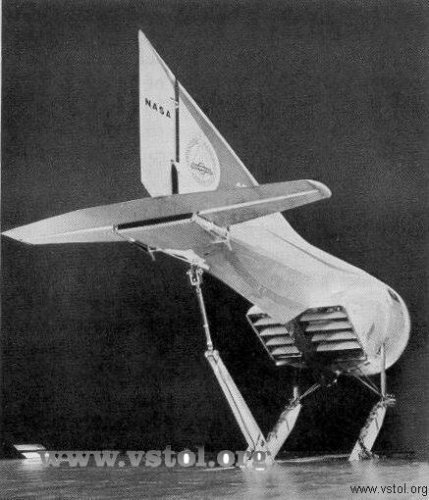

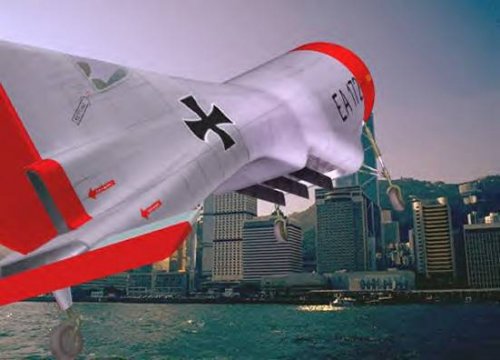

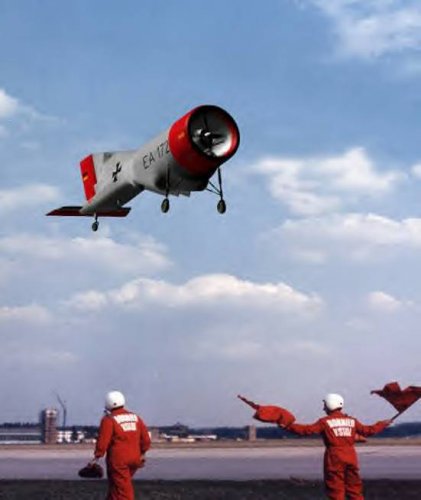

The other pretty well-known Lippisch design for Aerodyne (one which in fact almost got flown) was his first Aerodyne, here being another FLUID SUSTAINED AND FLUID PROPELLED AIRCRAFT. I'm also enclosing pics of the test articles and some CGI found on the web.

Original patent: http://www.google.com/patents/US2918230


Attachments

  • fake with S-64.jpg
    fake with S-64.jpg
    16.8 KB · Views: 71
  • lip401[1].jpg
    43.9 KB · Views: 65
  • lip31[1] (2).jpg
    lip31[1] (2).jpg
    23.6 KB · Views: 64
  • lip30[1] (2).jpg
    lip30[1] (2).jpg
    26.1 KB · Views: 66
  • nas1.jpg
    41.7 KB · Views: 60
  • lip24.gif
    180.1 KB · Views: 60
  • lip22.png
    108.2 KB · Views: 79
  • Aerodyne patent art.gif
    Aerodyne patent art.gif
    107.9 KB · Views: 88

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

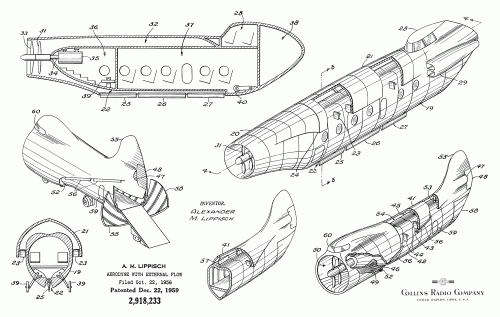

Lippisch's Aerodyne concept was envisaged for a number of uses, both civilian and military. Here is the AERODYNE WITH EXTERNAL FLOW patent for a passenger transport version. Of course you'd have first to convince potential travellers that flying in a plane without wings is safe...

Original patent: http://www.google.com/patents/US2918233


Attachments

  • Aerodyne transport patent art.gif
    Aerodyne transport patent art.gif
    185 KB · Views: 90

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

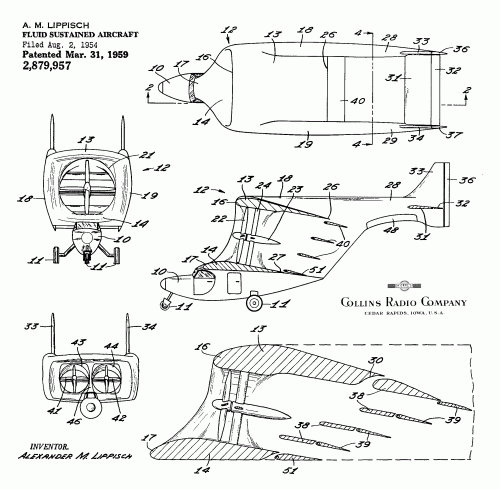

Now face it: if such an aircraft project as this FLUID SUSTAINED AIRCRAFT had been conceived in anyone else's mind, you would seriously doubt its chances at flying... But coming from the guy who invented the delta jet and widely contributed to its development, well... it probably would have flown, if anyone had been crazy enough to think it had a commercial future!

Original patent: http://www.google.com/patents/US2879957


Attachments

  • 2879957 art.gif
    2879957 art.gif
    101.3 KB · Views: 89

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

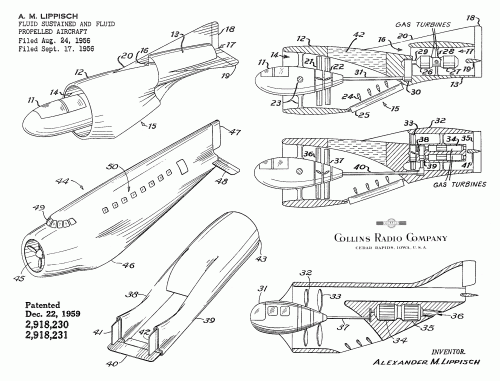

This FLUID SUSTAINED AND FLUID PROPELLED AIRCRAFT composite picture is made up of elements from two separate patents (one of them being that of the Aerodyne) and depicts alternate Aerodyne configurations.

Original patents:
http://www.google.com/patents/US2918230
http://www.google.com/patents/US2918231


Attachments

  • 2918231 art.gif
    2918231 art.gif
    139.4 KB · Views: 95

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

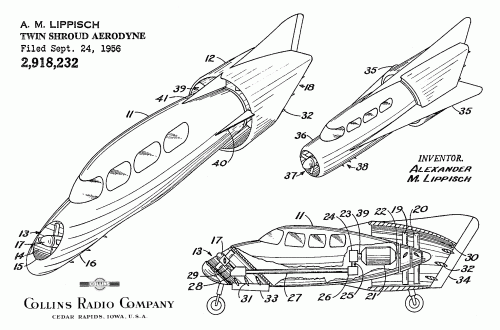

More aesthetically pleasing was this TWIN SHROUD AERODYNE, of which two possible configurations are shown.

Original patent: http://www.google.com/patents/US2918232


Attachments

  • 2918232 art.gif
    2918232 art.gif
    68.6 KB · Views: 94

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
891

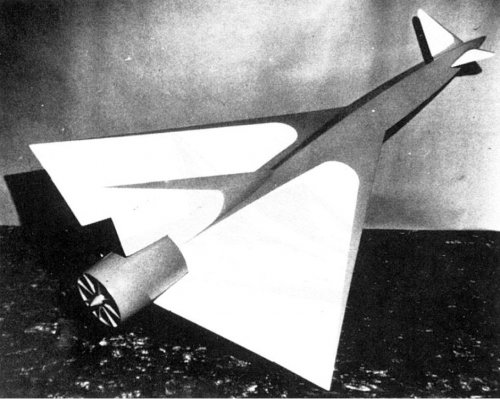

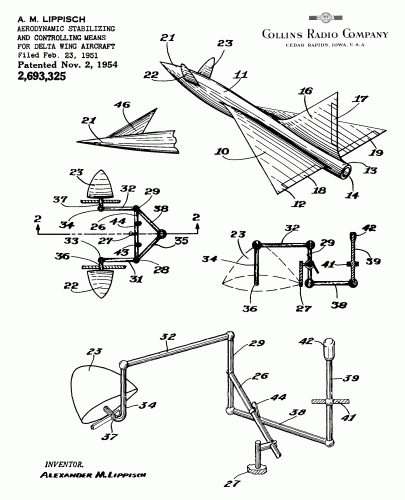

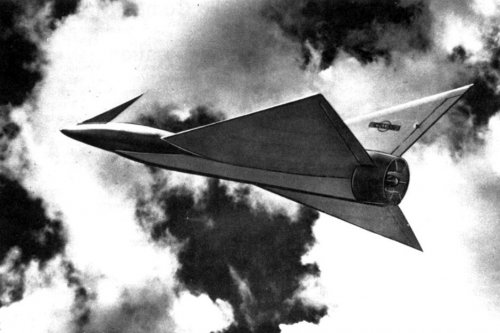

As a bonus, another Lippisch patent for Collins, AERODYNAMIC AND CONTROLLING MEANS FOR DELTA WING AIRCRAFT, which deals with an unusual canard arrangement for a delta wing fighter. I'm also adding two photos of models showing that configuration.

Original patent: http://www.google.com/patents/US2693325


Attachments

  • 2693325 art.gif
    2693325 art.gif
    95.2 KB · Views: 87
  • lp1.jpg
    163.3 KB · Views: 81
  • lp2.jpg
    118.8 KB · Views: 87

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,097
Reaction score
1,219
Excellent. Helps me remember what a gold mine this site really is.
