Airspeed AS.31 aka Airspeed F.35/35. Does anybody know more about it?


Attachments

  • as31col.jpg
    18.4 KB · Views: 749

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
"The British specification 35/35 was for an experimental high-speed aircraft with the option of turning it in to an 8-gun fighter, as in the Hurricane & Spitfire. There were four firms who replied to this specification the most un-conventional was the Airspeed A.S.31 which was a tractor monoplane in which the tailplane, on twin metal booms, carried the pilot in an eggshaped nacelle. No rudder or fin surface was indicated on the general arrangement drawing. Split flaps were fitted across the trailing edge of the wing between the booms, with wide-span ailerons outboard of the booms. A widetrack undercarriage was depicted . The aircraft was to be powered by a Rolls-Royce Merlin E engine. No details of its potential performance are recorded. Its wing span was 33 ft. and its length 29.5 ft.
The other contenders were the Bristol 151 single seat monoplane, powered by a Bristol Hercules engine. Its speed, with 100-octane fuel, was estimated to be 440mph. The General Aircraft GAL.28 was a single-seat aircraft , powered by a single Hercules engine, with a wing of variable area. The Hawker design was a Hurricane variant.
The Specification not proceeded with."
excerpt from:http://unusual british aircraft.htm/
Drawing I.SHESTAKOVA from Unicraft Models ? ;)


Attachments

  • AS-31.jpg
    12.6 KB · Views: 606

kampfflieger

ACCESS: Restricted
Joined
Apr 29, 2007
Messages
47
Reaction score
3
Thank you for information. Yes, it's a Shestakov's drawings:)

Could you tell a right URL? http://unusual british aircraft.htm does not work:(


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888

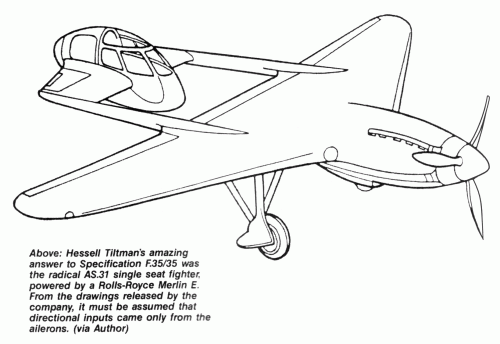

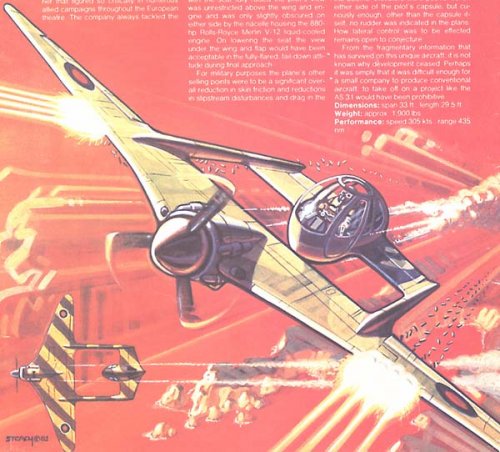

Just came another artist's impression of the Airspeed AS.31 while purging my files. This painting was done by Ken Steacy who also wrote the background article for Canadian Aviation, September 1981.

The dimensions agree with those from John Clarke's site. Other specs are a weight of about 1900 lbs [865 kg[, top speed of 305 kts [350 mph, 563 km/h], range 435 nm [500 miles, 805 km].

According to Steacy, the point of the odd, tail-mounted capsule was to ensure an excellent view for the pilot in both level flight and while landing (for which the seat was lowered).

For a Merlin (listed as 880 hp), the exhaust arrangement seems odd.


Attachments

  • airspeed-as31.jpg
    71.6 KB · Views: 658

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
76
Reaction score
32
Thank you for nice pictures.

I'm too doubt that empty mass may be 865 kg. Merlin 61 weights 744 kg. Of course, earlier version are lighter, but probably more 600 kg. 8 Brownings weights about 120 kg (without ammo)

So, construction is less 150 kg? Impossible.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
Agreed on weight. Steacy does say "Weight approx. 1,900 Lbs". But both Hurricane I and Spitfire I weighed over 4500 lbs empty.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324

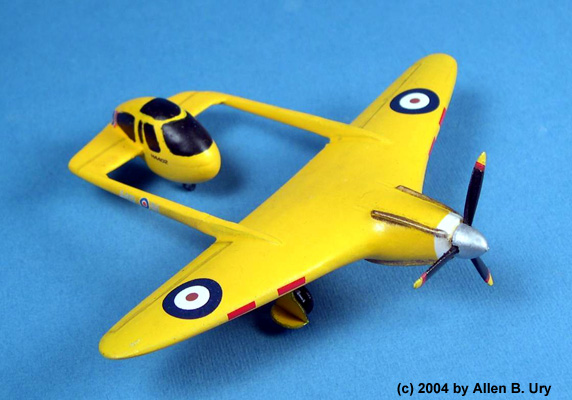

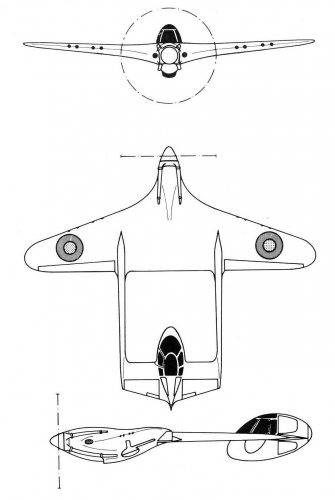

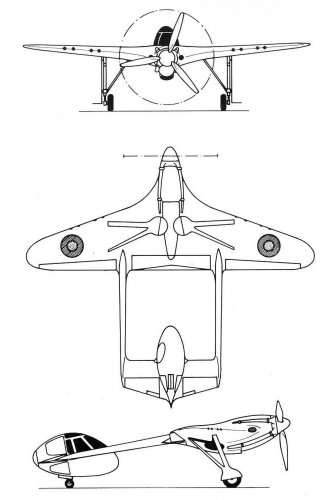

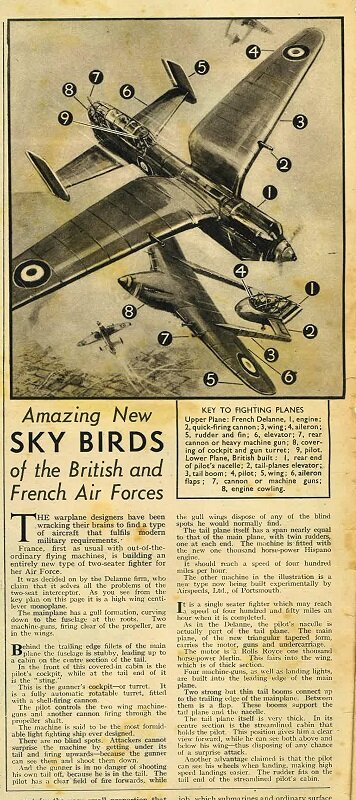

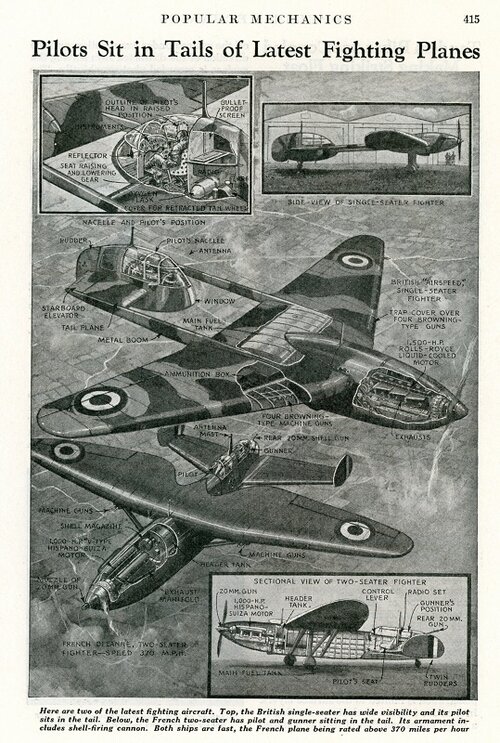

...some new details...


Attachments

  • Airspeed AS-31-1.jpg
    Airspeed AS-31-1.jpg
    1.2 MB · Views: 583
  • Airspeed AS-31-2.jpg
    Airspeed AS-31-2.jpg
    219.7 KB · Views: 513
  • Airspeed AS-31-3.jpg
    Airspeed AS-31-3.jpg
    282.3 KB · Views: 133

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324

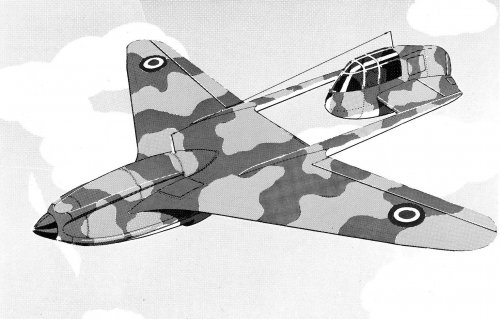

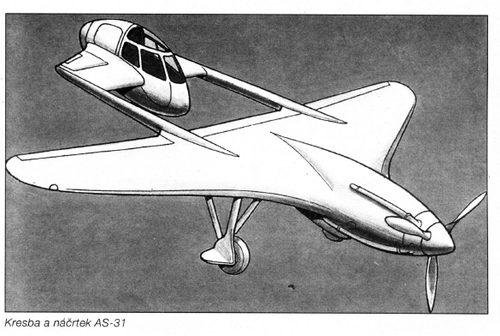

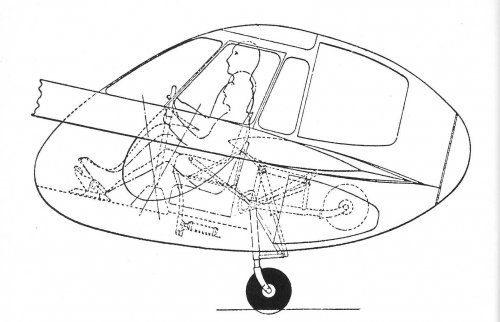

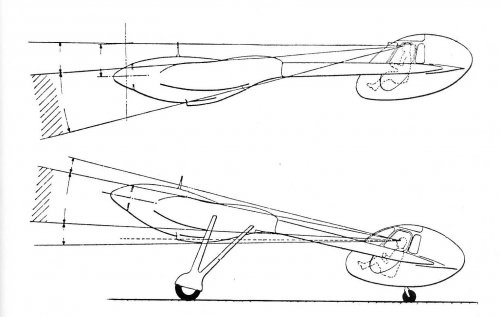

Source: Luftfahrt International Nr-26


Attachments

  • Airspeed AS-31-5.jpg
    Airspeed AS-31-5.jpg
    194.8 KB · Views: 176
  • Airspeed AS-31-4.jpg
    Airspeed AS-31-4.jpg
    172.4 KB · Views: 154

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
It's very surprising to me that, if the AS.31 was really meant to be taken seriously a contender for F.35/35 or any other specification, Airspeed did not gin up some sort of proof of concept. An Airspeed Courier or a Miles or Percival monoplane of the time could have served as the basis for such a test vehicle to demonstrate whether or not the whole scheme had merit. Was something like that ever done?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,722
Reaction score
499
AS.31

Rarely has there been such a strange and ingeniously original aircraft project as the AS.31 fighter. This was a tractor monoplane, powered by an 880 hp Rolls-Royce Merlin E twelve-cylinder vee liquid-cooled engine, in which the tailplane, on twin tubular metal booms, carried the pilot in an egg-shaped streamlined nacelle. It was designed to meet Air Ministry specification F.35/35 and was the subject of Patent No. 470650 in the names of Airspeed and A.H. Tiltman. Amongst the advantages claimed for military purposes were a reduction in slipstream disturbance and drag in the area immediately behind the engine and propeller; a reduction in skin friction; and good fighting and flying view provided for the pilot, though this might in practice have been marginal in some circumstances.
Among the features of the AS.31 were a wide-track retractable main undercarriage (unusual still in 1936-era British military aircraft), a tailwheel retracting into the rear part of the pilot's nacelle, and the burying of fuel, oil, armament, coolant-radiators and such items as oxygen bottles in the thick-section cantilever wing. Eight Browning guns were to be buried in the outboard of the booms. Split flaps were fitted across the trailing edge of the wing between the booms, with wide-span ailerons outboard.
Curiously, no rudder or fin surface (apart from the nacelle itself) are indicated in the original prints from which the general arrangement, reproduced here, was developed. In level flight, the pilot's view, with his seat fully raised, was unrestricted above the wing and engine, and was restricted by little more than 9 degrees downwards on either side of the engine-nacelle cowling. With the seat in the lowest position the pilot's view under the wing and flap would probably have been adequate in the fully-flared tail-down attitude but questionable during the final approach and hold-off.

Span 33 ft (10.06 m); length 29 ft 6 in (8.99 m); wing area 195 sq ft (18.1 sq m).
"Airspeed Aircraft since 1931" by H.A. Taylor, Putnam, 1970, p.155.

35/35

High Speed Aircraft (Experimental)
See aircraft types below
File no. 460005/35/RDA.3 (S.36972)
Issued to Tender 7/12/35

This specification, in satisfying Operational Requirement OR.30, included the following statement:- "Since the time of the Schneider Trophy Race the problem of producing an aircraft in which all other qualities are sometimes sacrificed for speed has always been a matter of great importance." It appears that an aircraft armament of eight forward-firing machine guns may have also been a specification requirement.

Four firms responded with project designs to Specification 35/35. The best recorded design is that for the Airspeed AS.31.

The Airspeed A.S.31 was a tractor monoplane in which the tailplane, on twin metal booms, carried the pilot in an egg-shaped nacelle. No rudder or fin surface was indicated on the general arrangement drawing. Split flaps were fitted on the trailing edge of the wing between the booms, with wide-span ailerons outboard of the booms. A wide-track undercarriage was depicted. The aircraft was powered by a Rolls-Royce Merlin E engine. No details of its potential performance are recorded. Its wing span was 33 ft. and its length 29.5 ft.

The Bristol 151 project design is recorde as a high-speed single-seat monoplane, powered by a Bristol Hercules engine. Its speed, with 100 octane fuel, was estimated to be 440 mph.

The General Aircraft GAL.28 design was a single-seat high speed fighter project, powered by a single Hercules engine, with a wing of variable area.

The Hawker design was a Hurricane variant, with its engine coolant radiator duct in line with the leading edge of the mainplane, was recorded as being tendered on 21/2/36/.

-- Specification not proceeded with --
"The British Aircraft Specification File" by KJ Meekcoms & EB Morgan, Air-Britain, 1994, p.217.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Anybody know more about the G.A.L.28? Drawings or technical data...

Thanks Maveric


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
I was about to ask the same thing...
Thanks for the research, Arjen ;)


alfakilo

ACCESS: Confidential
Joined
Oct 18, 2009
Messages
72
Reaction score
5
The effect on the pilot when pulling g's would be interesting, given his location so far behind the wing.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
A beautiful illustration scanned and cleaned up from Flypast, June 1987:


Attachments

  • from Flypast June 1987.gif
    from Flypast June 1987.gif
    236.8 KB · Views: 513

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,479
Hi,

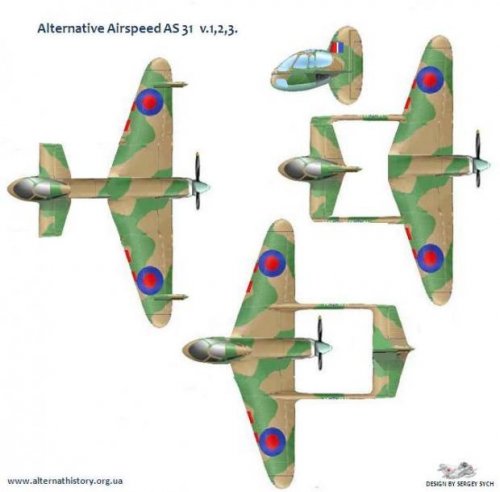

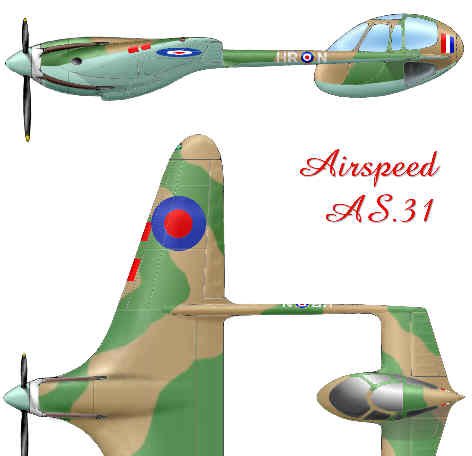

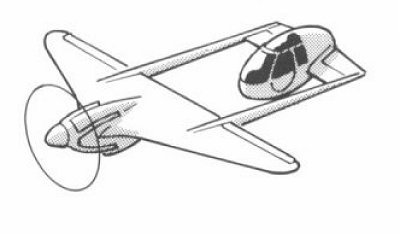

the Airspeed AS.31,V.1,V.2 & V.3.


http://alternathistory.org.ua/taxonomy/term/889


Attachments

  • Airspeed AS31 V.1,V.2 & V.3.JPG
    Airspeed AS31 V.1,V.2 & V.3.JPG
    32.4 KB · Views: 373

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Is there any background for these AS.31 'variants'..

Alternate history always rings a bell to me...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
If I understand the online-translation correctly, it states about those variants, that,
with regards to uncomfirmed information, they could have looked like this.
So it's source grade 1, at best I'm afraid and I would take them with a pinch of salt.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Thanks Jens,

That confirms what I thought..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,479
Via my dear Tophe.


Attachments

  • patent_GB470650A_of_AS31.pdf
    47.4 KB · Views: 42
  • patent_GB470650A-page2.pdf
    606.6 KB · Views: 32

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,441
Reaction score
479
I don't know why the Putnam and others say that the AS31 was to be powered by a Merlin E, the drawings in the patent and company artwork clearly show four exhaust pipes for four banks of cylinders, so most likely intended to be powered by a Vulture. This make sense for an aircraft intended for high speed research


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,775
Reaction score
1,913
I don't know why the Putnam and others say that the AS31 was to be powered by a Merlin E, the drawings in the patent and company artwork clearly show four exhaust pipes for four banks of cylinders, so most likely intended to be powered by a Vulture. This make sense for an aircraft intended for high speed research

Likely was intended for the main production version, if the go-ahead had been given.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,441
Reaction score
479
Likely not. The whole point of the specification was to come up with something superior to current fighters under development (Hurricane, Spitfire and the F.5/34 projects), top speed in excess of 400mph. Sticking a Merlin E in there just reduces it down to an also-ran


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,775
Reaction score
1,913
Wasn't the Merlin E originally supposed to have a higher horsepower rating than the 995hp standard (1,045hp maximum) it ended up with?


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,441
Reaction score
479
Not that I was aware of. It was just one step along the road for the abortive ramp-head Merlins, 'C's with new heads and relocated plugs.
